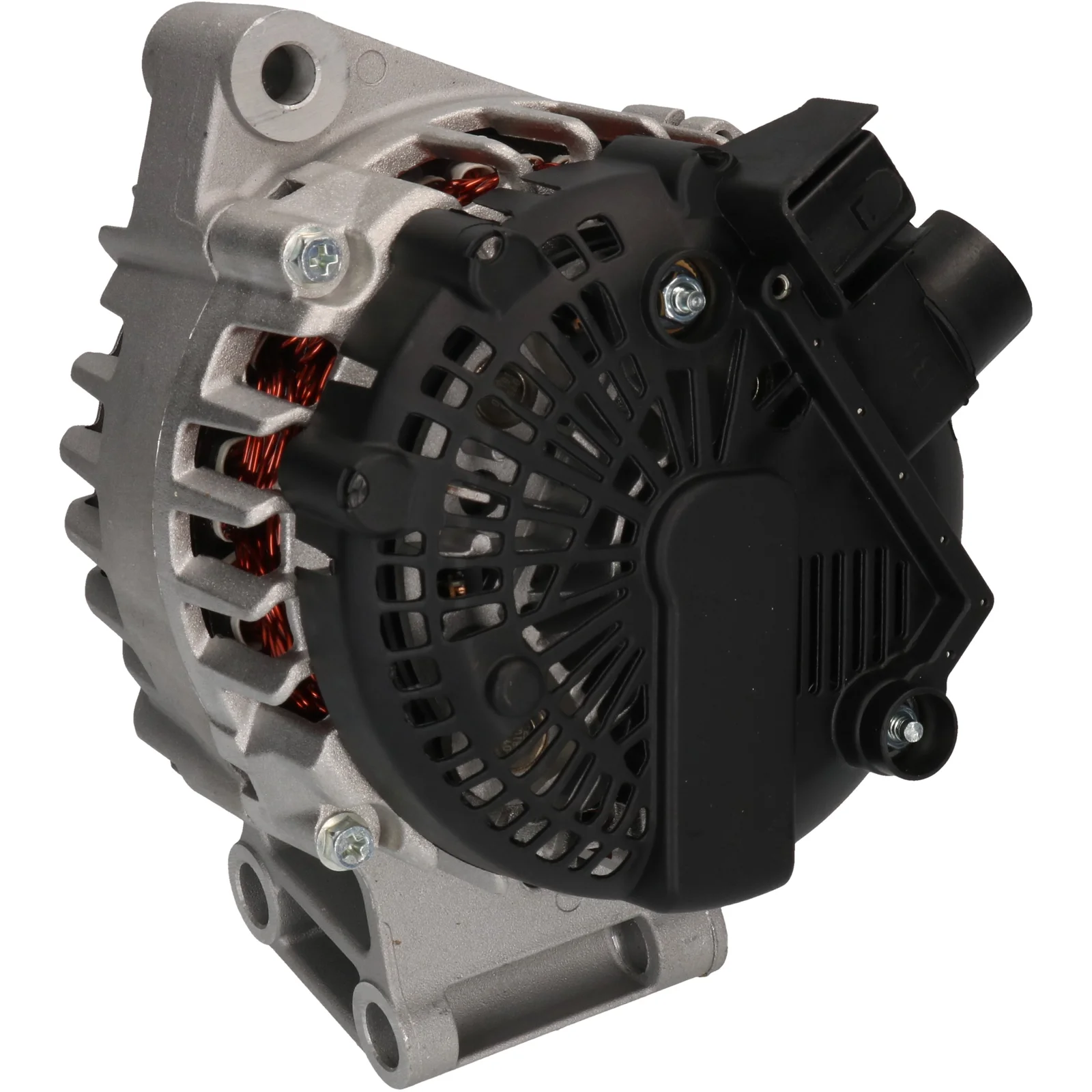

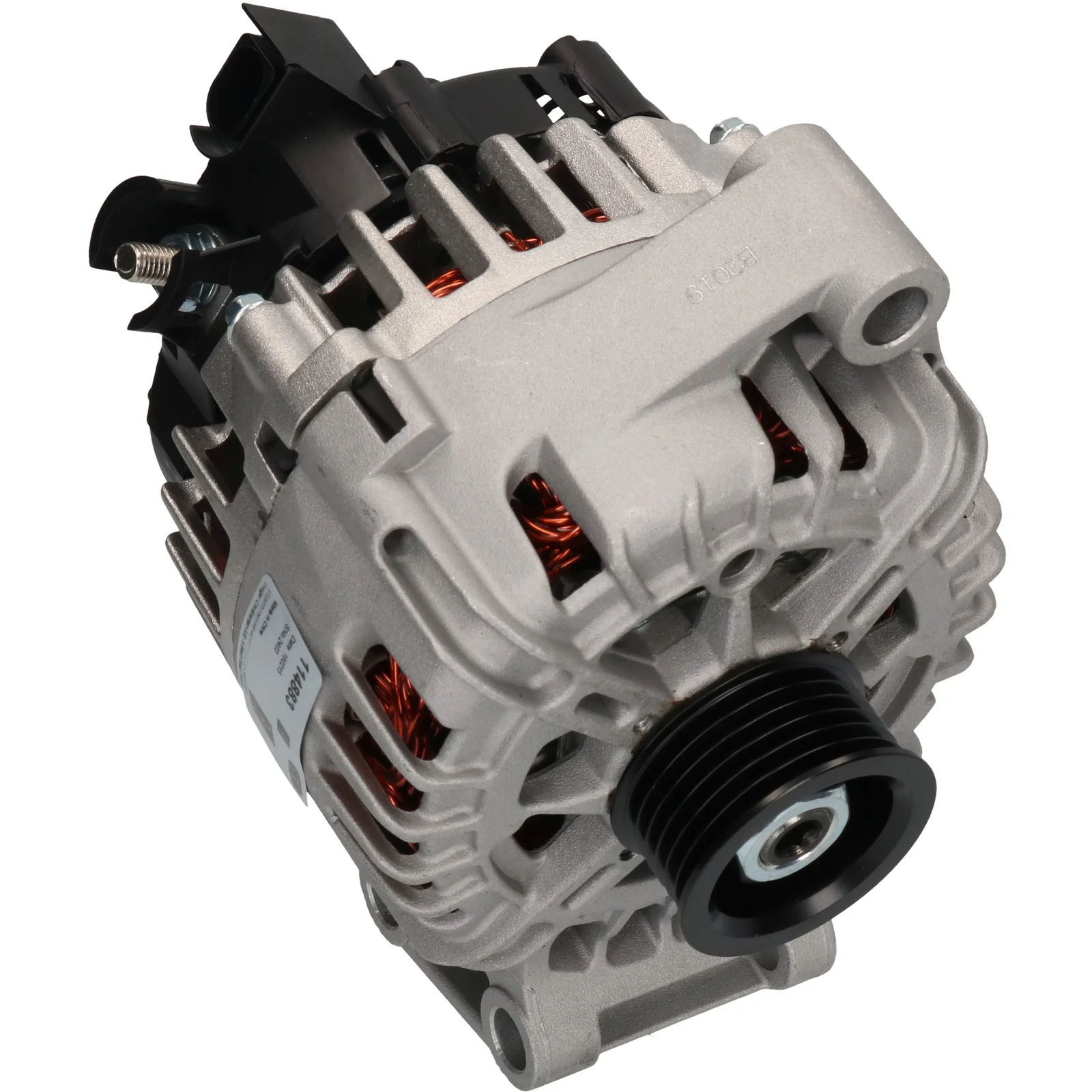

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114883

HC-Cargo Alternator

Technical info:

Voltage: 14, Current: 120, Rotation: CW, Mounting bracket distributor: 52.60

Description

Ford Fiesta/Monde Alternator 12V-120A 12V - 120A, 6-gr (COM) Pulley Ø 49mm 12V - 120A, 6-gr (CDM) Pulley Ø 49mm For Yourrex product order F032114883

Voltage: 14
Amp: 120
Pulley distance: 10.50
Width/holder arm: 72.40
Mounting bracket distance: 52.60
Bracket hole: 13.00
Bracket hole 2: 13.00
Belt. adjustment bracket hole 1: 13.00
Pulley diameter: 49.00
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL174
Total length mm: 177.50
Terminal type: COM
Communication: LIN
Pulley: SP
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    AV6N-10300HA, av6n10300ha, AV6N10300HB, CN1510300CB, CN1510300CC, F032114883, FO 1469714, TG12C 037, TG12C 087, tg12c037, tg12c087, TG12C098, TG12C119, TG12C123, TG12C126, TG12C245, 7G9N-10300CA, 7G9N-10300CC, 7G9N10300CA, 7g9n10300cc, 0986 082 220, 1986A00774, 1986A01204, 2044ir, 114883, 439612, 440135, 1469714, 1685794, 1698214, 1871861, 2265722, 2543426, 2543426a, 2606925B, 2606952, 2606952B

  • Normalised article numbler
    a3129, a3129valeo, av6n10300ha, av6n10300hb, cal15477, cn1510300cb, cn1510300cc, dra0054, dra0054n, f032114883, fo1469714, tg12c037, tg12c087, tg12c098, tg12c119, tg12c123, tg12c126, tg12c245, 7g9n10300ca, 7g9n10300cc, 8el015630091, 8el738213231, 1986a00774, 1986a01204, 2044ir, 4895, 13163n, 24011, 24011n, 24011r, 112554, 112661, 114883, 200207, 210430, 210430a, 285622, 439612, 440135, 446754, 446755, 553286ri, 1469714, 1685794, 1698214, 1871861, 2265722, 2543426, 2543426a, 2606925b, 2606952, 2606952b, 12090249, 32082220, 595585120, 0986082220, 0986087050
  • Description
    Ford Fiesta/Monde Alternator 12V-120A 12V - 120A, 6-gr (COM) Pulley Ø 49mm 12V - 120A, 6-gr (CDM) Pulley Ø 49mm For Yourrex product order F032114883

    Voltage: 14
    Amp: 120
    Pulley distance: 10.50
    Width/holder arm: 72.40
    Mounting bracket distance: 52.60
    Bracket hole: 13.00
    Bracket hole 2: 13.00
    Belt. adjustment bracket hole 1: 13.00
    Pulley diameter: 49.00
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 10
    Rotation: CW
    Plug no.: PL174
    Total length mm: 177.50
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      AV6N-10300HA, av6n10300ha, AV6N10300HB, CN1510300CB, CN1510300CC, F032114883, FO 1469714, TG12C 037, TG12C 087, tg12c037, tg12c087, TG12C098, TG12C119, TG12C123, TG12C126, TG12C245, 7G9N-10300CA, 7G9N-10300CC, 7G9N10300CA, 7g9n10300cc, 0986 082 220, 1986A00774, 1986A01204, 2044ir, 114883, 439612, 440135, 1469714, 1685794, 1698214, 1871861, 2265722, 2543426, 2543426a, 2606925B, 2606952, 2606952B

    • Normalised article numbler
      a3129, a3129valeo, av6n10300ha, av6n10300hb, cal15477, cn1510300cb, cn1510300cc, dra0054, dra0054n, f032114883, fo1469714, tg12c037, tg12c087, tg12c098, tg12c119, tg12c123, tg12c126, tg12c245, 7g9n10300ca, 7g9n10300cc, 8el015630091, 8el738213231, 1986a00774, 1986a01204, 2044ir, 4895, 13163n, 24011, 24011n, 24011r, 112554, 112661, 114883, 200207, 210430, 210430a, 285622, 439612, 440135, 446754, 446755, 553286ri, 1469714, 1685794, 1698214, 1871861, 2265722, 2543426, 2543426a, 2606925b, 2606952, 2606952b, 12090249, 32082220, 595585120, 0986082220, 0986087050
