HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113296

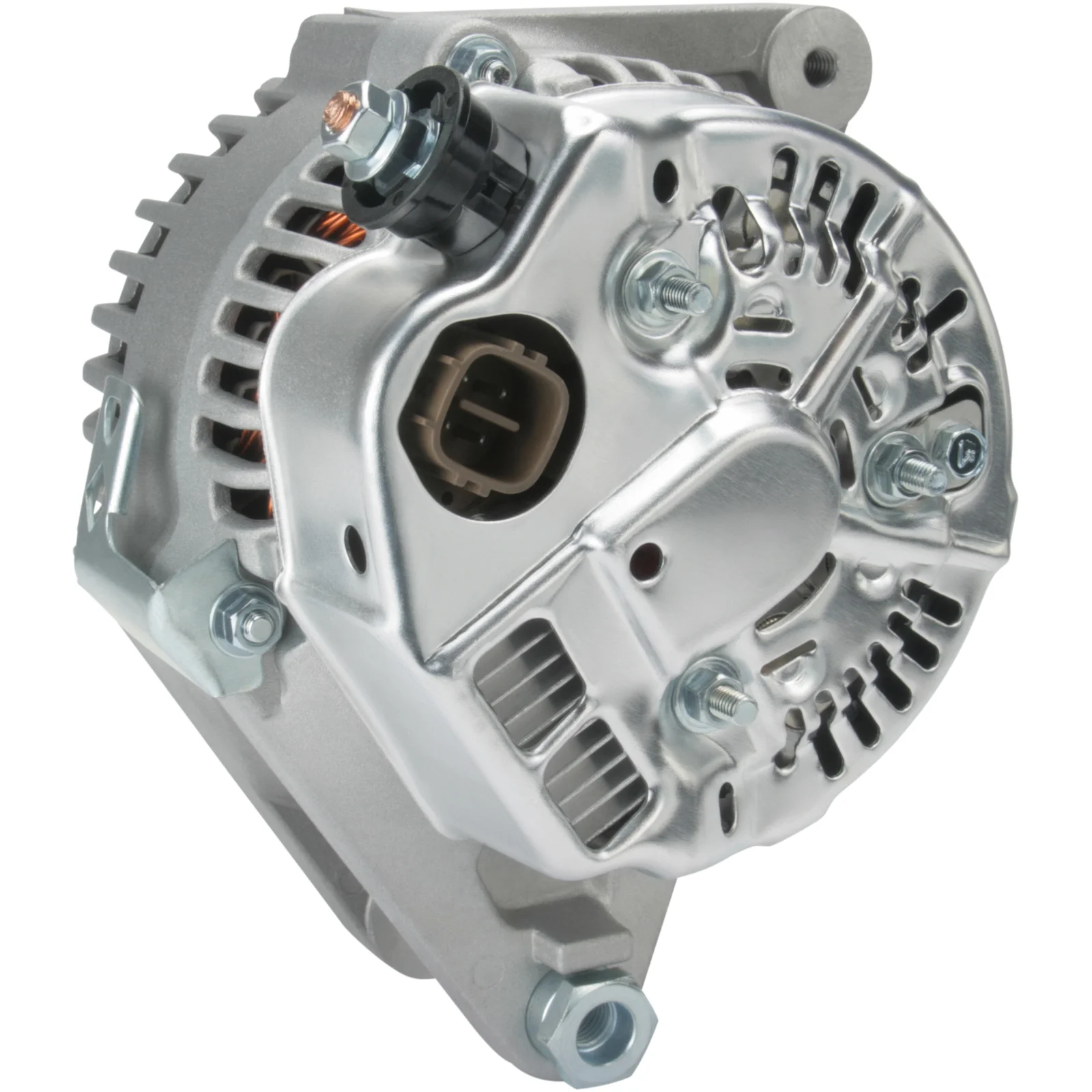

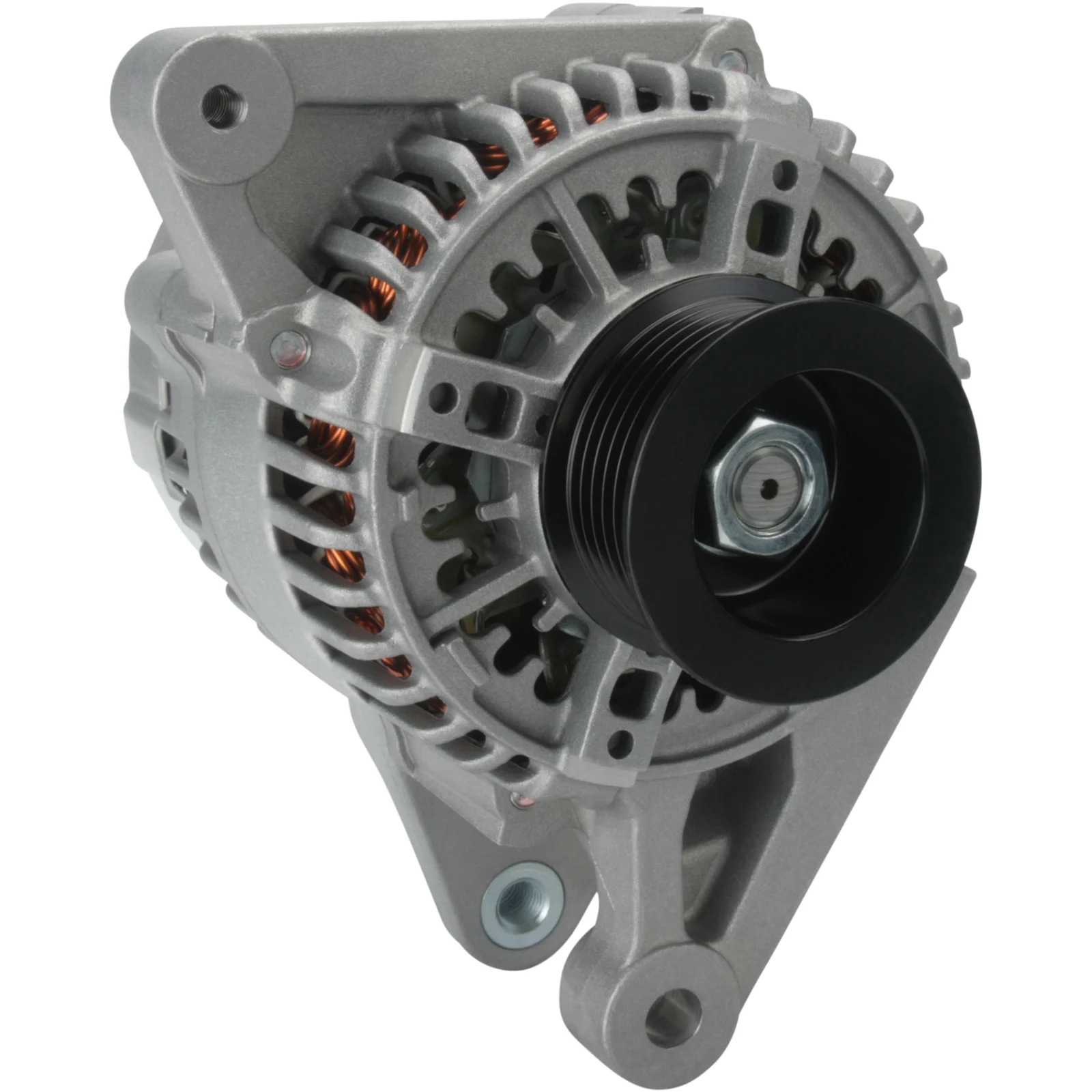

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 80, Rotation: CW, Mounting bracket distance: 40.00

Description

Toyota UK Alternator 12V-80A 12V - 80A, 6-pole, (S, IG, L, FR) Fits only UK-built cars, chassis number SB1..... For Yourex product order 90-555-4266

Voltage: 14
Amp: 80
Pulley diameter: 33.50
Width/holder arm: 17.80
Mounting bracket diameter: 40.00
Bracket hole: 11.00
Belt adjustment bracket hole position: 50
Belt adjustment bracket hole 1: M8
Pulley diameter: 54.50
Grooves/pulley: 6
Radius: 99.00
Radius 2: 89.50
B+: M6
Position/B+ in min.: 55
D+ Size: Plug
Rotation: CW
Plug number: PL78
Total length mm: 169.00
Terminal type: IG-L-C-FR
Pulley: SP
Regulator type: IR
Servicing: Toyota

Files

  • OEM
    F032113296, ja1605ir, 0124 315 024, 0986 042 660, 1986A00451, 1986A00774, 27060-007NL, 27060-0d020, 27060-0D02084, 27060-0D030, 27060-0d030, 27060-0D130F, 27060-0D160, 27060-165FL, 27060-22010, 102211-8490, 113296, 0124315016, 0124315024, 0124315025, 0124315029, 0124315045

  • Normalised article numbler
    a0256, a0256pr, alt30061, alt5111b, cal10246, cal40167, dra4105, drb2660, f032113296, f042205166, f042302089, f042a02089, ja1605ir, lra02760, lrb00513, 8el012426141, 1986a00451, 1986a00774, 22514r, 22518n, 113296, 119911, 270600d020, 270600d02084, 270600d030, 270600d130f, 270600d160, 283841, 284562, 401605ri, 437640, 12060707, 27060007nl, 27060165fl, 0124315016, 0124315024, 0124315025, 0124315029, 0124315045, 235183802, 235196802, 0986042660, 0986042663, 0986045403, 1022118490, 2706022010, 944390426600
  • Description
    Toyota UK Alternator 12V-80A 12V - 80A, 6-pole, (S, IG, L, FR) Fits only UK-built cars, chassis number SB1..... For Yourex product order 90-555-4266

    Voltage: 14
    Amp: 80
    Pulley diameter: 33.50
    Width/holder arm: 17.80
    Mounting bracket diameter: 40.00
    Bracket hole: 11.00
    Belt adjustment bracket hole position: 50
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 54.50
    Grooves/pulley: 6
    Radius: 99.00
    Radius 2: 89.50
    B+: M6
    Position/B+ in min.: 55
    D+ Size: Plug
    Rotation: CW
    Plug number: PL78
    Total length mm: 169.00
    Terminal type: IG-L-C-FR
    Pulley: SP
    Regulator type: IR
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032113296, ja1605ir, 0124 315 024, 0986 042 660, 1986A00451, 1986A00774, 27060-007NL, 27060-0d020, 27060-0D02084, 27060-0D030, 27060-0d030, 27060-0D130F, 27060-0D160, 27060-165FL, 27060-22010, 102211-8490, 113296, 0124315016, 0124315024, 0124315025, 0124315029, 0124315045

    • Normalised article numbler
      a0256, a0256pr, alt30061, alt5111b, cal10246, cal40167, dra4105, drb2660, f032113296, f042205166, f042302089, f042a02089, ja1605ir, lra02760, lrb00513, 8el012426141, 1986a00451, 1986a00774, 22514r, 22518n, 113296, 119911, 270600d020, 270600d02084, 270600d030, 270600d130f, 270600d160, 283841, 284562, 401605ri, 437640, 12060707, 27060007nl, 27060165fl, 0124315016, 0124315024, 0124315025, 0124315029, 0124315045, 235183802, 235196802, 0986042660, 0986042663, 0986045403, 1022118490, 2706022010, 944390426600
