HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114390

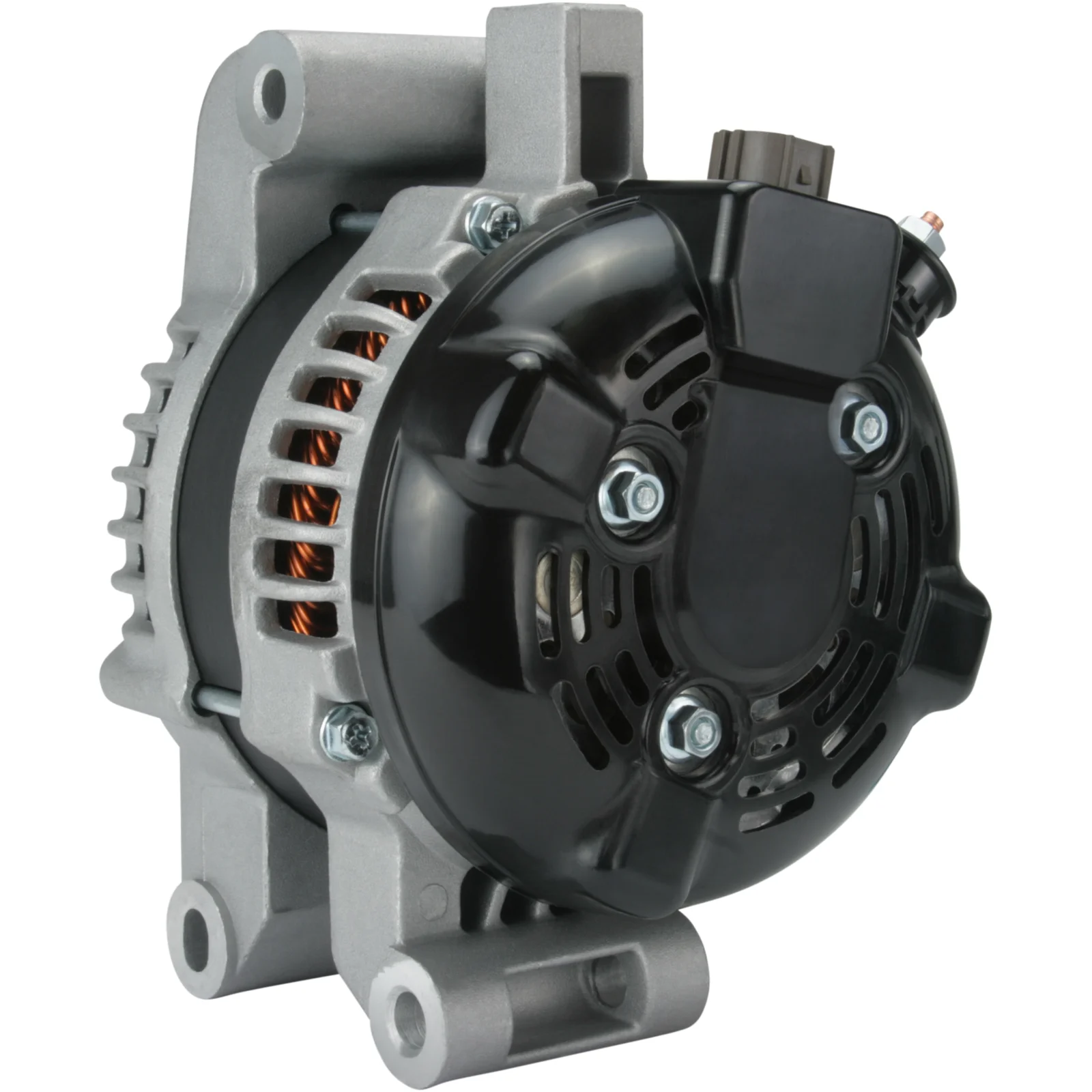

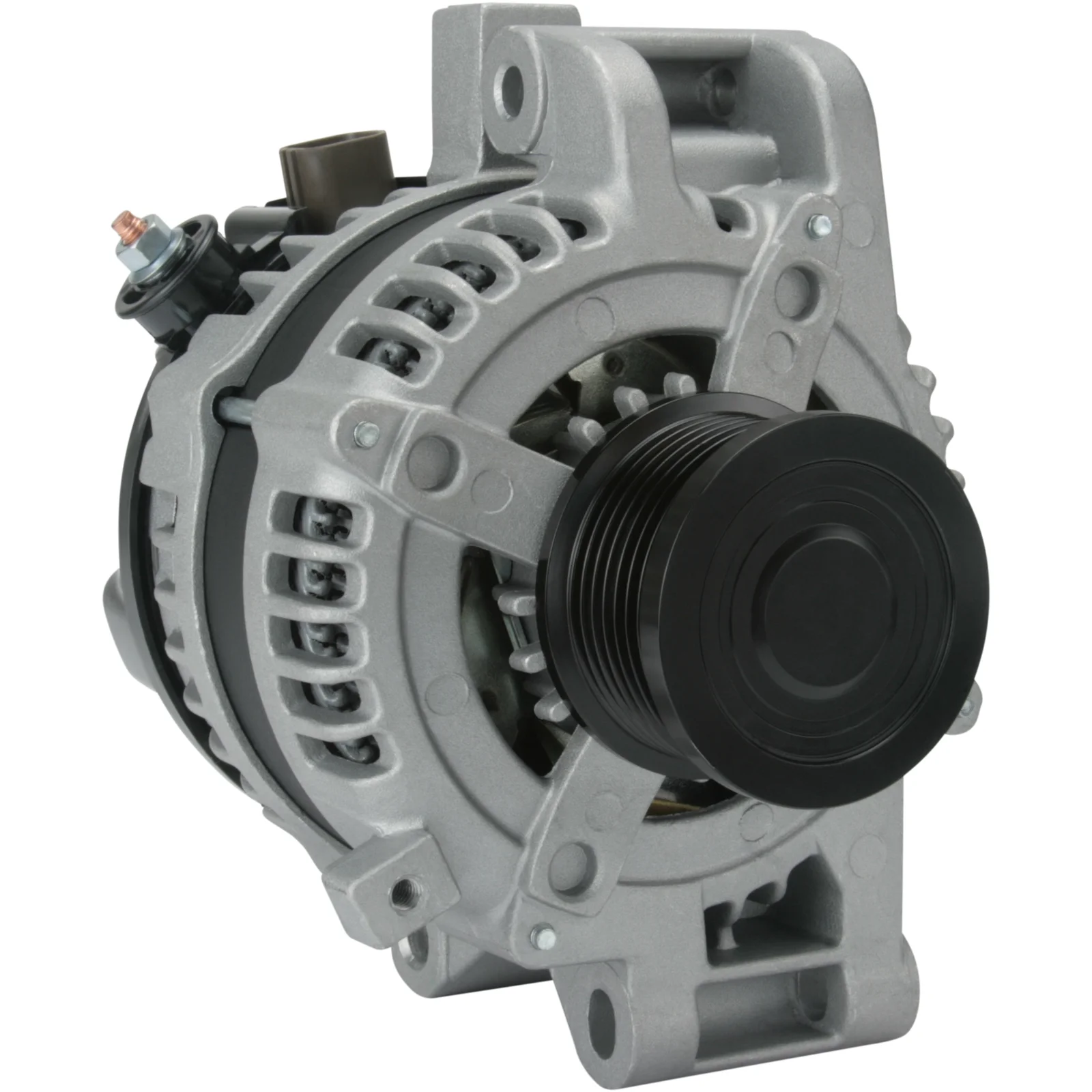

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 100, Rotation: CW, Mounting bracket distance: 71.30

Description

Toyota Diesel Alternator 12V-100A 12V - 100A, 7 piston rings, (IG, RLO, L, M) For Yourex product order 90-555-4452

Voltage: 14
Amp: 100
Pulley diameter: 24.50
Width/holder arm: 60.20
Mounting bracket diameter: 71.30
Bracket hole: 9.00x11.80
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 58.00
Grooves/pulley: 7
B+: M6
Position/B+ in min.: 7
D+ Size: Plug
Rotation: CW
Plug no.: PL146
Total length mm: 167.50
Terminal type: RLO
Pulley: SP/FW
Regulator type: IR
Product info: BN
Servicing: Toyota

Files

  • OEM
    A6052, A6052(DENSO), A6052PR, CAL40257, CAL40435, DAN 938, DAN1317, DAN938, DRA0152, DRA1528, F032114390, LRA02947, 8EL012240-951, 8EL015630-161, 8EL015630-681, 8EL738212-941, 28-5561, 195.568.100, 195.928.100, 235.318.1002, 1986A01340, 9322, 021080-6060, 23947, 23947N, 23947R, 27060-0G010, 27060-0G011, 27060-0G01184, 27060-0R060, 27060-0R070, 27060-0R071, 27060-26070, 104210-1461, 104210-2390, 104210-2410, 104210-4520, 104210-4521, 104210-4522, 104210-4523, 104211-3060, 104211-3061, 104211-3062, 104211-3410, 112954, 114390, 209298, 209298A, 210842, 210842A, 301965RI, 443111, 554461RI, 9212749, 12060862, 0986049970, 063377500010

  • Normalised article numbler
    a6052, a6052denso, a6052pr, cal40257, cal40435, dan1317, dan938, dra0152, dra1528, f032114390, lra02947, 8el012240951, 8el015630161, 8el015630681, 8el738212941, 1986a01340, 9322, 23947, 23947n, 23947r, 112954, 114390, 209298, 209298a, 210842, 210842a, 270600g010, 270600g011, 270600g01184, 270600r060, 270600r070, 270600r071, 285561, 301965ri, 443111, 554461ri, 9212749, 12060862, 195568100, 195928100, 0210806060, 0986049970, 1042101461, 1042102390, 1042102410, 1042104520, 1042104521, 1042104522, 1042104523, 1042113060, 1042113061, 1042113062, 1042113410, 2353181002, 2706026070, 063377500010
  • Description
    Toyota Diesel Alternator 12V-100A 12V - 100A, 7 piston rings, (IG, RLO, L, M) For Yourex product order 90-555-4452

    Voltage: 14
    Amp: 100
    Pulley diameter: 24.50
    Width/holder arm: 60.20
    Mounting bracket diameter: 71.30
    Bracket hole: 9.00x11.80
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 58.00
    Grooves/pulley: 7
    B+: M6
    Position/B+ in min.: 7
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL146
    Total length mm: 167.50
    Terminal type: RLO
    Pulley: SP/FW
    Regulator type: IR
    Product info: BN
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      A6052, A6052(DENSO), A6052PR, CAL40257, CAL40435, DAN 938, DAN1317, DAN938, DRA0152, DRA1528, F032114390, LRA02947, 8EL012240-951, 8EL015630-161, 8EL015630-681, 8EL738212-941, 28-5561, 195.568.100, 195.928.100, 235.318.1002, 1986A01340, 9322, 021080-6060, 23947, 23947N, 23947R, 27060-0G010, 27060-0G011, 27060-0G01184, 27060-0R060, 27060-0R070, 27060-0R071, 27060-26070, 104210-1461, 104210-2390, 104210-2410, 104210-4520, 104210-4521, 104210-4522, 104210-4523, 104211-3060, 104211-3061, 104211-3062, 104211-3410, 112954, 114390, 209298, 209298A, 210842, 210842A, 301965RI, 443111, 554461RI, 9212749, 12060862, 0986049970, 063377500010

    • Normalised article numbler
      a6052, a6052denso, a6052pr, cal40257, cal40435, dan1317, dan938, dra0152, dra1528, f032114390, lra02947, 8el012240951, 8el015630161, 8el015630681, 8el738212941, 1986a01340, 9322, 23947, 23947n, 23947r, 112954, 114390, 209298, 209298a, 210842, 210842a, 270600g010, 270600g011, 270600g01184, 270600r060, 270600r070, 270600r071, 285561, 301965ri, 443111, 554461ri, 9212749, 12060862, 195568100, 195928100, 0210806060, 0986049970, 1042101461, 1042102390, 1042102410, 1042104520, 1042104521, 1042104522, 1042104523, 1042113060, 1042113061, 1042113062, 1042113410, 2353181002, 2706026070, 063377500010
