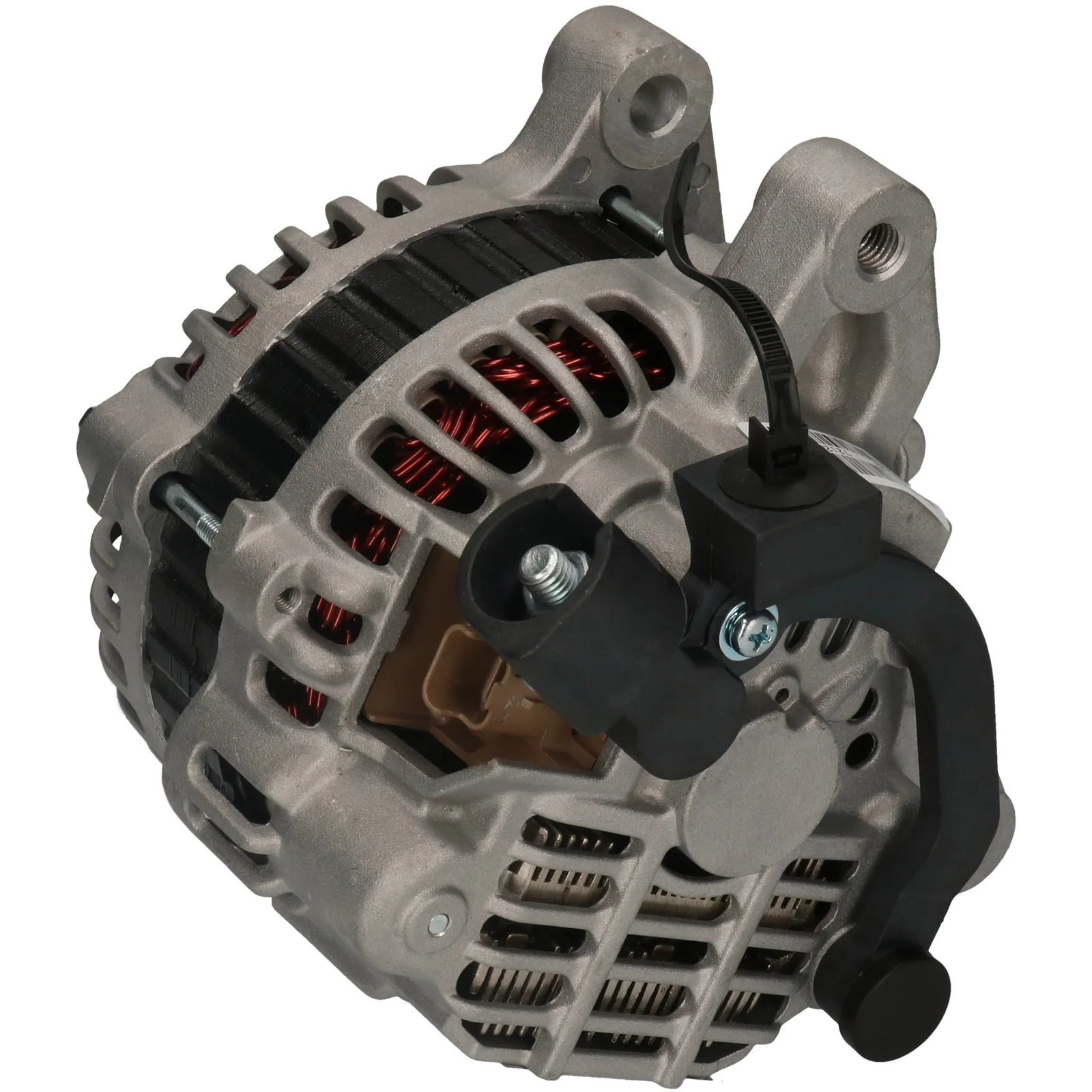

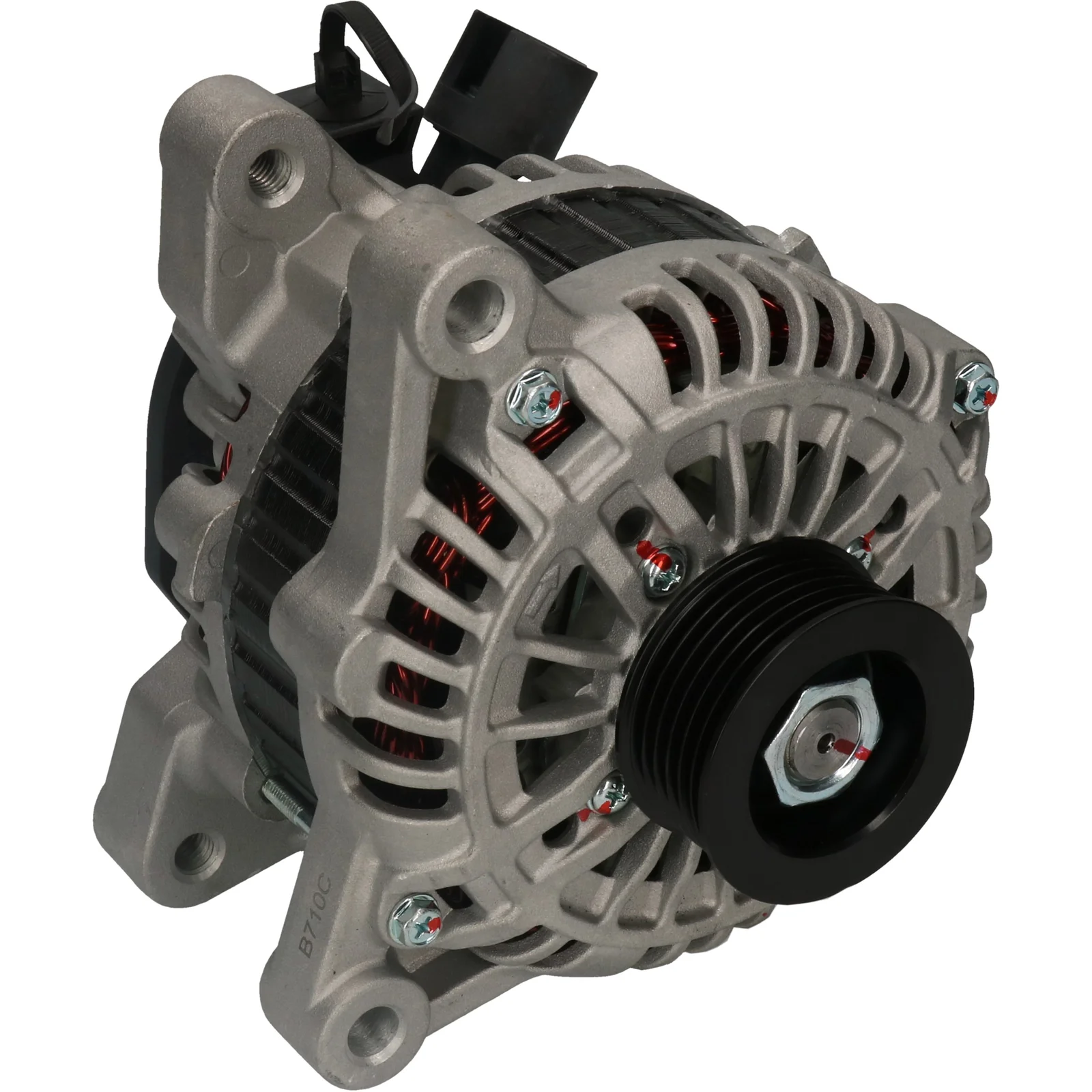

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115371

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 120, Rotation: CW, Mounting bracket distributor: 45.00

Description

PSA Alternator 12V-120A (COM) 12V - 120A, 6-grooves. (COM) For Yourrex product order 90-450-6880

Voltage: 14
Ampere: 120
Pulley distance: 43.00
Width/holder arm: 21.70
Mounting bracket distance: 45.00
Bracket hole: 10.50
Belt adjustment bracket hole position: 47
Belt adjustment bracket hole 1: 10.70
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 2
Rotation: CW
Plug number: PL129
Total length mm: 177.00
Terminal type: COM
ID Code: 179
Communication: BSS
Pulley: SP
Regulator type: IR
Product info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A003TB2691, A003TB2691AM, A003TB2691B, A003TB2691C, A003TB2691D, A003TB2691E, A003TB2691F, A003TB2691G, A003TB2691H, A003TB2691J, A003TB2691K, A003TB2691M, A003TB2691ZEKD, A003TG1891, A003TG1891A, A003TG1891AM, A003TG1891B, A003TG1891EA, A003TG1891EB, A003TG1891ZE, A003TG1891ZEA, A003TG1891ZEB, A003TG1981, A003TG1981EB, A003TG1981ZEB, A005TA6391, A005TA6391A, A005TA6391B, A005TA6391C, A005TA6392, A005TA6392C, A005TG0192, A005TG0192A, A005TG0192B, A005TG1392, A005TG1392A, A005TG1392B, A3T-G1891 B, A3T-G1891ZEA, A3T-G1891ZEB, A3T-G1981ZEB, A3TB2691, A3TB2691AM, A3TB2691B, A3TB2691C, A3TB2691D, A3TB2691E, A3TB2691F, A3TB2691G, A3TB2691H, A3TB2691J, A3TB2691K, A3TB2691M, A3TB2691ZEKD, a3tg1891, A3TG1891, A3TG1891A, A3TG1891AM, A3TG1891B, A3TG1891EA, A3TG1891EB, A3TG1891ZE, A3TG1891ZEA, A3TG1891ZEB, A3TG1981, A3TG1981EB, A5096, A5TA6391, A5TA6391A, A5TA6391B, A5TA6391C, A5TA6392, A5TA6392C, A5TG0192, A5TG0192A, A5TG0192B, A5TG1392, A5TG1392A, A5TG1392B, CAL35250, DRA0724, F032115371, 8EL011712-121, 8EL738213-061, 28-5863, 225.554.120, 2015ir, 5702A5, 5702E8, 5702F7, 5702G0, 5702K0, 5705 CF, 5705AZ, 5705CF, 5705CW, 5705CX, 5705EC, 5705EF, 5705EG, 5705GP, 5705HA, 5705KW, 5705KY, 20522N, 57054J, 57054K, 57055B, 57055U, 57056N, 57057A, 57057C, 57057E, 57058F, 57058H, 115371, 210864, 210864A, 9090702, 12090966, 96400880, 0986083840, 1608881080, 9464040780, 9630204580, 9633782680, 9636204680, 9638275180, 9638275380, 9638275680, 9638275780, 9638275980, 9639396580, 9640088080, 9641214980, 9641398680, 9642124980, 9642880080, 9644536880, 9649611380, 9649611480, 9649611580, 9649846880, 9651927480, 9656956380, 9660055080, 9660235080, 9666030280, 9801895380, 9807344880, 96498046880, 96660300280

  • Normalised article numbler
    a003tb2691, a003tb2691am, a003tb2691b, a003tb2691c, a003tb2691d, a003tb2691e, a003tb2691f, a003tb2691g, a003tb2691h, a003tb2691j, a003tb2691k, a003tb2691m, a003tb2691zekd, a003tg1891, a003tg1891a, a003tg1891am, a003tg1891b, a003tg1891ea, a003tg1891eb, a003tg1891ze, a003tg1891zea, a003tg1891zeb, a003tg1981, a003tg1981eb, a003tg1981zeb, a005ta6391, a005ta6391a, a005ta6391b, a005ta6391c, a005ta6392, a005ta6392c, a005tg0192, a005tg0192a, a005tg0192b, a005tg1392, a005tg1392a, a005tg1392b, a3tb2691, a3tb2691am, a3tb2691b, a3tb2691c, a3tb2691d, a3tb2691e, a3tb2691f, a3tb2691g, a3tb2691h, a3tb2691j, a3tb2691k, a3tb2691m, a3tb2691zekd, a3tg1891, a3tg1891a, a3tg1891am, a3tg1891b, a3tg1891ea, a3tg1891eb, a3tg1891ze, a3tg1891zea, a3tg1891zeb, a3tg1981, a3tg1981eb, a3tg1981zeb, a5096, a5ta6391, a5ta6391a, a5ta6391b, a5ta6391c, a5ta6392, a5ta6392c, a5tg0192, a5tg0192a, a5tg0192b, a5tg1392, a5tg1392a, a5tg1392b, cal35250, dra0724, f032115371, 8el011712121, 8el738213061, 2015ir, 5702a5, 5702e8, 5702f7, 5702g0, 5702k0, 5705az, 5705cf, 5705cw, 5705cx, 5705ec, 5705ef, 5705eg, 5705gp, 5705ha, 5705kw, 5705ky, 20522n, 57054j, 57054k, 57055b, 57055u, 57056n, 57057a, 57057c, 57057e, 57058f, 57058h, 115371, 210864, 210864a, 285863, 9090702, 12090966, 96400880, 225554120, 0986083840, 1608881080, 9464040780, 9630204580, 9633782680, 9636204680, 9638275180, 9638275380, 9638275680, 9638275780, 9638275980, 9639396580, 9640088080, 9641214980, 9641398680, 9642124980, 9642880080, 9644536880, 9649611380, 9649611480, 9649611580, 9649846880, 9651927480, 9656956380, 9660055080, 9660235080, 9666030280, 9801895380, 9807344880, 96498046880, 96660300280
  • Description
    PSA Alternator 12V-120A (COM) 12V - 120A, 6-grooves. (COM) For Yourrex product order 90-450-6880

    Voltage: 14
    Ampere: 120
    Pulley distance: 43.00
    Width/holder arm: 21.70
    Mounting bracket distance: 45.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 47
    Belt adjustment bracket hole 1: 10.70
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 2
    Rotation: CW
    Plug number: PL129
    Total length mm: 177.00
    Terminal type: COM
    ID Code: 179
    Communication: BSS
    Pulley: SP
    Regulator type: IR
    Product info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
