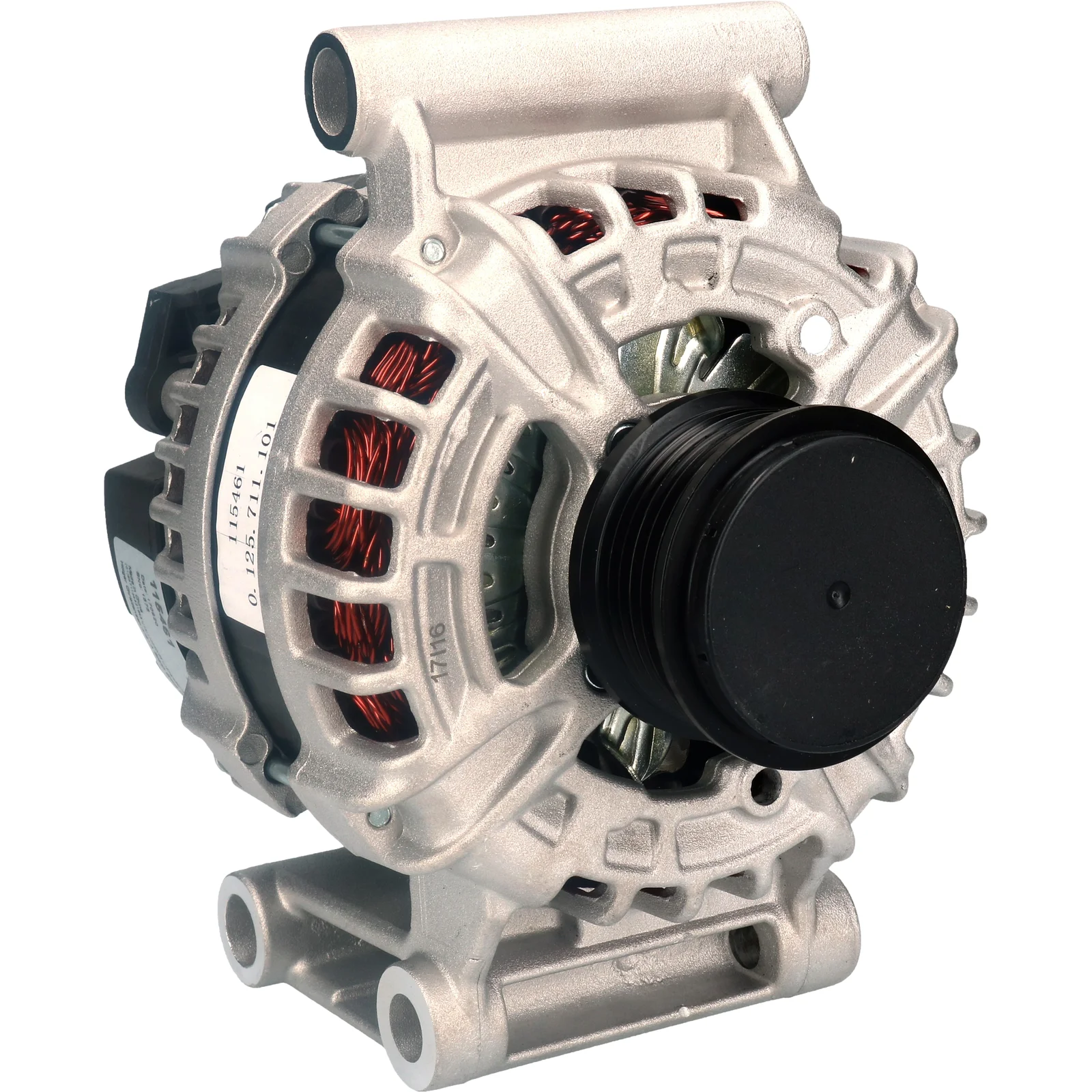

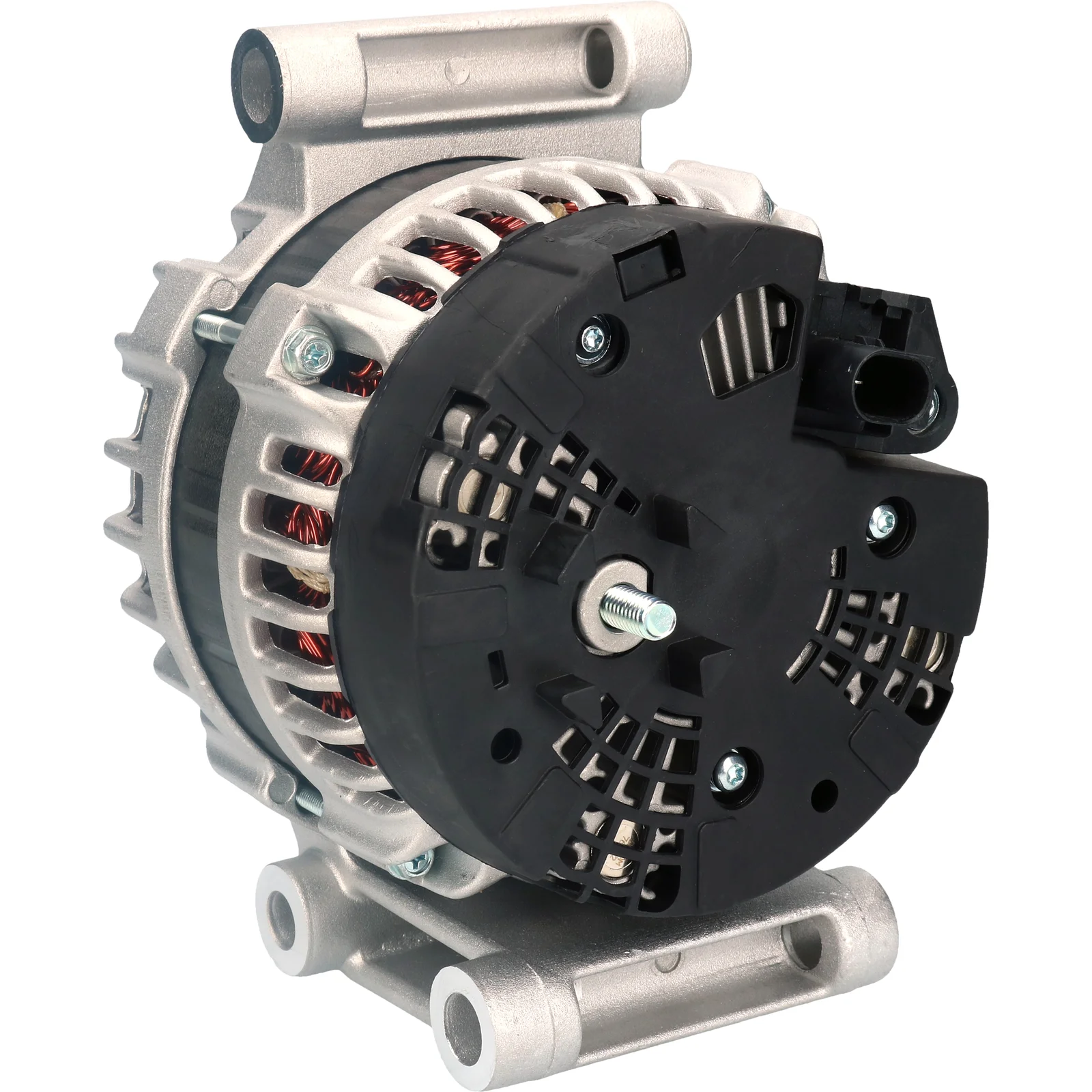

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115461

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 150, Rotation: CW, Mounting bracket distance: 73.70

Description

Ford Alternator 12V-150A 12V - 150A, 6-poles, LIN ID code: 88 Peugeot & Citroën Jumper Van: For vehicles without start-stop function! For Yourrex product order 90-180-8258 Voltage: 14 Amps: 150 Pulley diameter: 43.20 Width / holder arm: 97.00 Mounting bracket distance: 73.70 Bracket hole: 11.00 Bracket hole 2: 13.00 Belt adjustment bracket hole 1: 12.00 Pulley diameter: 58.50 Grooves / pulley: 6 Radius: 87.50 Radius 2: 87.50 B+: M8 Position / B+ in min.: 45 Rotation: CW Plug no.: PL174 Total length mm: 184.00 Terminal type: COM Communication: LIN Pulley: SP/FW Fan: IF Regulator type: IR Product info: BN Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number be used to check suitability before ordering.

Files

  • OEM
    BK2T10300BB, CC1T-10300BB, CC1T-10300BC, CC1T10300BA, CC1T10300BB, CC1T10300BC, CC1T10300BD, CC1T10300BE, F032115461, FO 1797966, K9674987580, RECC1T10300BD, RMCC1T10300BD, 0125 711 001, 0125 711 058, 0125 711 101, 0125 711 102, 0986 082 580, 1986A00680, 115461, 1745661, 1797966, 1874992, 1889371, 2073243, 2545291, 0124711058, 0124711132, 0125711001, 0125711058, 0125711101, 0125711102, 0125711131, 0125711132, 1606430480, 9674987580

  • Normalised article numbler
    a0359, a0359pr, a0359s, a0359s2, a0359sr, bk2t10300bb, cal10430, cc1t10300ba, cc1t10300bb, cc1t10300bc, cc1t10300bd, cc1t10300be, dra1037, f032115461, fo1797966, k9674987580, lra03592, recc1t10300bd, rmcc1t10300bd, 8el015630081, 1986a00680, 20251n, 115461, 209079, 209079a, 210835, 210835a, 286702, 440635, 553956ri, 849146, 1745661, 1797966, 1874992, 1889371, 2073243, 2545291, 12090462, 32082580, 0124711058, 0124711132, 0125711001, 0125711058, 0125711101, 0125711102, 0125711131, 0125711132, 225561150, 0986082580, 1606430480, 2193151502, 9674987580
  • Description
    Ford Alternator 12V-150A 12V - 150A, 6-poles, LIN ID code: 88 Peugeot & Citroën Jumper Van: For vehicles without start-stop function! For Yourrex product order 90-180-8258 Voltage: 14 Amps: 150 Pulley diameter: 43.20 Width / holder arm: 97.00 Mounting bracket distance: 73.70 Bracket hole: 11.00 Bracket hole 2: 13.00 Belt adjustment bracket hole 1: 12.00 Pulley diameter: 58.50 Grooves / pulley: 6 Radius: 87.50 Radius 2: 87.50 B+: M8 Position / B+ in min.: 45 Rotation: CW Plug no.: PL174 Total length mm: 184.00 Terminal type: COM Communication: LIN Pulley: SP/FW Fan: IF Regulator type: IR Product info: BN Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number be used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      BK2T10300BB, CC1T-10300BB, CC1T-10300BC, CC1T10300BA, CC1T10300BB, CC1T10300BC, CC1T10300BD, CC1T10300BE, F032115461, FO 1797966, K9674987580, RECC1T10300BD, RMCC1T10300BD, 0125 711 001, 0125 711 058, 0125 711 101, 0125 711 102, 0986 082 580, 1986A00680, 115461, 1745661, 1797966, 1874992, 1889371, 2073243, 2545291, 0124711058, 0124711132, 0125711001, 0125711058, 0125711101, 0125711102, 0125711131, 0125711132, 1606430480, 9674987580

    • Normalised article numbler
      a0359, a0359pr, a0359s, a0359s2, a0359sr, bk2t10300bb, cal10430, cc1t10300ba, cc1t10300bb, cc1t10300bc, cc1t10300bd, cc1t10300be, dra1037, f032115461, fo1797966, k9674987580, lra03592, recc1t10300bd, rmcc1t10300bd, 8el015630081, 1986a00680, 20251n, 115461, 209079, 209079a, 210835, 210835a, 286702, 440635, 553956ri, 849146, 1745661, 1797966, 1874992, 1889371, 2073243, 2545291, 12090462, 32082580, 0124711058, 0124711132, 0125711001, 0125711058, 0125711101, 0125711102, 0125711131, 0125711132, 225561150, 0986082580, 1606430480, 2193151502, 9674987580
