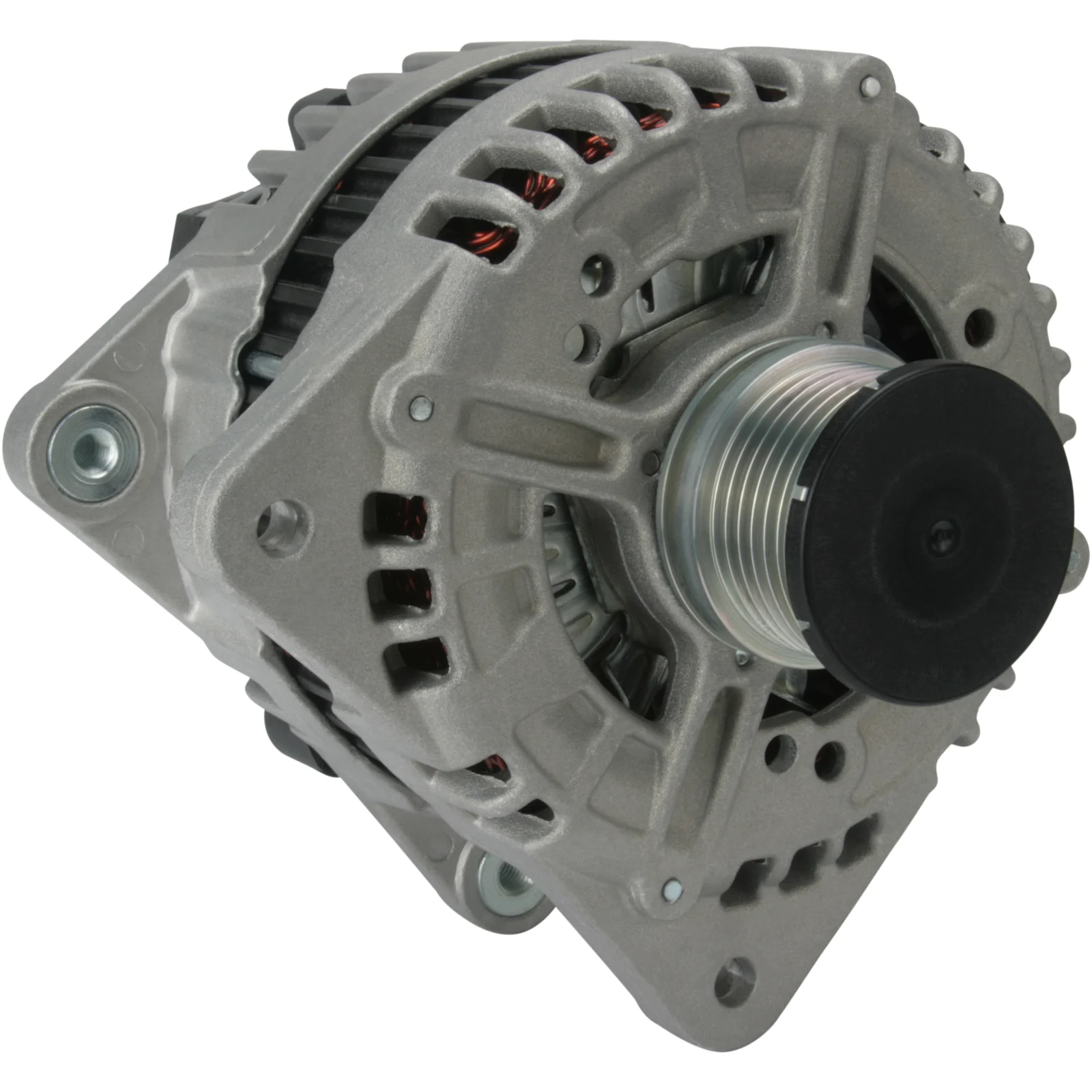

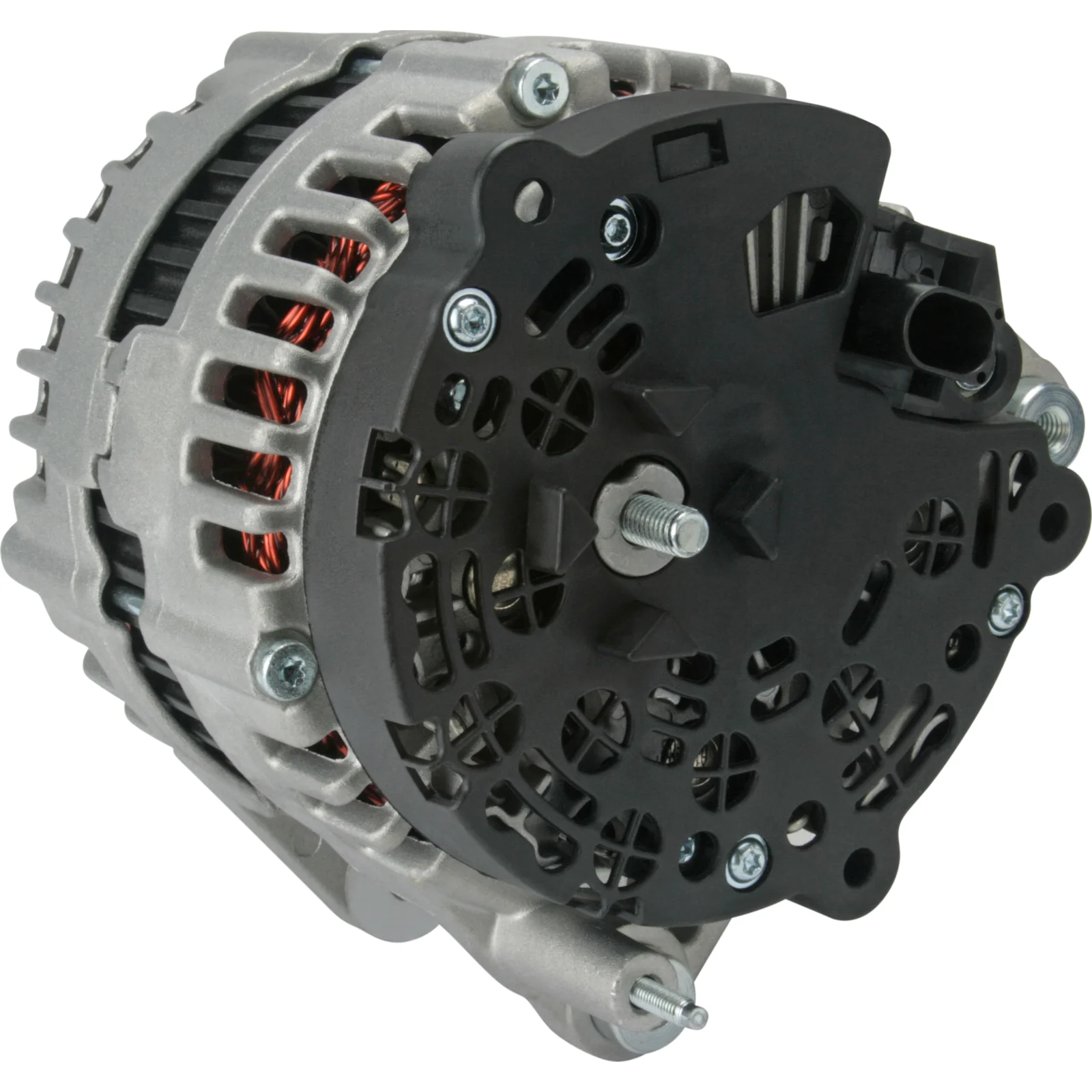

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114697

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 61.00

Description

Alternator 12V-180A 12V - 180A, part no. 6gr (L-DFM) Pulley Ø = 49mm. L-DFM, Pulley Ø = 49mm. For vehicles without start-stop function. For Yourrex product order 90-620-8194

Voltage: 14
Amperage: 180
Pulley displacement: 39.50
Width/holder arm: 14.00
Mounting bracket displacement: 61.00
Bracket hole: 8.40
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.40
Pulley diameter: 50.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 45
D+ Size: Plug
Rotation: CW
Plug no.: PL61
Total length mm: 167.00
Pulley: SP/FW
Regulator type: IR
Prod. info: BN

Files

  • OEM
    000 906 1100, F032114697, FG18T 062, FG18T 115, FG18T 116, FG18T062, FG18T102, FG18T115, FG18T116, 03G 903 023F, 03g903023f, 03G903023Q, 03L 903 024H, 03L903023Q, 03L903023QX, 03L903024C, 03L903024G, 03L903024GX, 03L903024H, 03L903024HX, 0121 715 042, 0121 715 142, 0986 081 940, 1986A00767, 114697, 440341, 2617861, 0121715042, 0121715142

  • Normalised article numbler
    a0471pr, a0471s, a3317, a3317pr, cal15476, dra0357, f032114697, fg18t062, fg18t102, fg18t115, fg18t116, 03g903023f, 03g903023q, 03l903023q, 03l903023qx, 03l903024c, 03l903024g, 03l903024gx, 03l903024h, 03l903024hx, 8el012430371, 8el738213401, 1986a00767, 11714n, 114697, 200233, 209200, 209200a, 285869, 439751, 440341, 747118, 2617861, 0009061100, 12090423, 32081940, 0121715042, 0121715142, 305597180, 0986081940, 2113671802
  • Description
    Alternator 12V-180A 12V - 180A, part no. 6gr (L-DFM) Pulley Ø = 49mm. L-DFM, Pulley Ø = 49mm. For vehicles without start-stop function. For Yourrex product order 90-620-8194

    Voltage: 14
    Amperage: 180
    Pulley displacement: 39.50
    Width/holder arm: 14.00
    Mounting bracket displacement: 61.00
    Bracket hole: 8.40
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.40
    Pulley diameter: 50.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 45
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL61
    Total length mm: 167.00
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      000 906 1100, F032114697, FG18T 062, FG18T 115, FG18T 116, FG18T062, FG18T102, FG18T115, FG18T116, 03G 903 023F, 03g903023f, 03G903023Q, 03L 903 024H, 03L903023Q, 03L903023QX, 03L903024C, 03L903024G, 03L903024GX, 03L903024H, 03L903024HX, 0121 715 042, 0121 715 142, 0986 081 940, 1986A00767, 114697, 440341, 2617861, 0121715042, 0121715142

    • Normalised article numbler
      a0471pr, a0471s, a3317, a3317pr, cal15476, dra0357, f032114697, fg18t062, fg18t102, fg18t115, fg18t116, 03g903023f, 03g903023q, 03l903023q, 03l903023qx, 03l903024c, 03l903024g, 03l903024gx, 03l903024h, 03l903024hx, 8el012430371, 8el738213401, 1986a00767, 11714n, 114697, 200233, 209200, 209200a, 285869, 439751, 440341, 747118, 2617861, 0009061100, 12090423, 32081940, 0121715042, 0121715142, 305597180, 0986081940, 2113671802
