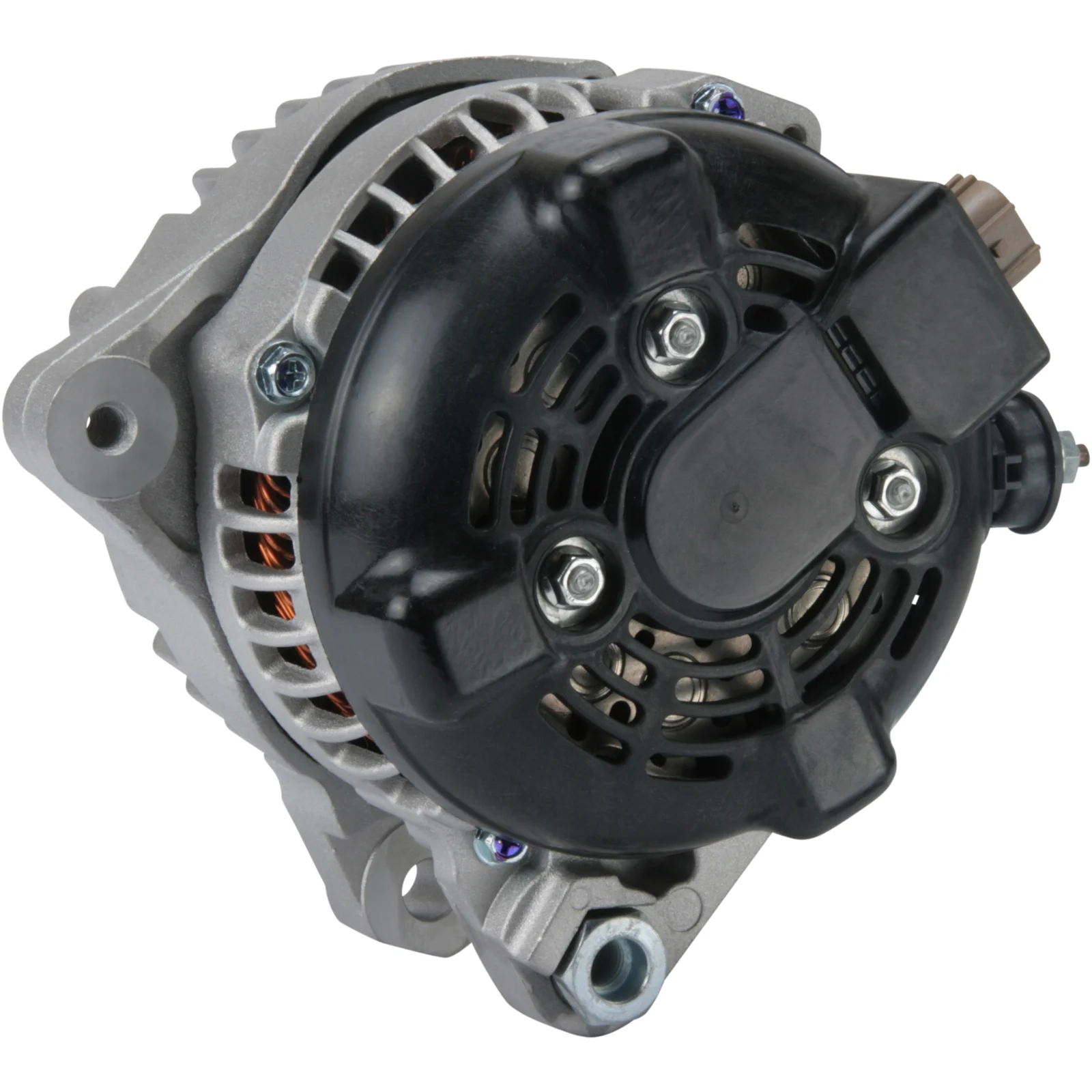

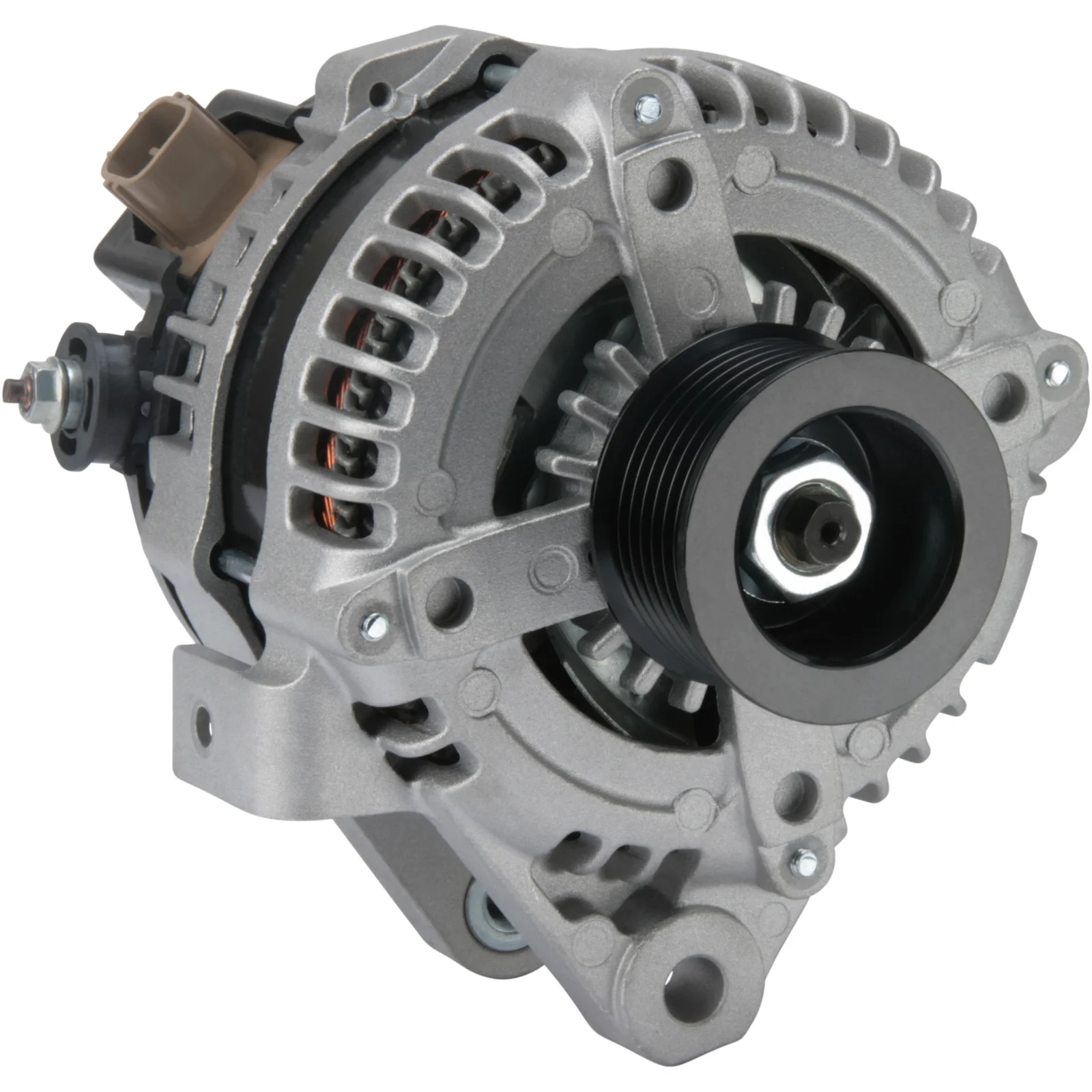

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114273

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100, Rotation: CW, Mounting bracket distributor: 46.50

Description

Toyota Alternator 12V-100A 12V - 100A, 7 teeth. (S, IG, L, M/DF) 7 teeth. (S-IG-L-M) For Yourex product order 90-555-2826

Voltage: 14
Amps: 100
Pulley distance: 36.00
Width/holder arm: 17.50
Mounting bracket distance: 46.50
Bracket hole: 11.00
Belt adjustment bracket hole position: 15
Belt adjustment bracket hole 1: M8
Pulley diameter: 60.00
Grooves/pulley: 7
Radius: 83.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 15
D+ Size: Plug
Rotation: CW
Plug number: PL78
Total length mm: 161.00
Pulley: SP
Regulator type: IR

Files

  • OEM
    F032114273, ja1613ir, 1986A01687, 27060-0H070, 27060-0H080, 27060-28070, 27060-28160, 27060-28260, 102211-0750, 104210-3780, 114273

  • Normalised article numbler
    a6055, a6603s, dan952, dendan952, dra0468, f032114273, f042205237, j5112149, ja1613ir, 8el738051001, 1986a01687, 11088, 114273, 209421, 209421a, 270600h070, 270600h080, 401613ri, 440518, 12060826, 063377435, 0986082060, 1022110750, 1042103780, 2706028070, 2706028160, 2706028260, 063377435010
  • Description
    Toyota Alternator 12V-100A 12V - 100A, 7 teeth. (S, IG, L, M/DF) 7 teeth. (S-IG-L-M) For Yourex product order 90-555-2826

    Voltage: 14
    Amps: 100
    Pulley distance: 36.00
    Width/holder arm: 17.50
    Mounting bracket distance: 46.50
    Bracket hole: 11.00
    Belt adjustment bracket hole position: 15
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 60.00
    Grooves/pulley: 7
    Radius: 83.00
    Radius 2: 86.00
    B+: M6
    Position/B+ in min.: 15
    D+ Size: Plug
    Rotation: CW
    Plug number: PL78
    Total length mm: 161.00
    Pulley: SP
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032114273, ja1613ir, 1986A01687, 27060-0H070, 27060-0H080, 27060-28070, 27060-28160, 27060-28260, 102211-0750, 104210-3780, 114273

    • Normalised article numbler
      a6055, a6603s, dan952, dendan952, dra0468, f032114273, f042205237, j5112149, ja1613ir, 8el738051001, 1986a01687, 11088, 114273, 209421, 209421a, 270600h070, 270600h080, 401613ri, 440518, 12060826, 063377435, 0986082060, 1022110750, 1042103780, 2706028070, 2706028160, 2706028260, 063377435010
