HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116357

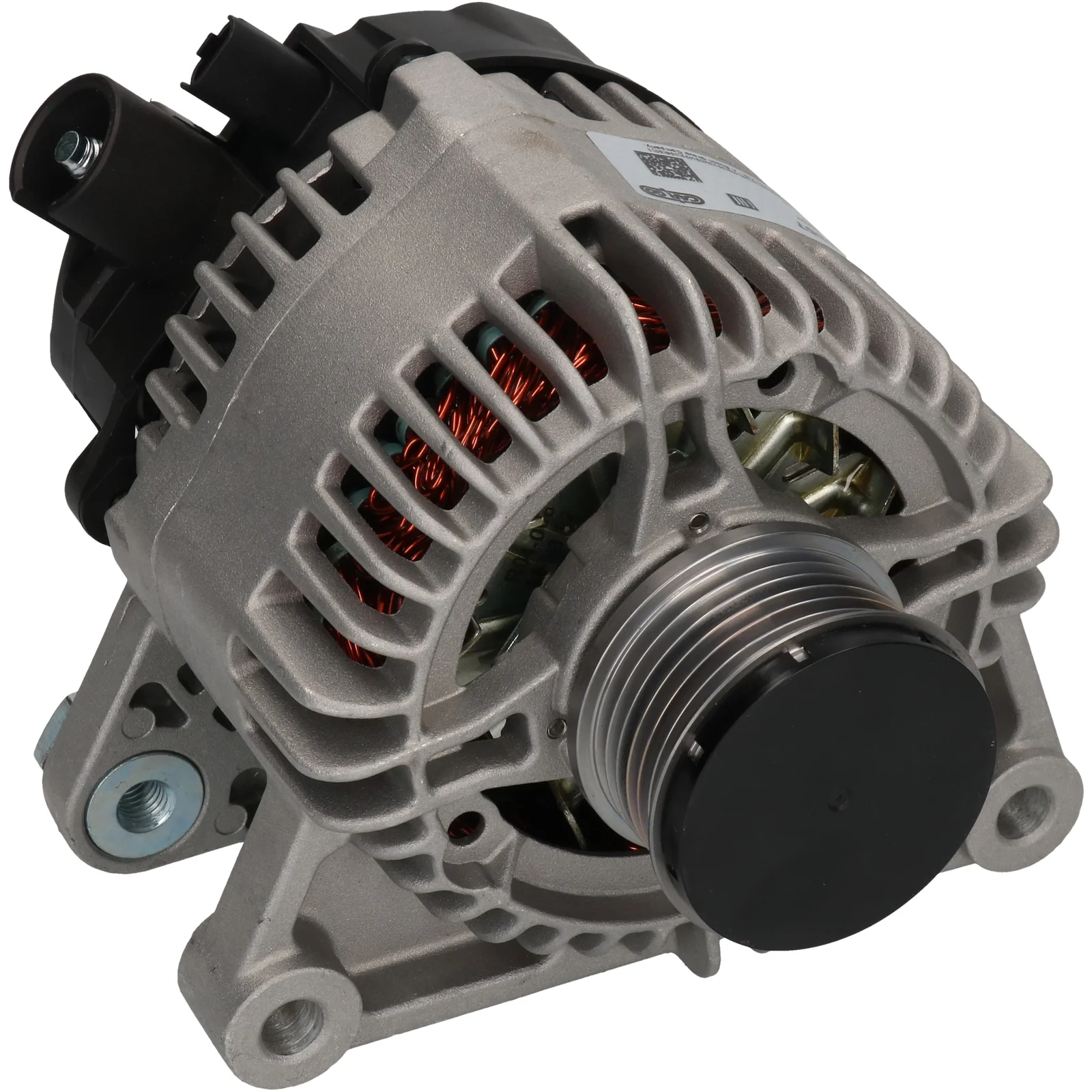

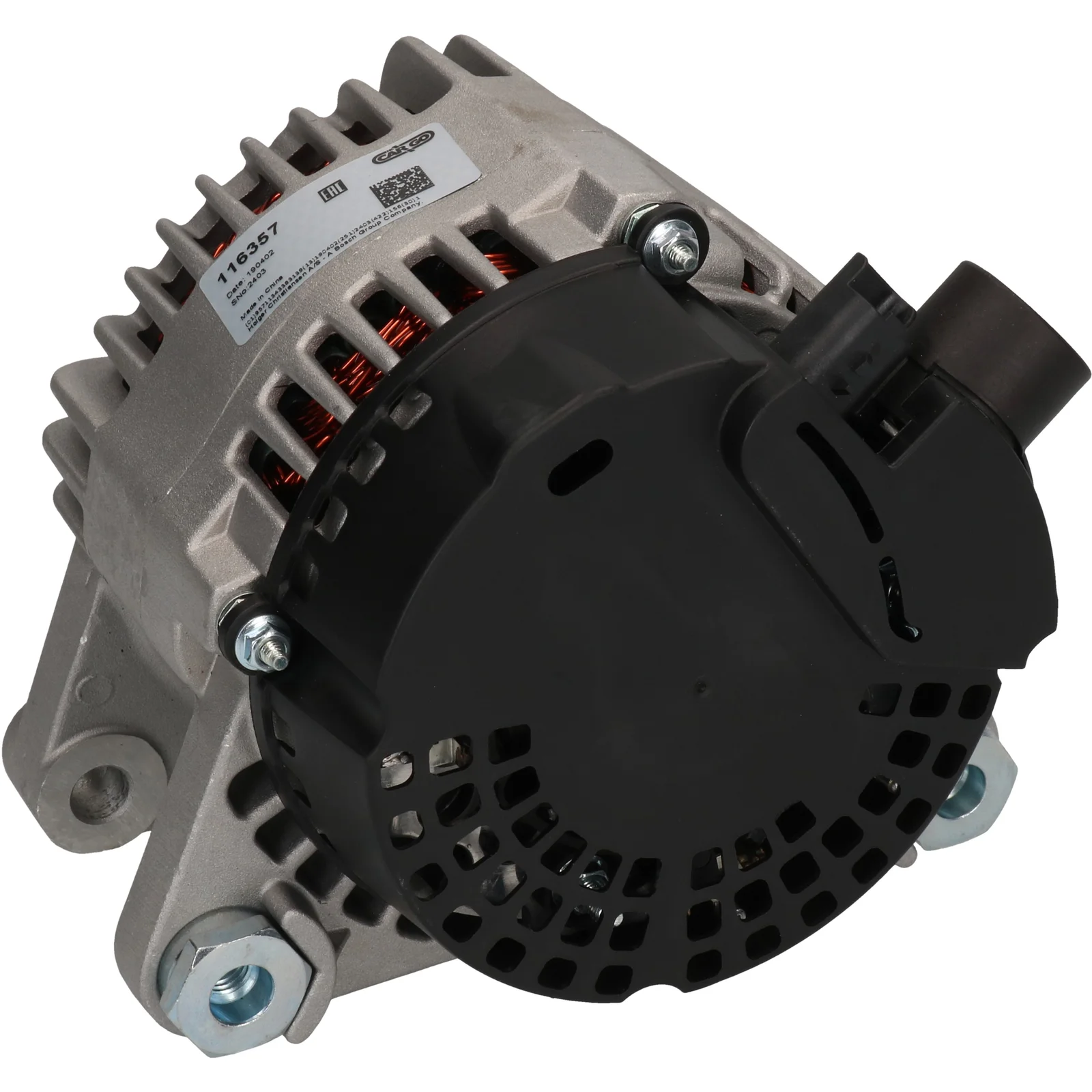

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 80, Rotation: CW, Mounting bracket distance: 45.80

Description

Voltage: 14
Amp: 80
Pulley: Pitch: 42.40
Width/holder arm: 21.00
Mounting bracket pitch: 45.80
Bracket hole: 10.50
Belt adjustment bracket hole position: 47
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 60
Rotation: CW
Plug no.: PL132
Total length mm: 178.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116357, 101210-1720, 101210-1721, 63377566, 1608066080, 1610048280, 9606007480, 9688237380, 9806007480

  • Normalised article numbler
    a6124, a6124denso, cal40368, dan1071, dra1104, f032116357, 8el011712911, 20631n, 20631nos, 210946, 210946a, 286958, 440691, 554330ri, 12090697, 63377566, 225564090, 0986083390, 1012101720, 1012101721, 1608066080, 1610048280, 9606007480, 9688237380, 9806007480, 063377566010
  • Description
    Voltage: 14
    Amp: 80
    Pulley: Pitch: 42.40
    Width/holder arm: 21.00
    Mounting bracket pitch: 45.80
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 47
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 54.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 60
    Rotation: CW
    Plug no.: PL132
    Total length mm: 178.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116357, 101210-1720, 101210-1721, 63377566, 1608066080, 1610048280, 9606007480, 9688237380, 9806007480

    • Normalised article numbler
      a6124, a6124denso, cal40368, dan1071, dra1104, f032116357, 8el011712911, 20631n, 20631nos, 210946, 210946a, 286958, 440691, 554330ri, 12090697, 63377566, 225564090, 0986083390, 1012101720, 1012101721, 1608066080, 1610048280, 9606007480, 9688237380, 9806007480, 063377566010
