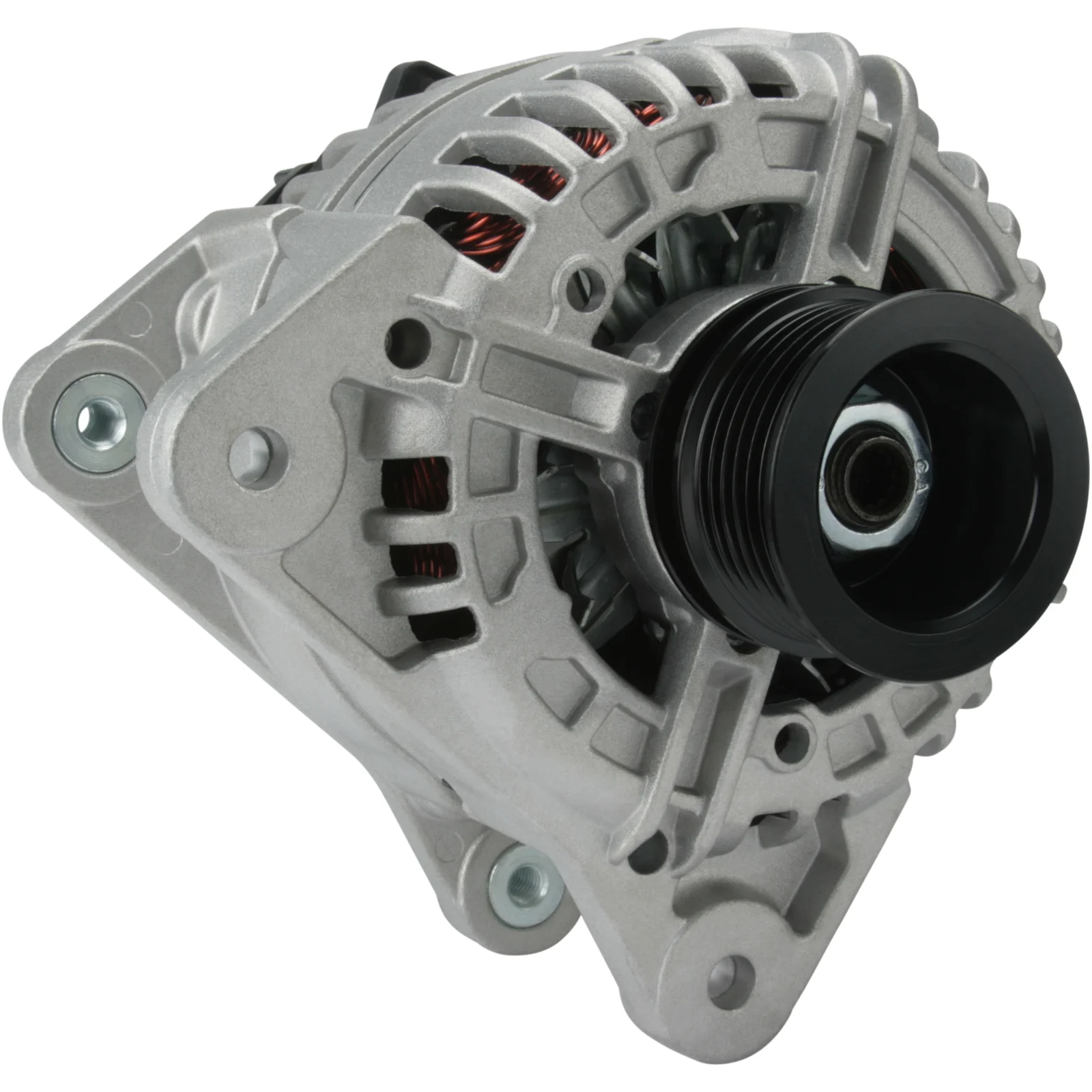

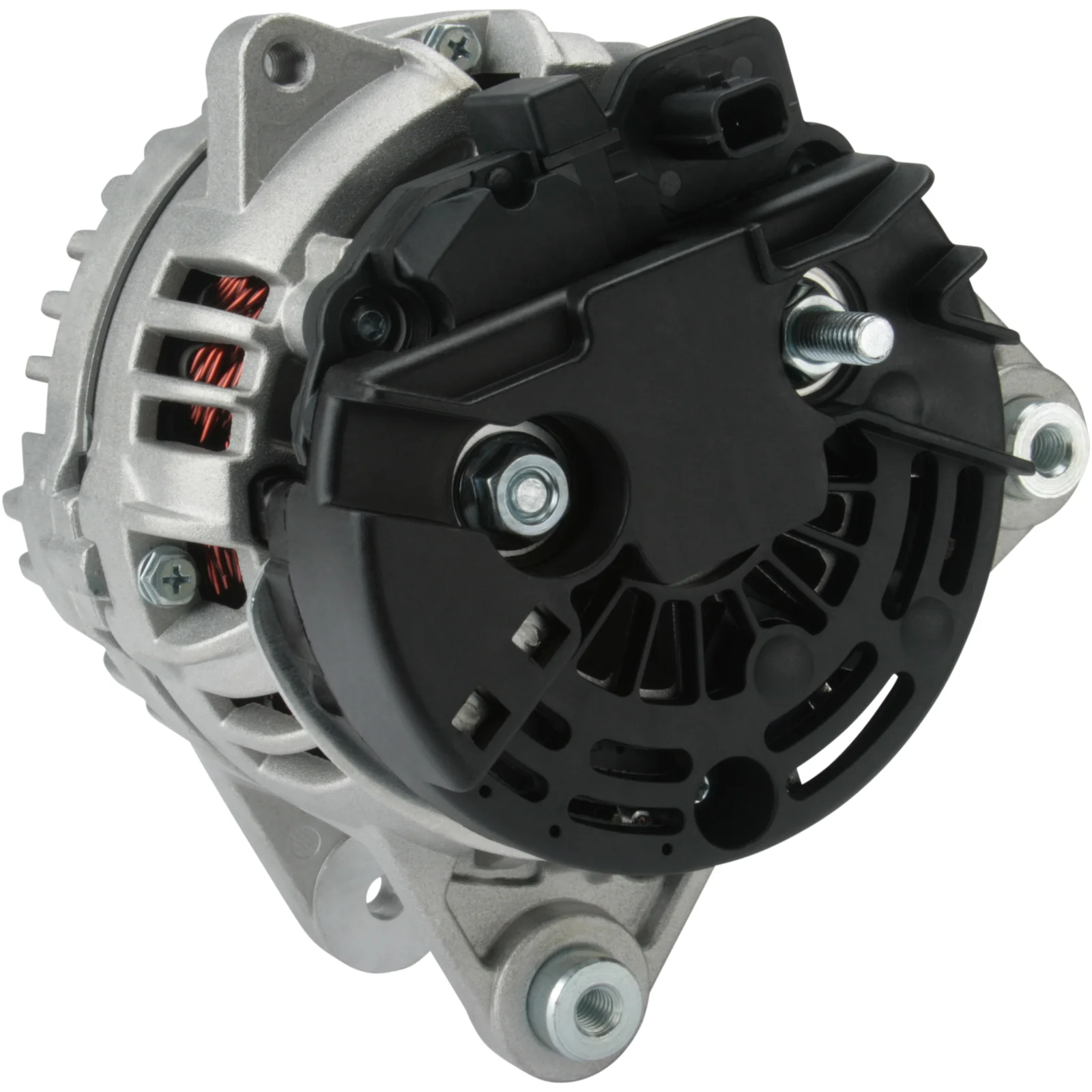

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115382

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 60.50

Description

Voltage: 14
Amp: 120
Pulley diameter: 38.50
Width/holder arm: 14.00
Mounting bracket distance: 60.50
Bracket hole: 8.50
Belt adjustment bracket hole position: 15
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 5
Rotation: CW
Plug no.: PL124
Total length mm: 190.00
Terminal type: COM
Communication: BSS
Pulley: SP
Regulator type: IR
Product info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A0278, CAL10346, DRA0361, F032115382, ia1435, IA1435, LRA03249, 8EL012426-311, 8EL738211-651, 28-5861, 230.343.1202, 1887ir, 1986A00832, 5702C5, 5702C6, 5702F3, 5702K6, 5705AC, 5705EW, 5705HC, 5705NE, 23261N, 27060YV020, 57056P, 57058G, 112640, 209098, 209098A, 301887RI, 440778, 9212279, 12090295, 32425034, 96460654, 96460668, 0124425034, 0124425070, 0124425110, 0986080990, 7711368458, 8200323137, 8200660025, 9639396480, 9640088280, 9646049980, 9646066880, 9646068880, 9646476280, 9646477580, 9648477580, 944390904580

  • Normalised article numbler
    a0278, cal10346, dra0361, f032115382, ia1435, lra03249, 8el012426311, 8el738211651, 1887ir, 1986a00832, 5702c5, 5702c6, 5702f3, 5702k6, 5705ac, 5705ew, 5705hc, 5705ne, 23261n, 27060yv020, 57056p, 57058g, 112640, 209098, 209098a, 285861, 301887ri, 440778, 9212279, 12090295, 32425034, 96460654, 96460668, 0124425034, 0124425070, 0124425110, 0986080990, 2303431202, 7711368458, 8200323137, 8200660025, 9639396480, 9640088280, 9646049980, 9646066880, 9646068880, 9646476280, 9646477580, 9648477580, 944390904580
  • Description
    Voltage: 14
    Amp: 120
    Pulley diameter: 38.50
    Width/holder arm: 14.00
    Mounting bracket distance: 60.50
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 15
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 5
    Rotation: CW
    Plug no.: PL124
    Total length mm: 190.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP
    Regulator type: IR
    Product info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A0278, CAL10346, DRA0361, F032115382, ia1435, IA1435, LRA03249, 8EL012426-311, 8EL738211-651, 28-5861, 230.343.1202, 1887ir, 1986A00832, 5702C5, 5702C6, 5702F3, 5702K6, 5705AC, 5705EW, 5705HC, 5705NE, 23261N, 27060YV020, 57056P, 57058G, 112640, 209098, 209098A, 301887RI, 440778, 9212279, 12090295, 32425034, 96460654, 96460668, 0124425034, 0124425070, 0124425110, 0986080990, 7711368458, 8200323137, 8200660025, 9639396480, 9640088280, 9646049980, 9646066880, 9646068880, 9646476280, 9646477580, 9648477580, 944390904580

    • Normalised article numbler
      a0278, cal10346, dra0361, f032115382, ia1435, lra03249, 8el012426311, 8el738211651, 1887ir, 1986a00832, 5702c5, 5702c6, 5702f3, 5702k6, 5705ac, 5705ew, 5705hc, 5705ne, 23261n, 27060yv020, 57056p, 57058g, 112640, 209098, 209098a, 285861, 301887ri, 440778, 9212279, 12090295, 32425034, 96460654, 96460668, 0124425034, 0124425070, 0124425110, 0986080990, 2303431202, 7711368458, 8200323137, 8200660025, 9639396480, 9640088280, 9646049980, 9646066880, 9646068880, 9646476280, 9646477580, 9648477580, 944390904580
