Article no.: F032113253

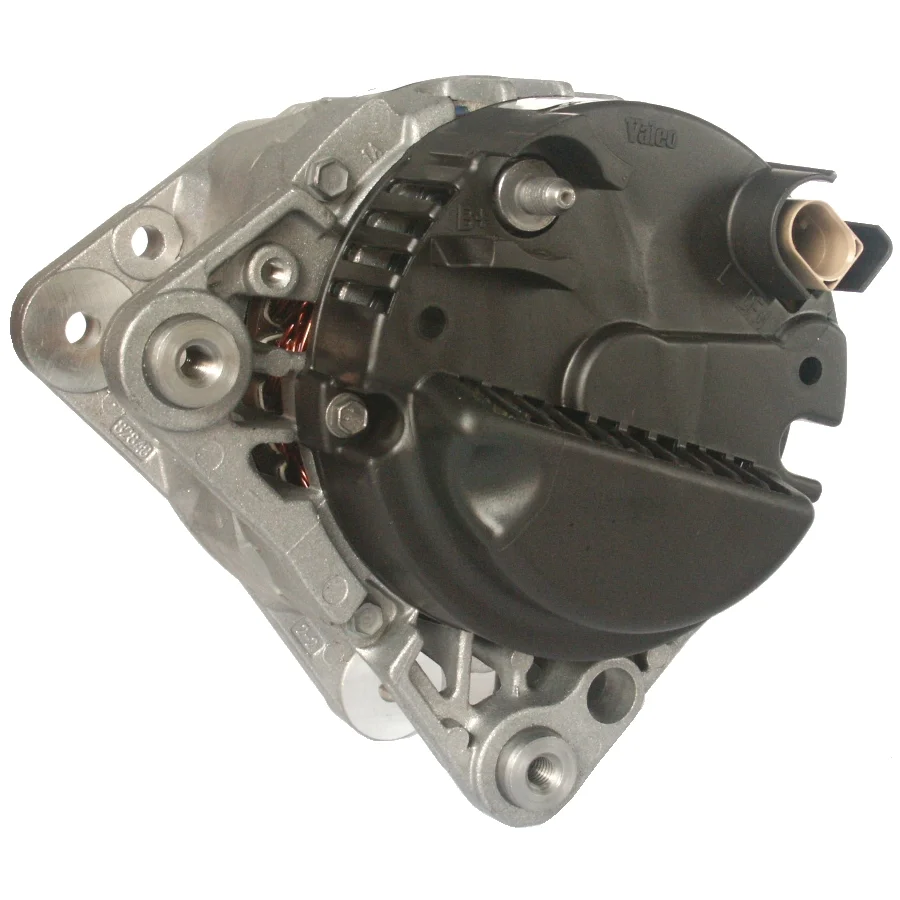

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mounting bracket distributor: 60.80

Description

VAG Alternator 12V-90A 12V - 90A, 6 groove pulley, (L-DFM) Note! Engine code! For Yourex product order 90-620-7411 Voltage: 14 Amperage: 90 Pulley distance: 30.00 Width/holder arm: 14.00 Mounting bracket distance: 60.80 Bracket hole: 8.60 Belt adjustment bracket hole position: 15 Belt adjustment bracket hole 1: 8.60 Pulley diameter: 49.60 Grooves/pulley: 6 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in min.: 55 D+ Size: Plug Rotation: CW Plug no.: PL61 Total length mm: 170.00 Pulley: SP Regulator type: IR Product info: BN Servicing: VW

Files

  • OEM
    F000BL0415, F032113253, SG8B023, SG8B026, SG9B 048, sg9b048, SG9B057, 03D 903 025E, 03D 903 025J, 03d903025d, 03d903025e, 03D903025EX, 03D903025H, 03D903025HX, 03D903025J, 03D903025JX, 1675ir, 1986A00567, 1986A00568, 113253, 437411, 2542577, 2542577C, 2542578, 2542578C, 2542746, 2542746A, 2542746B, 2542746E, 2542747, 2542747A, 2542747B, 2542747F, 039903025E

  • Normalised article numbler
    a3101, a3101valeo, a3102, a3102pr, a3102valeo, a3401pr, a3532pr, a3532valeo, alth122, cal15208, cal15344, cal15371, dra0021, dra0078, dra4187, f000bl0415, f032113253, f042a0h122, lea0459, lra02253, lra03178, sg8b023, sg8b026, sg9b048, sg9b057, 03d903025d, 03d903025e, 03d903025ex, 03d903025h, 03d903025hx, 03d903025j, 03d903025jx, 8el011712891, 8el012426471, 8el012426761, 1675ir, 1986a00567, 1986a00568, 4653, 4655, 21481r, 21486r, 111669, 111747, 113253, 200051, 200061, 210481, 210481a, 210482, 210482a, 210568, 210568a, 284731, 284911, 285790, 301675ri, 301755ri, 437411, 437444, 439451, 439481, 746132, 746134, 746932, 746934, 747035, 2542577, 2542577c, 2542578, 2542578c, 2542746, 2542746a, 2542746b, 2542746e, 2542747, 2542747a, 2542747b, 2542747f, 9213658, 12048890, 12049100, 32439481, 039903025e, 211322902, 211325902, 305560090, 0986048891, 0986049101, 944390903550, 944390903890, 944390904040
  • Description
    VAG Alternator 12V-90A 12V - 90A, 6 groove pulley, (L-DFM) Note! Engine code! For Yourex product order 90-620-7411 Voltage: 14 Amperage: 90 Pulley distance: 30.00 Width/holder arm: 14.00 Mounting bracket distance: 60.80 Bracket hole: 8.60 Belt adjustment bracket hole position: 15 Belt adjustment bracket hole 1: 8.60 Pulley diameter: 49.60 Grooves/pulley: 6 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in min.: 55 D+ Size: Plug Rotation: CW Plug no.: PL61 Total length mm: 170.00 Pulley: SP Regulator type: IR Product info: BN Servicing: VW

    Files

  • Suitable for these vehicles

    • OEM
      F000BL0415, F032113253, SG8B023, SG8B026, SG9B 048, sg9b048, SG9B057, 03D 903 025E, 03D 903 025J, 03d903025d, 03d903025e, 03D903025EX, 03D903025H, 03D903025HX, 03D903025J, 03D903025JX, 1675ir, 1986A00567, 1986A00568, 113253, 437411, 2542577, 2542577C, 2542578, 2542578C, 2542746, 2542746A, 2542746B, 2542746E, 2542747, 2542747A, 2542747B, 2542747F, 039903025E

    • Normalised article numbler
      a3101, a3101valeo, a3102, a3102pr, a3102valeo, a3401pr, a3532pr, a3532valeo, alth122, cal15208, cal15344, cal15371, dra0021, dra0078, dra4187, f000bl0415, f032113253, f042a0h122, lea0459, lra02253, lra03178, sg8b023, sg8b026, sg9b048, sg9b057, 03d903025d, 03d903025e, 03d903025ex, 03d903025h, 03d903025hx, 03d903025j, 03d903025jx, 8el011712891, 8el012426471, 8el012426761, 1675ir, 1986a00567, 1986a00568, 4653, 4655, 21481r, 21486r, 111669, 111747, 113253, 200051, 200061, 210481, 210481a, 210482, 210482a, 210568, 210568a, 284731, 284911, 285790, 301675ri, 301755ri, 437411, 437444, 439451, 439481, 746132, 746134, 746932, 746934, 747035, 2542577, 2542577c, 2542578, 2542578c, 2542746, 2542746a, 2542746b, 2542746e, 2542747, 2542747a, 2542747b, 2542747f, 9213658, 12048890, 12049100, 32439481, 039903025e, 211322902, 211325902, 305560090, 0986048891, 0986049101, 944390903550, 944390903890, 944390904040
