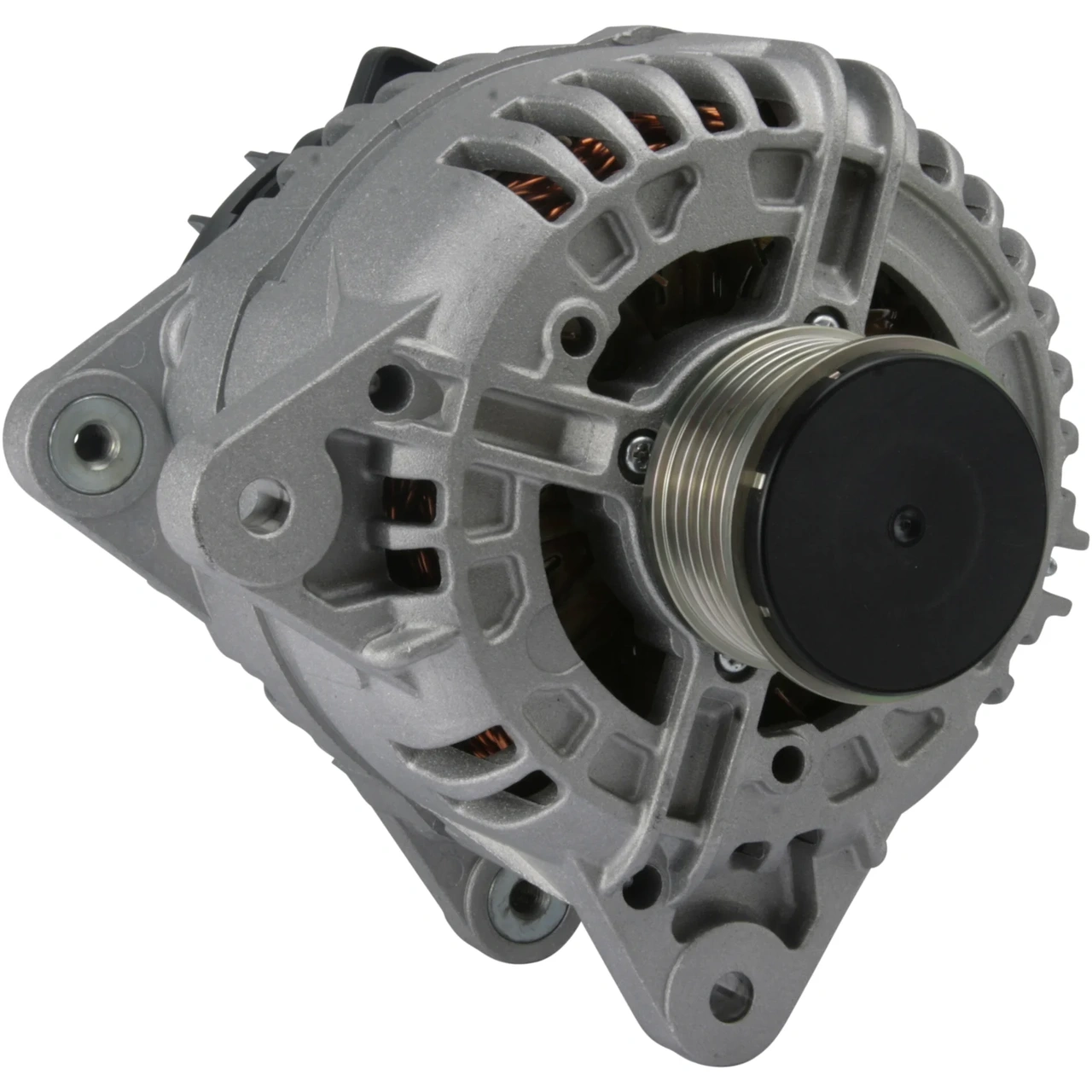

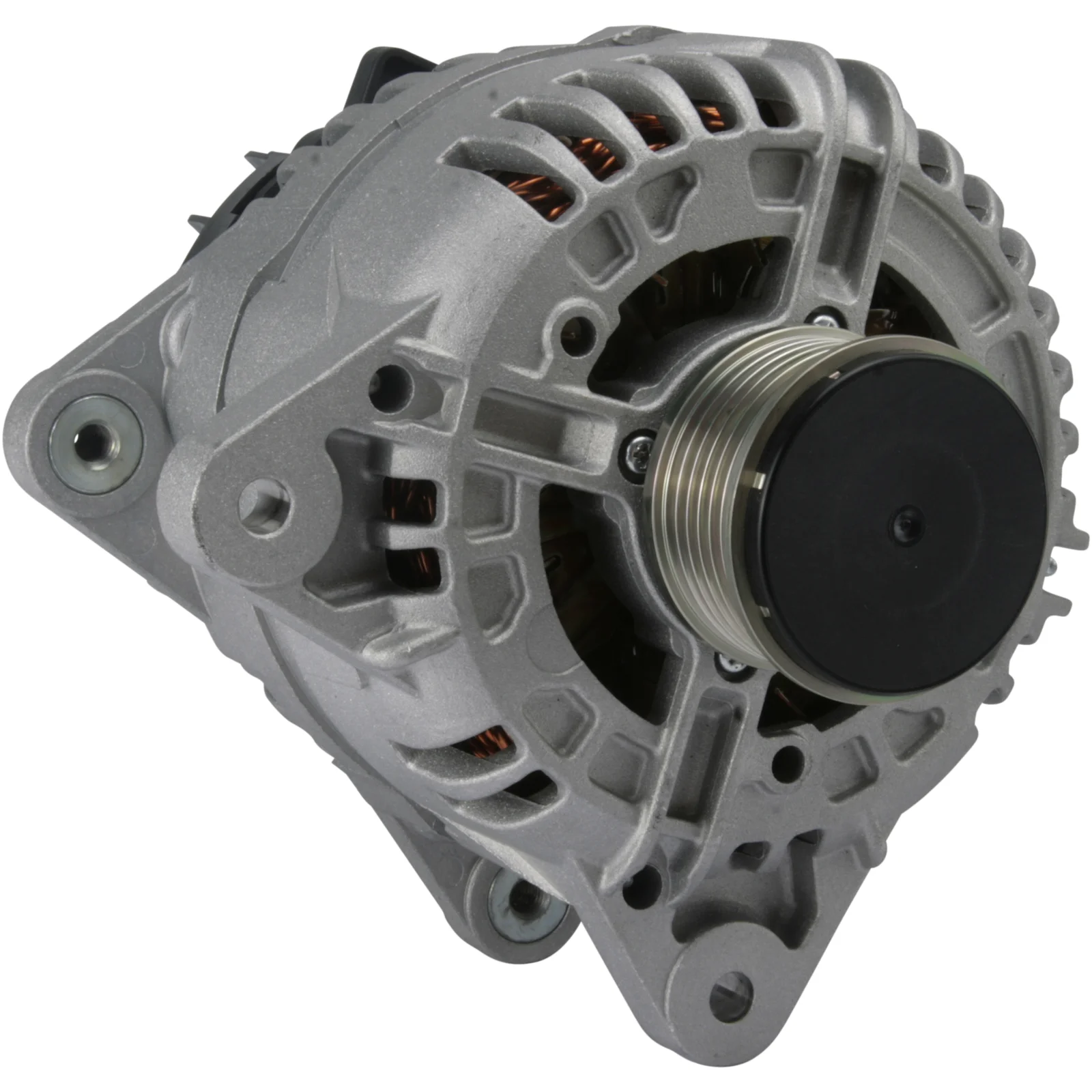

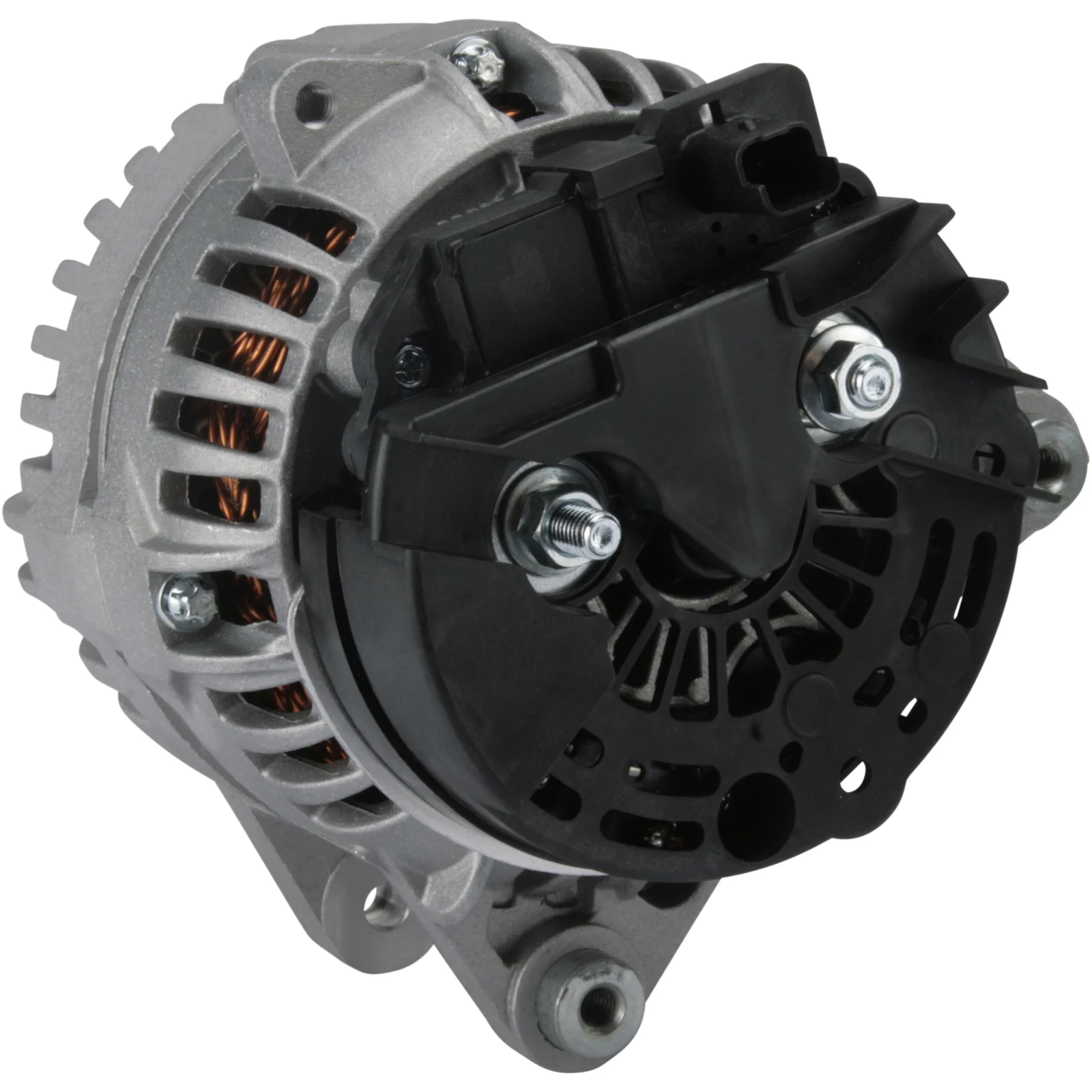

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114354

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mounting bracket distance: 60.50

Description

Renault Diesel Alternator 12V-150A 12V - 150A, 6 grooves, (L, DFM) 6 grooves, (L, DFM) For Yourlex product order 90-480-8040 Voltage: 14 Amp: 150 Pulley diameter: 38.50 Width/holder arm: 14.00 Mounting bracket distance: 60.50 Bracket hole: 9.00 Belt adjustment bracket hole position: 45 Belt adjustment bracket hole 1: 9.00 Pulley diameter: 55.00 Grooves/pulley: 6 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in min.: 45 Rotation: CW Plug no.: PL72 Total length mm: 205.00 Pulley: SP/FW Product info: BN

Files

  • OEM
    F032114354, 0124 525 082, 0124 525 140, 0986 080 400, 1876ir, 1986A00903, 8200 390 667, 8200 728 292, 23100-00Q0M, 23100-00q0m, 23100-00Q2C, 23100-00Q2J, 23100-00q2j, 23100-4HH3ACX, 23100-JD10A, 114354, 0124525082, 0124525140, 0124525208, 0124525540, 8200390667, 8200728292, 8200992211

  • Normalised article numbler
    a0168, a0168p, alt2097w, cal10235, dra0104, dra0604, f032114354, f042301113, f042a01113, lea0689, 8el012429451, 1876ir, 1986a00903, 4679, 23100jd10a, 23884n, 112611, 114354, 200245, 209028, 209028a, 231004hh3acx, 285501, 301876ri, 440689, 443281, 2310000q0m, 2310000q2c, 2310000q2j, 9090556, 9213047, 12090183, 0124525082, 0124525140, 0124525208, 0124525540, 0986080400, 2303111502, 8200390667, 8200728292, 8200992211
  • Description
    Renault Diesel Alternator 12V-150A 12V - 150A, 6 grooves, (L, DFM) 6 grooves, (L, DFM) For Yourlex product order 90-480-8040 Voltage: 14 Amp: 150 Pulley diameter: 38.50 Width/holder arm: 14.00 Mounting bracket distance: 60.50 Bracket hole: 9.00 Belt adjustment bracket hole position: 45 Belt adjustment bracket hole 1: 9.00 Pulley diameter: 55.00 Grooves/pulley: 6 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in min.: 45 Rotation: CW Plug no.: PL72 Total length mm: 205.00 Pulley: SP/FW Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114354, 0124 525 082, 0124 525 140, 0986 080 400, 1876ir, 1986A00903, 8200 390 667, 8200 728 292, 23100-00Q0M, 23100-00q0m, 23100-00Q2C, 23100-00Q2J, 23100-00q2j, 23100-4HH3ACX, 23100-JD10A, 114354, 0124525082, 0124525140, 0124525208, 0124525540, 8200390667, 8200728292, 8200992211

    • Normalised article numbler
      a0168, a0168p, alt2097w, cal10235, dra0104, dra0604, f032114354, f042301113, f042a01113, lea0689, 8el012429451, 1876ir, 1986a00903, 4679, 23100jd10a, 23884n, 112611, 114354, 200245, 209028, 209028a, 231004hh3acx, 285501, 301876ri, 440689, 443281, 2310000q0m, 2310000q2c, 2310000q2j, 9090556, 9213047, 12090183, 0124525082, 0124525140, 0124525208, 0124525540, 0986080400, 2303111502, 8200390667, 8200728292, 8200992211
