HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114431

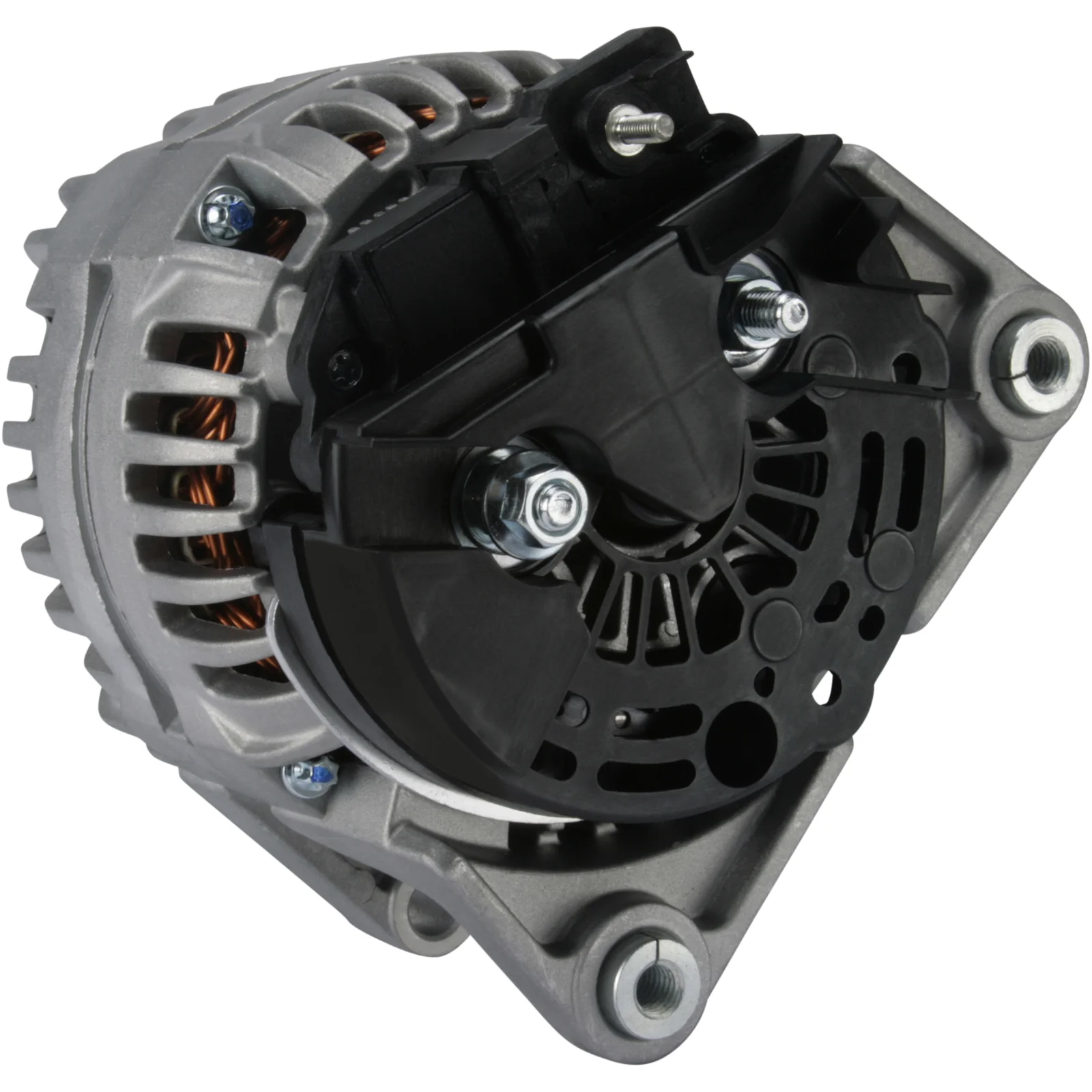

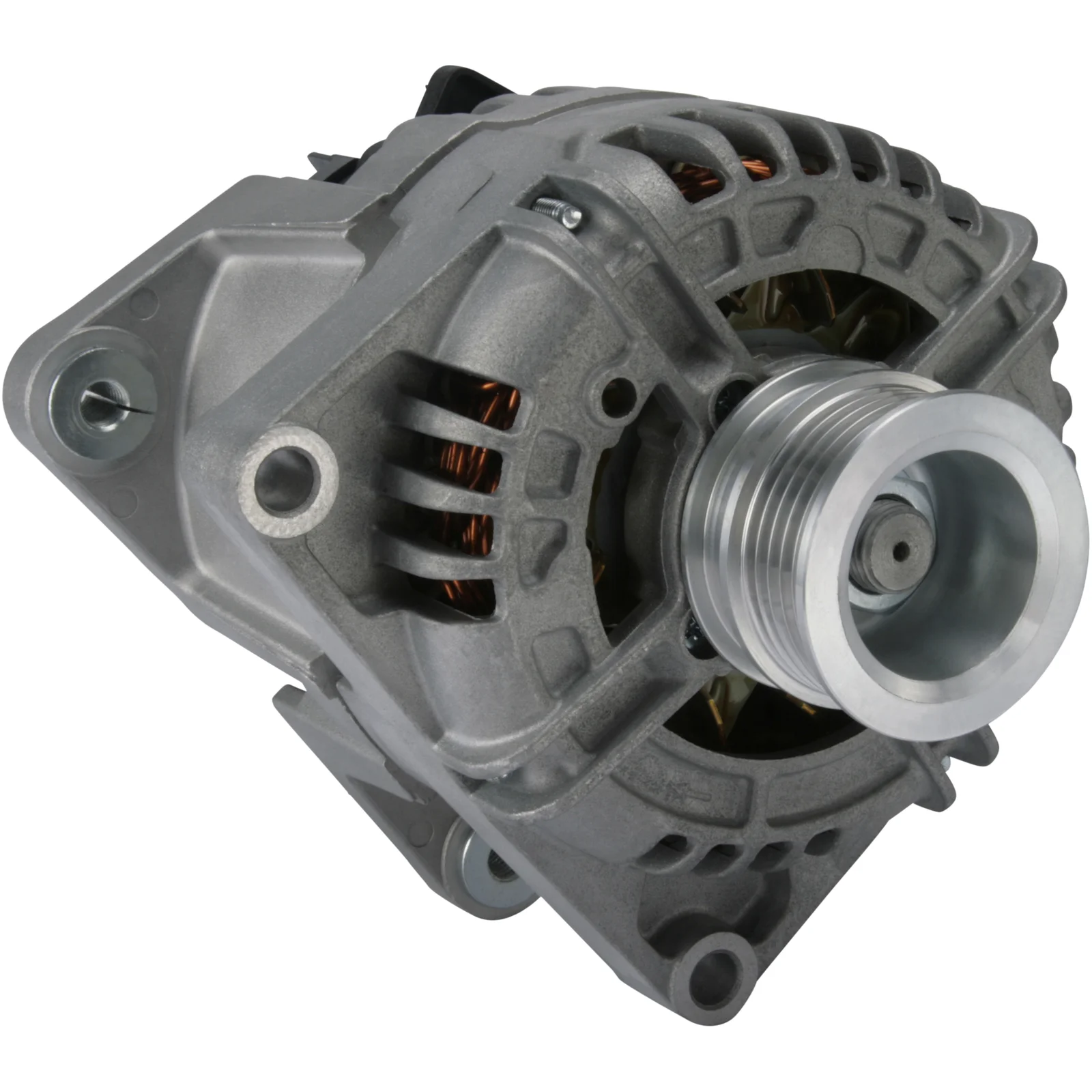

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mounting bracket distributor: 57.20

Description

Voltage: 14
Amp: 120
Pulley dist.: 64.70
Width/holder arm: 23.00
Mount. bracket dist.: 57.20
Bracket hole: 10.50
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 54.00
Grooves/pulley: 5
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 10
D+ Size: M4
Rotation: CW
Total length mm: 184.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032114431, R1530094, 1833ir, 1986A00818, 1986A01144, 6204123, 6204205, 6204268, 8000004, 9562193, 18000004, 24447429, 46843097, 51754152, 51754153, 55556067, 93174469, 93183437, 93190146, 0124425005, 0124425020

  • Normalised article numbler
    a0238, a0238pr, a0244, a0244sr, alt2077, cal10314, dra4287, dra4287n, drb7270, drb7270x, f032114431, f042301085, f042a01085, lra02916, r1530094, 8el011712481, 8el012430421, 1833ir, 1986a00818, 1986a01144, 23915r, 23916n, 111557, 209096, 209096a, 209418, 209418a, 284941, 285530, 301833ri, 301882ri, 439973, 440657, 440731, 443106, 443284, 6204123, 6204205, 6204268, 8000004, 9046140, 9562193, 12046140, 12047270, 18000004, 24447429, 32047270, 46843097, 51754152, 51754153, 55556067, 93174469, 93183437, 93190146, 0124425005, 0124425020, 0986046140, 0986046143, 0986047270, 0986047273, 2281481202
  • Description
    Voltage: 14
    Amp: 120
    Pulley dist.: 64.70
    Width/holder arm: 23.00
    Mount. bracket dist.: 57.20
    Bracket hole: 10.50
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 54.00
    Grooves/pulley: 5
    Radius: 92.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in min.: 10
    D+ Size: M4
    Rotation: CW
    Total length mm: 184.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114431, R1530094, 1833ir, 1986A00818, 1986A01144, 6204123, 6204205, 6204268, 8000004, 9562193, 18000004, 24447429, 46843097, 51754152, 51754153, 55556067, 93174469, 93183437, 93190146, 0124425005, 0124425020

    • Normalised article numbler
      a0238, a0238pr, a0244, a0244sr, alt2077, cal10314, dra4287, dra4287n, drb7270, drb7270x, f032114431, f042301085, f042a01085, lra02916, r1530094, 8el011712481, 8el012430421, 1833ir, 1986a00818, 1986a01144, 23915r, 23916n, 111557, 209096, 209096a, 209418, 209418a, 284941, 285530, 301833ri, 301882ri, 439973, 440657, 440731, 443106, 443284, 6204123, 6204205, 6204268, 8000004, 9046140, 9562193, 12046140, 12047270, 18000004, 24447429, 32047270, 46843097, 51754152, 51754153, 55556067, 93174469, 93183437, 93190146, 0124425005, 0124425020, 0986046140, 0986046143, 0986047270, 0986047273, 2281481202
