Article no.: F032113247

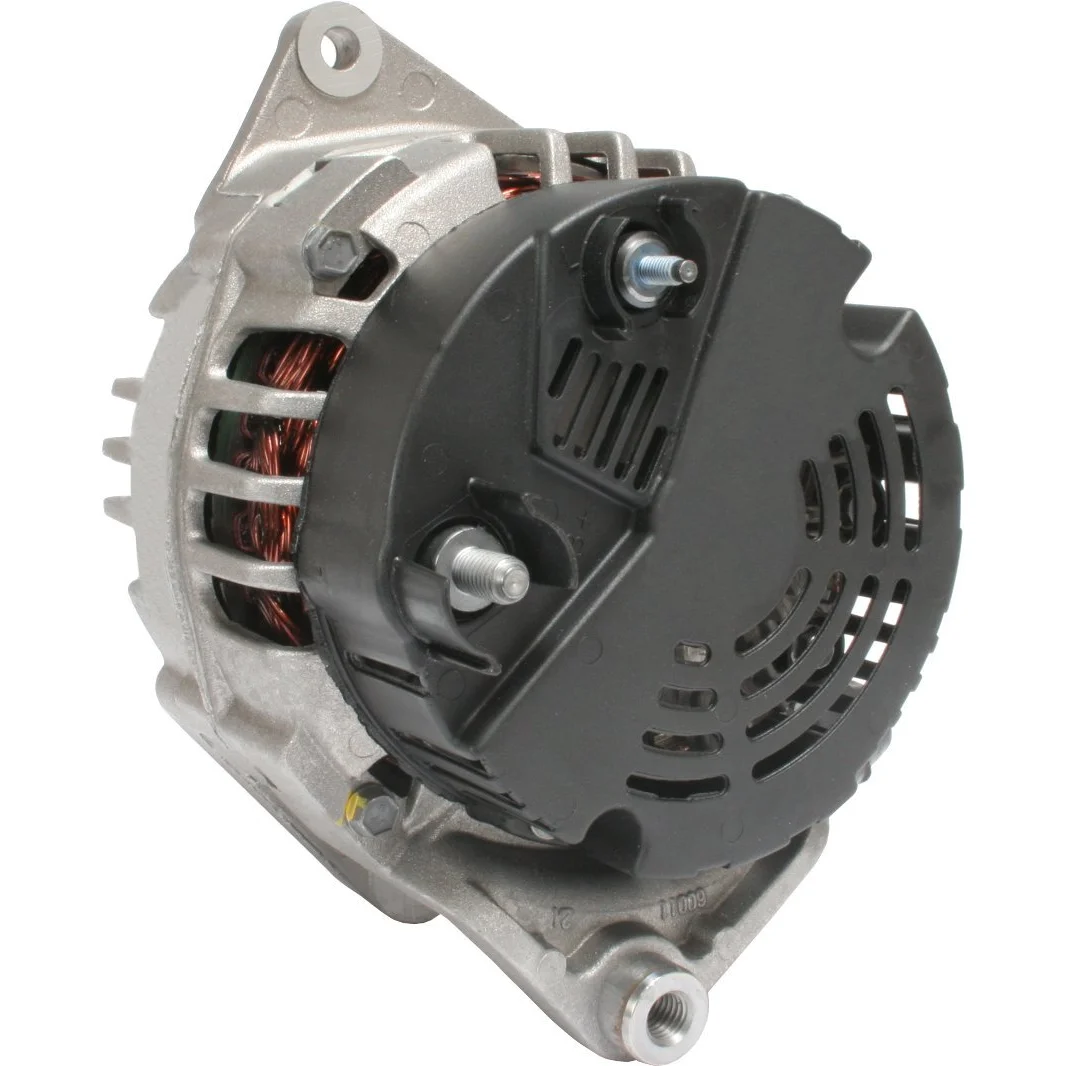

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 68.50

Description

Fiat Ducato Alternator 12V-120A 12V - 120A, 6 groove pulley Alternative: 90-165-7350 (150A) For Yourex product order 90-165-7349

Voltage: 14
Amp: 120
Pulley distance: 52.00
Width/holder arm: 27.00
Mounting bracket distance: 68.50
Bracket hole: 10.20
Belt adjustment bracket hole position: 4
Belt adjustment bracket hole 1: 8.00
Pulley diameter: 60.00
Grooves/pulley: 6
Radius: 89.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 45
D+ Size: M5
Rotation: clockwise
Total length mm: 178.00
Pulley: SP
Regulator type: IR
Product info: BN
Servicing: Peugeot

Files

  • OEM
    A3053, A3053ER, A3053PR, A3053SR, ALT-7216, ALT14156, CAL15249, DRA0041, DRA0041X, F032113247, F032113950, F042205161, F042208033, F042A0B011, GA13040, SG12B 040, sg12b040, 8EL011360-581, 8EL011710-601, 8EL737935-001, 28-4603, 28-7550, 218.177.1202, 0986 049 061, 1643ir, 1986A01190, 4572, 5702C0, 5702C1, 5705 AF, 5705af, 5705AK, 5705C0, 5705C1, 5705ev, 5705EV, 23223N, 111202, 113247, 113950, 200067, 210470, 210470A, 301643RI, 437349, 439339, 746090, 746890, 839062, 2542441, 2542441A, 2542441C, 2542441D, 9213281, 12049060, 32437349, 063310508, 63310508, 71721786, 71723395, 71723396, 71780140, 500371244, 504033459, 0986049061, 063310508010

  • Normalised article numbler
    a3053, a3053er, a3053pr, a3053sr, alt14156, alt7216, cal15249, dra0041, dra0041x, f032113247, f032113950, f042205161, f042208033, f042a0b011, ga13040, sg12b040, 8el011360581, 8el011710601, 8el737935001, 1643ir, 1986a01190, 4572, 5702c0, 5702c1, 5705af, 5705ak, 5705c0, 5705c1, 5705ev, 23223n, 111202, 113247, 113950, 200067, 210470, 210470a, 284603, 287550, 301643ri, 437349, 439339, 746090, 746890, 839062, 2542441, 2542441a, 2542441c, 2542441d, 9213281, 12049060, 32437349, 063310508, 63310508, 71721786, 71723395, 71723396, 71780140, 500371244, 504033459, 0986049061, 2181771202, 063310508010
  • Description
    Fiat Ducato Alternator 12V-120A 12V - 120A, 6 groove pulley Alternative: 90-165-7350 (150A) For Yourex product order 90-165-7349

    Voltage: 14
    Amp: 120
    Pulley distance: 52.00
    Width/holder arm: 27.00
    Mounting bracket distance: 68.50
    Bracket hole: 10.20
    Belt adjustment bracket hole position: 4
    Belt adjustment bracket hole 1: 8.00
    Pulley diameter: 60.00
    Grooves/pulley: 6
    Radius: 89.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in min.: 45
    D+ Size: M5
    Rotation: clockwise
    Total length mm: 178.00
    Pulley: SP
    Regulator type: IR
    Product info: BN
    Servicing: Peugeot

    Files

  • Suitable for these vehicles

    • OEM
      A3053, A3053ER, A3053PR, A3053SR, ALT-7216, ALT14156, CAL15249, DRA0041, DRA0041X, F032113247, F032113950, F042205161, F042208033, F042A0B011, GA13040, SG12B 040, sg12b040, 8EL011360-581, 8EL011710-601, 8EL737935-001, 28-4603, 28-7550, 218.177.1202, 0986 049 061, 1643ir, 1986A01190, 4572, 5702C0, 5702C1, 5705 AF, 5705af, 5705AK, 5705C0, 5705C1, 5705ev, 5705EV, 23223N, 111202, 113247, 113950, 200067, 210470, 210470A, 301643RI, 437349, 439339, 746090, 746890, 839062, 2542441, 2542441A, 2542441C, 2542441D, 9213281, 12049060, 32437349, 063310508, 63310508, 71721786, 71723395, 71723396, 71780140, 500371244, 504033459, 0986049061, 063310508010

    • Normalised article numbler
      a3053, a3053er, a3053pr, a3053sr, alt14156, alt7216, cal15249, dra0041, dra0041x, f032113247, f032113950, f042205161, f042208033, f042a0b011, ga13040, sg12b040, 8el011360581, 8el011710601, 8el737935001, 1643ir, 1986a01190, 4572, 5702c0, 5702c1, 5705af, 5705ak, 5705c0, 5705c1, 5705ev, 23223n, 111202, 113247, 113950, 200067, 210470, 210470a, 284603, 287550, 301643ri, 437349, 439339, 746090, 746890, 839062, 2542441, 2542441a, 2542441c, 2542441d, 9213281, 12049060, 32437349, 063310508, 63310508, 71721786, 71723395, 71723396, 71780140, 500371244, 504033459, 0986049061, 2181771202, 063310508010
