HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114779

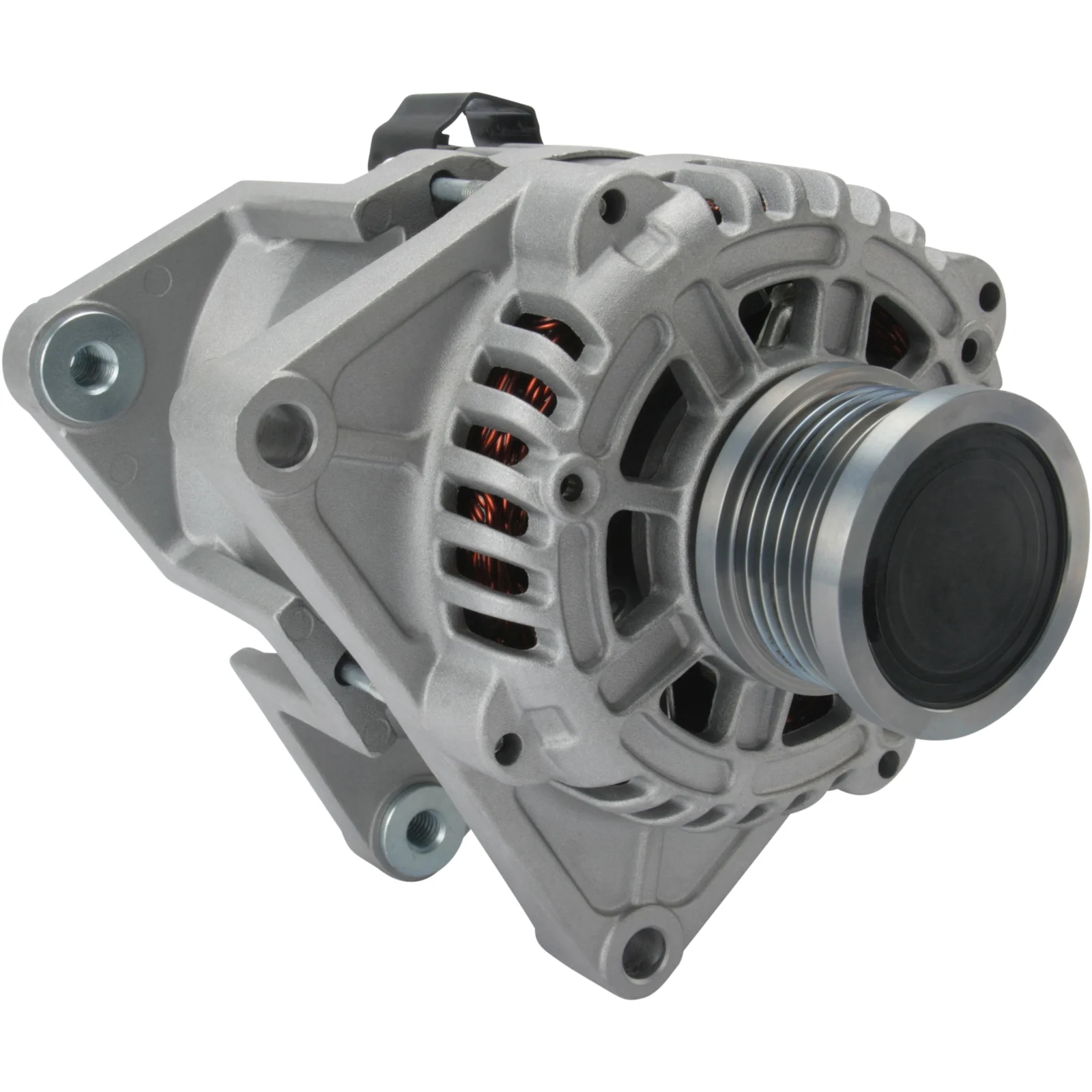

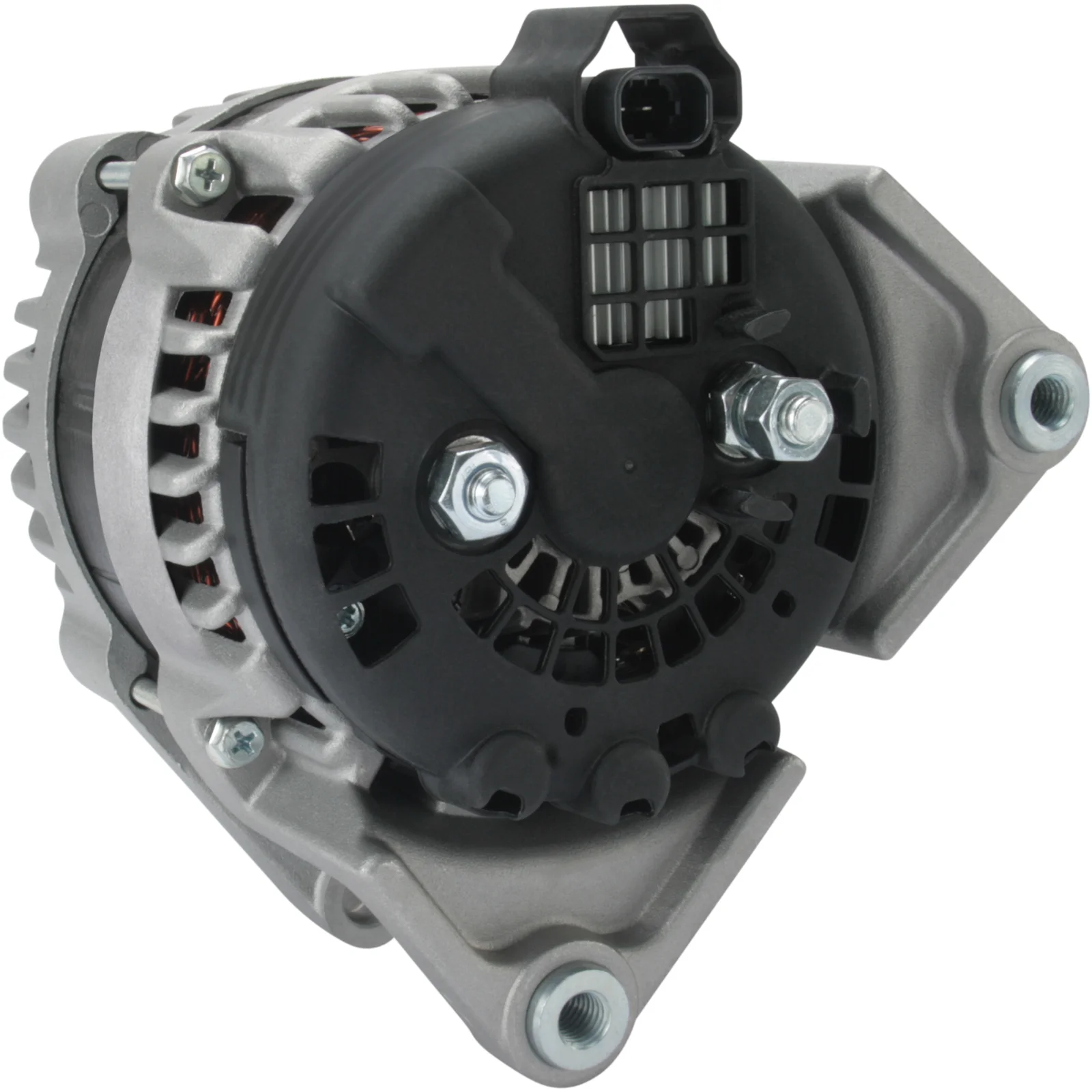

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 100, Rotation: CW, Mounting bracket distributor: 56.00

Description

Voltage: 14
Amp: 100
Pulley diameter: 63.00
Width/holder arm: 23.00
Mounting bracket diameter: 56.00
Bracket hole: 10.00
Bracket hole 2: M10
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 10.00
Pulley diameter: 53.50
Grooves per pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 15
Rotation: CW
Plug number: PL180
Total length mm: 187.00
Terminal type: L-F
Communication: PWM
Pulley: SP/FW
Regulator type: IR
Product info: BN
Remarks: This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032114779, 1986A01971, 2141ir, 1202235, 1204654, 13500577, 13579666, 13595628, 95522249

  • Normalised article numbler
    a1026, a1026p, cal42108, dra0903, dra0903n, f032114779, f042205165, lra03352, 1986a01971, 2141ir, 21514, 21514n, 113297, 209131, 209131a, 285964, 440643, 440953, 553497ri, 1202235, 1204654, 12090466, 13500577, 13579666, 13595628, 95522249, 135594100, 0986083420, 0986087010, 2281821002
  • Description
    Voltage: 14
    Amp: 100
    Pulley diameter: 63.00
    Width/holder arm: 23.00
    Mounting bracket diameter: 56.00
    Bracket hole: 10.00
    Bracket hole 2: M10
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 10.00
    Pulley diameter: 53.50
    Grooves per pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 15
    Rotation: CW
    Plug number: PL180
    Total length mm: 187.00
    Terminal type: L-F
    Communication: PWM
    Pulley: SP/FW
    Regulator type: IR
    Product info: BN
    Remarks: This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032114779, 1986A01971, 2141ir, 1202235, 1204654, 13500577, 13579666, 13595628, 95522249

    • Normalised article numbler
      a1026, a1026p, cal42108, dra0903, dra0903n, f032114779, f042205165, lra03352, 1986a01971, 2141ir, 21514, 21514n, 113297, 209131, 209131a, 285964, 440643, 440953, 553497ri, 1202235, 1204654, 12090466, 13500577, 13579666, 13595628, 95522249, 135594100, 0986083420, 0986087010, 2281821002
