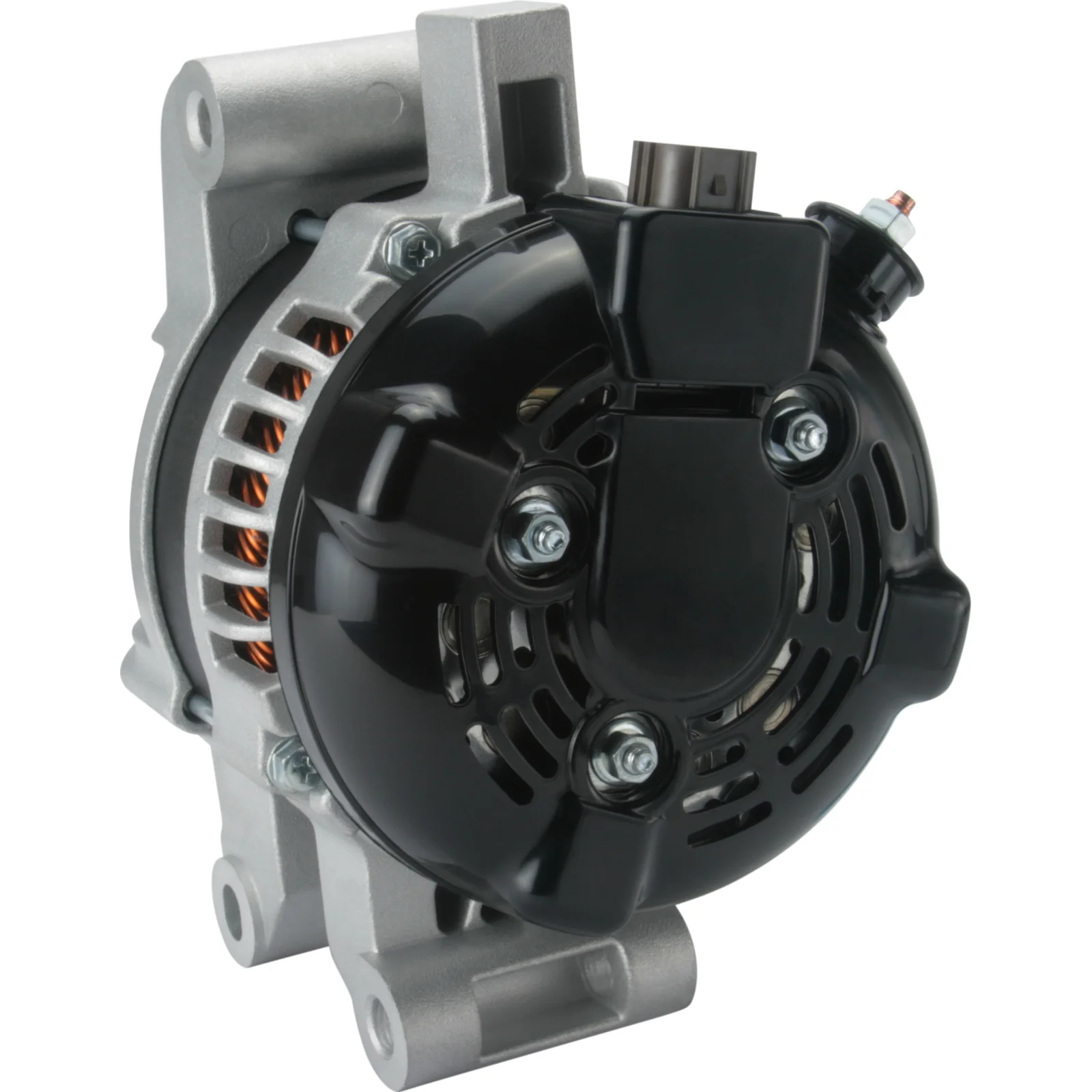

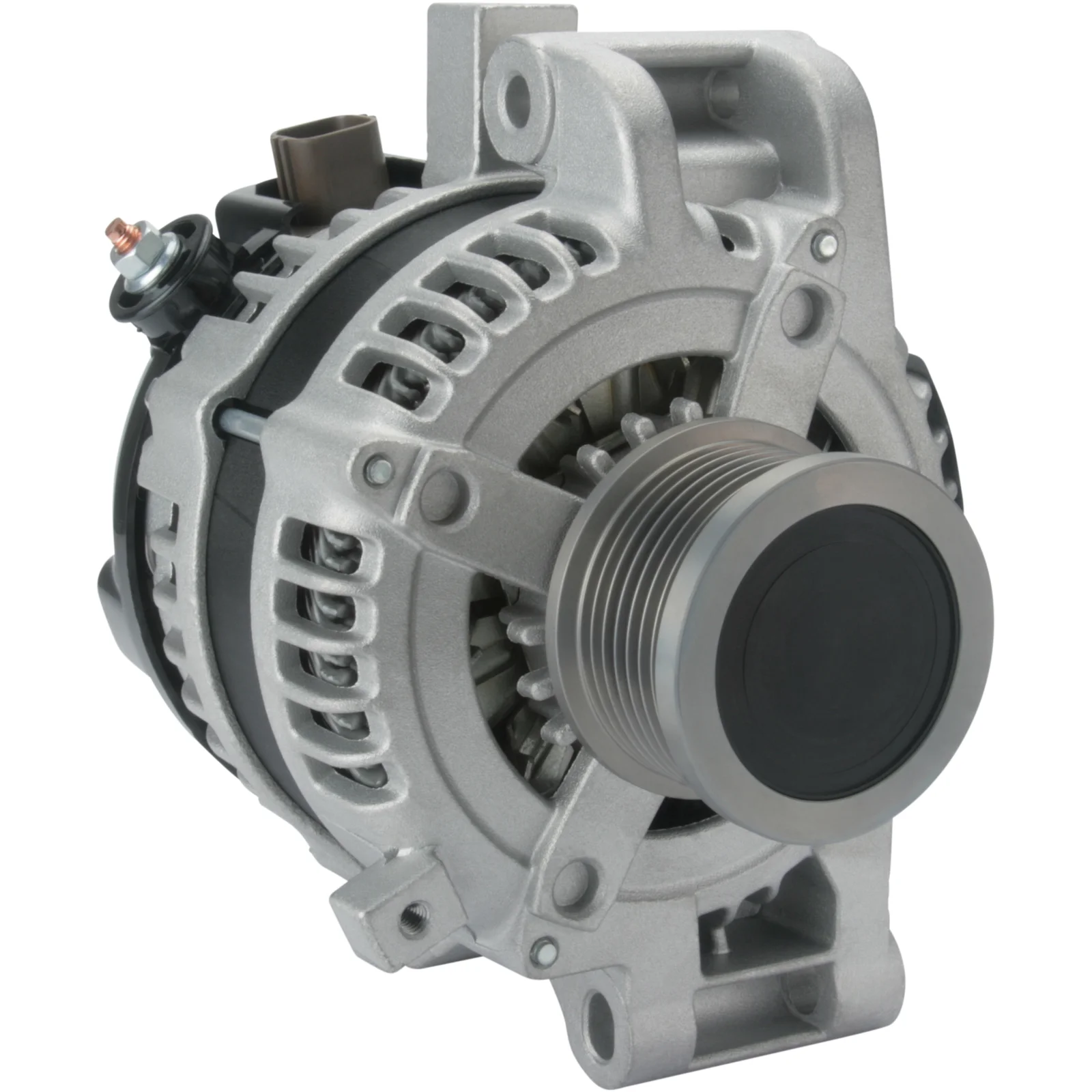

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114410

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 130, Rotation: CW, Mounting bracket distance: 71.00

Description

Toyota 2.2D Generator 12V-130A 12V - 130A, 7 grooves. (IG, RLO, L, M) Alternative: 90-555-2606 150A For Your product order 90-555-2603

Voltage: 14
Amp: 130
Pulley dist.: 24.00
Width/holder arm: 60.00
Mount. bracket dist.: 71.00
Bracket hole: 8.50
Bracket hole 2: 10.00
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 58.00
Grooves/pulley: 7
B+: M6
Position/B+ in min.: 7
D+ Size: Plug
Rotation: CW
Plug no.: PL146
Total length mm: 152.00
Pulley: SP/FW
Regulator type: IR

Files

  • OEM
    DAN 1013, F032114410, 0986 082 070, 1986A01269, 2029ir, 021080-6010, 27060-0G021, 27060-0g021, 27060-0R080, 27060-26030, 104210-1880, 104210-1881, 104210-1882, 104210-4501, 104210-4590, 104210-4591, 104210-4592, 104210-4770, 104210-4771, 114410

  • Normalised article numbler
    a6063, a6063denso, a6063pr, a6371, cal40259, cal40300, dan1013, dendan1013, dra0616, f032114410, j5112152, 8el012428511, 1986a01269, 2029ir, 9318, 20226, 20226ct, 20226n, 113183, 113316, 114410, 210934, 210934a, 270600g021, 270600r080, 285773, 302029ri, 440523, 443091, 12060946, 195568130, 195942130, 0210806010, 0986082070, 1042101880, 1042101881, 1042101882, 1042104501, 1042104590, 1042104591, 1042104592, 1042104770, 1042104771, 2353181302, 2706026030, 063377534010
  • Description
    Toyota 2.2D Generator 12V-130A 12V - 130A, 7 grooves. (IG, RLO, L, M) Alternative: 90-555-2606 150A For Your product order 90-555-2603

    Voltage: 14
    Amp: 130
    Pulley dist.: 24.00
    Width/holder arm: 60.00
    Mount. bracket dist.: 71.00
    Bracket hole: 8.50
    Bracket hole 2: 10.00
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 58.00
    Grooves/pulley: 7
    B+: M6
    Position/B+ in min.: 7
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL146
    Total length mm: 152.00
    Pulley: SP/FW
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      DAN 1013, F032114410, 0986 082 070, 1986A01269, 2029ir, 021080-6010, 27060-0G021, 27060-0g021, 27060-0R080, 27060-26030, 104210-1880, 104210-1881, 104210-1882, 104210-4501, 104210-4590, 104210-4591, 104210-4592, 104210-4770, 104210-4771, 114410

    • Normalised article numbler
      a6063, a6063denso, a6063pr, a6371, cal40259, cal40300, dan1013, dendan1013, dra0616, f032114410, j5112152, 8el012428511, 1986a01269, 2029ir, 9318, 20226, 20226ct, 20226n, 113183, 113316, 114410, 210934, 210934a, 270600g021, 270600r080, 285773, 302029ri, 440523, 443091, 12060946, 195568130, 195942130, 0210806010, 0986082070, 1042101880, 1042101881, 1042101882, 1042104501, 1042104590, 1042104591, 1042104592, 1042104770, 1042104771, 2353181302, 2706026030, 063377534010
