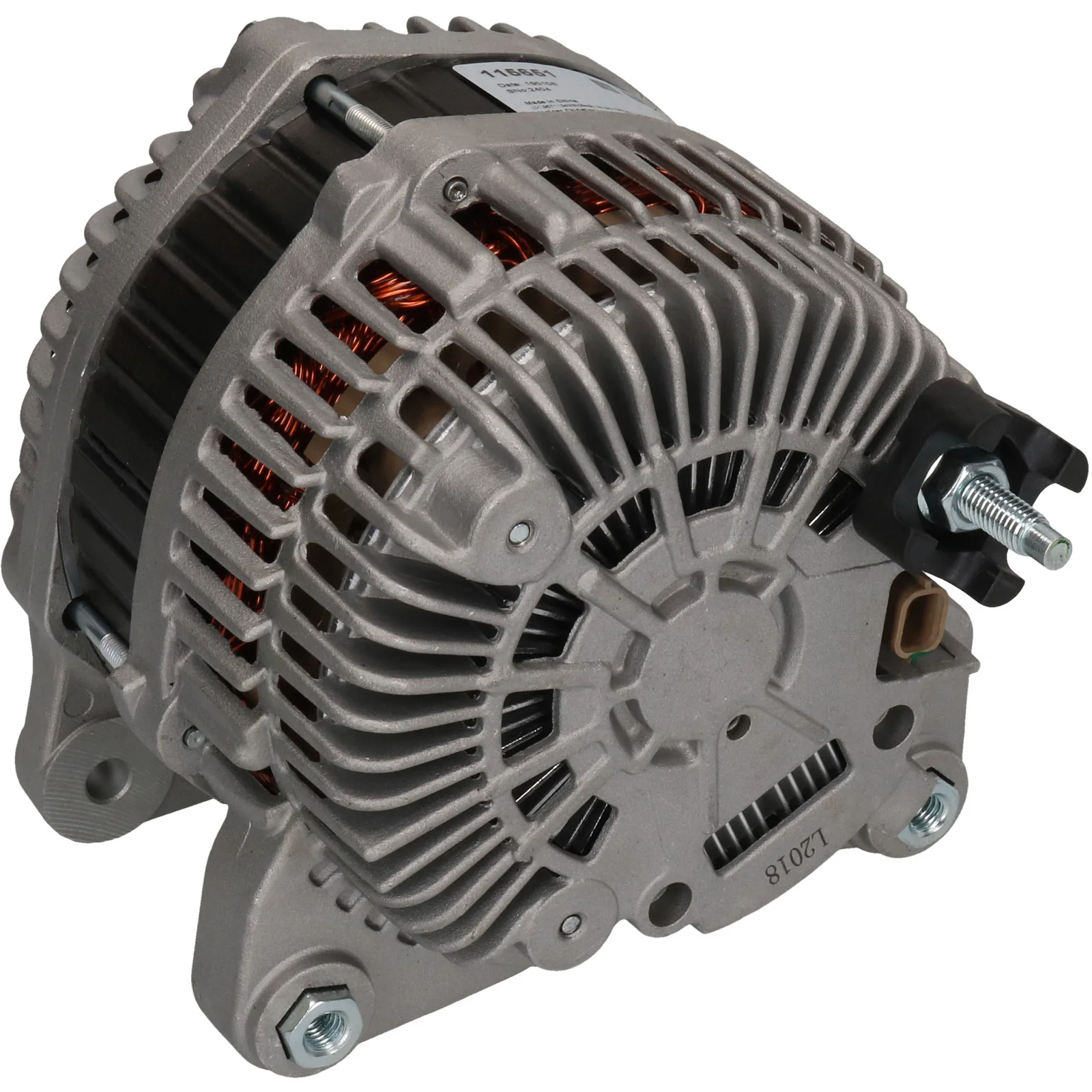

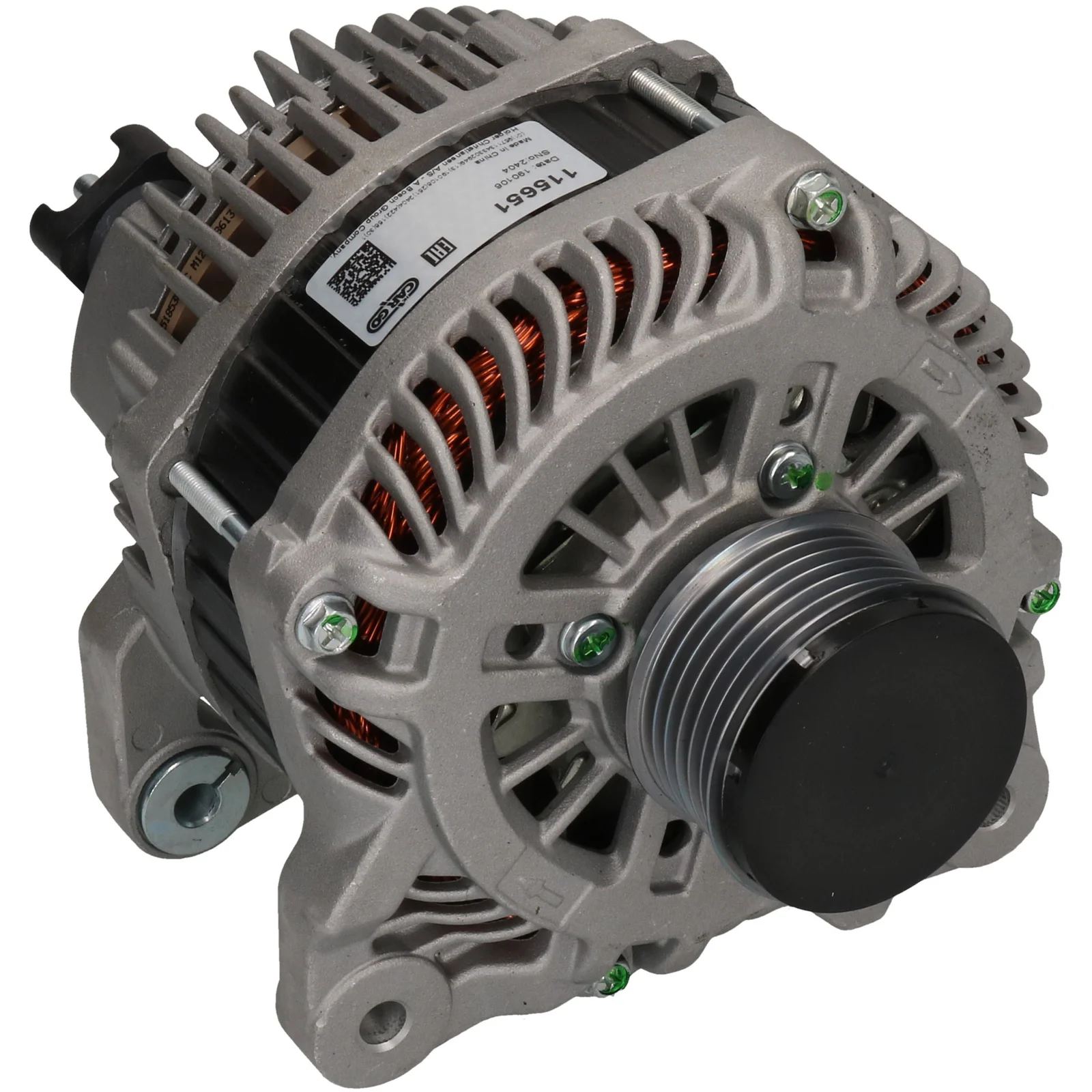

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115651

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 210, Rotation: CW, Mounting bracket distributor: 58.00

Description

Renault Megane Alternator 12V-210A 12V - 210A, 6-pole connector, (BSS) ID code: 179 Option: 90-480-1181 Bosch/SEG For Yourex product order 90-480-8727

Voltage: 14
Amp: 210
Pulley dist.: 39.00
Width/holder arm: 14.50
Mounting bracket dist.: 58.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 2
Rotation: CW
Plug no.: PL124
Total length mm: 204.00
Terminal type: COM
Communication: BSS
Pulley: SP/FW
Regulator type: IR
Remarks: This alternator has a COM terminal on the regulator. It is recommended to use the OEM number to check suitability before ordering.

Files

  • OEM
    A004TJ0582, A004TJ0582ZE, A4T-J0582, A4T-J0582 ZE, a4tj0582, A4TJ0582ZC, A4TJ0582ZE, F032115651, 0125 811 181, 1986A01555, 2086ir, 7711 368 727, 8200 660 057, 8200 960 533, 23100-2543R, 115651, 231002543R, 7711368727, 8200363528, 8200660057, 8200960533

  • Normalised article numbler
    a004tj0582, a004tj0582ze, a4tj0582, a4tj0582zc, a4tj0582ze, a5230, cal35221, dra0798, f032115651, lra03304, 1986a01555, 2086ir, 20255nos, 20255r, 112855, 115651, 200278, 210996, 210996a, 285916, 440878, 443267, 9090820, 12061038, 0125811181, 190014092, 231002543r, 0986083730, 2303372102, 7711368727, 8200363528, 8200660057, 8200960533
  • Description
    Renault Megane Alternator 12V-210A 12V - 210A, 6-pole connector, (BSS) ID code: 179 Option: 90-480-1181 Bosch/SEG For Yourex product order 90-480-8727

    Voltage: 14
    Amp: 210
    Pulley dist.: 39.00
    Width/holder arm: 14.50
    Mounting bracket dist.: 58.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 2
    Rotation: CW
    Plug no.: PL124
    Total length mm: 204.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This alternator has a COM terminal on the regulator. It is recommended to use the OEM number to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A004TJ0582, A004TJ0582ZE, A4T-J0582, A4T-J0582 ZE, a4tj0582, A4TJ0582ZC, A4TJ0582ZE, F032115651, 0125 811 181, 1986A01555, 2086ir, 7711 368 727, 8200 660 057, 8200 960 533, 23100-2543R, 115651, 231002543R, 7711368727, 8200363528, 8200660057, 8200960533

    • Normalised article numbler
      a004tj0582, a004tj0582ze, a4tj0582, a4tj0582zc, a4tj0582ze, a5230, cal35221, dra0798, f032115651, lra03304, 1986a01555, 2086ir, 20255nos, 20255r, 112855, 115651, 200278, 210996, 210996a, 285916, 440878, 443267, 9090820, 12061038, 0125811181, 190014092, 231002543r, 0986083730, 2303372102, 7711368727, 8200363528, 8200660057, 8200960533
