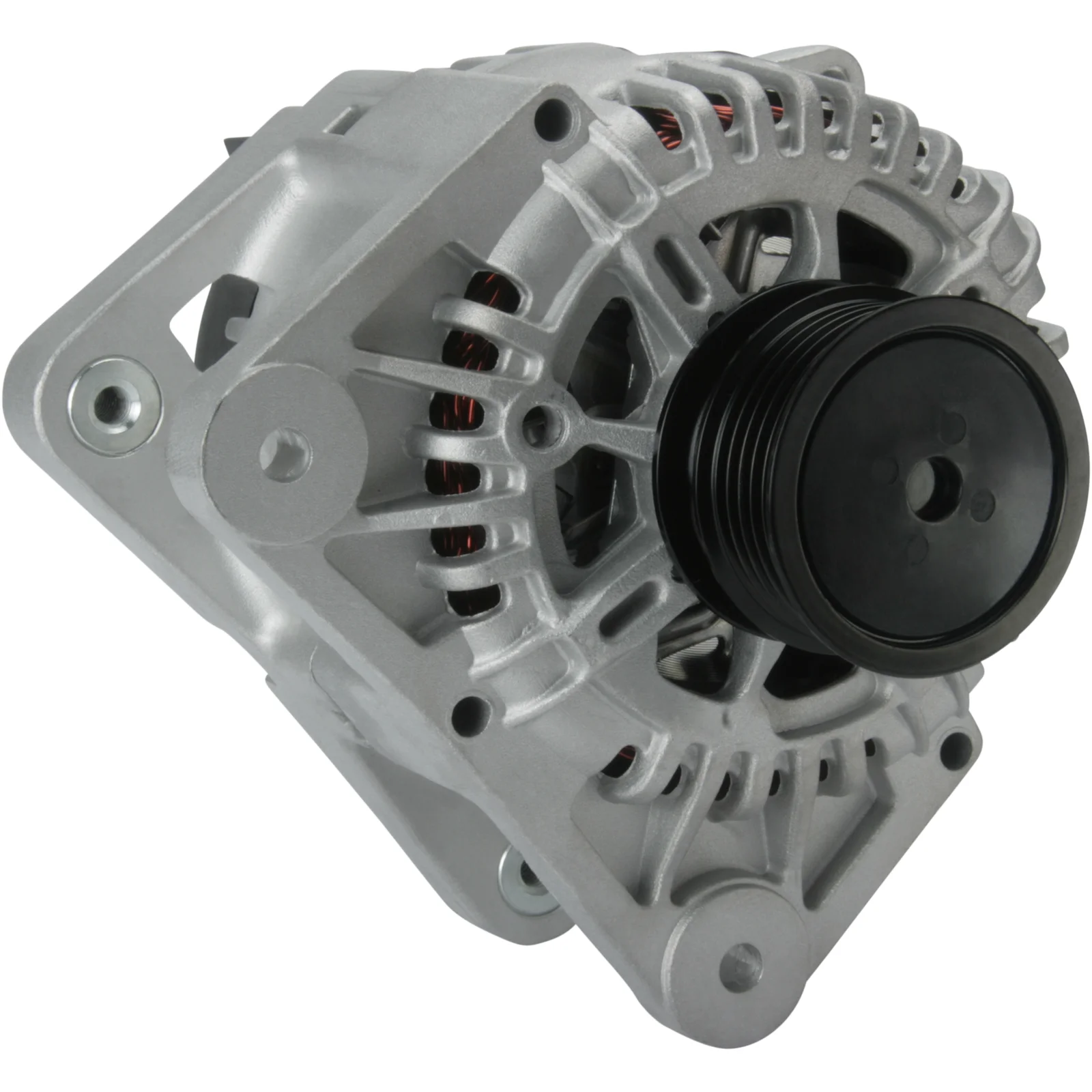

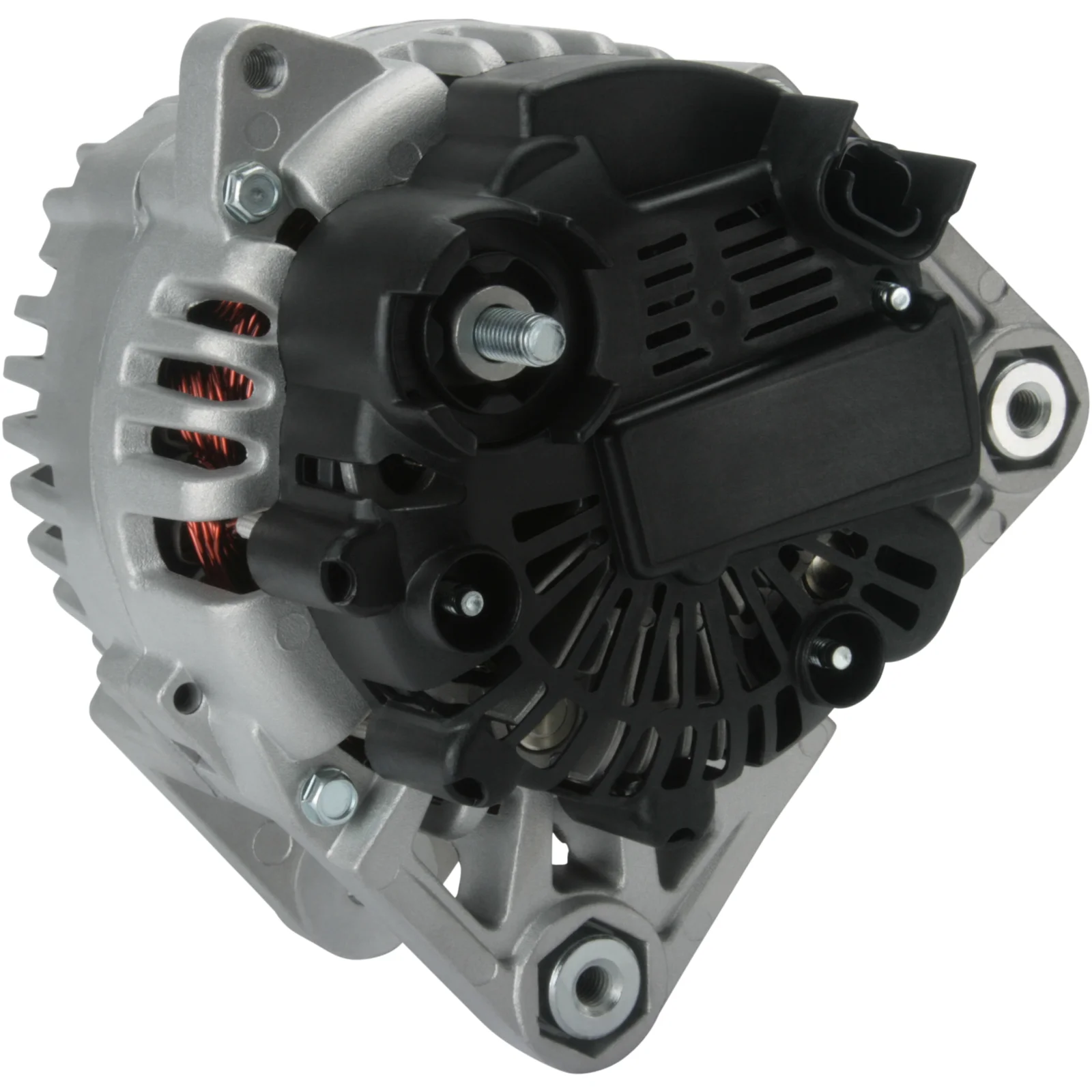

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116048

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 110, Rotation: CW, Mounting bracket distributor: 60.00

Description

Voltage: 14
Amp: 110
Pulley dist.: 43.00
Width/holder arm: 14.00
Mount. bracket dist.: 60.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 56.00
Grooves/pulley: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 7
D+ Size: Plug
Rotation: CW
Plug no.: PL72
Total length mm: 186.00
Pulley: SP/FW
Voltage regulator type: IR

Files

  • OEM
    F032116048, tg11c011, TG11C034, TG11C062, TG11C064, 1986A01271, 23100-00QAB, 23100-00QBA, 2542664, 2542664A, 2542664B, 2542664C, 2542664D, 2542945, 2542945B, 2543560, 2543562, 2543562A, 7701474416, 7701478093, 7711497095, 8200100907, 8200386806, 8200667603, 8200667608

  • Normalised article numbler
    a3052, a3052p, a3052pina, a3052pr, a3052s, alth178, cal15102, cal15262, dra0478, dra0478x, dra0719, dra4099x, f032116048, f042a0h178, ia1414, tg11c011, tg11c034, tg11c062, tg11c064, 8el011360141, 8el011710741, 1986a01271, 4672, 4681, 23174rw, 23893r, 112193, 200079, 200205, 210280, 210280a, 210394, 210394a, 284628, 285510, 437434, 437558, 439475, 439561, 553290ri, 746027, 746827, 747011, 839025, 2310000qab, 2310000qba, 2542664, 2542664a, 2542664b, 2542664c, 2542664d, 2542945, 2542945b, 2543560, 2543562, 2543562a, 9212875, 12090269, 32439475, 943358080, 0986080140, 0986083440, 2301931102, 2301951102, 7701474416, 7701478093, 7711497095, 8200100907, 8200386806, 8200667603, 8200667608, 943358080010
  • Description
    Voltage: 14
    Amp: 110
    Pulley dist.: 43.00
    Width/holder arm: 14.00
    Mount. bracket dist.: 60.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 56.00
    Grooves/pulley: 5
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 7
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL72
    Total length mm: 186.00
    Pulley: SP/FW
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116048, tg11c011, TG11C034, TG11C062, TG11C064, 1986A01271, 23100-00QAB, 23100-00QBA, 2542664, 2542664A, 2542664B, 2542664C, 2542664D, 2542945, 2542945B, 2543560, 2543562, 2543562A, 7701474416, 7701478093, 7711497095, 8200100907, 8200386806, 8200667603, 8200667608

    • Normalised article numbler
      a3052, a3052p, a3052pina, a3052pr, a3052s, alth178, cal15102, cal15262, dra0478, dra0478x, dra0719, dra4099x, f032116048, f042a0h178, ia1414, tg11c011, tg11c034, tg11c062, tg11c064, 8el011360141, 8el011710741, 1986a01271, 4672, 4681, 23174rw, 23893r, 112193, 200079, 200205, 210280, 210280a, 210394, 210394a, 284628, 285510, 437434, 437558, 439475, 439561, 553290ri, 746027, 746827, 747011, 839025, 2310000qab, 2310000qba, 2542664, 2542664a, 2542664b, 2542664c, 2542664d, 2542945, 2542945b, 2543560, 2543562, 2543562a, 9212875, 12090269, 32439475, 943358080, 0986080140, 0986083440, 2301931102, 2301951102, 7701474416, 7701478093, 7711497095, 8200100907, 8200386806, 8200667603, 8200667608, 943358080010
