Article no.: F032113874

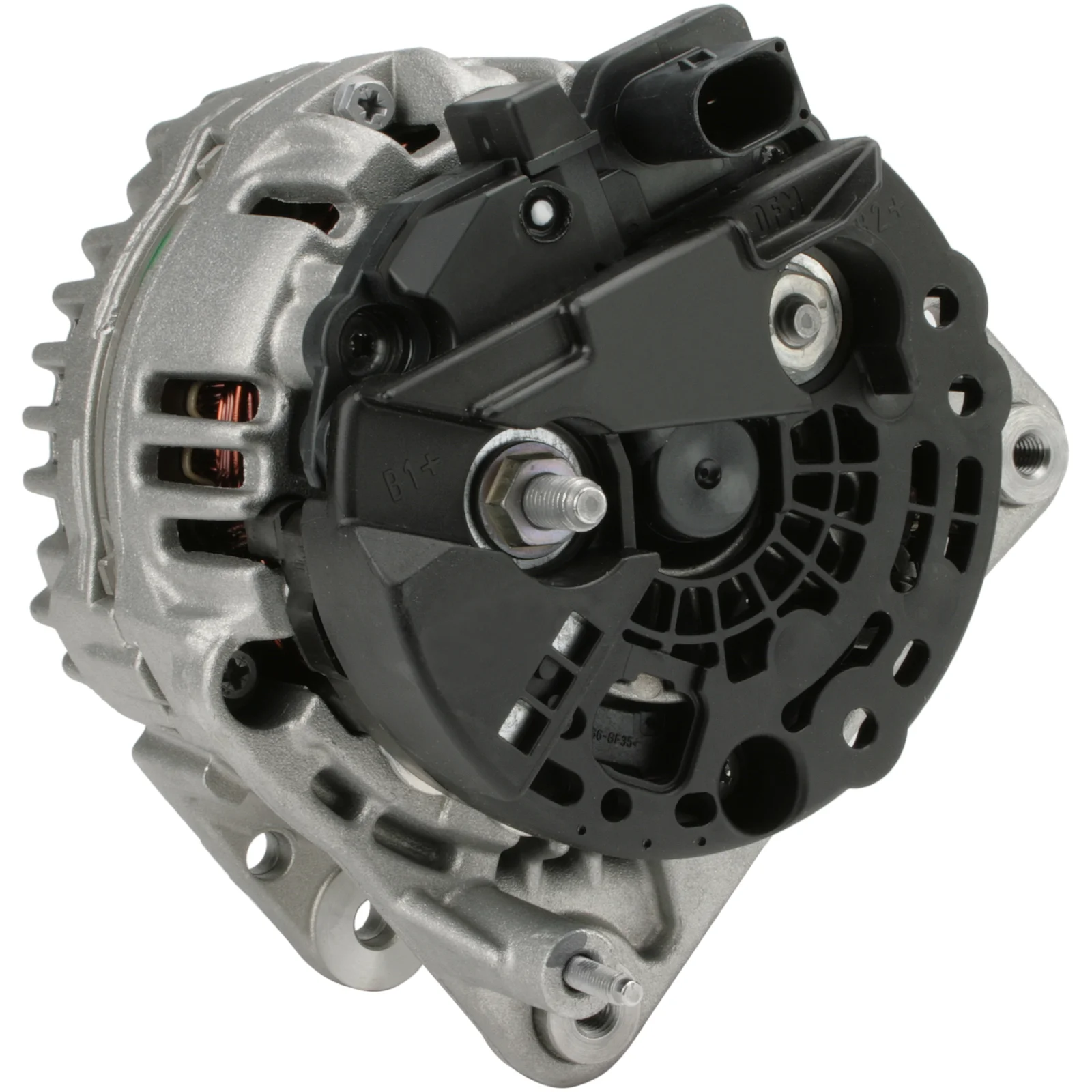

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 110, Rotation: CW, Mounting bracket distributor: 61.20

Description

VAG 1.4 AC Alternator 12V-110A 12V - 110A, 6 grooves (L, DFM) 6 grooves (L, DFM) For Yourex product order 90-620-4607

Voltage: 14
Amp: 110
Pulley distance: 39.30
Width/holder arm: 14.20
Mounting bracket distance: 61.20
Bracket hole: 8.60
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.60
Pulley diameter: 49.70
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 43
D+ Size: Plug
Rotation: CW
Plug no.: PL61
Total length mm: 187.00
Pulley: SP
Regulator type: IR
Prod. info: BN/OE
Servicing: Skoda

Files

  • OEM
    F032113874, TG11C 014, TG11C014, 036 903 024D, 036 903 024H, 036 903 024J, 0124 325 056, 0124 325 081, 0124 325 127, 1729ir, 1986A00562, 1986A01119, 113874, 2542696, 2542696C, 036903018B, 036903024D, 036903024H, 036903024J, 036903024JX, 036903024n, 0124325056, 0124325081, 0124325090, 0124325125, 0124325127, 0124325160

  • Normalised article numbler
    a0519pr, a0519s, a3335pr, cal15342, dra4159, drb5300, f032113874, lra02238, mqa1729, tg11c014, 8el012428731, 8el738066001, 1729ir, 1986a00562, 1986a01119, 23205n, 111438, 111546, 112415, 113085, 113874, 200260, 210498, 210498a, 284713, 301729ri, 301816ri, 437502, 439511, 747040, 2542696, 2542696c, 9045300, 9046070, 12045300, 12046070, 036903018b, 036903024d, 036903024h, 036903024j, 036903024jx, 036903024n, 0124325056, 0124325081, 0124325090, 0124325125, 0124325127, 0124325160, 0986042505, 0986045300, 0986046070, 2113021102, 944390453000, 944390460700
  • Description
    VAG 1.4 AC Alternator 12V-110A 12V - 110A, 6 grooves (L, DFM) 6 grooves (L, DFM) For Yourex product order 90-620-4607

    Voltage: 14
    Amp: 110
    Pulley distance: 39.30
    Width/holder arm: 14.20
    Mounting bracket distance: 61.20
    Bracket hole: 8.60
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.60
    Pulley diameter: 49.70
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 43
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL61
    Total length mm: 187.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN/OE
    Servicing: Skoda

    Files

  • Suitable for these vehicles

    • OEM
      F032113874, TG11C 014, TG11C014, 036 903 024D, 036 903 024H, 036 903 024J, 0124 325 056, 0124 325 081, 0124 325 127, 1729ir, 1986A00562, 1986A01119, 113874, 2542696, 2542696C, 036903018B, 036903024D, 036903024H, 036903024J, 036903024JX, 036903024n, 0124325056, 0124325081, 0124325090, 0124325125, 0124325127, 0124325160

    • Normalised article numbler
      a0519pr, a0519s, a3335pr, cal15342, dra4159, drb5300, f032113874, lra02238, mqa1729, tg11c014, 8el012428731, 8el738066001, 1729ir, 1986a00562, 1986a01119, 23205n, 111438, 111546, 112415, 113085, 113874, 200260, 210498, 210498a, 284713, 301729ri, 301816ri, 437502, 439511, 747040, 2542696, 2542696c, 9045300, 9046070, 12045300, 12046070, 036903018b, 036903024d, 036903024h, 036903024j, 036903024jx, 036903024n, 0124325056, 0124325081, 0124325090, 0124325125, 0124325127, 0124325160, 0986042505, 0986045300, 0986046070, 2113021102, 944390453000, 944390460700
