HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114737

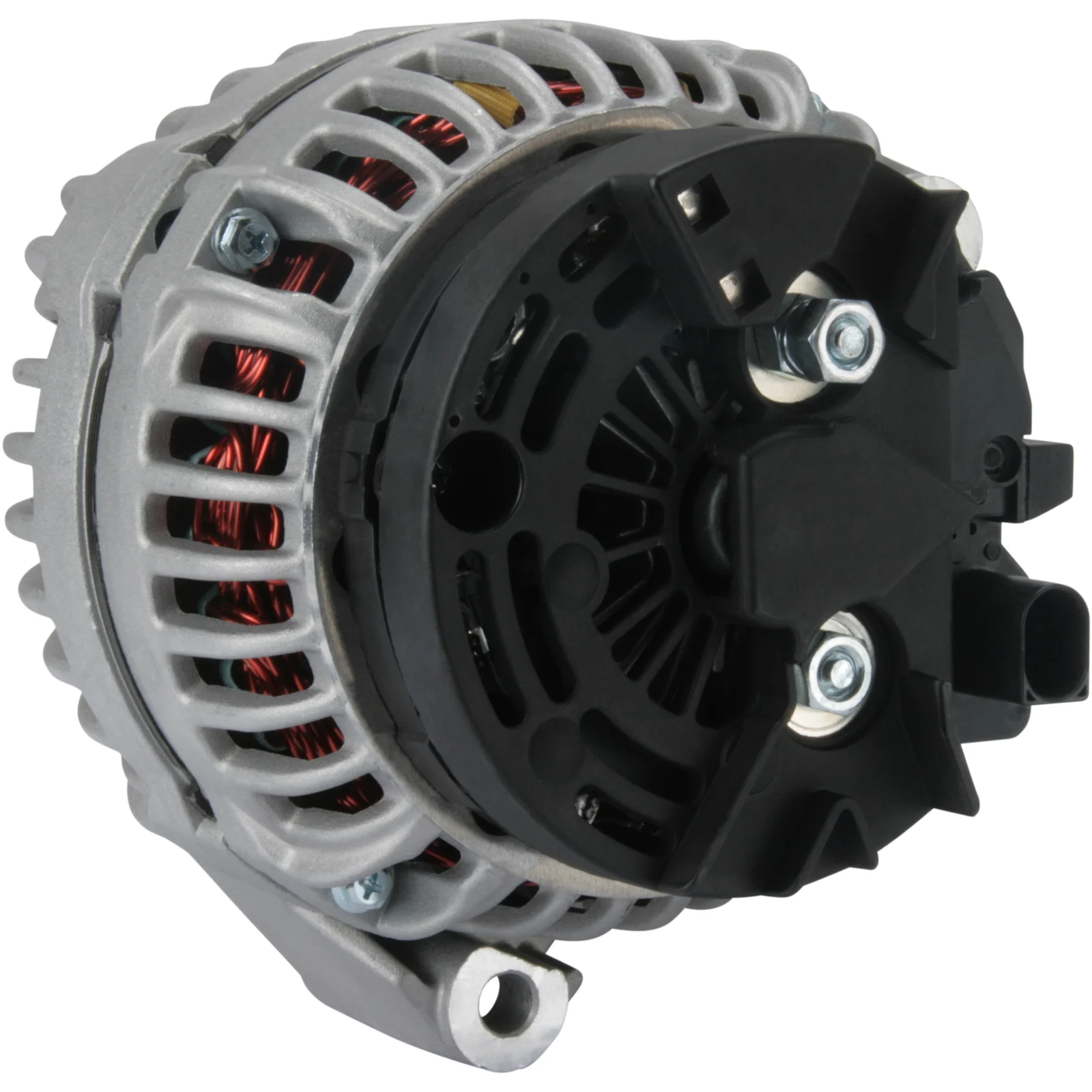

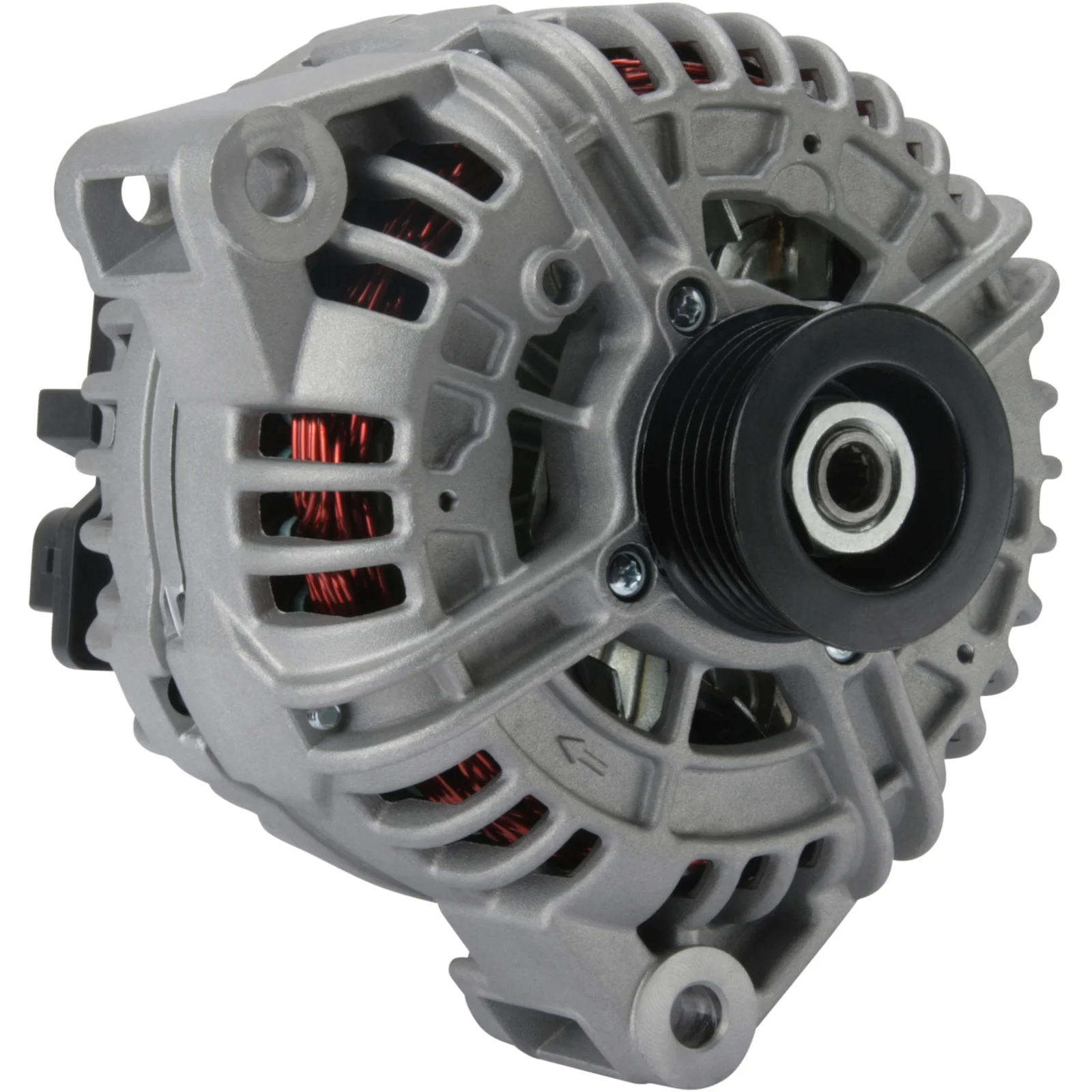

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Pulley diameter: 50.00

Description

Voltage: 14
Amp: 180
Pulley dist.: 82.00
Width/holder arm: 55.80
Bracket hole: 10.50
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 50.00
Grooves/pulley: 6
Radius: 90.50
Radius 2: 90.50
B+: M8
Position/B+ in min.: 2
D+ Size: Plug
Rotation: CW
Plug no.: PL103
Pulley: SP
Voltage regulator type: IR
Prod. info: BN

Files

  • OEM
    A0121548902, A012154890280, A012154890283, a0131548502, A013154850280, A013154850283, AL0826X, F032114737, TS1282, 1986A00965, 0121548902, 0124625005, 0124625007, 0124625032, 0124625211, 0131548502, 200800150, 012154890280, 012154890283, 013154850280, 013154850283

  • Normalised article numbler
    a0121548902, a012154890280, a012154890283, a0131548502, a013154850280, a013154850283, a0483, al0826x, cal10327, drb7480, f032114737, lra03079, ts1282, 1986a00965, 11068n, 11068r, 111839, 209047, 209047a, 285691, 438324, 553215ri, 9090319, 11090403, 12047480, 0121548902, 0124625005, 0124625007, 0124625032, 0124625211, 0131548502, 200800150, 555532180, 570582104, 0986047480, 0986047483, 0986047484, 0986047487, 2251421802, 012154890280, 012154890283, 013154850280, 013154850283, 944390903190
  • Description
    Voltage: 14
    Amp: 180
    Pulley dist.: 82.00
    Width/holder arm: 55.80
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 10
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 50.00
    Grooves/pulley: 6
    Radius: 90.50
    Radius 2: 90.50
    B+: M8
    Position/B+ in min.: 2
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL103
    Pulley: SP
    Voltage regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A0121548902, A012154890280, A012154890283, a0131548502, A013154850280, A013154850283, AL0826X, F032114737, TS1282, 1986A00965, 0121548902, 0124625005, 0124625007, 0124625032, 0124625211, 0131548502, 200800150, 012154890280, 012154890283, 013154850280, 013154850283

    • Normalised article numbler
      a0121548902, a012154890280, a012154890283, a0131548502, a013154850280, a013154850283, a0483, al0826x, cal10327, drb7480, f032114737, lra03079, ts1282, 1986a00965, 11068n, 11068r, 111839, 209047, 209047a, 285691, 438324, 553215ri, 9090319, 11090403, 12047480, 0121548902, 0124625005, 0124625007, 0124625032, 0124625211, 0131548502, 200800150, 555532180, 570582104, 0986047480, 0986047483, 0986047484, 0986047487, 2251421802, 012154890280, 012154890283, 013154850280, 013154850283, 944390903190
