HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114750

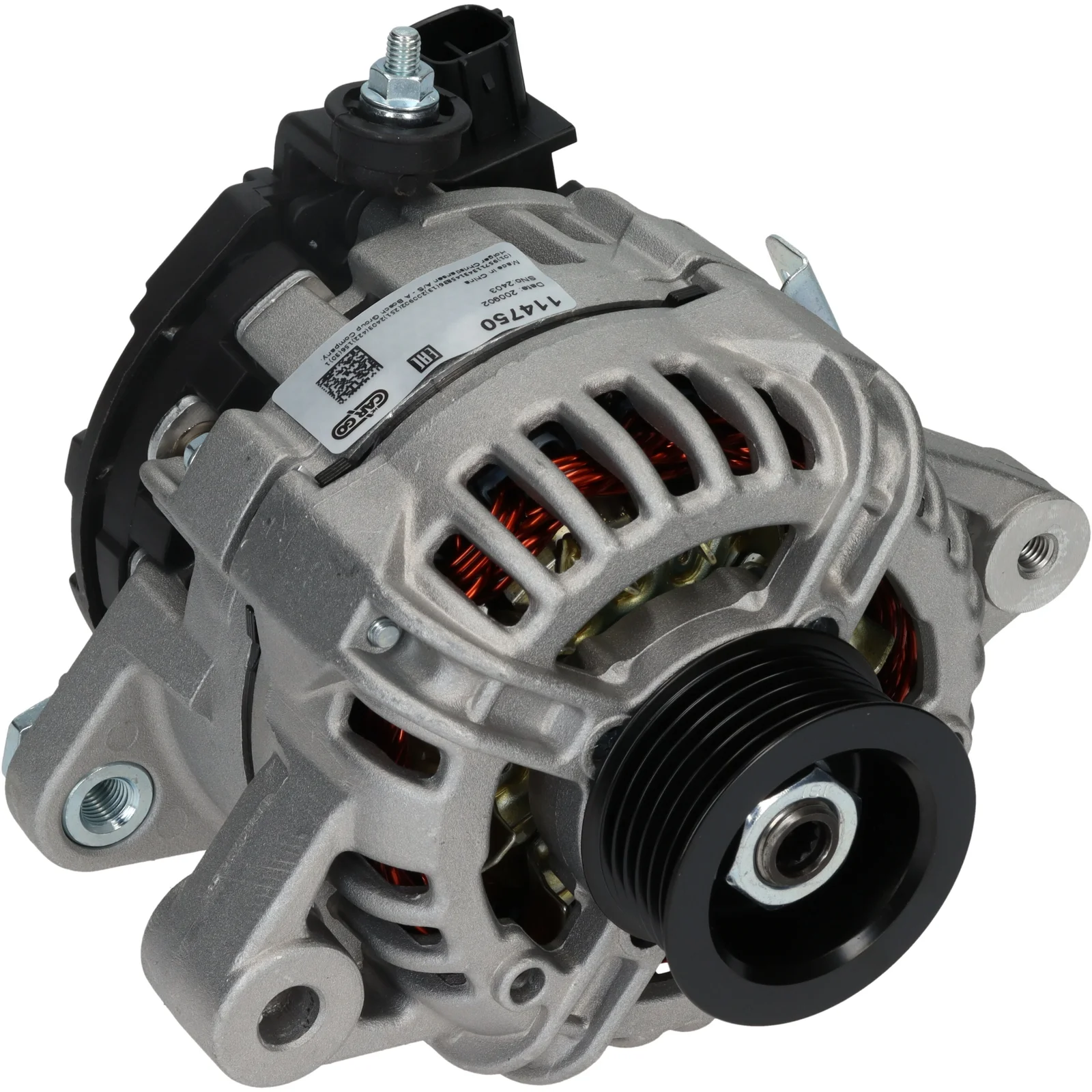

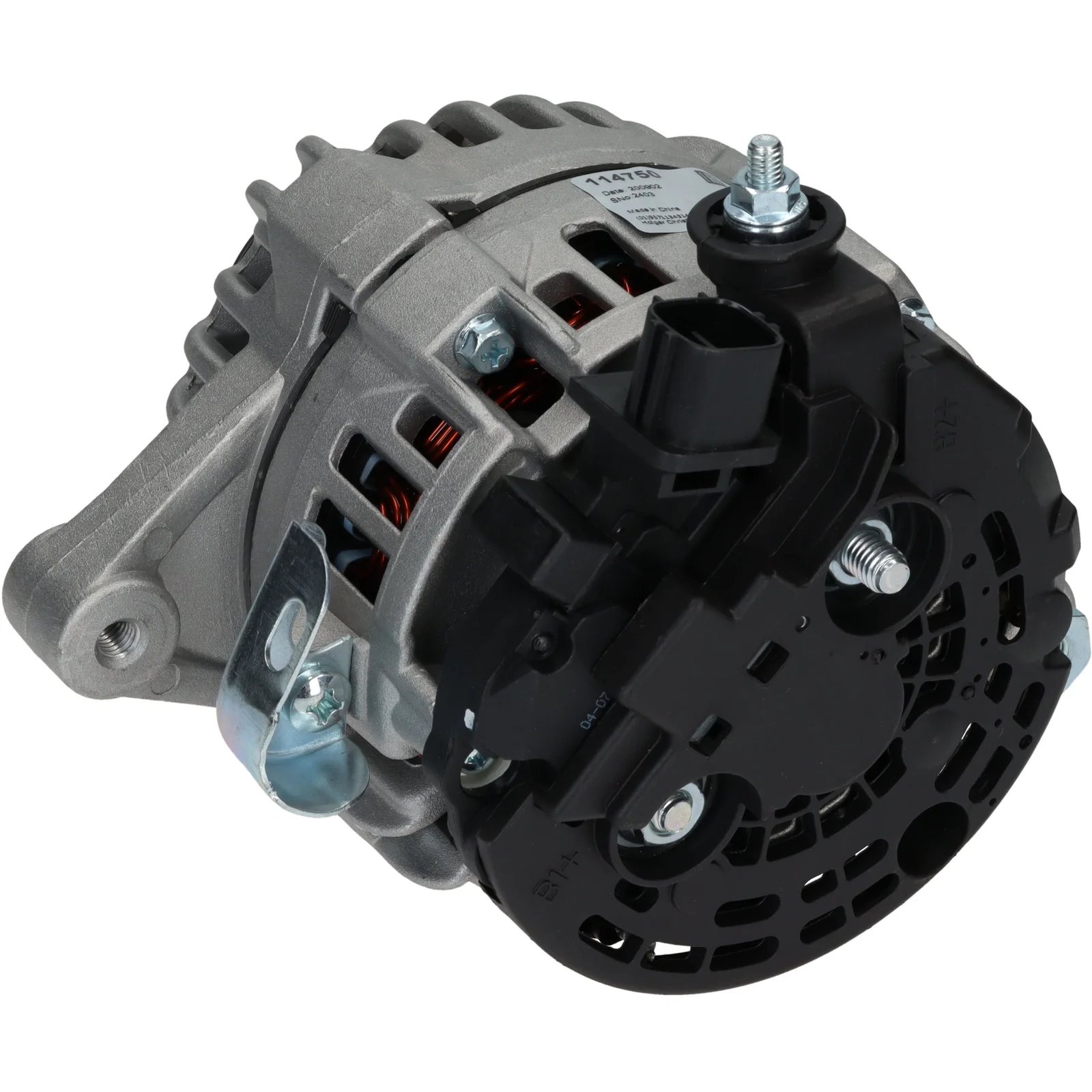

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 80, Rotation: CW, Mounting bracket distance: 39.00

Description

Voltage: 14
Amp: 80
Pulley distance: 48.00
Width/holder arm: 27.00
Mounting bracket distance: 39.00
Bracket hole: 10.50
Belt adjustment bracket hole position: 3
Belt adjustment bracket hole 1: M8
Pulley diameter: 54.80
Grooves/pulley: 6
Radius: 80.00
Radius 2: 90.00
B+: M6
Position/B+ in minutes: 12
D+ size: Plug
Rotation: CW
Plug number: PL78
Total length mm: 170.00
Pulley: SP
Fan: IF

Files

  • OEM
    F032114750, 1929ir, 1986A01670, 27060-0j051, 0124225054

  • Normalised article numbler
    a0329pr, a6302, cal10404, dra0621, f032114750, lra03187, 1929ir, 1986a01670, 20356r, 113245, 210941, 210941a, 270600j051, 285799, 440847, 9090849, 12060907, 0124225054, 195929080, 235326802, 0986080450
  • Description
    Voltage: 14
    Amp: 80
    Pulley distance: 48.00
    Width/holder arm: 27.00
    Mounting bracket distance: 39.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 3
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 54.80
    Grooves/pulley: 6
    Radius: 80.00
    Radius 2: 90.00
    B+: M6
    Position/B+ in minutes: 12
    D+ size: Plug
    Rotation: CW
    Plug number: PL78
    Total length mm: 170.00
    Pulley: SP
    Fan: IF

    Files

  • Suitable for these vehicles

    • OEM
      F032114750, 1929ir, 1986A01670, 27060-0j051, 0124225054

    • Normalised article numbler
      a0329pr, a6302, cal10404, dra0621, f032114750, lra03187, 1929ir, 1986a01670, 20356r, 113245, 210941, 210941a, 270600j051, 285799, 440847, 9090849, 12060907, 0124225054, 195929080, 235326802, 0986080450
