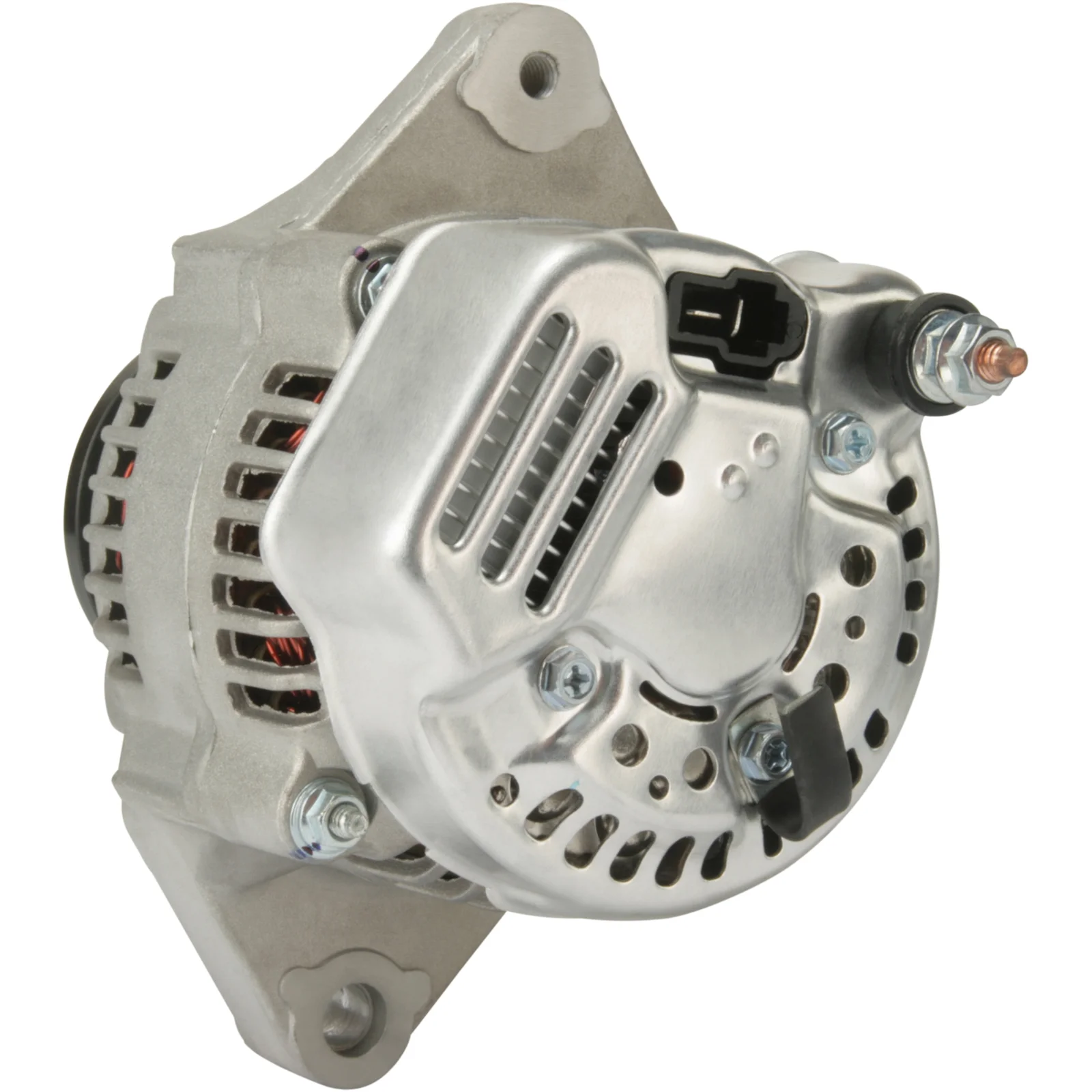

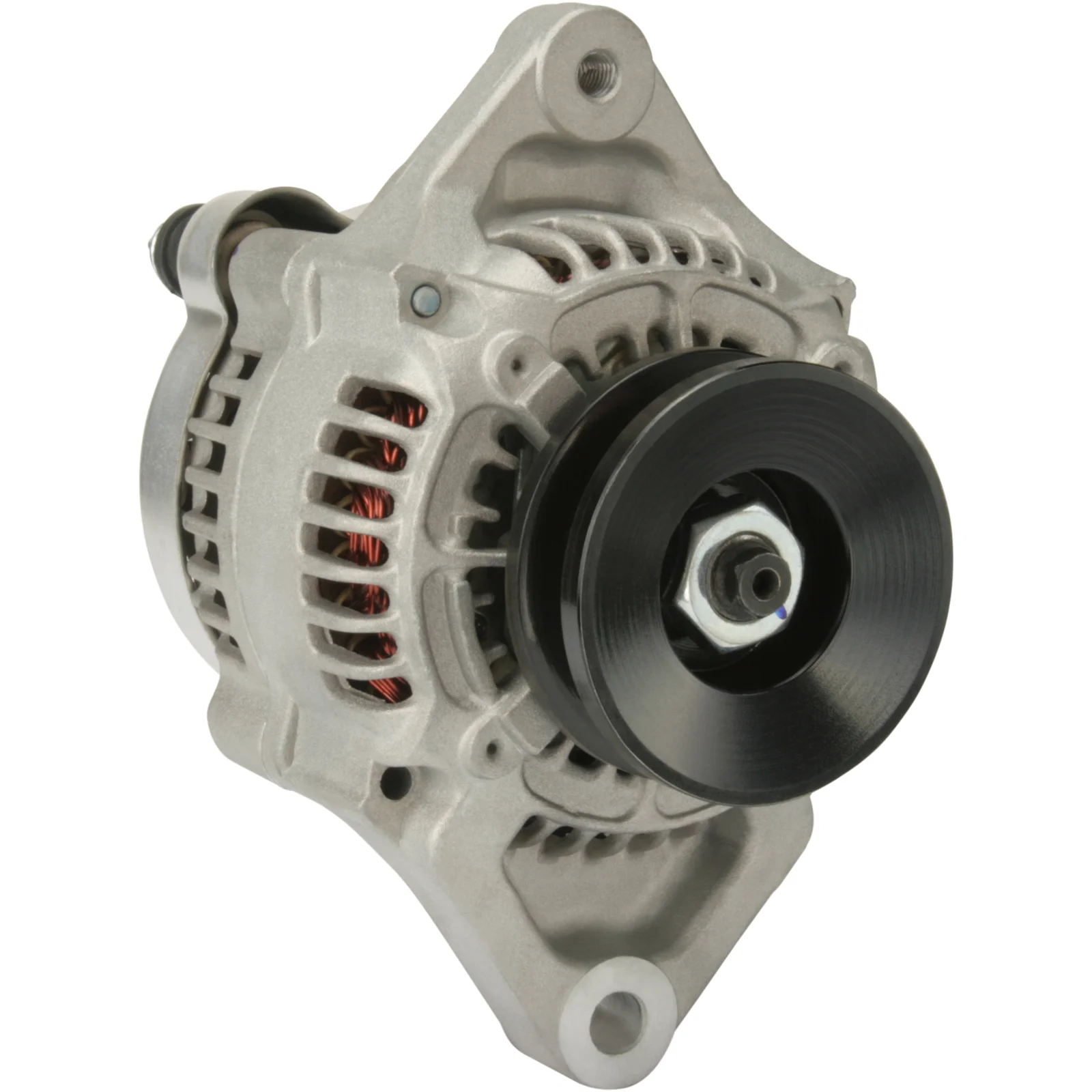

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114751

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 44, Rotation: CW, Pulley dia.: 70.00

Description

Voltage: 14
Amp: 44
Pulley distance: 43.00
Width/holder arm: 21.00
Bracket hole: 10.20
Belt. adj. brackethole position: 60
Belt. adj. bracket hole 1: M8
Pulley diameter: 70.00
Grooves/pulley: 1
Radius: 75.00
Radius 2: 78.00
D+ Size: Plug
Rotation: CW
Plug number: PL10
Total length mm: 161.00
Terminal type: L-IG
Pulley: P
Regulator type: IR
Prod. info: BN
