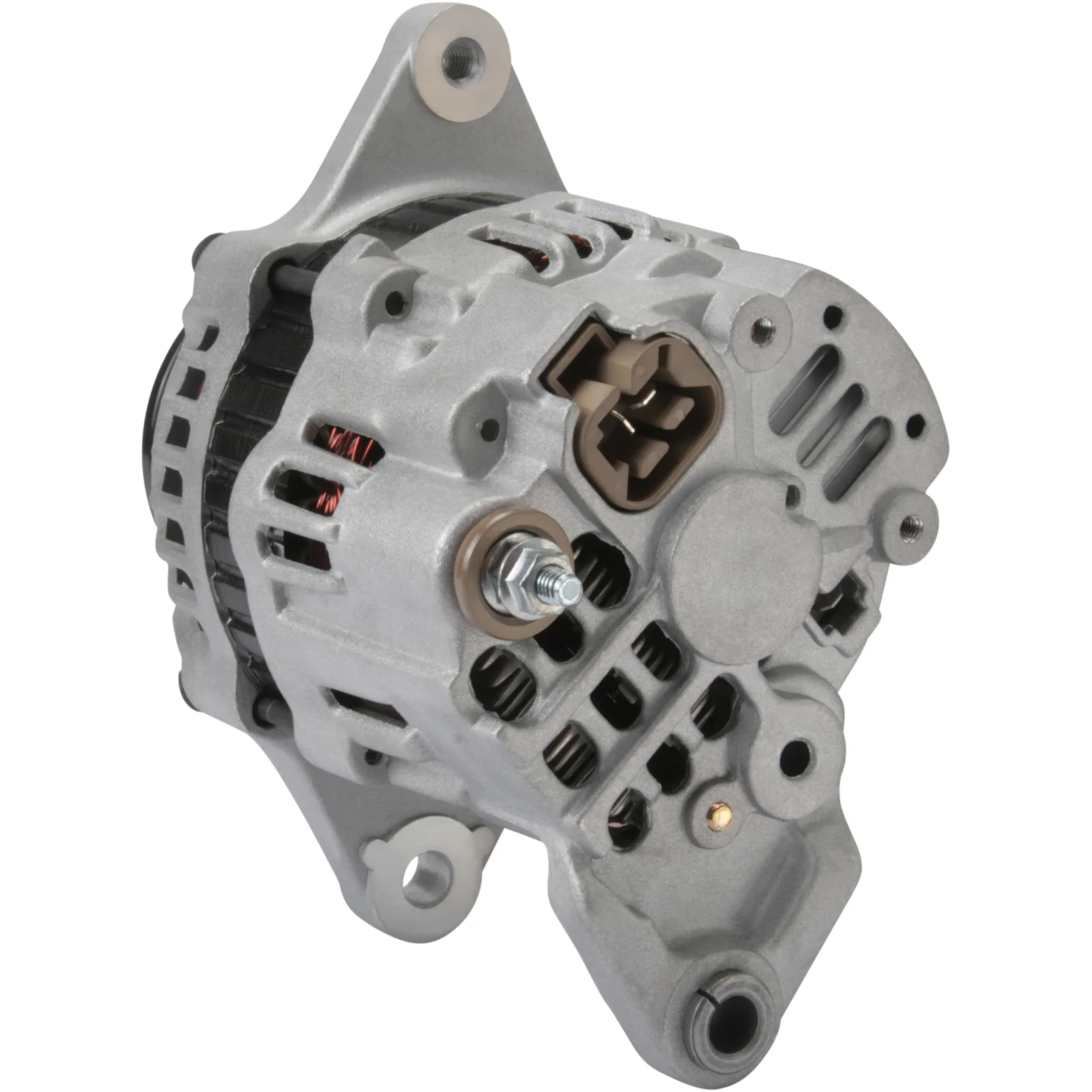

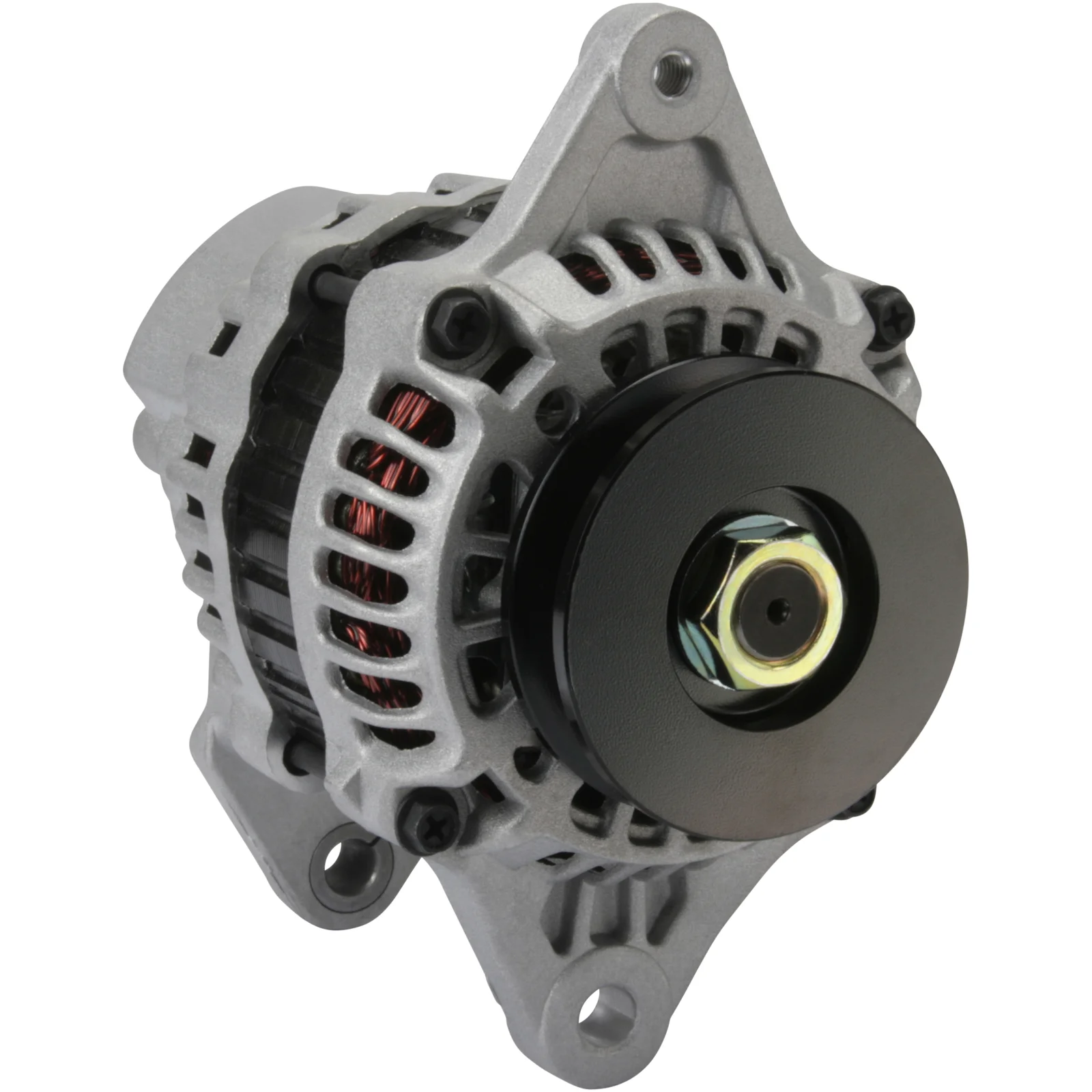

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114759

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 55, Rotation: CW, Mounting bracket distance: 82.50

Description

Voltage: 14
Amp: 55
Terminal: W
Pulley dist.: 41.00
Width/holder arm: 13.00
Mount. bracket dist.: 82.50
Bracket hole: 10.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 75.00
Grooves/pulley: 1
Radius: 77.50
Radius 2: 77.00
B+: M6
Position/B+ in min.: 45
D+ Size: Plug
Rotation: CW
Plug no.: PL09
W plug type: Plug
Total length mm: 160.00
Pulley: P
Regulator type: IR
Prod. info: BN

Files

  • Description
    Voltage: 14
    Amp: 55
    Terminal: W
    Pulley dist.: 41.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 82.50
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 75.00
    Grooves/pulley: 1
    Radius: 77.50
    Radius 2: 77.00
    B+: M6
    Position/B+ in min.: 45
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL09
    W plug type: Plug
    Total length mm: 160.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles
