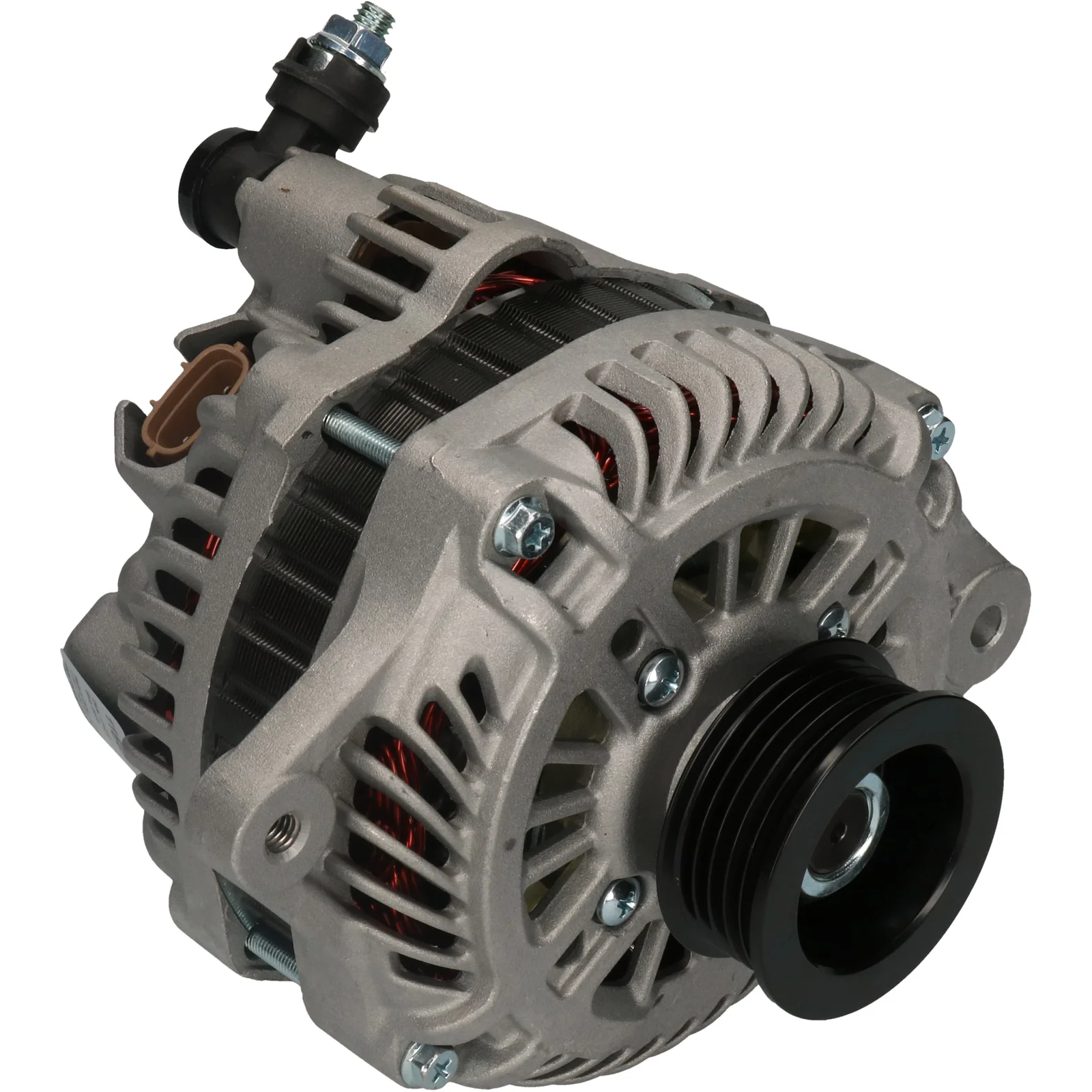

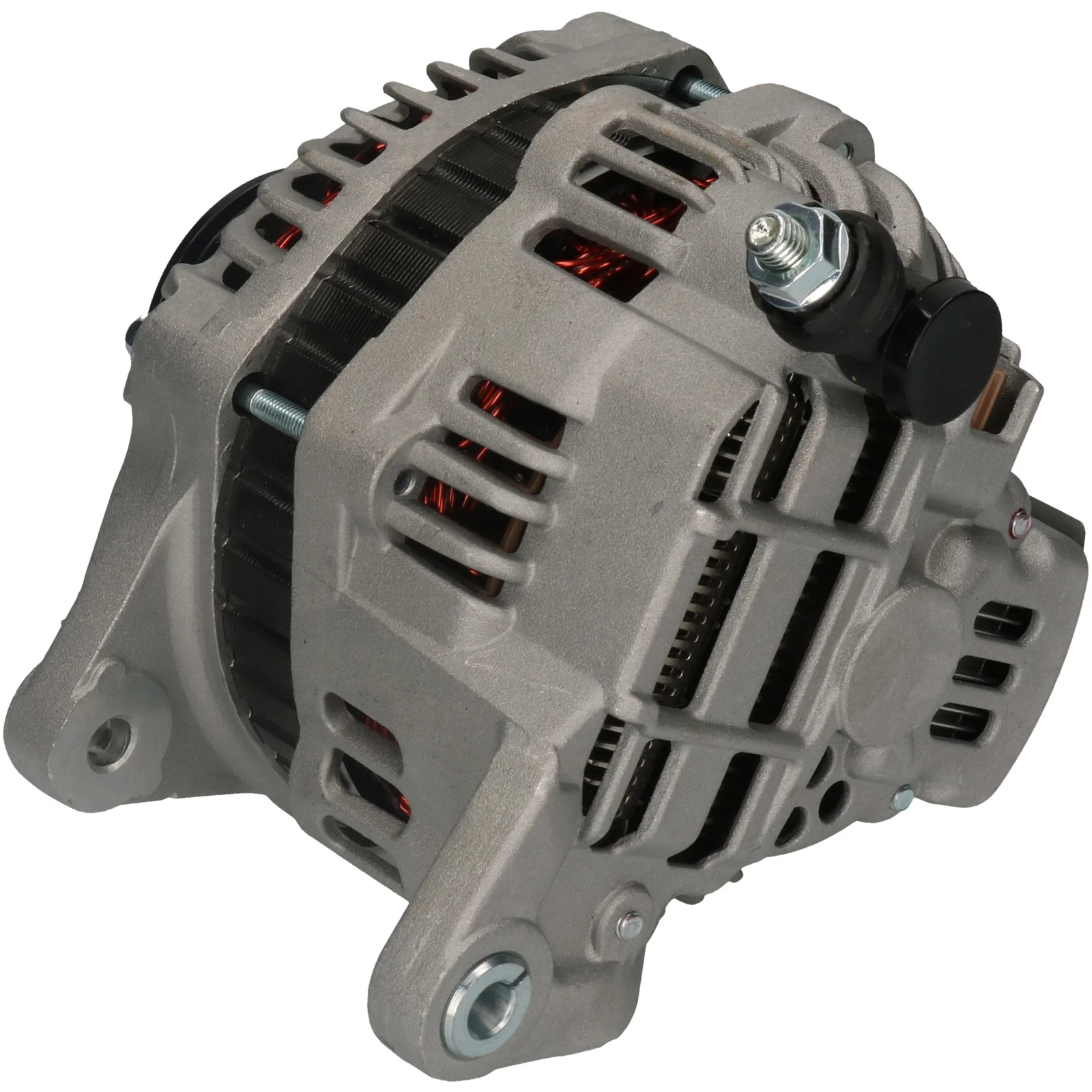

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115453

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 110, Rotation: CW, Mounting bracket distributor: 80.00

Description

Subaru Legacy Gen. 12V-110A 12V - 110A, 5 grooves, (C-S-L) For Yourex product order 90-522-0520

Voltage: 14
Ampere: 110
Pulley diameter: 46.00
Width/holder arm: 13.00
Mounting bracket distance: 80.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: M8
Pulley diameter: 54.00
Grooves/pulley: 5
Radius: 90.00
Radius 2: 85.00
B+: M8
Position/B+ at min.: 45
D+ size: Plug
Rotation: CW
Plug no.: PL163
Total length mm: 168.00
Terminal type: L-S-C
Pulley: SP
Fan: IF
Regulator type: IR
Product info: BN

Files

  • OEM
    A003TG0491, A003TG0591, A003TG4291, A3T-G0491, A3TG0491, A3TG0491A, A3TG0591, A3TG4291, F032115453, LR1100-717, 2084ir, 23700-AA510, 23700-AA520, 23700-aa520, 23700-aa521, 23700-AA522, 23700-aa570, 23700-AA860, 115453

  • Normalised article numbler
    a003tg0491, a003tg0591, a003tg4291, a3tg0491, a3tg0491a, a3tg0591, a3tg4291, a5060, a5192, cal35183, cal35271, dra0366, dra0388, f032115453, f042205155, j5117022, lr1100717, lra02810, 8el011713191, 2084ir, 11225n, 11226n, 23700aa510, 23700aa520, 23700aa521, 23700aa522, 23700aa570, 23700aa860, 115453, 210955, 210955a, 284928, 285523, 9090839, 12060971, 175510110, 175518110, 0986084440, 2331171102, 2331201102
  • Description
    Subaru Legacy Gen. 12V-110A 12V - 110A, 5 grooves, (C-S-L) For Yourex product order 90-522-0520

    Voltage: 14
    Ampere: 110
    Pulley diameter: 46.00
    Width/holder arm: 13.00
    Mounting bracket distance: 80.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 54.00
    Grooves/pulley: 5
    Radius: 90.00
    Radius 2: 85.00
    B+: M8
    Position/B+ at min.: 45
    D+ size: Plug
    Rotation: CW
    Plug no.: PL163
    Total length mm: 168.00
    Terminal type: L-S-C
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A003TG0491, A003TG0591, A003TG4291, A3T-G0491, A3TG0491, A3TG0491A, A3TG0591, A3TG4291, F032115453, LR1100-717, 2084ir, 23700-AA510, 23700-AA520, 23700-aa520, 23700-aa521, 23700-AA522, 23700-aa570, 23700-AA860, 115453

    • Normalised article numbler
      a003tg0491, a003tg0591, a003tg4291, a3tg0491, a3tg0491a, a3tg0591, a3tg4291, a5060, a5192, cal35183, cal35271, dra0366, dra0388, f032115453, f042205155, j5117022, lr1100717, lra02810, 8el011713191, 2084ir, 11225n, 11226n, 23700aa510, 23700aa520, 23700aa521, 23700aa522, 23700aa570, 23700aa860, 115453, 210955, 210955a, 284928, 285523, 9090839, 12060971, 175510110, 175518110, 0986084440, 2331171102, 2331201102
