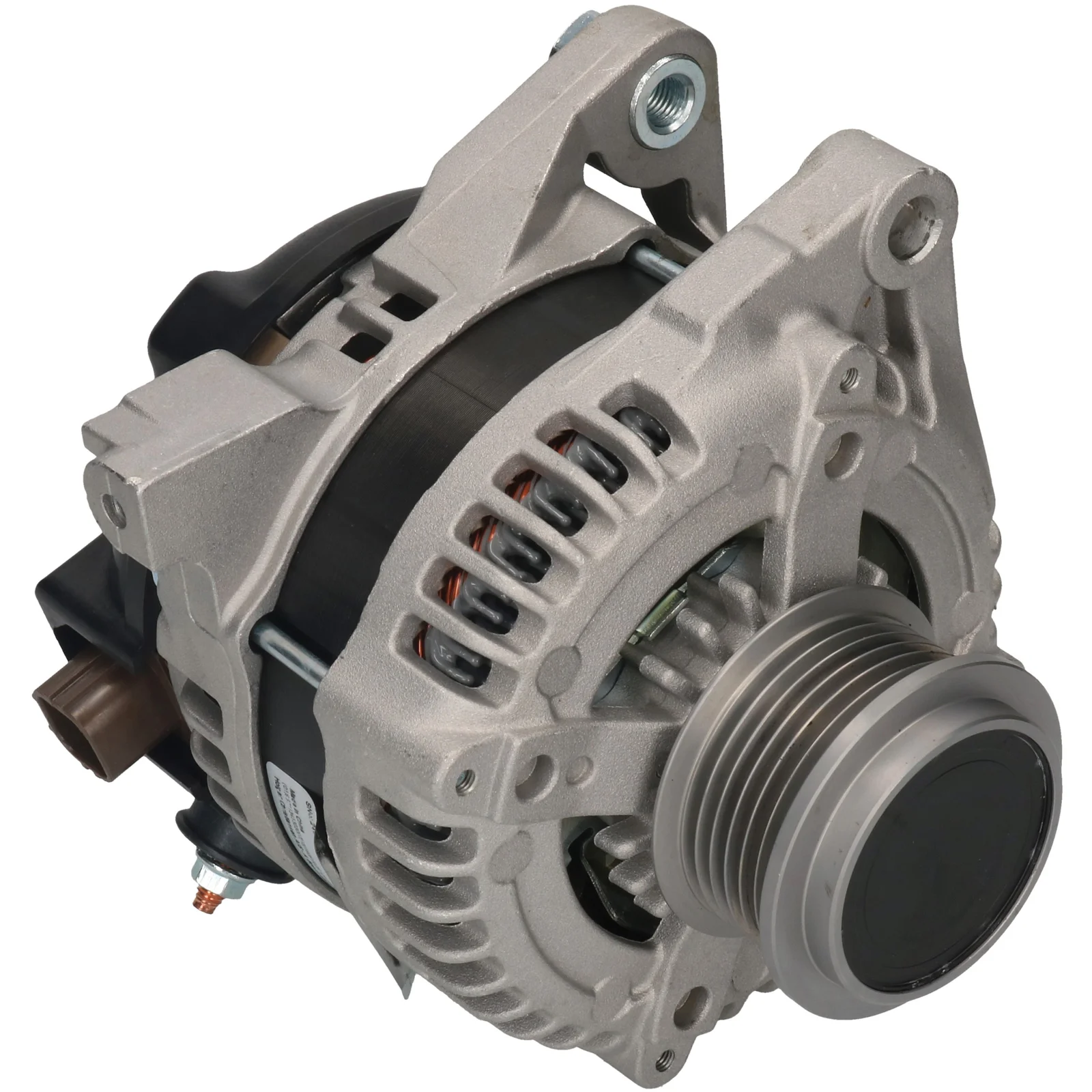

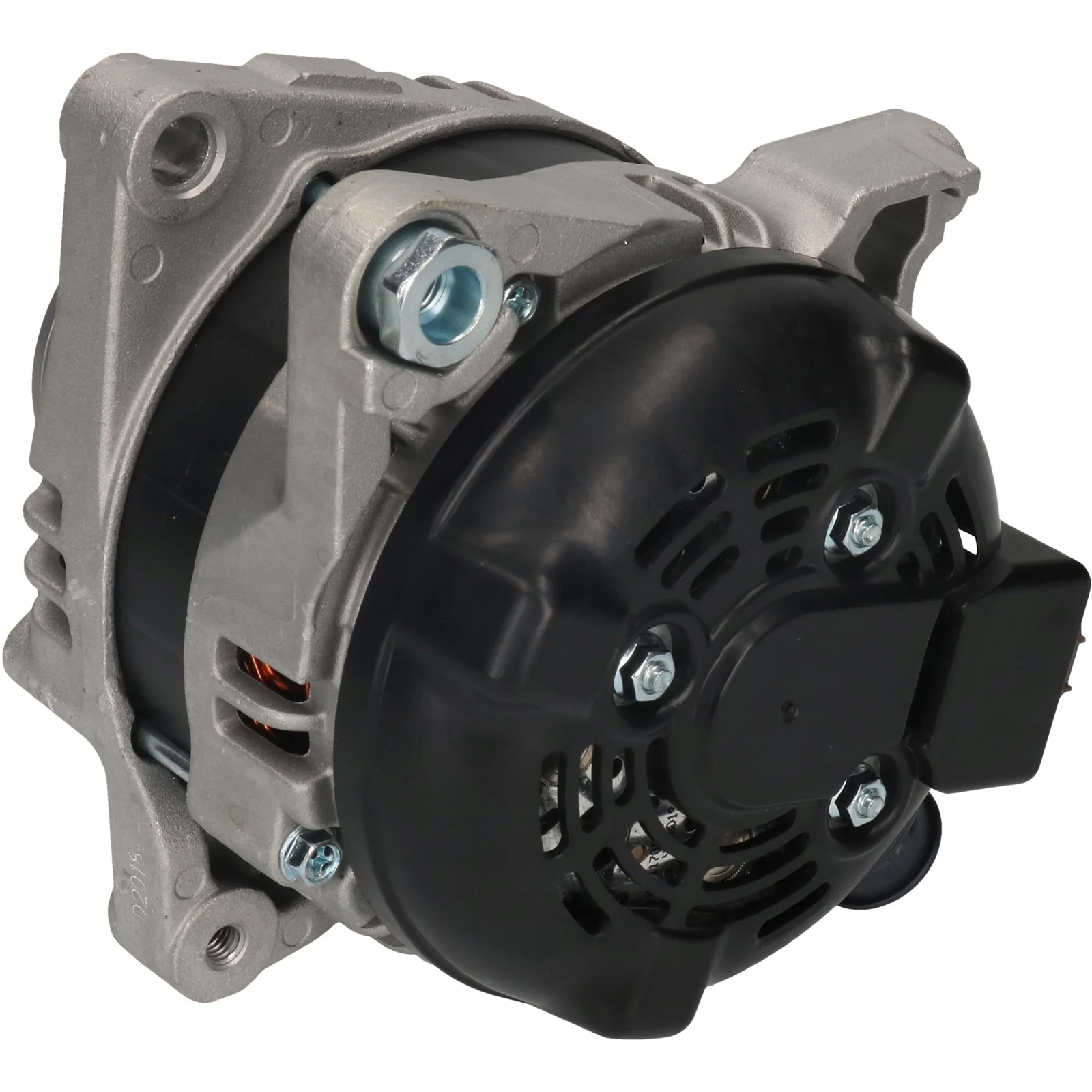

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115657

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100, Rotation: CW, Mounting bracket distributor: 42.50

Description

Generator 12V-100A fits Toyota 12V - 100A, 6-cylinder, (IG, RLO, L, M) Yaris 1.4D-4D 11.2008-> Auris 1.4D-4D 02.2009-> For Yourex product order 90-555-3310

Voltage: 14
Amp: 100
Pulley distance: 47.00
Width/holder arm: 20.00
Mounting bracket distance: 42.50
Bracket hole: 11.00
Belt adjustment bracket hole position: 48
Belt adjustment bracket hole 1: M8
Pulley diameter: 58.00
Grooves/pulley: 6
Radius: 88.00
Radius 2: 82.00
B+: M6
Position/B+ in min.: 59
D+ Size: Plug
Rotation: clockwise
Plug no.: PL146
Total length mm: 169.50
Pulley: SP/FW
Regulator type: IR
Product info: BN

Files

  • OEM
    DAN 1018, F032115657, 1986A01303, 2097ir, 27060-0N040, 27060-0N050, 27060-33100, 104210-2320, 104210-2520, 104210-2522, 104210-2530, 115657

  • Normalised article numbler
    a6065, a6065denso, cal40337, dan1018, dra1286, f032115657, lra03633, man7539, 8el011712931, 1986a01303, 2097ir, 20538r, 113258, 115657, 210979, 210979a, 270600n040, 270600n050, 286773, 440853, 440892, 443067, 12060921, 195936100, 195936120, 0986082450, 1042102320, 1042102520, 1042102522, 1042102530, 2353471002, 2706033100, 063377539010
  • Description
    Generator 12V-100A fits Toyota 12V - 100A, 6-cylinder, (IG, RLO, L, M) Yaris 1.4D-4D 11.2008-> Auris 1.4D-4D 02.2009-> For Yourex product order 90-555-3310

    Voltage: 14
    Amp: 100
    Pulley distance: 47.00
    Width/holder arm: 20.00
    Mounting bracket distance: 42.50
    Bracket hole: 11.00
    Belt adjustment bracket hole position: 48
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 58.00
    Grooves/pulley: 6
    Radius: 88.00
    Radius 2: 82.00
    B+: M6
    Position/B+ in min.: 59
    D+ Size: Plug
    Rotation: clockwise
    Plug no.: PL146
    Total length mm: 169.50
    Pulley: SP/FW
    Regulator type: IR
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      DAN 1018, F032115657, 1986A01303, 2097ir, 27060-0N040, 27060-0N050, 27060-33100, 104210-2320, 104210-2520, 104210-2522, 104210-2530, 115657

    • Normalised article numbler
      a6065, a6065denso, cal40337, dan1018, dra1286, f032115657, lra03633, man7539, 8el011712931, 1986a01303, 2097ir, 20538r, 113258, 115657, 210979, 210979a, 270600n040, 270600n050, 286773, 440853, 440892, 443067, 12060921, 195936100, 195936120, 0986082450, 1042102320, 1042102520, 1042102522, 1042102530, 2353471002, 2706033100, 063377539010
