Article no.: F032112193

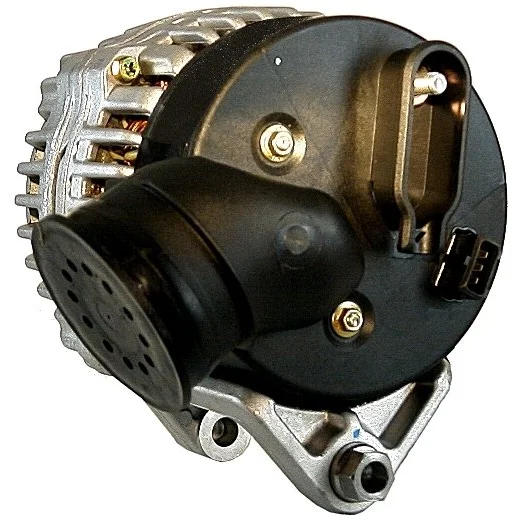

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mounting bracket distributor: 74.50

Description

Voltage: 14
Amp: 120
Pulley diameter: 69.00
Width/holder arm: 28.00
Mounting bracket diameter: 74.50
Bracket hole: 10.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 49.60
Grooves/pulley: 6
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in minutes: 58
D+ size: Plug
Rotation: CW
Plug number: PL52
Total length mm: 236.00
Pulley: SP
Regulator type: IR
Production info: BN
Servicing: BMW

Files

  • OEM
    a14vi22, F032112193, sg12b029, SG14B019, SG14B020, 1591ir, 1986A01099, 1432980, 1432987, 1740629, 2541963, 2541963A, 2542377, 2542377B, 2542875, 2543237, 2543237A, 7501593, 7501595, 7501597, 7501599, 7501690, 7501755, 7510593, 7530086, 7551252, 0123325022, 0123515004, 0123515022, 0124515050, 0124515052, 12311432980, 12311432981, 12311432985, 12311432986, 12311432987, 12311740629, 12311740631, 12317501593, 12317501595, 12317501597, 12317501599, 12317501690, 12317501755, 12317510593, 12317530086, 12317551252, 12317551253

  • Normalised article numbler
    a0071, a0831pr, a14vi22, a3509s, alt10221, alt10325, alth083, cal10151, cal15253, cal15346, dra0132, dra3998, drb1290, drb1810, f032112193, f042a0h083, lea0623, lrb00393, qa2735, sg12b029, sg14b019, sg14b020, 8el012428141, 8el012430011, 8el737499001, 8el737690001, 8el737885001, 1591ir, 1986a01099, 4040, 4595, 5785, 5976, 11098r, 13734, 13774, 13846, 13846n, 13846r, 13882, 13882n, 13882r, 13970, 118830, 118966, 119883, 200034, 200270, 210464, 210464a, 210548, 210548a, 283703, 283756, 284669, 301325ri, 301591ri, 437115, 439234, 439398, 553106ri, 746124, 746924, 747129, 1225301bo, 1251601va, 1252201bo, 1432980, 1432987, 1740629, 2541963, 2541963a, 2542377, 2542377b, 2542875, 2543237, 2543237a, 7501593, 7501595, 7501597, 7501599, 7501690, 7501755, 7510593, 7530086, 7551252, 9039720, 9041290, 9041810, 9213261, 12039720, 12041290, 12041810, 32041810, 0123325022, 0123515004, 0123515022, 0124515050, 0124515052, 0986039720, 0986039723, 0986039727, 0986041290, 0986041293, 0986041297, 0986041810, 0986041813, 0986041814, 0986041817, 2151271202, 2151271402, 2151401202, 12311432980, 12311432981, 12311432985, 12311432986, 12311432987, 12311740629, 12311740631, 12317501593, 12317501595, 12317501597, 12317501599, 12317501690, 12317501755, 12317510593, 12317530086, 12317551252, 12317551253, 943355051010, 943355097010, 944390412900, 944390418100
  • Description
    Voltage: 14
    Amp: 120
    Pulley diameter: 69.00
    Width/holder arm: 28.00
    Mounting bracket diameter: 74.50
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 49.60
    Grooves/pulley: 6
    Radius: 92.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in minutes: 58
    D+ size: Plug
    Rotation: CW
    Plug number: PL52
    Total length mm: 236.00
    Pulley: SP
    Regulator type: IR
    Production info: BN
    Servicing: BMW

    Files

  • Suitable for these vehicles

    • OEM
      a14vi22, F032112193, sg12b029, SG14B019, SG14B020, 1591ir, 1986A01099, 1432980, 1432987, 1740629, 2541963, 2541963A, 2542377, 2542377B, 2542875, 2543237, 2543237A, 7501593, 7501595, 7501597, 7501599, 7501690, 7501755, 7510593, 7530086, 7551252, 0123325022, 0123515004, 0123515022, 0124515050, 0124515052, 12311432980, 12311432981, 12311432985, 12311432986, 12311432987, 12311740629, 12311740631, 12317501593, 12317501595, 12317501597, 12317501599, 12317501690, 12317501755, 12317510593, 12317530086, 12317551252, 12317551253

    • Normalised article numbler
      a0071, a0831pr, a14vi22, a3509s, alt10221, alt10325, alth083, cal10151, cal15253, cal15346, dra0132, dra3998, drb1290, drb1810, f032112193, f042a0h083, lea0623, lrb00393, qa2735, sg12b029, sg14b019, sg14b020, 8el012428141, 8el012430011, 8el737499001, 8el737690001, 8el737885001, 1591ir, 1986a01099, 4040, 4595, 5785, 5976, 11098r, 13734, 13774, 13846, 13846n, 13846r, 13882, 13882n, 13882r, 13970, 118830, 118966, 119883, 200034, 200270, 210464, 210464a, 210548, 210548a, 283703, 283756, 284669, 301325ri, 301591ri, 437115, 439234, 439398, 553106ri, 746124, 746924, 747129, 1225301bo, 1251601va, 1252201bo, 1432980, 1432987, 1740629, 2541963, 2541963a, 2542377, 2542377b, 2542875, 2543237, 2543237a, 7501593, 7501595, 7501597, 7501599, 7501690, 7501755, 7510593, 7530086, 7551252, 9039720, 9041290, 9041810, 9213261, 12039720, 12041290, 12041810, 32041810, 0123325022, 0123515004, 0123515022, 0124515050, 0124515052, 0986039720, 0986039723, 0986039727, 0986041290, 0986041293, 0986041297, 0986041810, 0986041813, 0986041814, 0986041817, 2151271202, 2151271402, 2151401202, 12311432980, 12311432981, 12311432985, 12311432986, 12311432987, 12311740629, 12311740631, 12317501593, 12317501595, 12317501597, 12317501599, 12317501690, 12317501755, 12317510593, 12317530086, 12317551252, 12317551253, 943355051010, 943355097010, 944390412900, 944390418100
