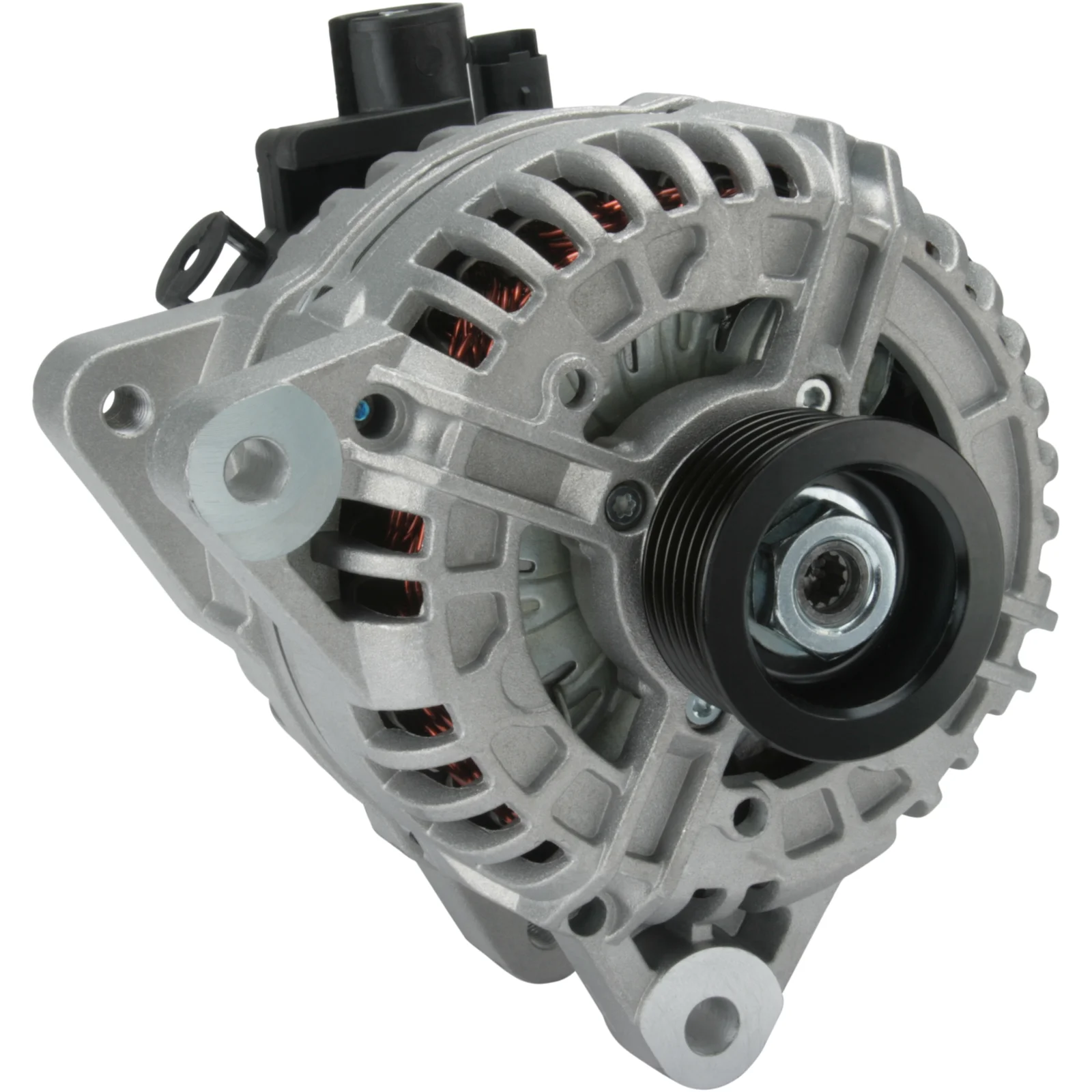

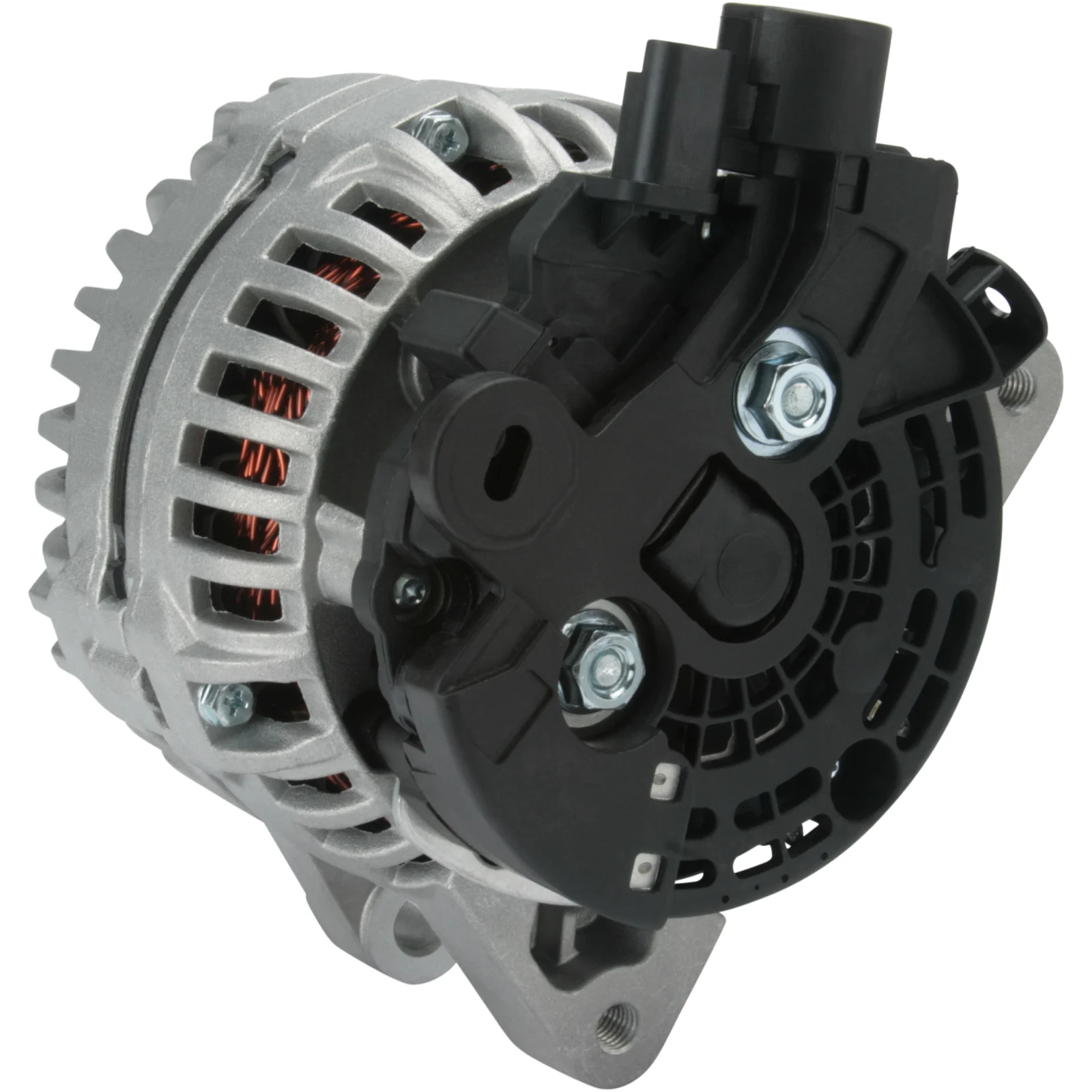

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115541

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 150, Rotation: CW, Mounting bracket distance: 45.00

Description

Voltage: 14
Amp: 150
Pulley distance: 42.00
Width/holder arm: 21.00
Mounting bracket distance: 45.00
Bracket hole: 10.50
Belt adjustment bracket hole position: 47
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 2
Rotation: CW
Plug number: PL129
Total length mm: 178.00
Terminal type: COM
Communication: BSS
Pulley: SP
Regulator type: IR
Product information: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115541, 1914ir, 1986A01323, 0124525063, 9646452480, 9649846780

  • Normalised article numbler
    a0183, cal10369, dra0307, f032115541, 8el011712521, 8el738212751, 1914ir, 1986a01323, 5702e9, 5702f9, 5705ca, 5705ek, 20005n, 112537, 209099, 209099a, 301914ri, 440611, 12090188, 32048360, 0124525063, 0986048360, 9646452480, 9649846780
  • Description
    Voltage: 14
    Amp: 150
    Pulley distance: 42.00
    Width/holder arm: 21.00
    Mounting bracket distance: 45.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 47
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 54.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 2
    Rotation: CW
    Plug number: PL129
    Total length mm: 178.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP
    Regulator type: IR
    Product information: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115541, 1914ir, 1986A01323, 0124525063, 9646452480, 9649846780

    • Normalised article numbler
      a0183, cal10369, dra0307, f032115541, 8el011712521, 8el738212751, 1914ir, 1986a01323, 5702e9, 5702f9, 5705ca, 5705ek, 20005n, 112537, 209099, 209099a, 301914ri, 440611, 12090188, 32048360, 0124525063, 0986048360, 9646452480, 9649846780
