HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114247

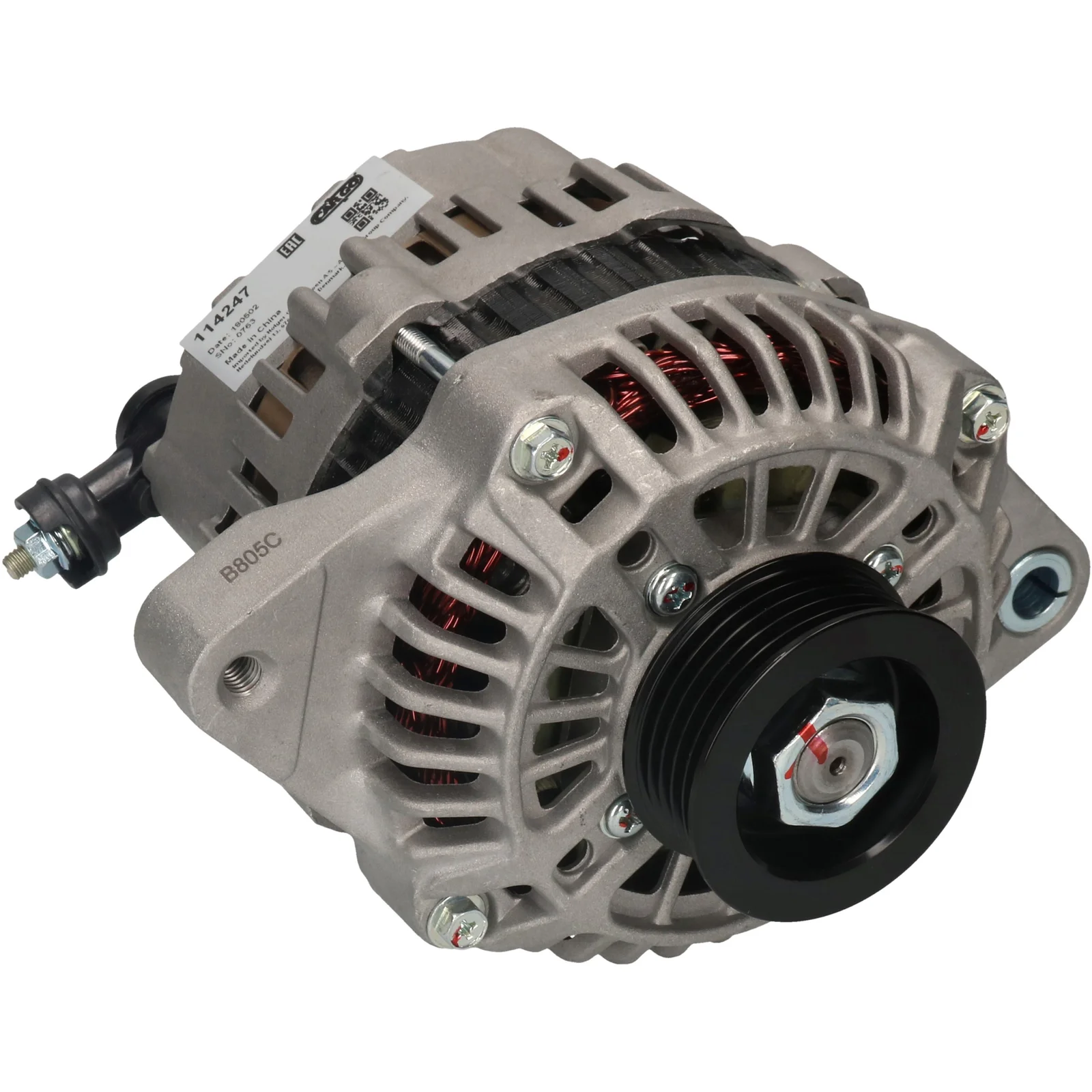

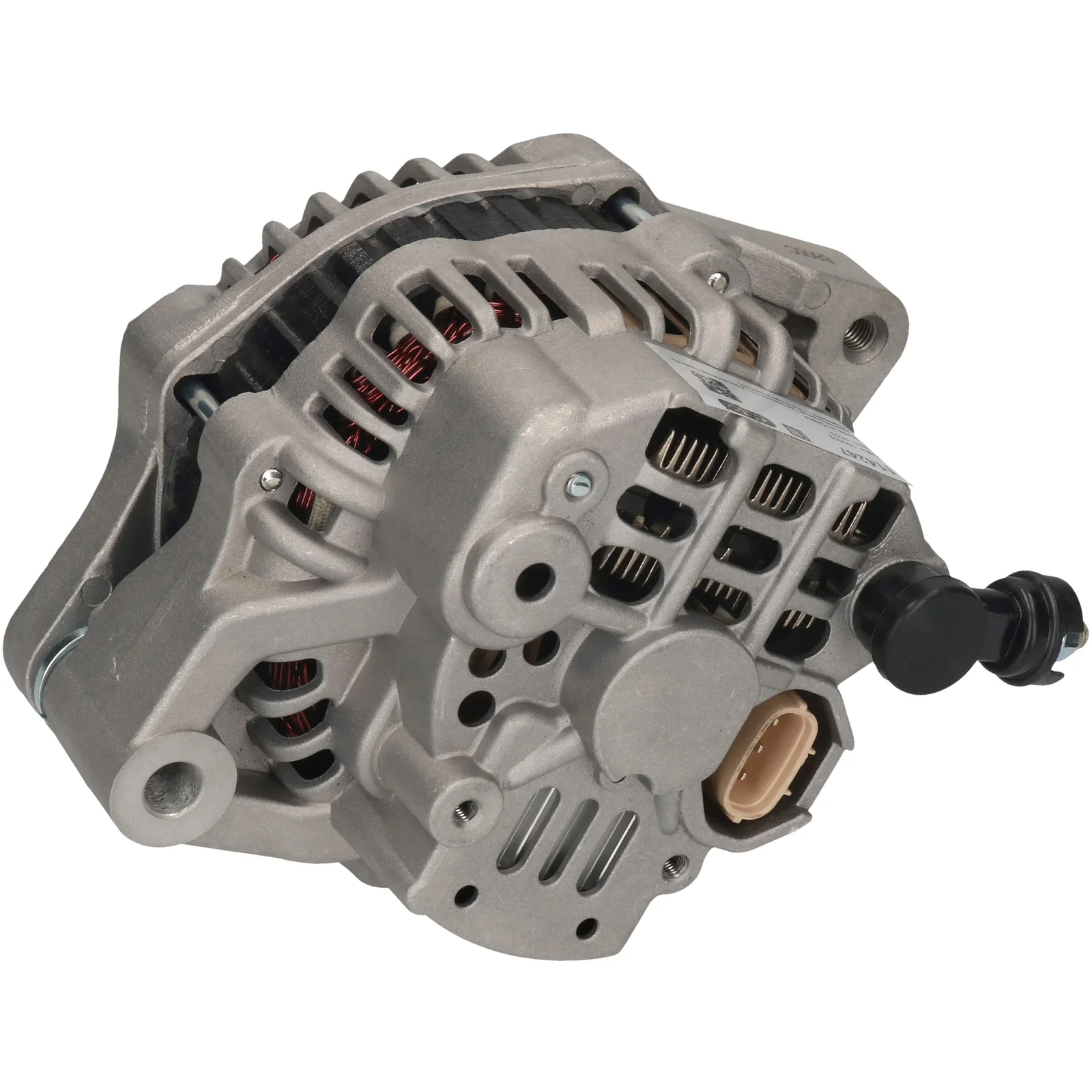

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 75, Rotation: CW, Pulley diameter: 56.00

Description

Suzuki Alternator 12V-70A 12V - 70A, 5-pole. (D, IG, L) For Yourex product order 90-528-4291

Voltage: 14
Amp: 75
Pulley diameter: 90.40
Width/holder arm: 58.00
Bracket hole: 10.50
Belt adjustment bracket hole 1: M8
Pulley diameter: 56.00
Grooves/pulley: 5
Radius: 80.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 3
D+ Size: Plug
Rotation: CW
Plug no.: PL58
Total length mm: 158.00
Terminal type: L-IG
Lamp type: Inactive
Pulley: SP
Fan: IF
Regulator type: IR
Prod. info: BN

Files

  • OEM
    A005TA4291, A005TA4291ZC, A005TB1292, A005TB1292AE, A005TB2292ZE, A5T-A4291, A5T-A4291BC, A5T-A4291ZC, A5T-B1292, A5T-B1292AE, A5TA-4291AC, a5ta4291, A5TA4291AC, A5TA4291BC, A5TA4291ZC, A5TB1292, a5tb1292ae, A5TB2292, A5TB2292AE, A5TB2292ZE, F032114247, 0986 082 830, 2026ir, 31400-55L00, 31400-55l01, 31400-65D00, 31400-65D01, 31400-65D02, 31400-84E10, 31400-84E11, 31400-84E12, 114247, 4709920, 93194153

  • Normalised article numbler
    a005ta4291, a005ta4291zc, a005tb1292, a005tb1292ae, a005tb2292ze, a5049, a5ta4291, a5ta4291ac, a5ta4291bc, a5ta4291zc, a5tb1292, a5tb1292ae, a5tb2292, a5tb2292ae, a5tb2292ze, alth209, cal35277, cal35278, dra0562, dra0972, f032114247, f042a0h209, 8el011713451, 8el738213141, 2026ir, 13781n, 114247, 200287, 209353, 209353a, 286572, 302026ri, 440897, 446543, 3140055l00, 3140055l01, 3140065d00, 3140065d01, 3140065d02, 3140084e10, 3140084e11, 3140084e12, 4709920, 9090649, 12060998, 93194153, 185521075, 245131752, 0986082830
  • Description
    Suzuki Alternator 12V-70A 12V - 70A, 5-pole. (D, IG, L) For Yourex product order 90-528-4291

    Voltage: 14
    Amp: 75
    Pulley diameter: 90.40
    Width/holder arm: 58.00
    Bracket hole: 10.50
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 56.00
    Grooves/pulley: 5
    Radius: 80.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 3
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL58
    Total length mm: 158.00
    Terminal type: L-IG
    Lamp type: Inactive
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A005TA4291, A005TA4291ZC, A005TB1292, A005TB1292AE, A005TB2292ZE, A5T-A4291, A5T-A4291BC, A5T-A4291ZC, A5T-B1292, A5T-B1292AE, A5TA-4291AC, a5ta4291, A5TA4291AC, A5TA4291BC, A5TA4291ZC, A5TB1292, a5tb1292ae, A5TB2292, A5TB2292AE, A5TB2292ZE, F032114247, 0986 082 830, 2026ir, 31400-55L00, 31400-55l01, 31400-65D00, 31400-65D01, 31400-65D02, 31400-84E10, 31400-84E11, 31400-84E12, 114247, 4709920, 93194153

    • Normalised article numbler
      a005ta4291, a005ta4291zc, a005tb1292, a005tb1292ae, a005tb2292ze, a5049, a5ta4291, a5ta4291ac, a5ta4291bc, a5ta4291zc, a5tb1292, a5tb1292ae, a5tb2292, a5tb2292ae, a5tb2292ze, alth209, cal35277, cal35278, dra0562, dra0972, f032114247, f042a0h209, 8el011713451, 8el738213141, 2026ir, 13781n, 114247, 200287, 209353, 209353a, 286572, 302026ri, 440897, 446543, 3140055l00, 3140055l01, 3140065d00, 3140065d01, 3140065d02, 3140084e10, 3140084e11, 3140084e12, 4709920, 9090649, 12060998, 93194153, 185521075, 245131752, 0986082830
