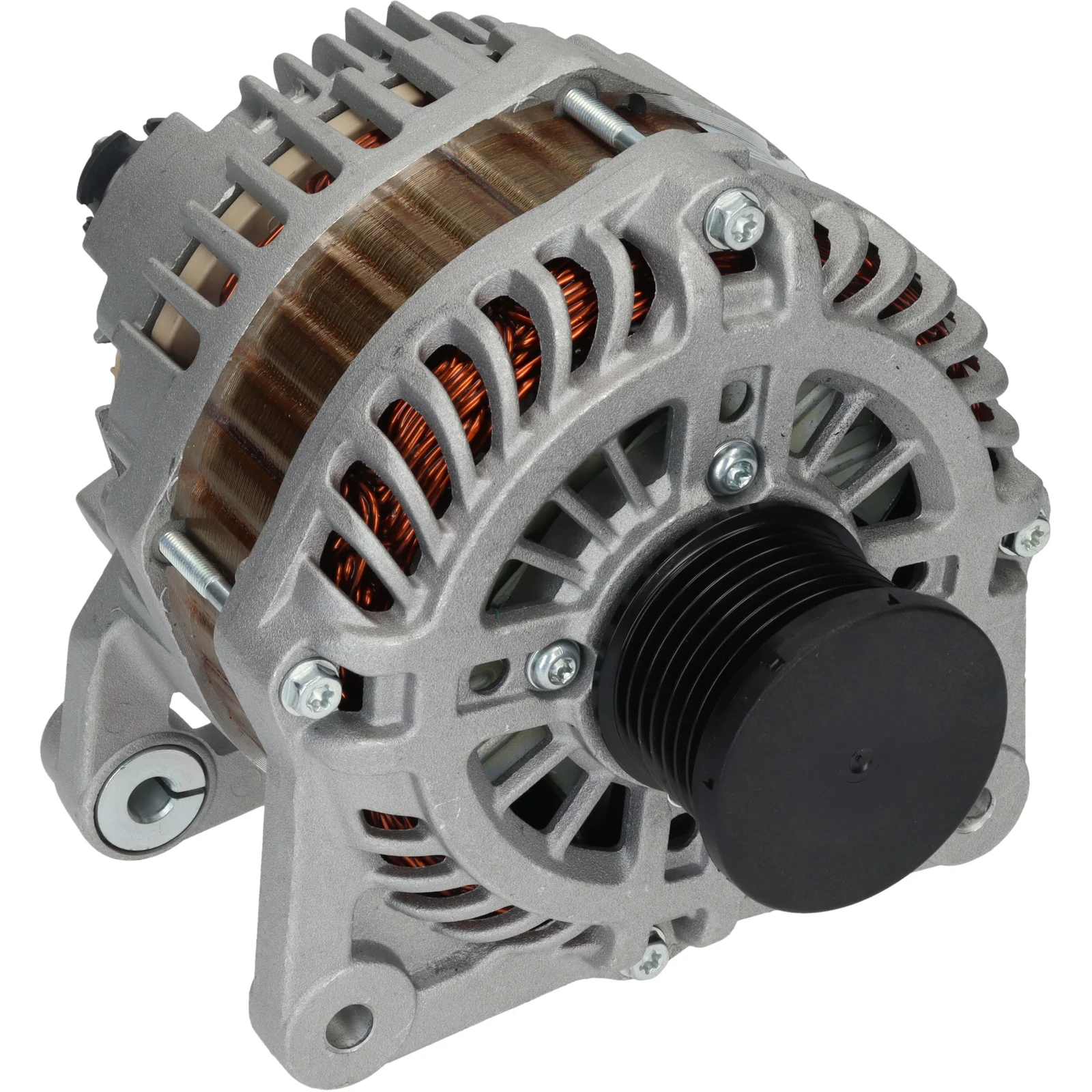

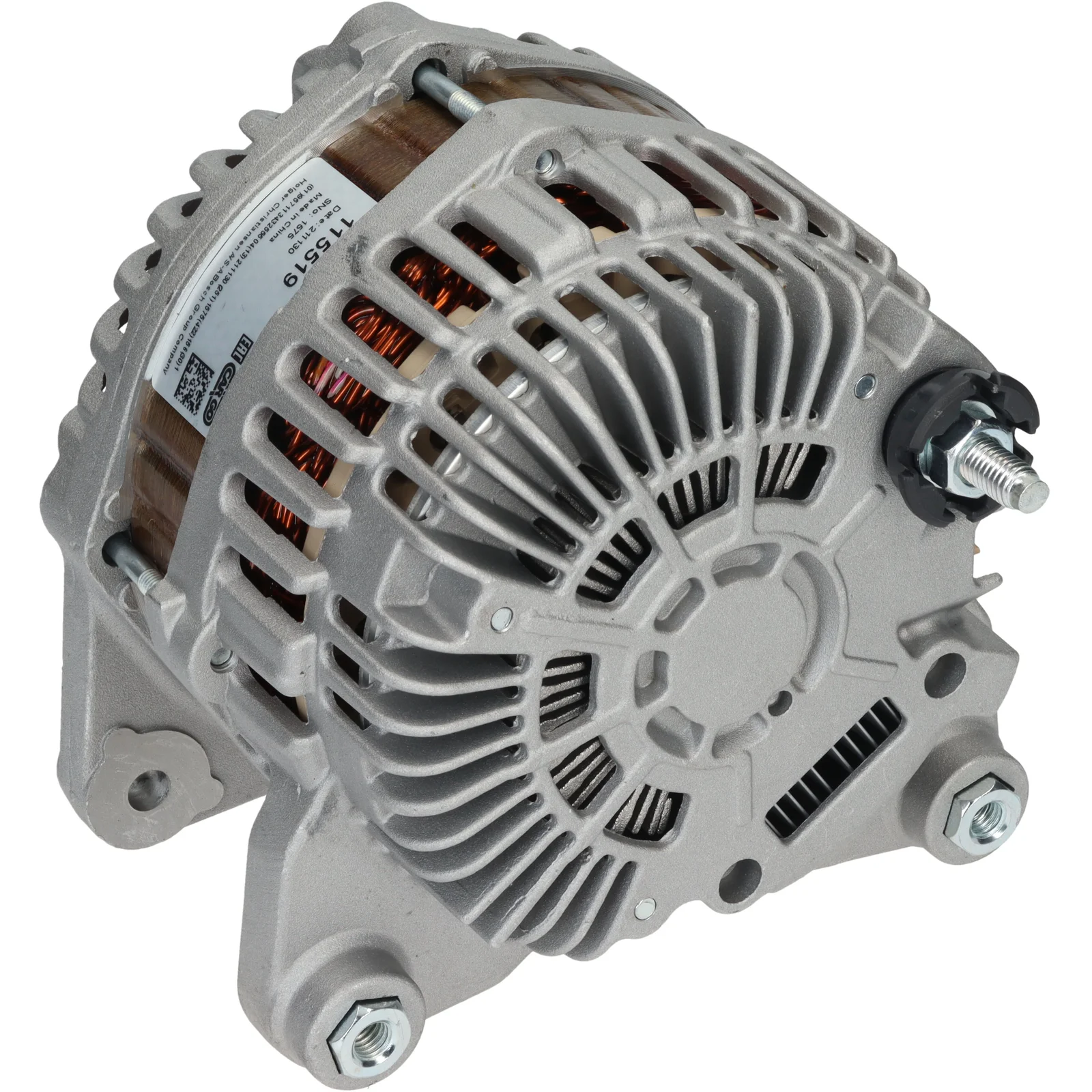

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115519

HC-Cargo Alternator

Technical info:

Voltage: 14, Current: 150, Rotation: CW, Mounting bracket distance: 60.00

Description

Nissan X-Trail Gen. 12V-150A 12V - 150A, 7 teeth. color, (C, S, L) 7 teeth. color, (L, S, C) For Your product order 90-400-3038 Voltage: 14 Amperage: 150 Pulley diameter: 33.50 Width/holder arm: 14.00 Mounting bracket distance: 60.00 Bracket hole: 8.50 Belt adjustment bracket hole position: 45 Belt adjustment bracket hole 1: 8.50 Pulley diameter: 49.00 Grooves/pulley: 7 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in minutes: 1 D+ Size: Plug Rotation: CW Plug number: PL163 Total length mm: 193.00 Pulley: SP/FW Fan: IF Regulator type: IR

Files

  • OEM
    A003TJ3881, A003TJ3881ZE, A3T-J3881, A3T-J3881 ZE, A3TJ3881, A3TJ3881ZE, F032115519, 2185ir, 23100-JD71B, 23100-JG71B, 23100-jg71b, 115519

  • Normalised article numbler
    a003tj3881, a003tj3881ze, a3tj3881, a3tj3881ze, a5097, a5168, cal35362, f032115519, lra03653, 8el011713671, 2185ir, 23100jd71b, 23100jg71b, 115519, 286793, 443525, 554166ri, 12061041, 165586150, 0986083540, 2273251502
  • Description
    Nissan X-Trail Gen. 12V-150A 12V - 150A, 7 teeth. color, (C, S, L) 7 teeth. color, (L, S, C) For Your product order 90-400-3038 Voltage: 14 Amperage: 150 Pulley diameter: 33.50 Width/holder arm: 14.00 Mounting bracket distance: 60.00 Bracket hole: 8.50 Belt adjustment bracket hole position: 45 Belt adjustment bracket hole 1: 8.50 Pulley diameter: 49.00 Grooves/pulley: 7 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in minutes: 1 D+ Size: Plug Rotation: CW Plug number: PL163 Total length mm: 193.00 Pulley: SP/FW Fan: IF Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A003TJ3881, A003TJ3881ZE, A3T-J3881, A3T-J3881 ZE, A3TJ3881, A3TJ3881ZE, F032115519, 2185ir, 23100-JD71B, 23100-JG71B, 23100-jg71b, 115519

    • Normalised article numbler
      a003tj3881, a003tj3881ze, a3tj3881, a3tj3881ze, a5097, a5168, cal35362, f032115519, lra03653, 8el011713671, 2185ir, 23100jd71b, 23100jg71b, 115519, 286793, 443525, 554166ri, 12061041, 165586150, 0986083540, 2273251502
