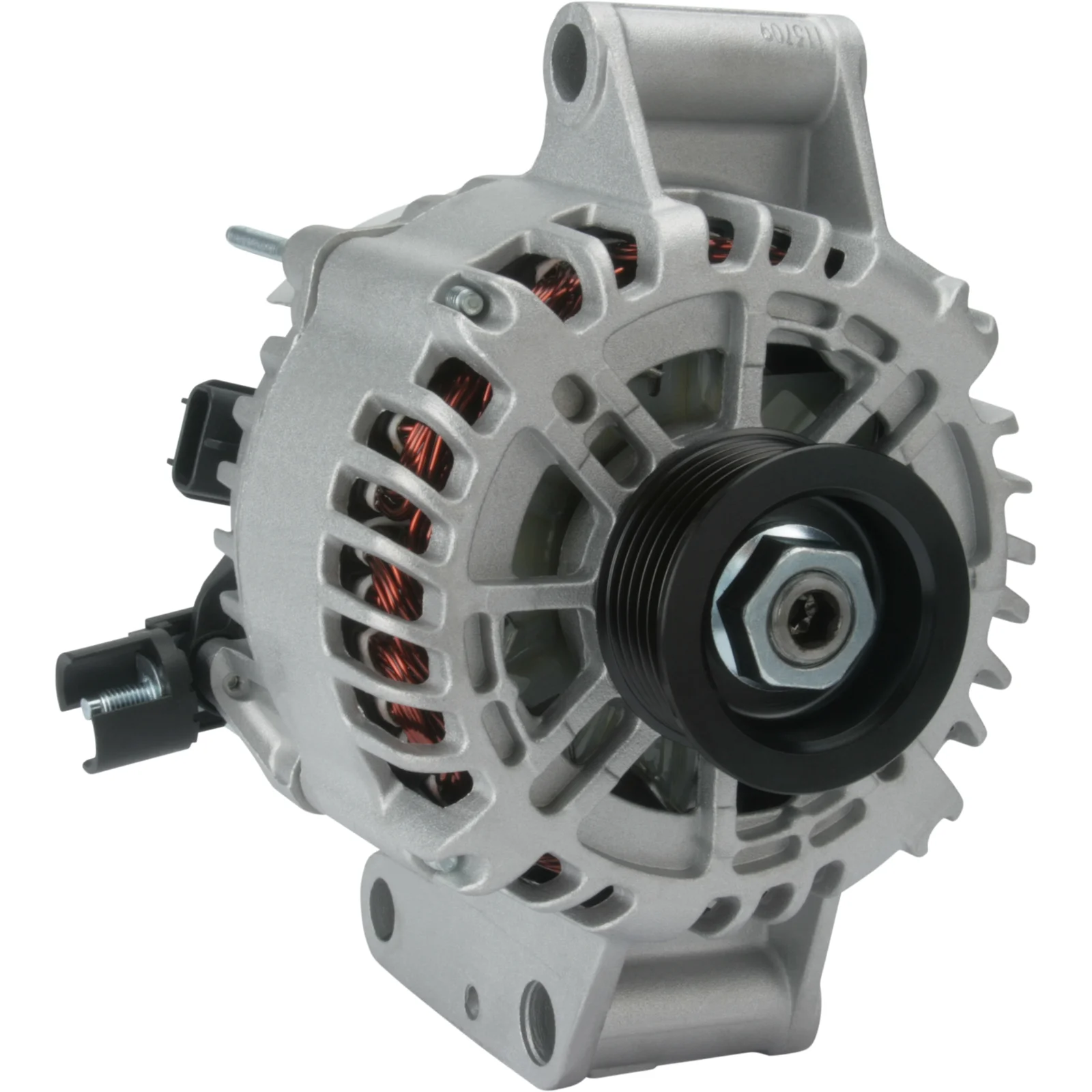

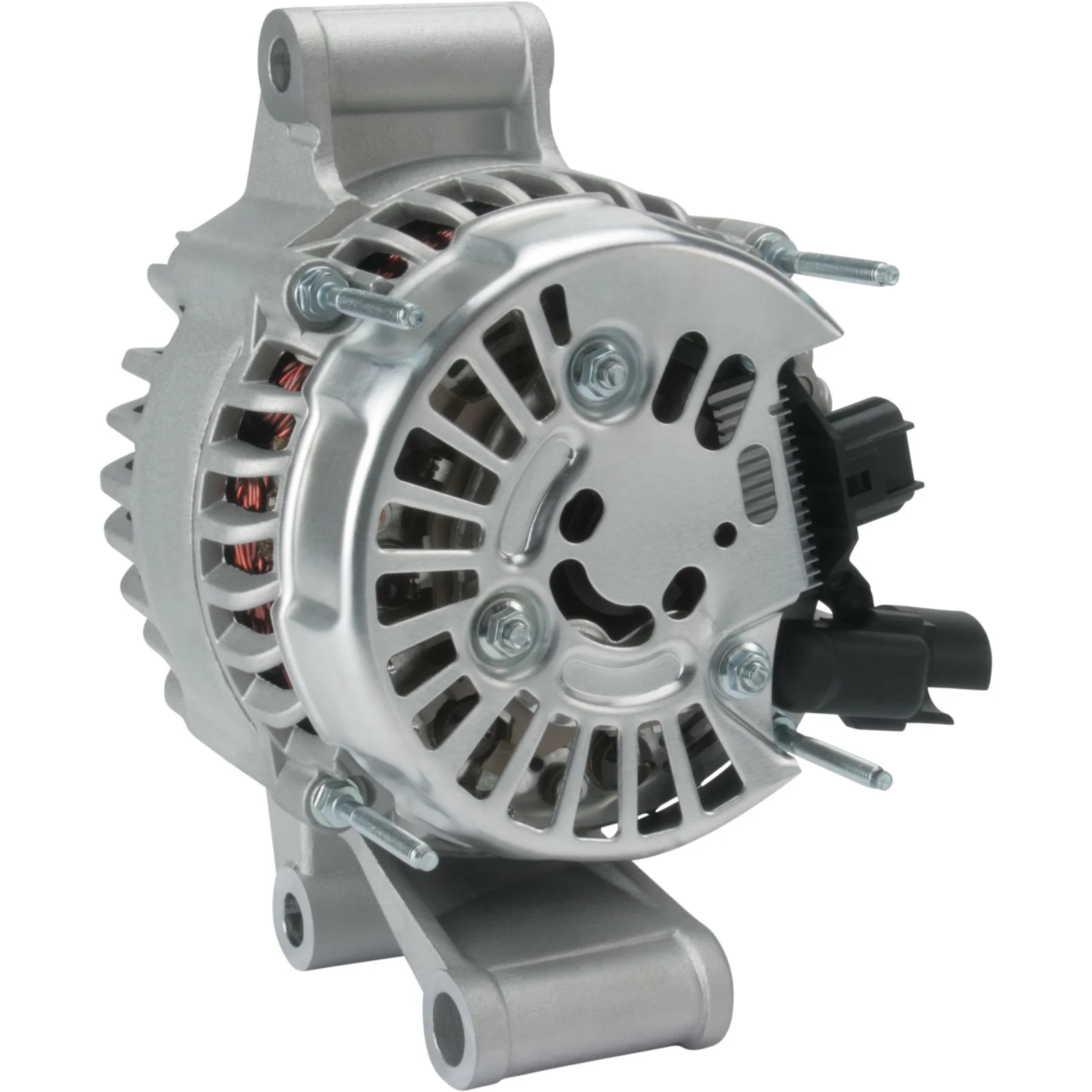

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113709

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 115, Rotation: CW, Mounting bracket distributor: 74.00

Description

Ford Mondeo Alternator 12V-115A, 01> 12V - 115A, 6 grooves. (FR, SIG, A) For testing use test box 89-8219. Connector/Repair Lead: 54-101-0111 Automatic! For Yourrex product order 90-180-1070

Voltage: 14
Ampere: 115
Pulley distance: 41.00
Width/holder arm: 55.00
Mounting bracket distance: 74.00
Bracket hole: 13.50
Bracket hole 2: 12.00
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 13.50
Pulley diameter: 53.50
Grooves/pulley: 6
B+: M6
Position/B+ in min.: 19
D+ Size: Plug
Rotation: CW
Plug number: PL57
Pulley: SP
Regulator type: IR
Product info: BN
Servicing: Ford

Files

  • OEM
    C2S27198, C2S47100, F032113709, 1S7T 10300BA, 1S7T 10300BB, 1s7t10300ba, 1s7t10300bb, 1s7t10300bc, 1S7T10300BD, 1S7T10300BE, 1S7T10300DA, 1s7t10300db, 1s7t10300dc, 1s7t10300dd, 1S7T10300DE, 1s7t10300df, 1S7T10C392A, 1S7T10C392AB, 1S7TBC, 1S7TBD, 1S7Z10346BC, 20-150-01005, 20-150-01006, 1638ir, 1986A00491, 113709, 1120211, 1124015, 1131820, 1140696, 1151212, 1211891, 1464779, 1478608, 1478971, 1904976, 63380006

  • Normalised article numbler
    a9011, a9011er, a9011pr, a9011sr, a9296s, alt21808, alt21809, altf009, c2s27198, c2s47100, cal14102, cal14107, cst50655, dra0023, dra0023n, dra4144, dra4144n, f032113709, f032ua0087, f042a04090, f042a0h245, ga19300, lea0654, lra01155, lrb00497, 1s7t10300ba, 1s7t10300bb, 1s7t10300bc, 1s7t10300bd, 1s7t10300be, 1s7t10300da, 1s7t10300db, 1s7t10300dc, 1s7t10300dd, 1s7t10300de, 1s7t10300df, 1s7t10c392a, 1s7t10c392ab, 1s7tbc, 1s7tbd, 1s7z10346bc, 8el011360561, 8el011710581, 8el012240511, 8el737929001, 1638ir, 1986a00491, 4046, 8440n, 22155r, 111716, 111760, 113709, 210241, 210241a, 210363, 210363a, 274696, 274698, 301638ri, 440192, 1120211, 1124015, 1131820, 1140696, 1151212, 1211891, 1260801fd, 1464779, 1478608, 1478971, 1904976, 12049460, 12090233, 32001005, 32063338, 32063388, 063380005, 063380006, 63380006, 219160902, 219169902, 0986049460, 2015001005, 2015001006, 063380005010, 063380006010, 944390901770
  • Description
    Ford Mondeo Alternator 12V-115A, 01> 12V - 115A, 6 grooves. (FR, SIG, A) For testing use test box 89-8219. Connector/Repair Lead: 54-101-0111 Automatic! For Yourrex product order 90-180-1070

    Voltage: 14
    Ampere: 115
    Pulley distance: 41.00
    Width/holder arm: 55.00
    Mounting bracket distance: 74.00
    Bracket hole: 13.50
    Bracket hole 2: 12.00
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 13.50
    Pulley diameter: 53.50
    Grooves/pulley: 6
    B+: M6
    Position/B+ in min.: 19
    D+ Size: Plug
    Rotation: CW
    Plug number: PL57
    Pulley: SP
    Regulator type: IR
    Product info: BN
    Servicing: Ford

    Files

  • Suitable for these vehicles

    • OEM
      C2S27198, C2S47100, F032113709, 1S7T 10300BA, 1S7T 10300BB, 1s7t10300ba, 1s7t10300bb, 1s7t10300bc, 1S7T10300BD, 1S7T10300BE, 1S7T10300DA, 1s7t10300db, 1s7t10300dc, 1s7t10300dd, 1S7T10300DE, 1s7t10300df, 1S7T10C392A, 1S7T10C392AB, 1S7TBC, 1S7TBD, 1S7Z10346BC, 20-150-01005, 20-150-01006, 1638ir, 1986A00491, 113709, 1120211, 1124015, 1131820, 1140696, 1151212, 1211891, 1464779, 1478608, 1478971, 1904976, 63380006

    • Normalised article numbler
      a9011, a9011er, a9011pr, a9011sr, a9296s, alt21808, alt21809, altf009, c2s27198, c2s47100, cal14102, cal14107, cst50655, dra0023, dra0023n, dra4144, dra4144n, f032113709, f032ua0087, f042a04090, f042a0h245, ga19300, lea0654, lra01155, lrb00497, 1s7t10300ba, 1s7t10300bb, 1s7t10300bc, 1s7t10300bd, 1s7t10300be, 1s7t10300da, 1s7t10300db, 1s7t10300dc, 1s7t10300dd, 1s7t10300de, 1s7t10300df, 1s7t10c392a, 1s7t10c392ab, 1s7tbc, 1s7tbd, 1s7z10346bc, 8el011360561, 8el011710581, 8el012240511, 8el737929001, 1638ir, 1986a00491, 4046, 8440n, 22155r, 111716, 111760, 113709, 210241, 210241a, 210363, 210363a, 274696, 274698, 301638ri, 440192, 1120211, 1124015, 1131820, 1140696, 1151212, 1211891, 1260801fd, 1464779, 1478608, 1478971, 1904976, 12049460, 12090233, 32001005, 32063338, 32063388, 063380005, 063380006, 63380006, 219160902, 219169902, 0986049460, 2015001005, 2015001006, 063380005010, 063380006010, 944390901770
