HC-Cargo Alternator

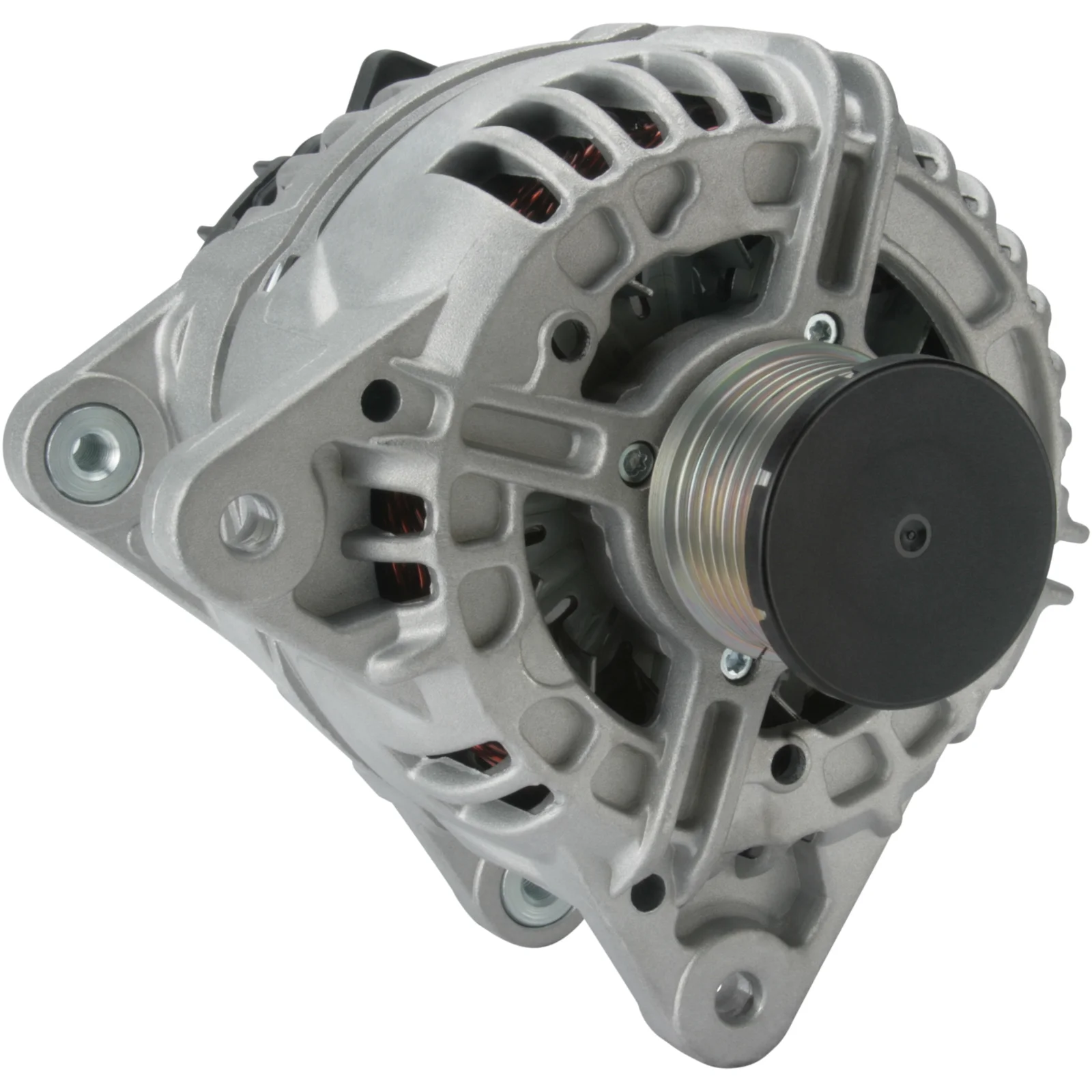

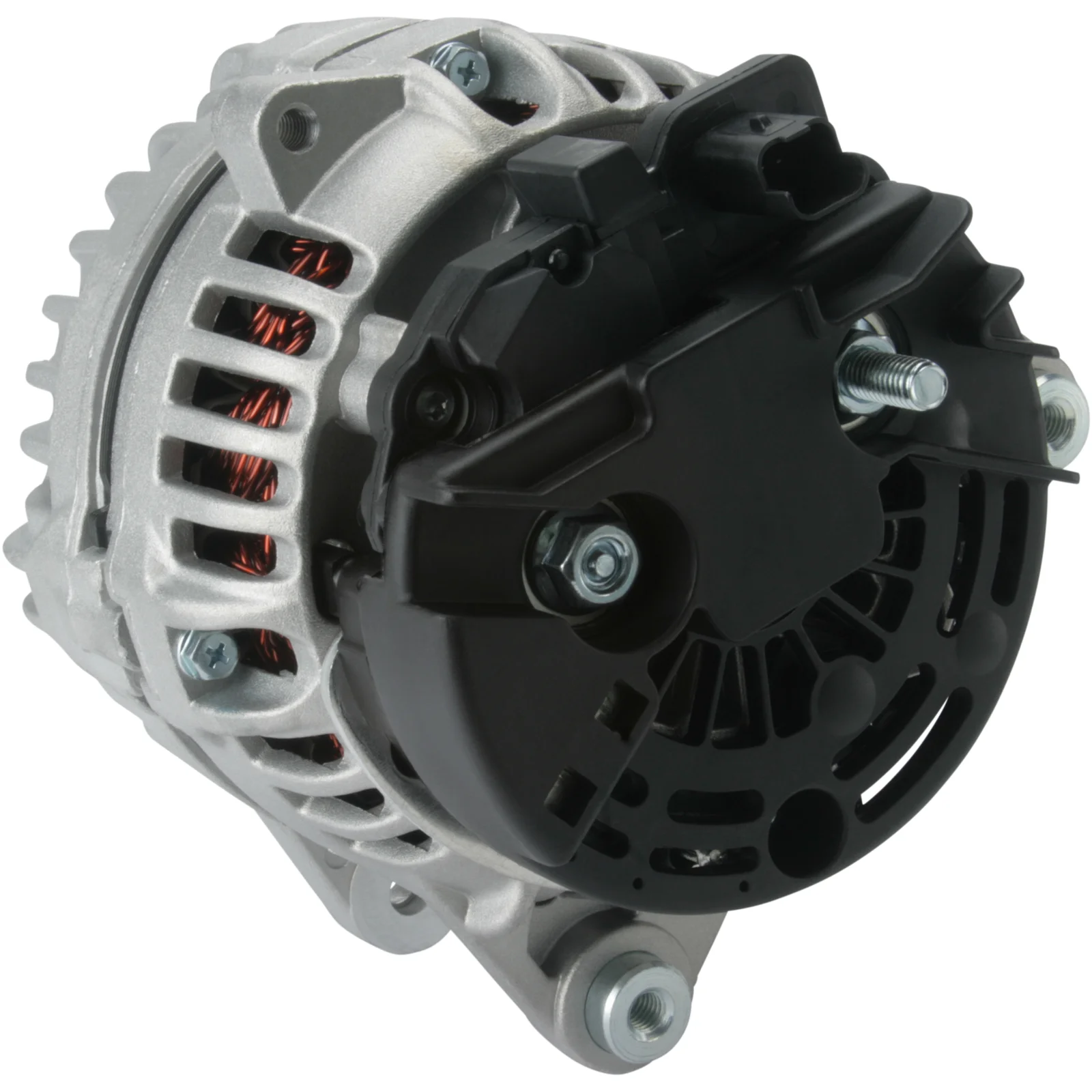

HC-Cargo Alternator
Article no.: F032114700

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 150, Rotation: CW, Mounting bracket distributor: 61.60

Description

Voltage: 14
Amp: 150
Pulley dist.: 33.30
Width/holder arm: 14.00
Mount. bracket dist.: 61.60
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 49.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 10
D+ Size: Plug
Rotation: CW
Plug no.: PL72
Total length mm: 196.00
Pulley: SP/FW
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032114700, 1877ir, 1986A00900, 23100-00q0h, 23100-00Q2E, 4416689, 4434149, 93169474, 93189013, 93198275, 0124525076, 0124525137, 0124525537, 8200251006, 8200660022

  • Normalised article numbler
    a0736s, cal10302, drb7390, f032114700, 8el012426071, 1877ir, 1986a00900, 4692, 23542, 23542n, 111824, 200161, 210579, 210579a, 284886, 301877ri, 443065, 443280, 747034, 2310000q0h, 2310000q2e, 4416689, 4434149, 9212745, 12047390, 93169474, 93189013, 93198275, 0124525076, 0124525137, 0124525537, 0986047390, 0986047393, 8200251006, 8200660022
  • Description
    Voltage: 14
    Amp: 150
    Pulley dist.: 33.30
    Width/holder arm: 14.00
    Mount. bracket dist.: 61.60
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 49.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 10
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL72
    Total length mm: 196.00
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114700, 1877ir, 1986A00900, 23100-00q0h, 23100-00Q2E, 4416689, 4434149, 93169474, 93189013, 93198275, 0124525076, 0124525137, 0124525537, 8200251006, 8200660022

    • Normalised article numbler
      a0736s, cal10302, drb7390, f032114700, 8el012426071, 1877ir, 1986a00900, 4692, 23542, 23542n, 111824, 200161, 210579, 210579a, 284886, 301877ri, 443065, 443280, 747034, 2310000q0h, 2310000q2e, 4416689, 4434149, 9212745, 12047390, 93169474, 93189013, 93198275, 0124525076, 0124525137, 0124525537, 0986047390, 0986047393, 8200251006, 8200660022
