Article no.: F032113535

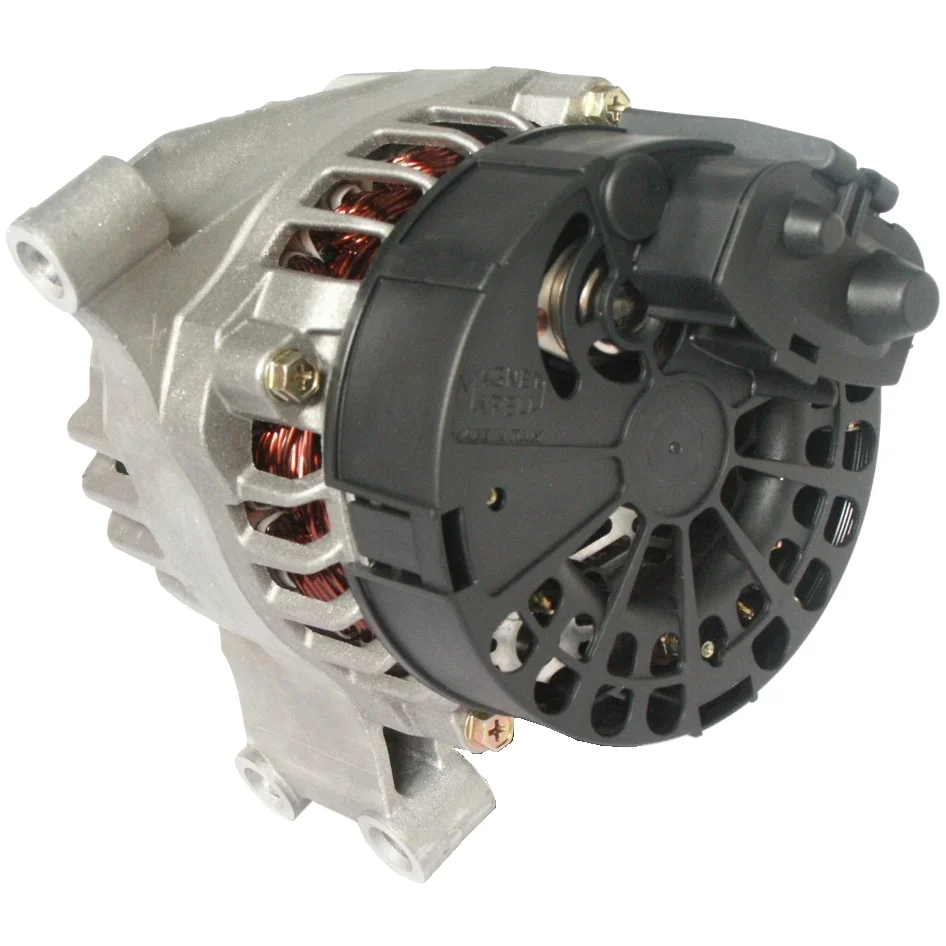

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 85, Rotation: CW, Mounting bracket distance: 51.00

Description

Fiat Alternator 12V-85A 12V - 85A, 5 grooves. For Yourex product order 90-165-1775

Voltage: 14
Amperage: 85
Pulley diameter: 16.30
Width/holder arm: 24.20
Mounting bracket diameter: 51.00
Bracket hole: 10.50
Belt adjustment bracket hole position: 5
Belt adjustment bracket hole 1: 8.60
Pulley diameter: 54.00
Grooves/pulley: 5
Radius: 96.00
Radius 2: 97.00
B+: M8
Position/B+ in min.: 13
D+ Size: M5
Rotation: CW
Total length mm: 184.50
Pulley: SP
Fan: IF
Voltage regulator type: IR
Product info: BN
Servicing: Fiat

Files

  • OEM
    F032113535, FO 1535437, 9s5110346ba, 9s5110346bb, 0986 049 540, 1742ir, 1986A00733, 102211-8450, 102211-8451, 102211-8470, 102211-8471, 113535, 1535437, 1673521, 46554404, 46748357, 51709131, 51714791, 51859038, 63321765, 63321775, 63377010, 63377013, 95524463

  • Normalised article numbler
    a4058, a6162denso, a6269denso, a6269s, alt4234, cal30190, dan1039, dan519, dendan1039, dendan519, dra0113, dra0113n, f032113535, f042208018, f042a07028, fo1535437, ga16718, lea0685, lra02800, 8el012426771, 8el738099001, 9s5110346ba, 9s5110346bb, 1742ir, 1986a00733, 23800n, 23800r, 111804, 112435, 113535, 210663, 210663a, 210755, 210755a, 284917, 301742ri, 443129, 443159, 446773, 1535437, 1673521, 9212578, 12049540, 46554404, 46748357, 51709131, 51714791, 51859038, 63321765, 63321775, 063377010, 63377010, 063377013, 63377013, 95524463, 218172852, 505560090, 0986049540, 1022118450, 1022118451, 1022118470, 1022118471, 063321765010, 063377010010, 063377013010, 944390901910
  • Description
    Fiat Alternator 12V-85A 12V - 85A, 5 grooves. For Yourex product order 90-165-1775

    Voltage: 14
    Amperage: 85
    Pulley diameter: 16.30
    Width/holder arm: 24.20
    Mounting bracket diameter: 51.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 5
    Belt adjustment bracket hole 1: 8.60
    Pulley diameter: 54.00
    Grooves/pulley: 5
    Radius: 96.00
    Radius 2: 97.00
    B+: M8
    Position/B+ in min.: 13
    D+ Size: M5
    Rotation: CW
    Total length mm: 184.50
    Pulley: SP
    Fan: IF
    Voltage regulator type: IR
    Product info: BN
    Servicing: Fiat

    Files

  • Suitable for these vehicles

    • OEM
      F032113535, FO 1535437, 9s5110346ba, 9s5110346bb, 0986 049 540, 1742ir, 1986A00733, 102211-8450, 102211-8451, 102211-8470, 102211-8471, 113535, 1535437, 1673521, 46554404, 46748357, 51709131, 51714791, 51859038, 63321765, 63321775, 63377010, 63377013, 95524463

    • Normalised article numbler
      a4058, a6162denso, a6269denso, a6269s, alt4234, cal30190, dan1039, dan519, dendan1039, dendan519, dra0113, dra0113n, f032113535, f042208018, f042a07028, fo1535437, ga16718, lea0685, lra02800, 8el012426771, 8el738099001, 9s5110346ba, 9s5110346bb, 1742ir, 1986a00733, 23800n, 23800r, 111804, 112435, 113535, 210663, 210663a, 210755, 210755a, 284917, 301742ri, 443129, 443159, 446773, 1535437, 1673521, 9212578, 12049540, 46554404, 46748357, 51709131, 51714791, 51859038, 63321765, 63321775, 063377010, 63377010, 063377013, 63377013, 95524463, 218172852, 505560090, 0986049540, 1022118450, 1022118451, 1022118470, 1022118471, 063321765010, 063377010010, 063377013010, 944390901910
