HC-Cargo Alternator

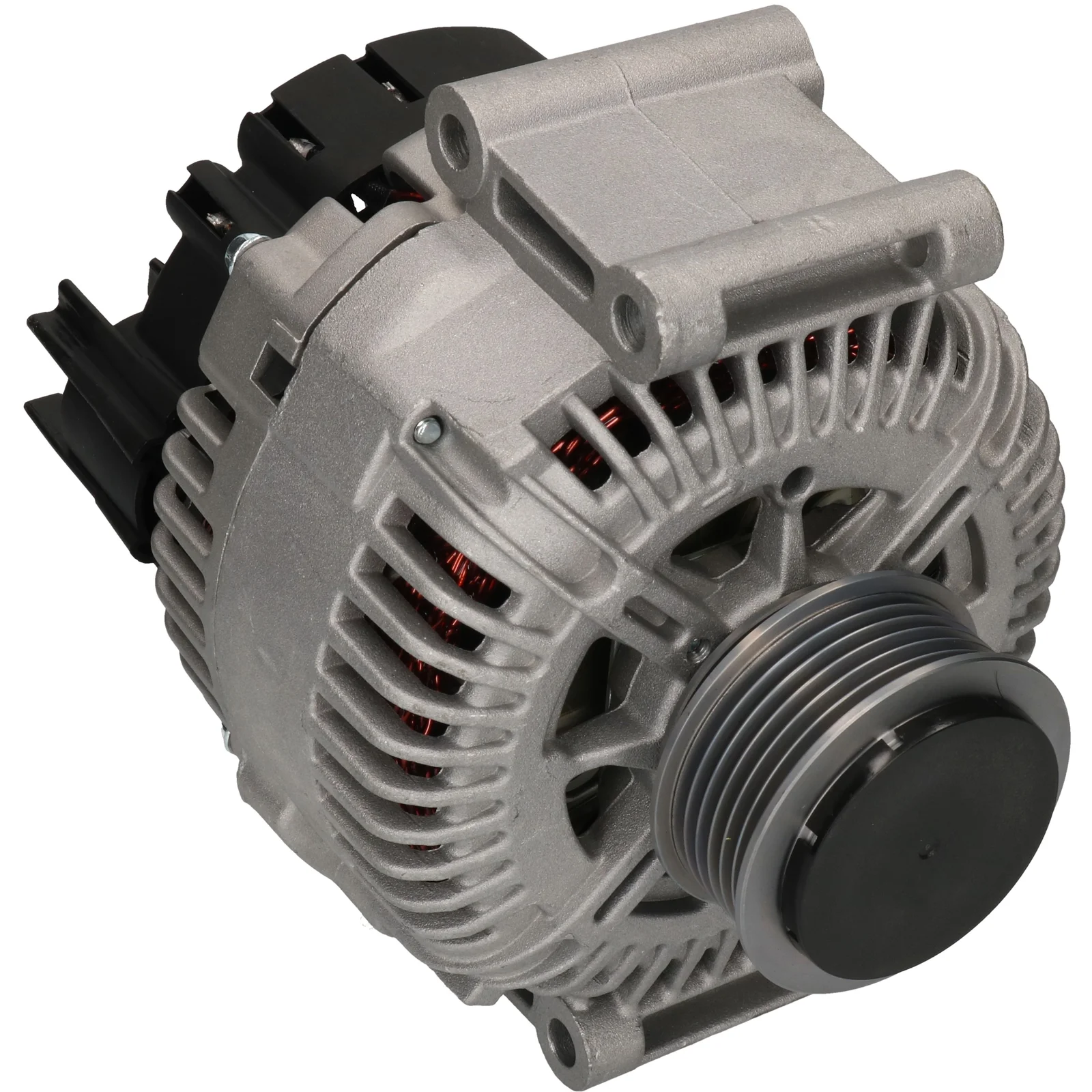

HC-Cargo Alternator
Article no.: F032115414

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 56.00

Description

Voltage: 14
Amp: 180
Pulley dist.: 29.50
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.00
Belt. adj. bracket hole 1: 9.00
Belt. adj. bracket hole 2: 8.00x9.50
Alternator pulley dia.: 64.50
Grooves/pulley: 6
Radius: 80.50
Radius 2: 82.50
B+: M8
Position/B+ in min.: 45
Rotation: CW
Plug no.: PL86
Total length mm: 198.00
Terminal type: COM
Pulley: SP/FW
Voltage regulator type: IR
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115414, TG17C023, tg17c044, 06E903016G, 06e903016k, 06e903016m, 06E903016MX, 2542798, 0121715022, 0121715122

  • Normalised article numbler
    a0723s, a3257, a3265, cal10a13, cal15366, dra0053, dra0358, f032115414, f042205124, lra02365, tg17c023, tg17c044, 06e903016g, 06e903016k, 06e903016m, 06e903016mx, 8el015637051, 11162n, 11162r, 284871, 437528, 439536, 439554, 553122ri, 2542798, 12090219, 32437528, 0121715022, 0121715122
  • Description
    Voltage: 14
    Amp: 180
    Pulley dist.: 29.50
    Width/holder arm: 70.00
    Mount. bracket dist.: 56.00
    Bracket hole: 9.00
    Belt. adj. bracket hole 1: 9.00
    Belt. adj. bracket hole 2: 8.00x9.50
    Alternator pulley dia.: 64.50
    Grooves/pulley: 6
    Radius: 80.50
    Radius 2: 82.50
    B+: M8
    Position/B+ in min.: 45
    Rotation: CW
    Plug no.: PL86
    Total length mm: 198.00
    Terminal type: COM
    Pulley: SP/FW
    Voltage regulator type: IR
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115414, TG17C023, tg17c044, 06E903016G, 06e903016k, 06e903016m, 06E903016MX, 2542798, 0121715022, 0121715122

    • Normalised article numbler
      a0723s, a3257, a3265, cal10a13, cal15366, dra0053, dra0358, f032115414, f042205124, lra02365, tg17c023, tg17c044, 06e903016g, 06e903016k, 06e903016m, 06e903016mx, 8el015637051, 11162n, 11162r, 284871, 437528, 439536, 439554, 553122ri, 2542798, 12090219, 32437528, 0121715022, 0121715122
