HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114847

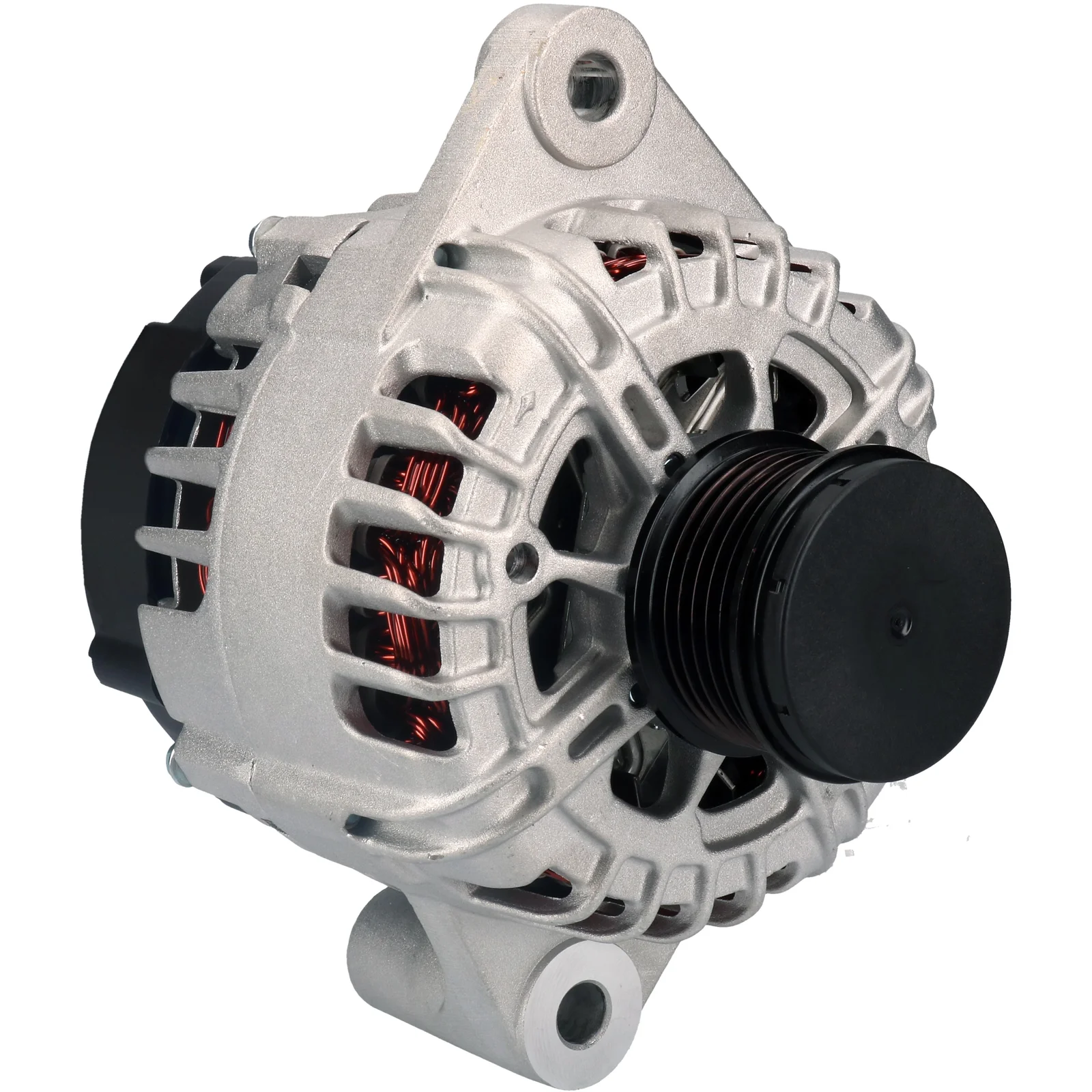

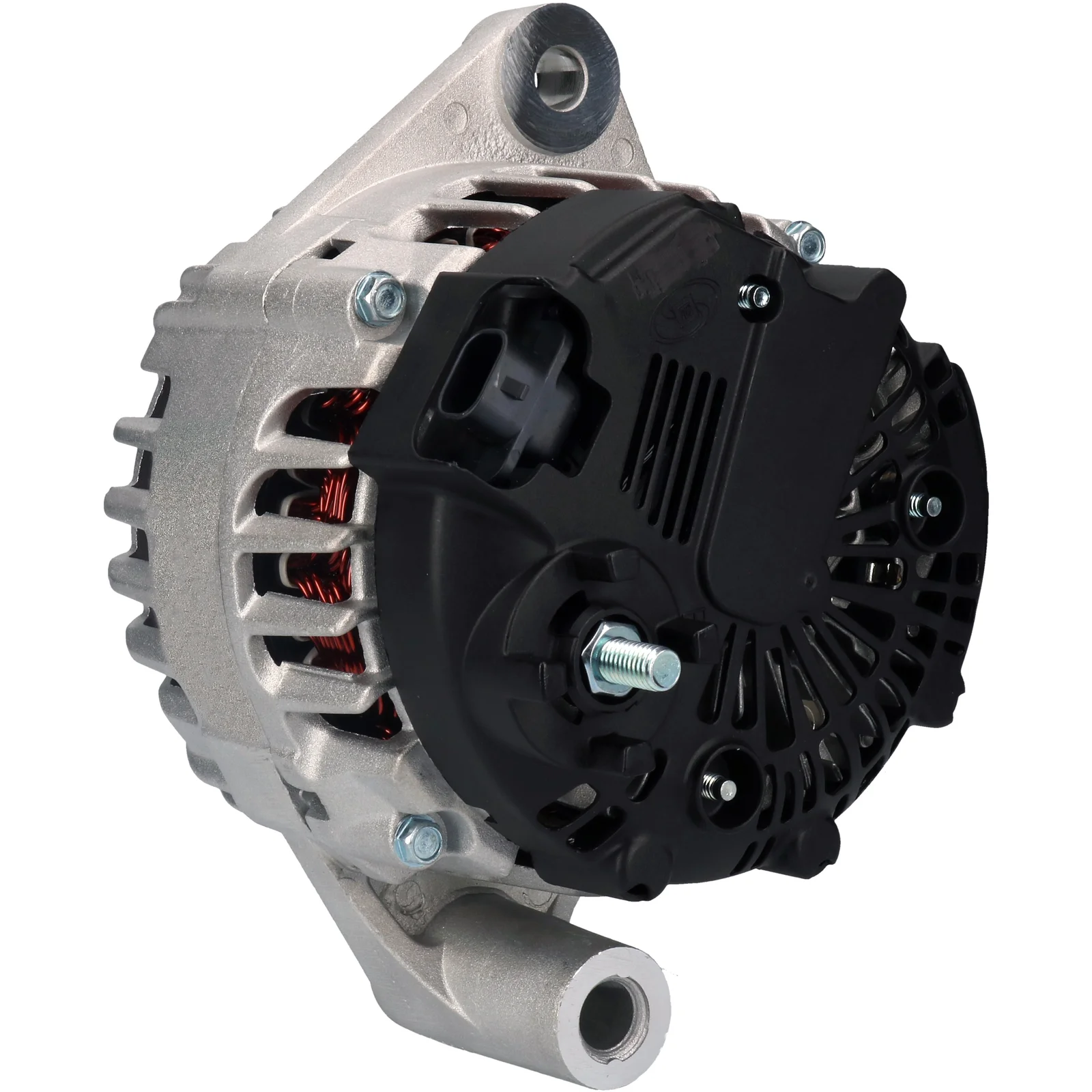

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 140, Rotation: CW, Pulley diameter: 53.80

Description

Alternator 12V-140A 12V - 140A, 6-pin connector, L(PMW), F/FR This alternator has a PWM signal. We only recommend orders after verifying the OE-number. For Yourex product order 90-430-8382

Voltage: 14
Amp: 140
Pulley diameter: 113.00
Width/holder arm: 61.00
Bracket hole: 12.20
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 12.20
Pulley diameter: 53.80
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minimum: 11
D+ size: Plug
Rotation: Clockwise
Plug number: PL180
Total length mm: 190.00
Terminal type: L-F
Communication: PWM
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032114847, GM 13502581, GM 13588306, GM 95515963, TG12C 052, TG12C 173, TG12C052, TG12C172, TG12C173, 0986 083 820, 1986A01850, 2181ir, 114847, 440620, 1202318, 1202333, 1204623, 2620358A, 2620359, 2620359A, 2650799, 2650799a, 13502581, 13588305, 13588306, 95515963

  • Normalised article numbler
    a3190s, a3280, a3321, cal15500, dra1048, f032114847, gm13502581, gm13588306, gm95515963, lra03583, tg12c052, tg12c172, tg12c173, 8el012240581, 8el015637511, 1986a01850, 2181ir, 11832n, 113391, 114847, 209123, 209123a, 286693, 439961, 440620, 554214ri, 849115, 1202318, 1202333, 1204623, 2620358a, 2620359, 2620359a, 2650799, 2650799a, 12090529, 13502581, 13588305, 13588306, 95515963, 135585140, 0986083820, 0986084880, 2281921402
  • Description
    Alternator 12V-140A 12V - 140A, 6-pin connector, L(PMW), F/FR This alternator has a PWM signal. We only recommend orders after verifying the OE-number. For Yourex product order 90-430-8382

    Voltage: 14
    Amp: 140
    Pulley diameter: 113.00
    Width/holder arm: 61.00
    Bracket hole: 12.20
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 12.20
    Pulley diameter: 53.80
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minimum: 11
    D+ size: Plug
    Rotation: Clockwise
    Plug number: PL180
    Total length mm: 190.00
    Terminal type: L-F
    Communication: PWM
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032114847, GM 13502581, GM 13588306, GM 95515963, TG12C 052, TG12C 173, TG12C052, TG12C172, TG12C173, 0986 083 820, 1986A01850, 2181ir, 114847, 440620, 1202318, 1202333, 1204623, 2620358A, 2620359, 2620359A, 2650799, 2650799a, 13502581, 13588305, 13588306, 95515963

    • Normalised article numbler
      a3190s, a3280, a3321, cal15500, dra1048, f032114847, gm13502581, gm13588306, gm95515963, lra03583, tg12c052, tg12c172, tg12c173, 8el012240581, 8el015637511, 1986a01850, 2181ir, 11832n, 113391, 114847, 209123, 209123a, 286693, 439961, 440620, 554214ri, 849115, 1202318, 1202333, 1204623, 2620358a, 2620359, 2620359a, 2650799, 2650799a, 12090529, 13502581, 13588305, 13588306, 95515963, 135585140, 0986083820, 0986084880, 2281921402
