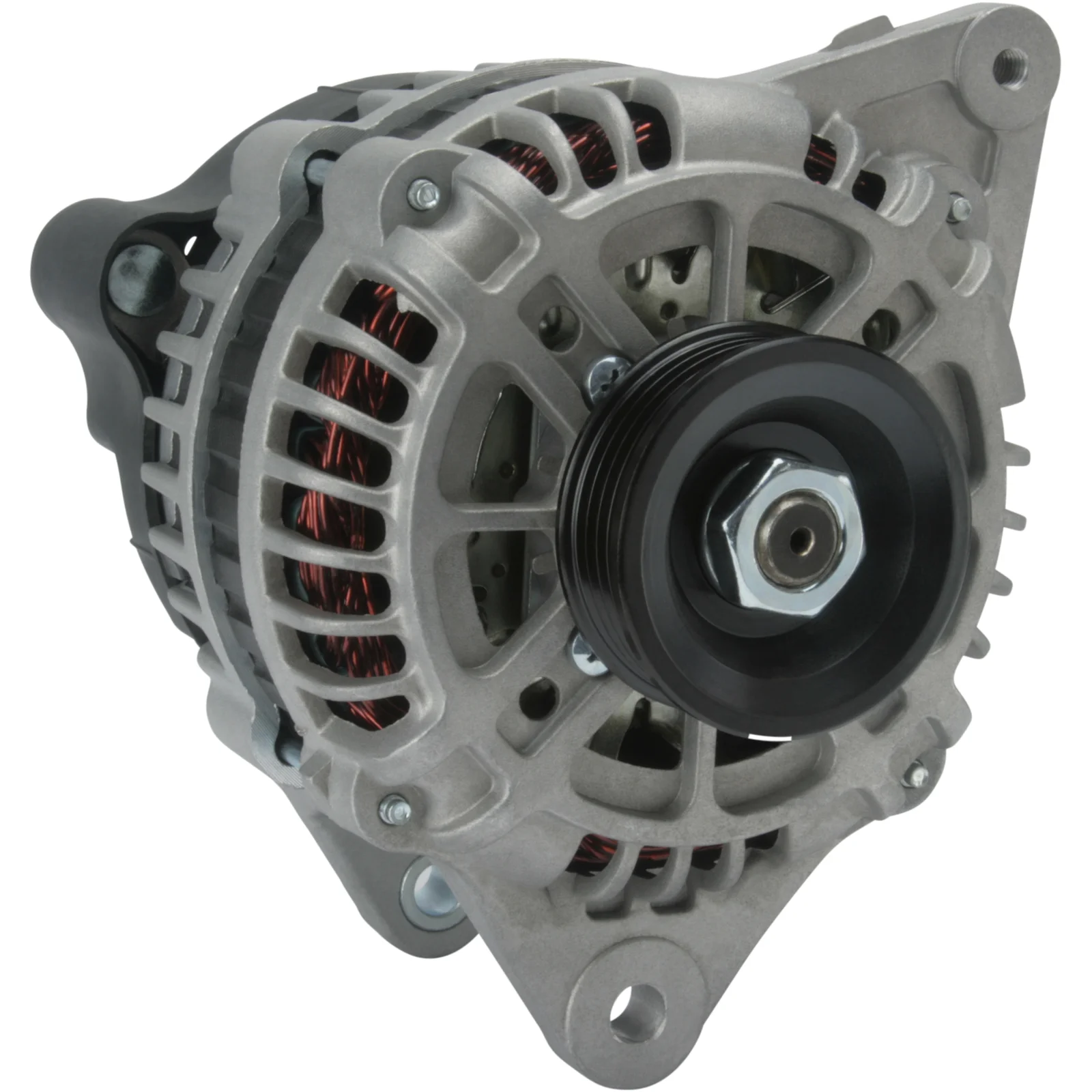

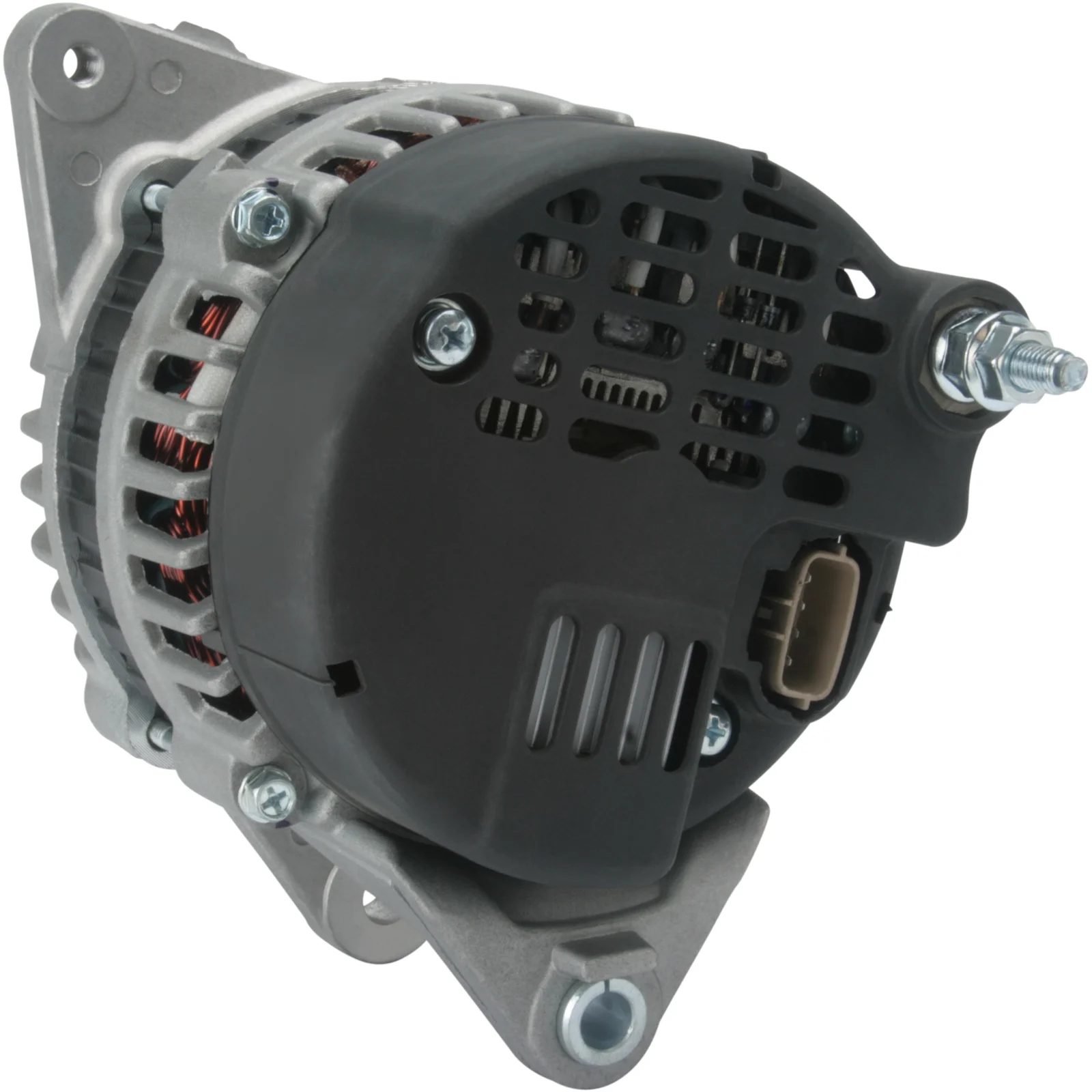

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112327

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100, Rotation: CW, Mounting bracket distributor: 66.50

Description

Hyundai/Mitsub. Alternator 12V-100A 12V - 100A, 4 grooves, (C-L-S-FR) Option: Hyundai / Kia 110A Alternator = 90-228-3840, Mitsubishi/Volvo = 90A alternator 90-380-5391 For Yourex product order 90-228-3831

Voltage: 14
Amp: 100
Pulley distance: 38.40
Width/holder arm: 13.00
Mounting bracket distance: 66.50
Bracket hole: 10.00
Belt adjustment bracket hole position: 6
Belt adjustment bracket hole 1: M8
Pulley diameter: 59.70
Grooves/pulley: 4
Radius: 91.00
Radius 2: 96.50
B+: M8
Position/B+ in min.: 10
D+ Size: Plug
Rotation: CW
Plug no.: PL68
Total length mm: 179.00
Terminal type: G-S-L-F
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Mitsubishi

Files

  • OEM
    A003TA5491, A003TA5492, A003TA7791, A003TB0291, A003TB4191, A3T-A5491, A3T-B0291, a3ta5491, a3ta5492, a3ta7791, a3tb0291, a3tb4191, AB 195126, AB 195141, ab195126, F032112327, ja1522ir, MD 343416, MD 360635, md343416, md358421, md358607, md360635, md374904, TA000A 29102, XD358597, 9x1270, 4851, 37300-38310, 37300-38700, 112327, 8602002

  • Normalised article numbler
    a003ta5491, a003ta5492, a003ta7791, a003tb0291, a003tb4191, a3ta5491, a3ta5492, a3ta7791, a3tb0291, a3tb4191, a5044, a5044sr, a8710, ab195126, ab195141, alt31110, am0088r, cal32107, cal35132, dra0325, dra4093, drs0255, f032112327, f042206023, f042303081, j5115061, j5115064, j5115065, ja1522ir, lra01924, lra01939, md343416, md358421, md358607, md360635, md374904, ta000a29102, xd358597, 8el011712061, 8el012429001, 8el737796001, 9x1270, 4851, 11014n, 11014r, 13783, 13783n, 13783r, 22923r, 22924n, 111520, 112327, 119932, 283810, 283831, 284637, 401522ri, 600202, 1228801md, 8602002, 9051561, 9051564, 9051565, 9212619, 12060749, 12060750, 12060765, 90317017, 0986049940, 2261501002, 2261511002, 2261661002, 3730038310, 3730038700, 944390515640, 944390515650
  • Description
    Hyundai/Mitsub. Alternator 12V-100A 12V - 100A, 4 grooves, (C-L-S-FR) Option: Hyundai / Kia 110A Alternator = 90-228-3840, Mitsubishi/Volvo = 90A alternator 90-380-5391 For Yourex product order 90-228-3831

    Voltage: 14
    Amp: 100
    Pulley distance: 38.40
    Width/holder arm: 13.00
    Mounting bracket distance: 66.50
    Bracket hole: 10.00
    Belt adjustment bracket hole position: 6
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 59.70
    Grooves/pulley: 4
    Radius: 91.00
    Radius 2: 96.50
    B+: M8
    Position/B+ in min.: 10
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL68
    Total length mm: 179.00
    Terminal type: G-S-L-F
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Mitsubishi

    Files

  • Suitable for these vehicles

    • OEM
      A003TA5491, A003TA5492, A003TA7791, A003TB0291, A003TB4191, A3T-A5491, A3T-B0291, a3ta5491, a3ta5492, a3ta7791, a3tb0291, a3tb4191, AB 195126, AB 195141, ab195126, F032112327, ja1522ir, MD 343416, MD 360635, md343416, md358421, md358607, md360635, md374904, TA000A 29102, XD358597, 9x1270, 4851, 37300-38310, 37300-38700, 112327, 8602002

    • Normalised article numbler
      a003ta5491, a003ta5492, a003ta7791, a003tb0291, a003tb4191, a3ta5491, a3ta5492, a3ta7791, a3tb0291, a3tb4191, a5044, a5044sr, a8710, ab195126, ab195141, alt31110, am0088r, cal32107, cal35132, dra0325, dra4093, drs0255, f032112327, f042206023, f042303081, j5115061, j5115064, j5115065, ja1522ir, lra01924, lra01939, md343416, md358421, md358607, md360635, md374904, ta000a29102, xd358597, 8el011712061, 8el012429001, 8el737796001, 9x1270, 4851, 11014n, 11014r, 13783, 13783n, 13783r, 22923r, 22924n, 111520, 112327, 119932, 283810, 283831, 284637, 401522ri, 600202, 1228801md, 8602002, 9051561, 9051564, 9051565, 9212619, 12060749, 12060750, 12060765, 90317017, 0986049940, 2261501002, 2261511002, 2261661002, 3730038310, 3730038700, 944390515640, 944390515650
