HC-Cargo Alternator
HC-Cargo Alternator

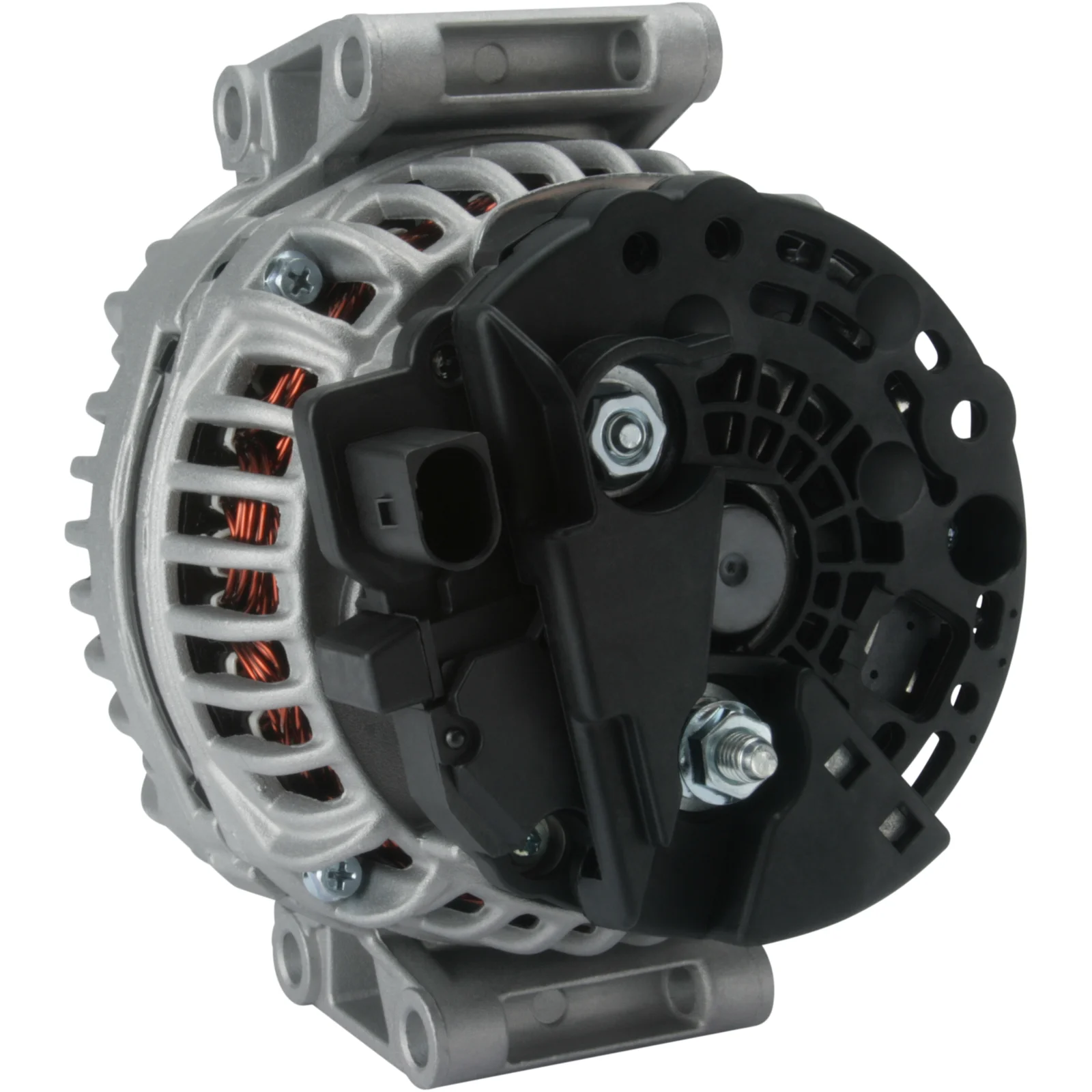

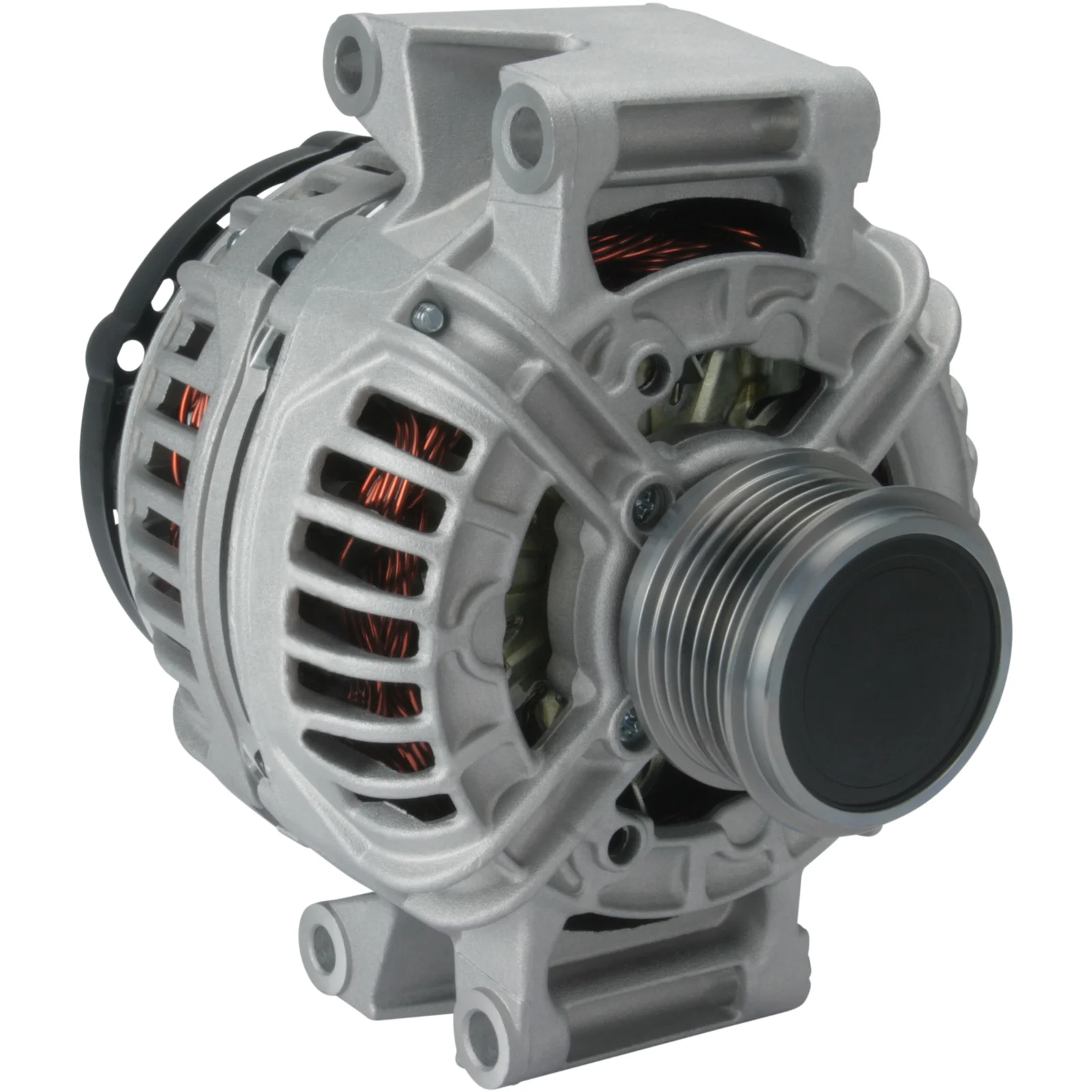

Article no.: F032115367

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 140, Rotation: CW, Mounting bracket distance: 56.50

Description

Audi Alternator 12V-140A 12V - 140A, 6-pole, (LIN) ID-code 24 For Yourex product order 90-025-8137 Voltage: 14 Amp: 140 Pulley distance: 28.00 Width / holder arm: 70.00 Mounting bracket distance: 56.50 Bracket hole: 9.50 Bracket hole 2: 9.50 Belt adjustment bracket hole position: 60 Belt adjustment bracket hole 1: 10.00 Belt adjustment bracket hole 2: 10.00 Pulley diameter: 56.00 Grooves / pulley: 6 B+: M8 Position / B+ in min.: 2 Rotation: CW Plug no.: PL86 Terminal type: COM Communication: LIN Pulley: SP/FW Regulator type: IR Product info: BN Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115367, 06H 903 016L, 06H903016L, 06H903016LX, 0124 525 113, 0124 525 226, 0986 081 370, 1986A00888, 2007ir, 115367, 0124525113, 0124525226

  • Normalised article numbler
    a0271, a0271pr, a0271sr, cal10378, dra0312, f032115367, lra03244, 06h903016l, 06h903016lx, 8el011713041, 8el738212451, 1986a00888, 2007ir, 11466, 11466n, 113095, 115367, 210850, 210850a, 285855, 302007ri, 440794, 442423, 443255, 9090660, 12090346, 32081370, 0124525113, 0124525226, 205545140, 0986081370, 0986081377, 2113691402
  • Description
    Audi Alternator 12V-140A 12V - 140A, 6-pole, (LIN) ID-code 24 For Yourex product order 90-025-8137 Voltage: 14 Amp: 140 Pulley distance: 28.00 Width / holder arm: 70.00 Mounting bracket distance: 56.50 Bracket hole: 9.50 Bracket hole 2: 9.50 Belt adjustment bracket hole position: 60 Belt adjustment bracket hole 1: 10.00 Belt adjustment bracket hole 2: 10.00 Pulley diameter: 56.00 Grooves / pulley: 6 B+: M8 Position / B+ in min.: 2 Rotation: CW Plug no.: PL86 Terminal type: COM Communication: LIN Pulley: SP/FW Regulator type: IR Product info: BN Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115367, 06H 903 016L, 06H903016L, 06H903016LX, 0124 525 113, 0124 525 226, 0986 081 370, 1986A00888, 2007ir, 115367, 0124525113, 0124525226

    • Normalised article numbler
      a0271, a0271pr, a0271sr, cal10378, dra0312, f032115367, lra03244, 06h903016l, 06h903016lx, 8el011713041, 8el738212451, 1986a00888, 2007ir, 11466, 11466n, 113095, 115367, 210850, 210850a, 285855, 302007ri, 440794, 442423, 443255, 9090660, 12090346, 32081370, 0124525113, 0124525226, 205545140, 0986081370, 0986081377, 2113691402
