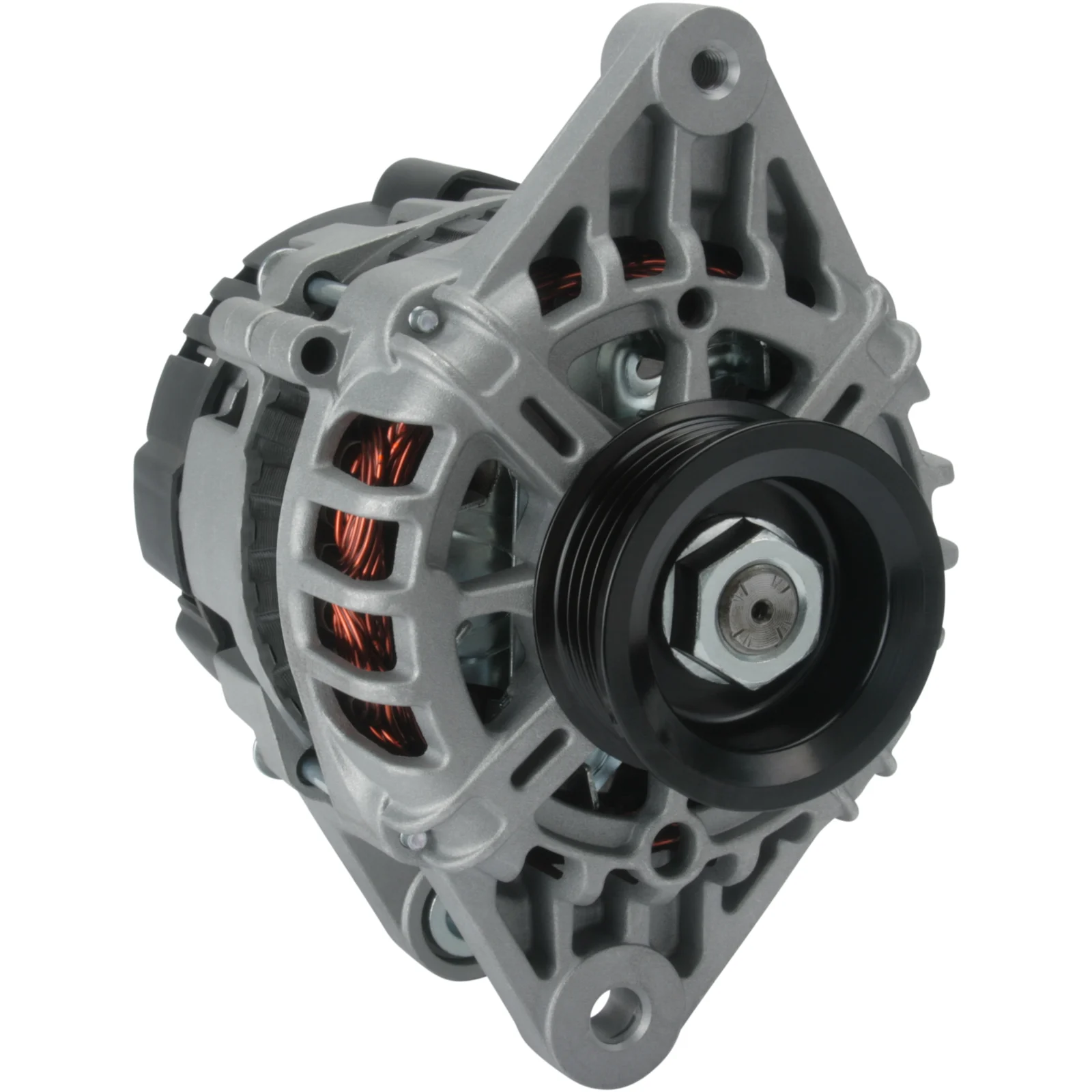

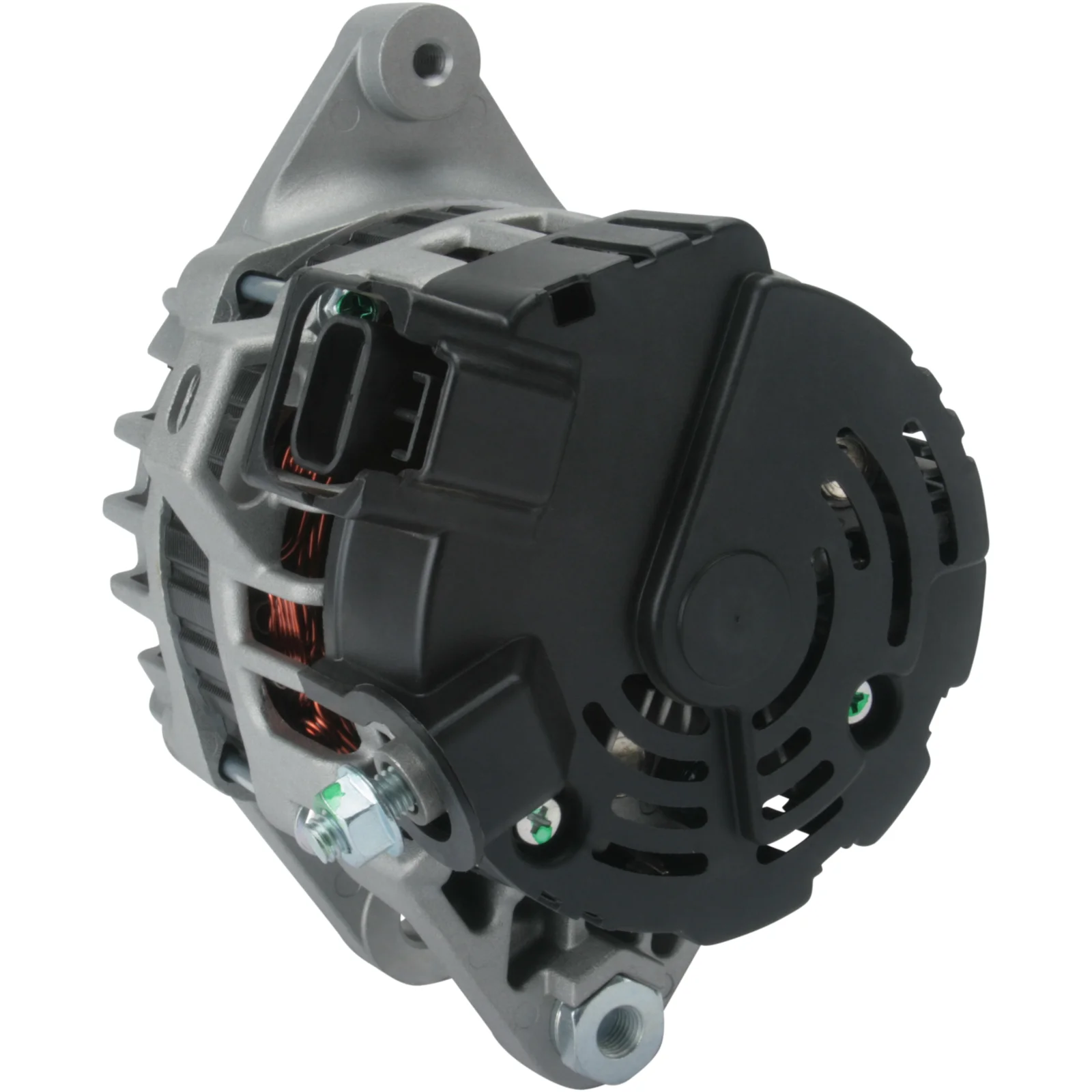

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115815

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW, Mount. bracket dist.: 45.70

Description

Voltage: 14
Amp: 70
Pulley dist.: 35.00
Width/holder arm: 15.00
Mount. bracket dist.: 45.70
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 57.50
Grooves/pulley: 5
Radius: 81.50
Radius 2: 85.00
B+: M8
Position/B+ in min.: 42
D+ Size: Plug
Rotation: CW
Plug no.: PL89
Total length mm: 166.50
Terminal type: L-R
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032115815, 2128ir, 37300-03100, 37300-03200, 2655633

  • Normalised article numbler
    a3172, cal32151, dra0631, f032115815, lra03502, 8el011713021, 2128ir, 20572n, 286612, 406766, 444352, 600222, 600744, 2655633, 9090841, 12060949, 155556070, 226307702, 0986083930, 3730003100, 3730003200
  • Description
    Voltage: 14
    Amp: 70
    Pulley dist.: 35.00
    Width/holder arm: 15.00
    Mount. bracket dist.: 45.70
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 57.50
    Grooves/pulley: 5
    Radius: 81.50
    Radius 2: 85.00
    B+: M8
    Position/B+ in min.: 42
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL89
    Total length mm: 166.50
    Terminal type: L-R
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115815, 2128ir, 37300-03100, 37300-03200, 2655633

    • Normalised article numbler
      a3172, cal32151, dra0631, f032115815, lra03502, 8el011713021, 2128ir, 20572n, 286612, 406766, 444352, 600222, 600744, 2655633, 9090841, 12060949, 155556070, 226307702, 0986083930, 3730003100, 3730003200
