HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115544

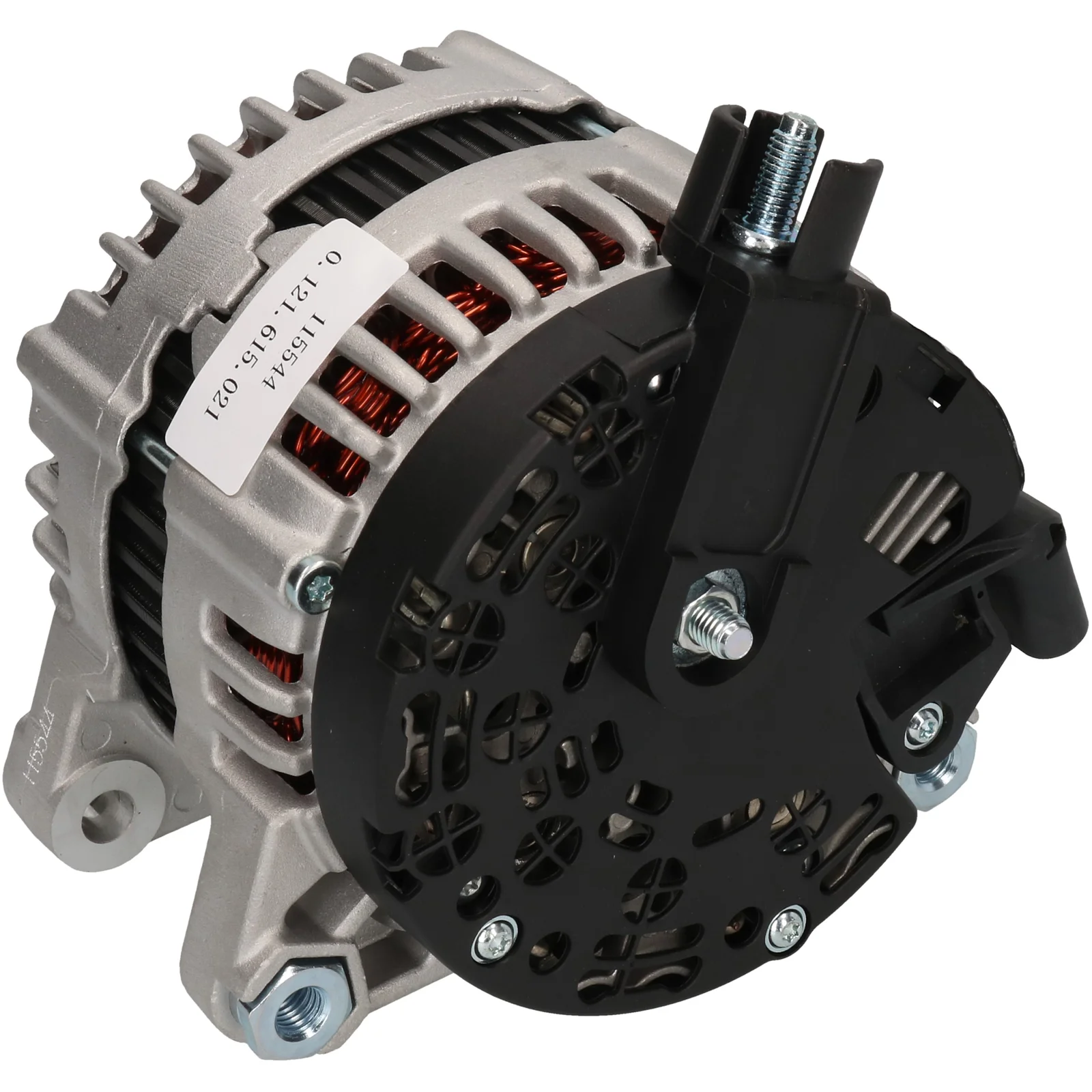

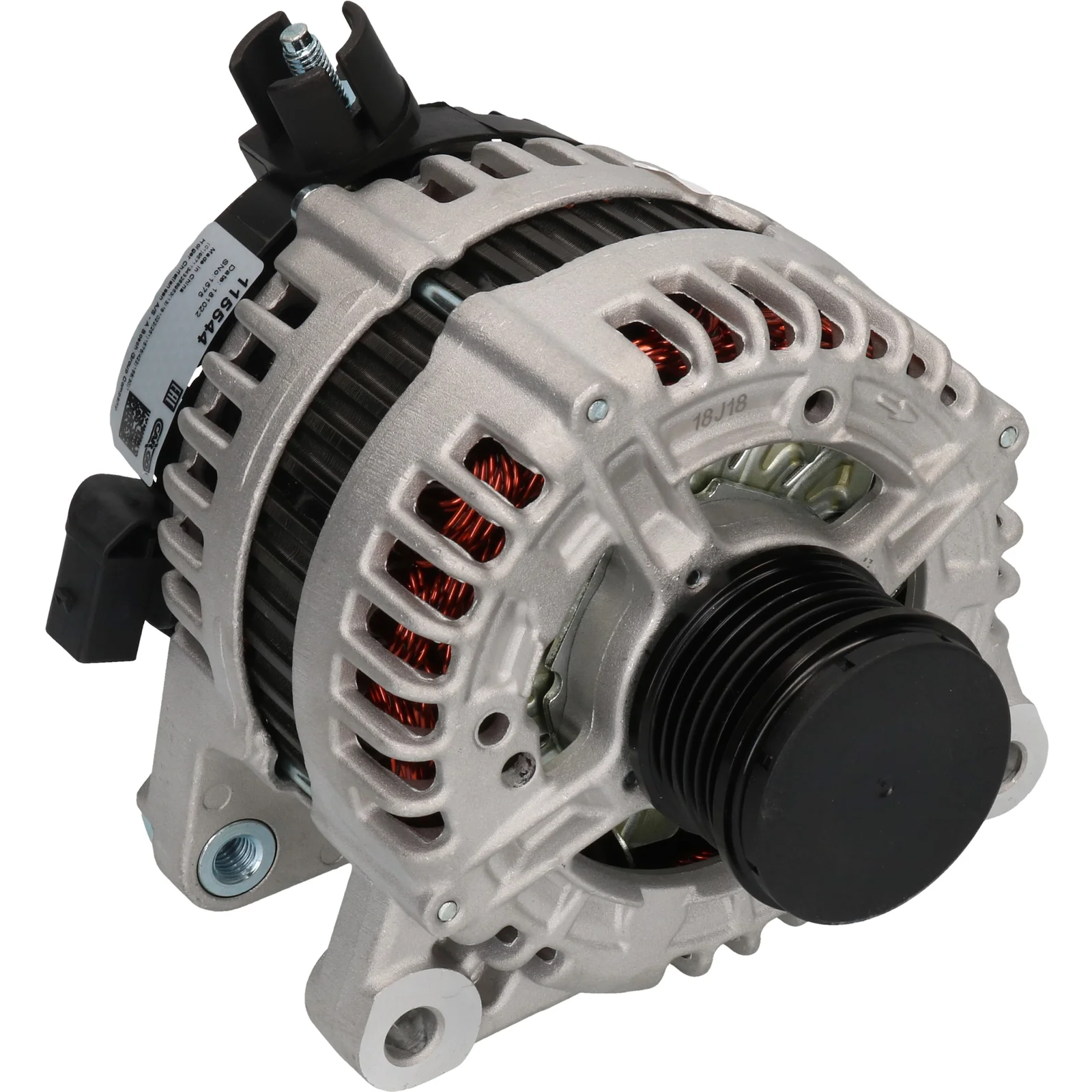

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mounting bracket distance: 46.00

Description

Voltage: 14
Amp: 150
Pulley dist.: 42.50
Width/holder arm: 21.00
Mount. bracket dist.: 46.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 30
Belt. adj. bracket hole 1: 10.50
Belt. adj. bracket hole 2: M10
Pulley dia.: 54.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 60
Rotation: Clockwise
Plug no.: PL137
Total length mm: 184.00
Terminal type: Common
Communication: LIN
Pulley: Drive / Fan
Regulator type: IR
Remarks: This Alternator has a Common terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115544, lr002899, lr007088, 6G9J10300ADA, 6g9n10300ada, 6G9N10300ADB, 1986A00674, 2113ir, 1435647, 1455494, 1790385, 2099447, 0121615021, 0121615058, 0121615121

  • Normalised article numbler
    a0288, a0288pr, cal10375, dra0059, f032115544, lr002899, lr007088, lra02973, 6g9j10300ada, 6g9n10300ada, 6g9n10300adb, 8el011712611, 1986a00674, 2113ir, 23973, 23973n, 112976, 210426, 210426a, 285587, 440480, 1435647, 1455494, 1790385, 2099447, 12090257, 0121615021, 0121615058, 0121615121, 0986081400, 2191911502, 063536151210
  • Description
    Voltage: 14
    Amp: 150
    Pulley dist.: 42.50
    Width/holder arm: 21.00
    Mount. bracket dist.: 46.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 30
    Belt. adj. bracket hole 1: 10.50
    Belt. adj. bracket hole 2: M10
    Pulley dia.: 54.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 60
    Rotation: Clockwise
    Plug no.: PL137
    Total length mm: 184.00
    Terminal type: Common
    Communication: LIN
    Pulley: Drive / Fan
    Regulator type: IR
    Remarks: This Alternator has a Common terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115544, lr002899, lr007088, 6G9J10300ADA, 6g9n10300ada, 6G9N10300ADB, 1986A00674, 2113ir, 1435647, 1455494, 1790385, 2099447, 0121615021, 0121615058, 0121615121

    • Normalised article numbler
      a0288, a0288pr, cal10375, dra0059, f032115544, lr002899, lr007088, lra02973, 6g9j10300ada, 6g9n10300ada, 6g9n10300adb, 8el011712611, 1986a00674, 2113ir, 23973, 23973n, 112976, 210426, 210426a, 285587, 440480, 1435647, 1455494, 1790385, 2099447, 12090257, 0121615021, 0121615058, 0121615121, 0986081400, 2191911502, 063536151210
