HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115860

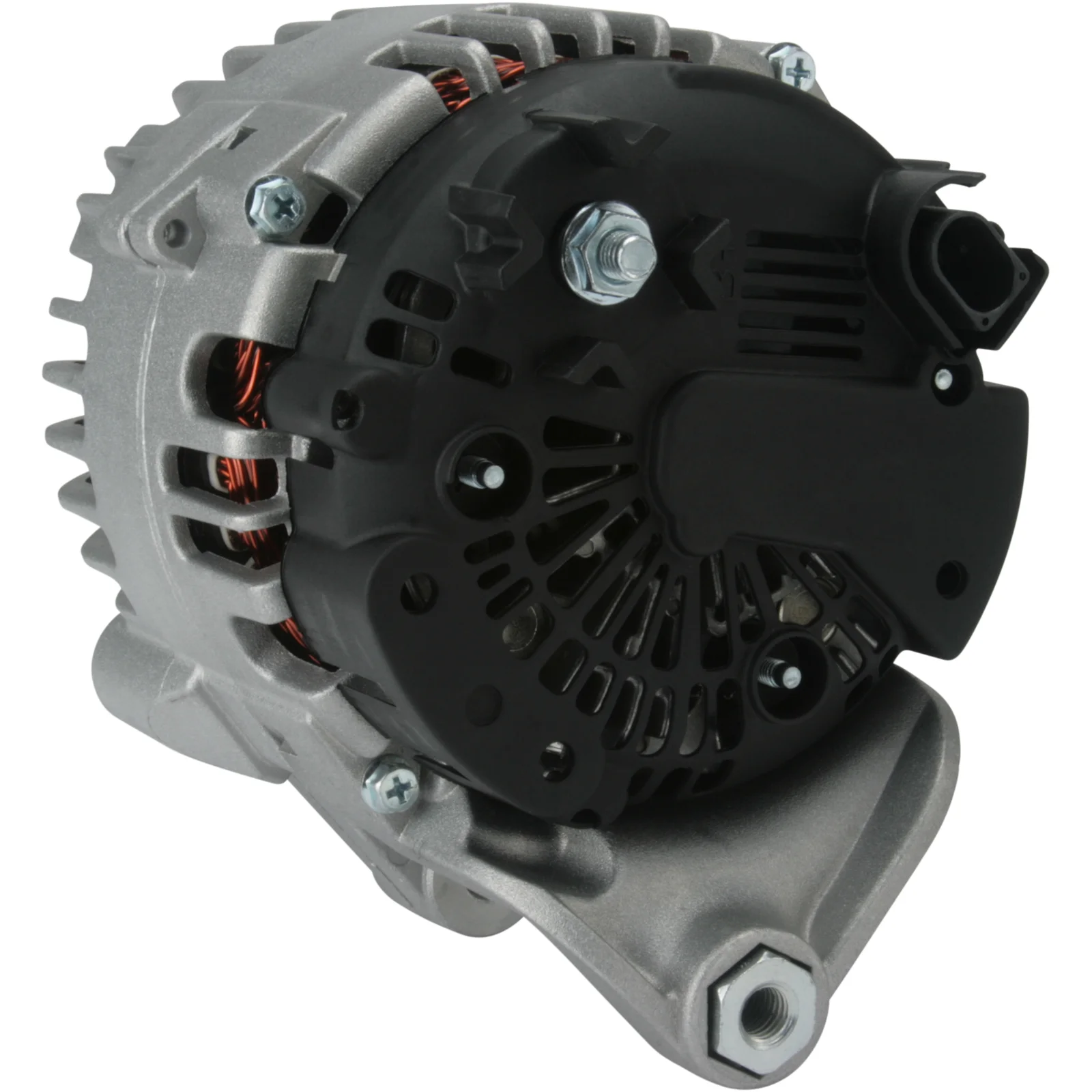

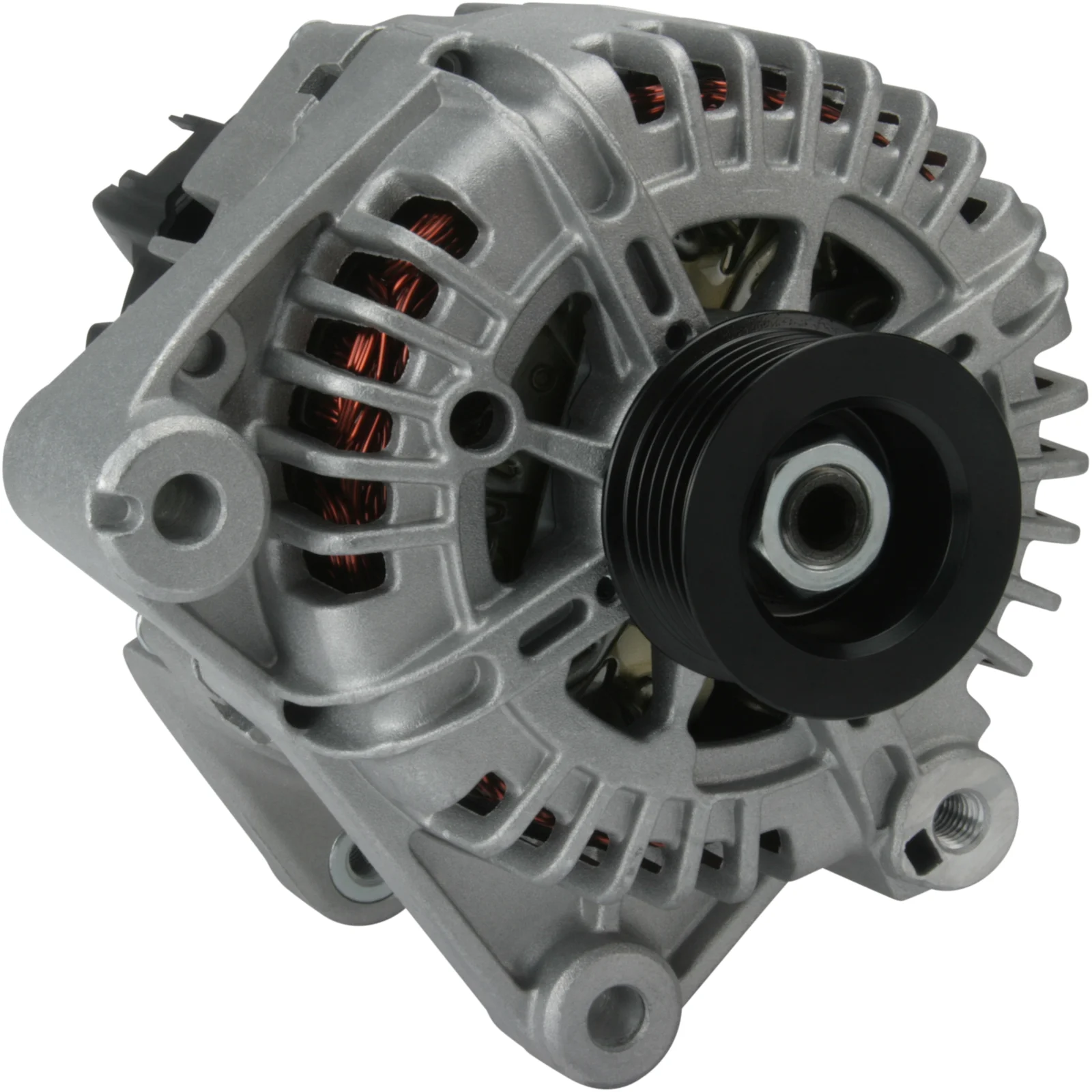

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 150, Rotation: CW, Mounting bracket distributor: 76.00

Description

BMW Alternator 12V-150A, 6gr 12V - 150A, 6gr, (BSS) For Yourex product order 90-040-9621

Voltage: 14
Amp: 150
Pulley distance: 61.00
Width/holder arm: 28.00
Mounting bracket distance: 76.00
Bracket hole: 10.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 53.50
Grooves/pulley: 6
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 52
Rotation: CW
Plug no.: PL86
Total length mm: 181.00
Terminal type: COM
Communication: BSS
Pulley: SP
Regulator type: IR
Product info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    a3198, A3198, A3198(VALEO), A3198S, CAL15387, DRA0691, F032115860, LRA03415, TG15C 072, tg15c072, 28-6527, 215.147.1502, 215.558.150, 1231 7800308, 1231 7802928, 1986A00604, 1986A00736, 2051ir, 24116N, 24116N-OS, 115860, 209229, 209229A, 439621, 440179, 2543309, 2543309C, 2543309D, 7800308, 7802928, 9090852, 12060992, 32440179, 0986084680, 12317800308, 12317802928

  • Normalised article numbler
    a3198, a3198s, a3198valeo, cal15387, dra0691, f032115860, lra03415, tg15c072, 1986a00604, 1986a00736, 2051ir, 24116n, 24116nos, 115860, 209229, 209229a, 286527, 439621, 440179, 2543309, 2543309c, 2543309d, 7800308, 7802928, 9090852, 12060992, 32440179, 215558150, 0986084680, 2151471502, 12317800308, 12317802928
  • Description
    BMW Alternator 12V-150A, 6gr 12V - 150A, 6gr, (BSS) For Yourex product order 90-040-9621

    Voltage: 14
    Amp: 150
    Pulley distance: 61.00
    Width/holder arm: 28.00
    Mounting bracket distance: 76.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 53.50
    Grooves/pulley: 6
    Radius: 92.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in min.: 52
    Rotation: CW
    Plug no.: PL86
    Total length mm: 181.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP
    Regulator type: IR
    Product info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      a3198, A3198, A3198(VALEO), A3198S, CAL15387, DRA0691, F032115860, LRA03415, TG15C 072, tg15c072, 28-6527, 215.147.1502, 215.558.150, 1231 7800308, 1231 7802928, 1986A00604, 1986A00736, 2051ir, 24116N, 24116N-OS, 115860, 209229, 209229A, 439621, 440179, 2543309, 2543309C, 2543309D, 7800308, 7802928, 9090852, 12060992, 32440179, 0986084680, 12317800308, 12317802928

    • Normalised article numbler
      a3198, a3198s, a3198valeo, cal15387, dra0691, f032115860, lra03415, tg15c072, 1986a00604, 1986a00736, 2051ir, 24116n, 24116nos, 115860, 209229, 209229a, 286527, 439621, 440179, 2543309, 2543309c, 2543309d, 7800308, 7802928, 9090852, 12060992, 32440179, 215558150, 0986084680, 2151471502, 12317800308, 12317802928
