HC-Cargo Alternator

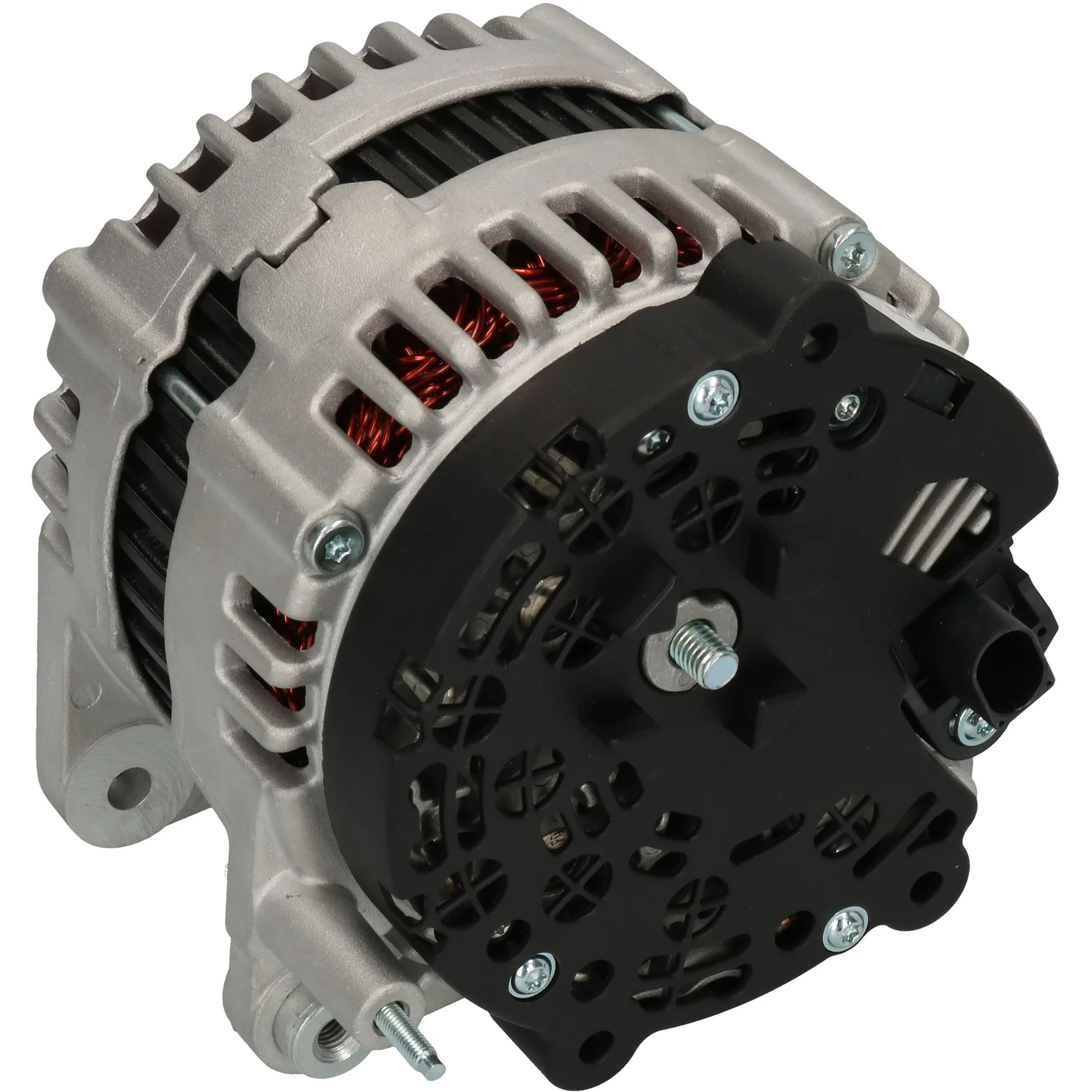

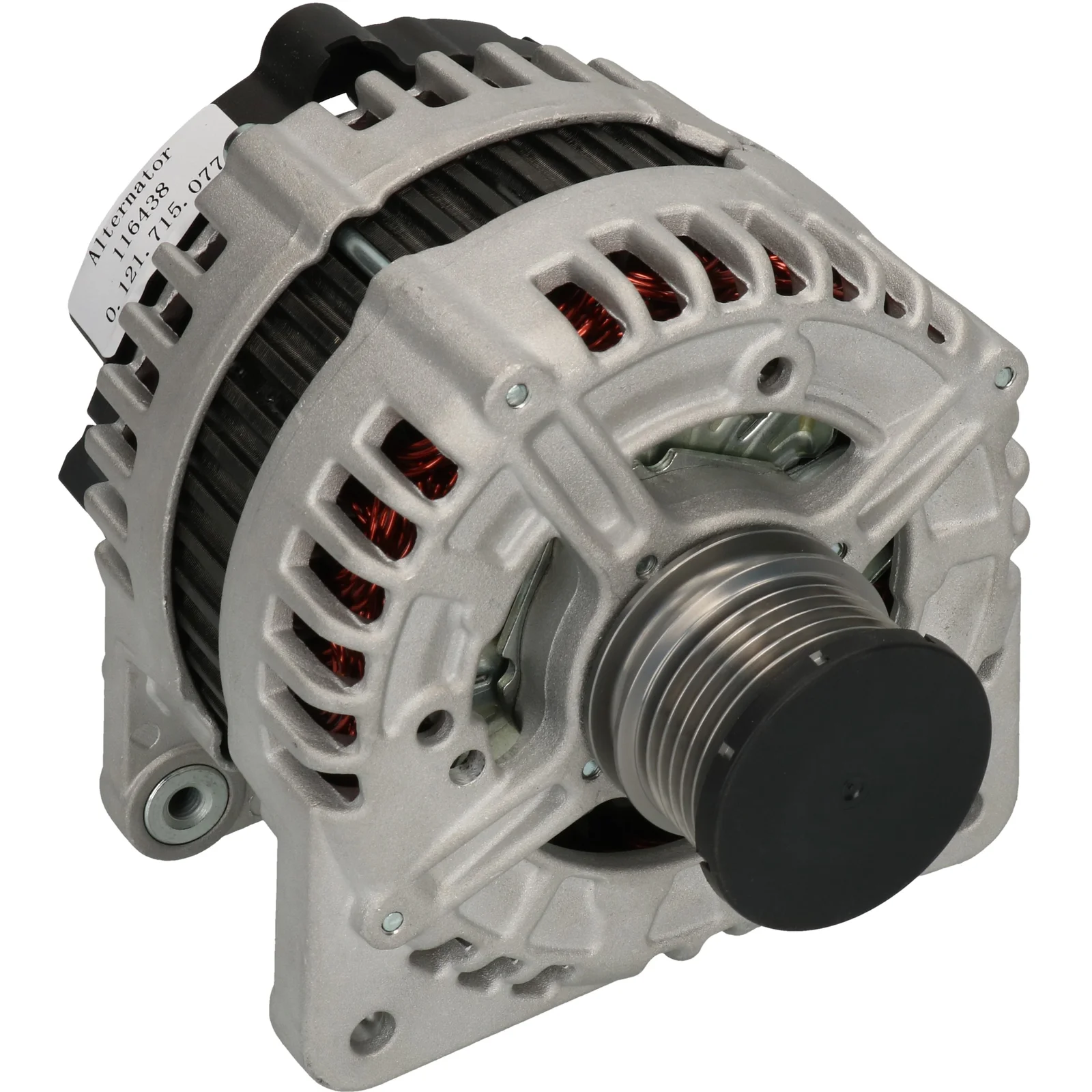

HC-Cargo Alternator
Article no.: F032116438

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 180, Rotation: clockwise, Mounting bracket distributor: 62.00

Description

Voltage: 14
Amp: 180
Pulley dist.: 40.40
Width/holder arm: 14.30
Mounting bracket dist.: 62.00
Bracket hole: 8.50
Belt adjustment bracket hole position.: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 50.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 45
Rotation: CW
Plug no.: PL181
Total length mm: 190.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116438, 03G903016L, 03G903016LX, 65.26101-6000, 65.26101-6005, 65.26101-6007, 65.26101-6008, 0121715077, 0121715177

  • Normalised article numbler
    a3308pr, cal15398, dra0359, f032116438, lea0779, lra03152, lra04282, 03g903016l, 03g903016lx, 113057, 285764, 287891, 440836, 553625ri, 0121715077, 0121715177, 205539180, 0986081920, 2113571802, 65261016000, 65261016005, 65261016007, 65261016008
  • Description
    Voltage: 14
    Amp: 180
    Pulley dist.: 40.40
    Width/holder arm: 14.30
    Mounting bracket dist.: 62.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position.: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 50.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 45
    Rotation: CW
    Plug no.: PL181
    Total length mm: 190.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116438, 03G903016L, 03G903016LX, 65.26101-6000, 65.26101-6005, 65.26101-6007, 65.26101-6008, 0121715077, 0121715177

    • Normalised article numbler
      a3308pr, cal15398, dra0359, f032116438, lea0779, lra03152, lra04282, 03g903016l, 03g903016lx, 113057, 285764, 287891, 440836, 553625ri, 0121715077, 0121715177, 205539180, 0986081920, 2113571802, 65261016000, 65261016005, 65261016007, 65261016008
