HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114284

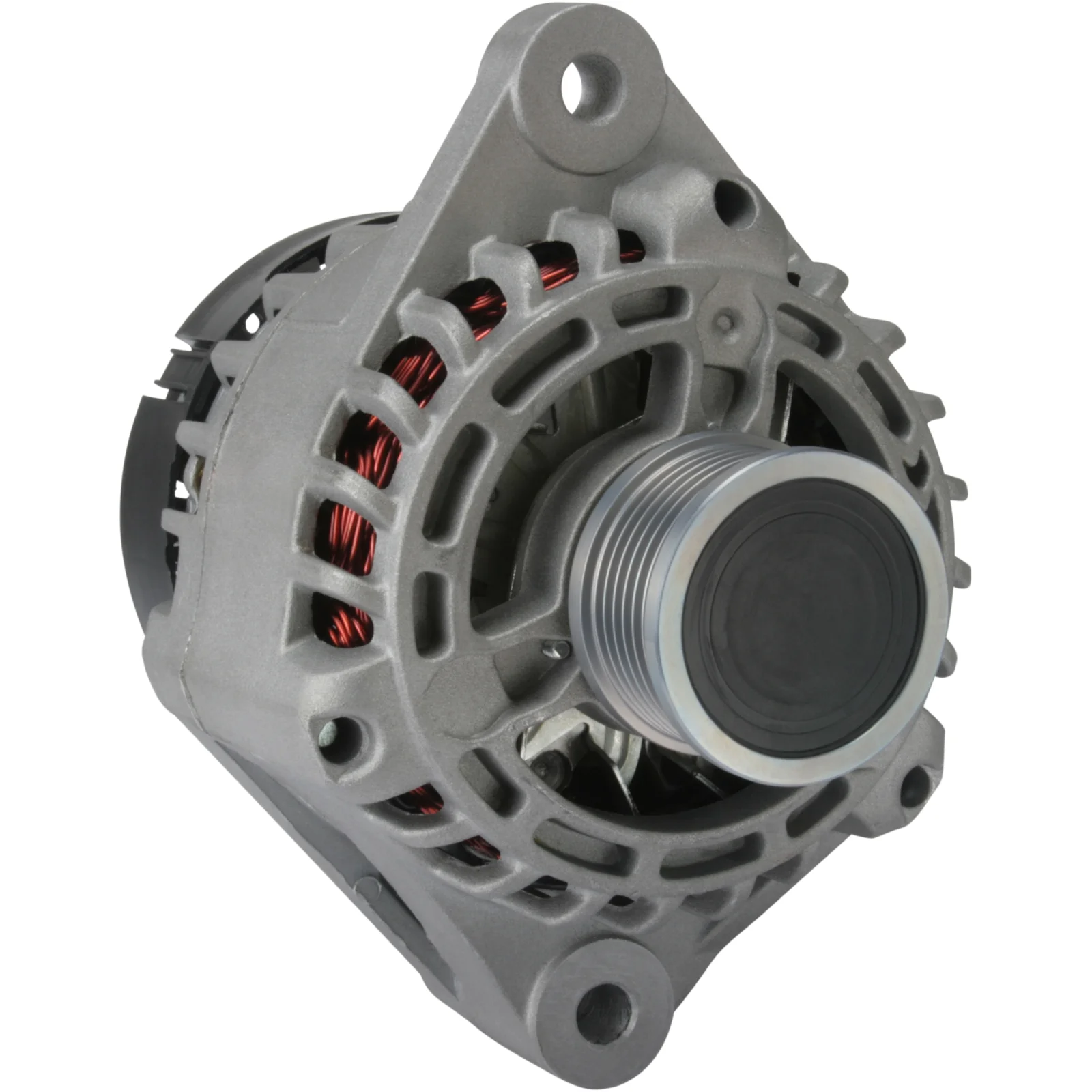

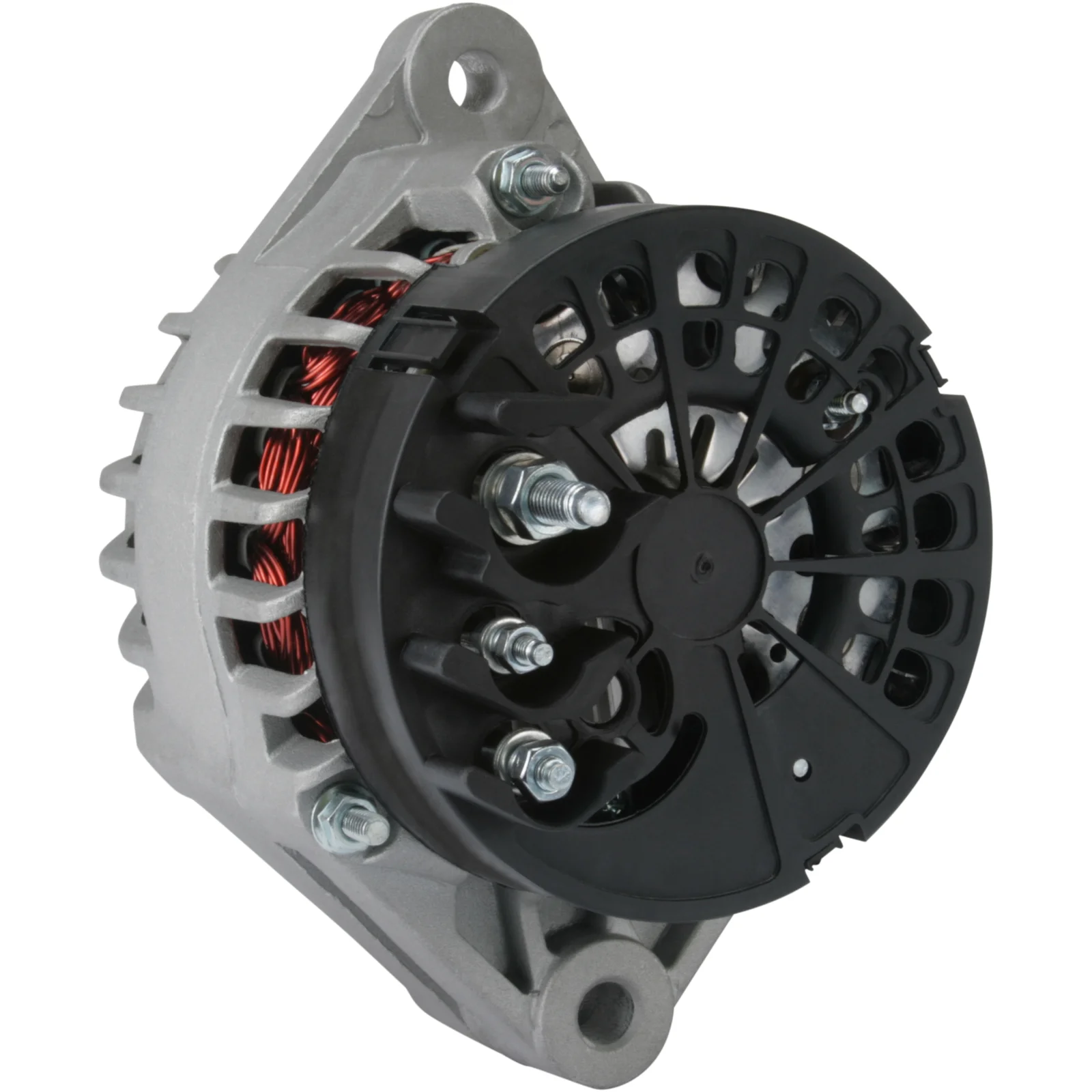

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 130, Rotation: CW, Pulley diameter: 54.00

Description

SAAB 1.9TiD Gen12V-130A 12V - 130A, 6gr.frg ( Pulley Ø 54mm Pulley F/W type OD = 54.3mm, 6 grooves = 45-252-1140 For Yourex product order 90-485-5959 Voltage: 14 Amp: 130 Pulley distance: 112.00 Width/holder arm: 61.00 Bracket hole: 12.20 Belt. adjustment bracket hole position: 59 Belt. adjustment bracket hole 1: 12.20 Pulley diameter: 54.00 Grooves/pulley: 6 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in min.: 48 D+ Size: M5 Rotation: CW Plug no.: PL130 Total length mm: 200.00 Pulley: SP/FW Regulator type: IR

Files

  • OEM
    DAN 1009, F032114284, GM 93169260, MS1012100160, SAAB12759595, 0986 049 000, 1952ir, 1986A01355, 101210-0160, 101210-0161, 101210-0162, 101210-0163, 114284, 12759595, 93169260, 93169269

  • Normalised article numbler
    a4082, cal30208, dan1009, dendan1009, dra0146, f032114284, gm93169260, ms1012100160, saab12759595, 8el012428451, 1952ir, 1986a01355, 4929, 24006n, 114284, 210892, 210892a, 285619, 301952ri, 440845, 440848, 443028, 12049000, 12759595, 93169260, 93169269, 0986049000, 0986049003, 1012100160, 1012100161, 1012100162, 1012100163, 063377532010
  • Description
    SAAB 1.9TiD Gen12V-130A 12V - 130A, 6gr.frg ( Pulley Ø 54mm Pulley F/W type OD = 54.3mm, 6 grooves = 45-252-1140 For Yourex product order 90-485-5959 Voltage: 14 Amp: 130 Pulley distance: 112.00 Width/holder arm: 61.00 Bracket hole: 12.20 Belt. adjustment bracket hole position: 59 Belt. adjustment bracket hole 1: 12.20 Pulley diameter: 54.00 Grooves/pulley: 6 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in min.: 48 D+ Size: M5 Rotation: CW Plug no.: PL130 Total length mm: 200.00 Pulley: SP/FW Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      DAN 1009, F032114284, GM 93169260, MS1012100160, SAAB12759595, 0986 049 000, 1952ir, 1986A01355, 101210-0160, 101210-0161, 101210-0162, 101210-0163, 114284, 12759595, 93169260, 93169269

    • Normalised article numbler
      a4082, cal30208, dan1009, dendan1009, dra0146, f032114284, gm93169260, ms1012100160, saab12759595, 8el012428451, 1952ir, 1986a01355, 4929, 24006n, 114284, 210892, 210892a, 285619, 301952ri, 440845, 440848, 443028, 12049000, 12759595, 93169260, 93169269, 0986049000, 0986049003, 1012100160, 1012100161, 1012100162, 1012100163, 063377532010
