HC-Cargo Alternator

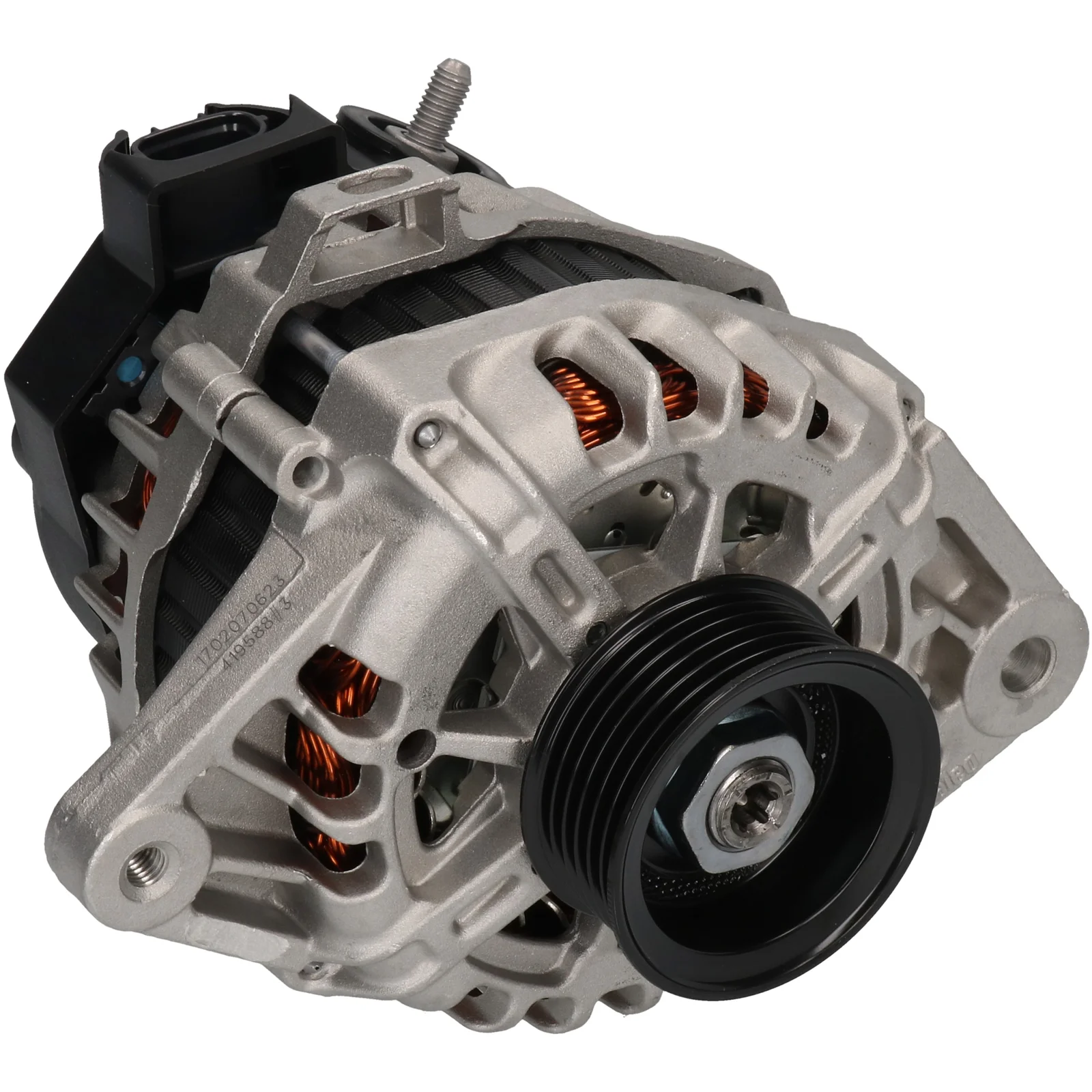

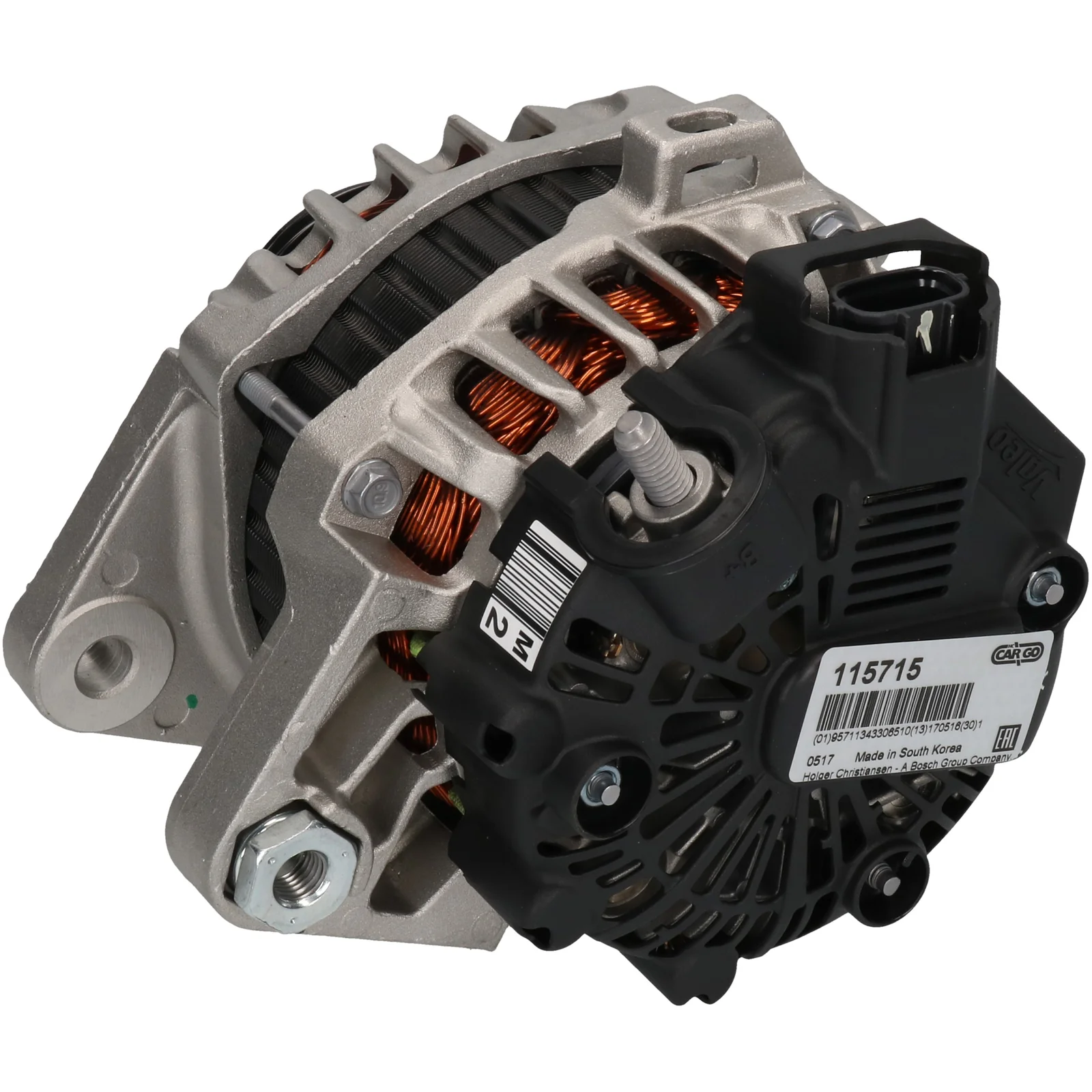

HC-Cargo Alternator
Article no.: F032115715

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 90, Rotation: CW, Mounting bracket displacement: 50.50

Description

Hyundai/Kia Alternator 12V-90A, 6 grooves 12V - 90A, 6gr (C-L-FR) For Yourex product order 90-228-7372

Voltage: 14
Amp: 90
Pulley dist.: 33.50
Width/holder arm: 15.00
Mount. bracket dist.: 50.50
Bracket hole: 10.50
Belt. adj. brackethole pos.: 55
Belt. adj. bracket hole 1: M8
Pulley dia.: 58.00
Grooves/pulley: 6
Radius: 85.00
Radius 2: 87.00
B+: M8
Position/B+ in min.: 42
D+ Size: Plug
Rotation: CW
Plug no.: PL176
Total length mm: 163.00
Pulley: SP
Regulator type: IR

Files

  • OEM
    A0002607372, F032115715, 1986A00628, 1986A00635, 37300-2B300, 37300-2b300, 37300-2B500, 37300-2B510, 115715, 2607372, 2616741

  • Normalised article numbler
    a0002607372, a3251, a3251valeo, cal32178, dra0975, dra0975n, f032115715, f042205152, lra03442, 8el011713011, 1986a00628, 1986a00635, 13209n, 13209r, 113778, 115715, 210819, 210819a, 286562, 373002b300, 373002b500, 373002b510, 442194, 443376, 444349, 600358, 600795, 2607372, 2616741, 12060963, 155577090, 224302902, 0986084970, 0986085060
  • Description
    Hyundai/Kia Alternator 12V-90A, 6 grooves 12V - 90A, 6gr (C-L-FR) For Yourex product order 90-228-7372

    Voltage: 14
    Amp: 90
    Pulley dist.: 33.50
    Width/holder arm: 15.00
    Mount. bracket dist.: 50.50
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 55
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 58.00
    Grooves/pulley: 6
    Radius: 85.00
    Radius 2: 87.00
    B+: M8
    Position/B+ in min.: 42
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL176
    Total length mm: 163.00
    Pulley: SP
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A0002607372, F032115715, 1986A00628, 1986A00635, 37300-2B300, 37300-2b300, 37300-2B500, 37300-2B510, 115715, 2607372, 2616741

    • Normalised article numbler
      a0002607372, a3251, a3251valeo, cal32178, dra0975, dra0975n, f032115715, f042205152, lra03442, 8el011713011, 1986a00628, 1986a00635, 13209n, 13209r, 113778, 115715, 210819, 210819a, 286562, 373002b300, 373002b500, 373002b510, 442194, 443376, 444349, 600358, 600795, 2607372, 2616741, 12060963, 155577090, 224302902, 0986084970, 0986085060
