Article no.: F032113791

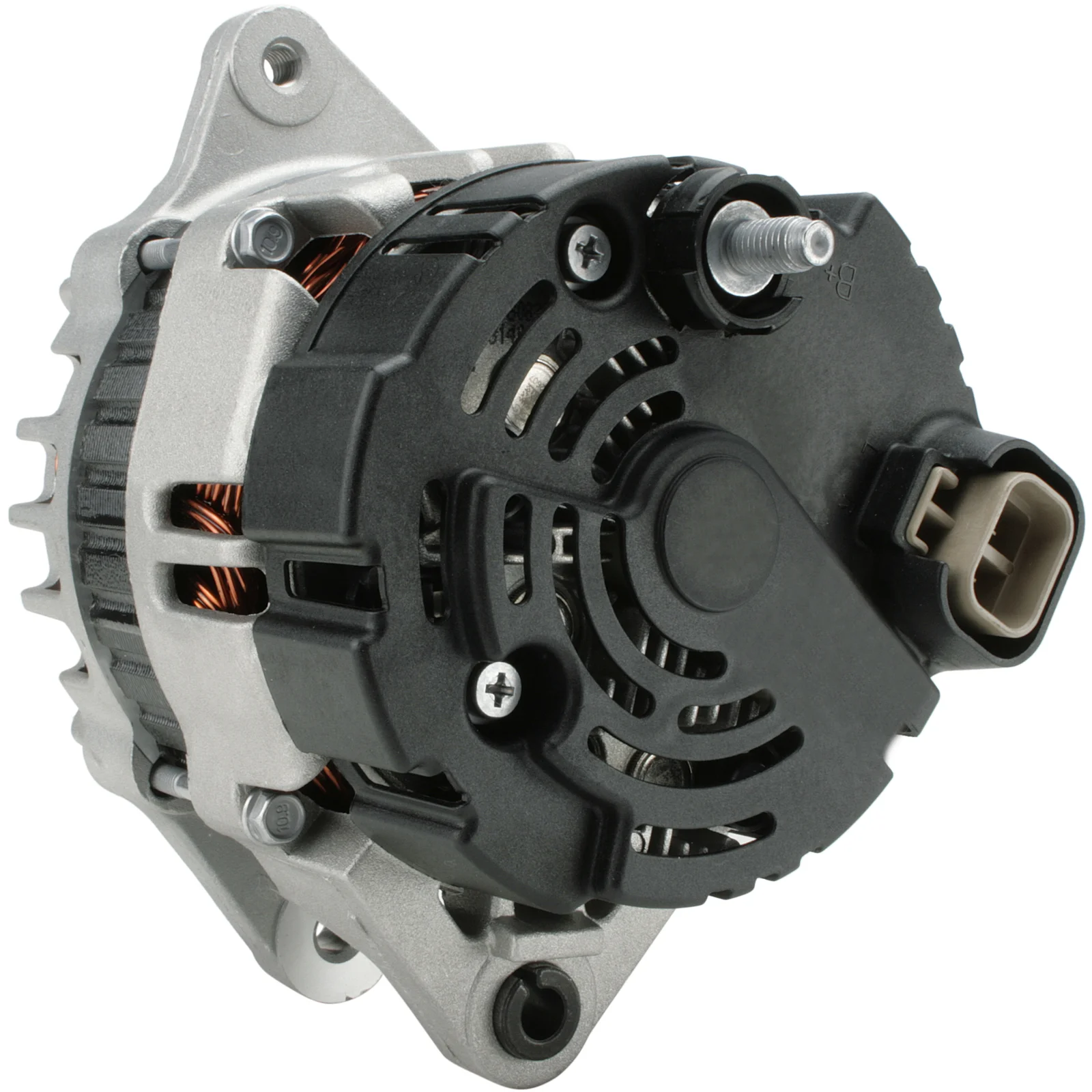

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW, Mounting bracket distributor: 48.00

Description

Hyundai Alternator 12V-70A 12V - 70A, 4 grooves, (L, R) For Yourex product order 90-228-0255 Voltage: 14 Amp: 70 Pulley distance: 38.50 Width/holder arm: 13.00 Mounting bracket distance: 48.00 Bracket hole: 8.30 Belt adjustment bracket hole position: 3 Belt adjustment bracket hole 1: M8 Pulley diameter: 59.00 Grooves/pulley: 4 Radius: 76.00 Radius 2: 79.00 B+: M8 Position/B+ in min.: 60 D+ Size: Plug Rotation: CW Plug no.: PL89 Total length mm: 169.00 Pulley: SP Voltage regulator type: IR Product info: BN Servicing: Hyundai

Files

  • OEM
    A0002655517, F000BL0101, F000BL0110, F032113791, ja1798ir, TA000A 55601, TA000A55601, 0986 049 570, 1986A00078, 37300-02550, 37300-02551, 37300-02570, 37300-02700, 37300-02800, 113791, 2655517, 0124220005, 0124220008

  • Normalised article numbler
    a0002655517, a9029, alth159, cal32122, dra0014, dra0014n, dra0682, dra0727, dra4134n, f000bl0101, f000bl0110, f032113791, f042a0h159, j5110522, ja1798ir, lra02910, lra02933, lra02951, lra03037, ta000a55601, 8el012426801, 8el738238001, 1986a00078, 9400, 23910n, 23910r, 24037, 112484, 113791, 210374, 210374a, 285524, 285565, 285649, 401798ri, 444249, 600017, 600028, 600029, 2655517, 9212895, 12060835, 12060861, 063532612, 063532628, 0124220005, 0124220008, 155520070, 155570070, 224193702, 226171702, 226197702, 0986049570, 0986085100, 3730002550, 3730002551, 3730002570, 3730002700, 3730002800, 063532612010, 063532628010, 944390904230
  • Description
    Hyundai Alternator 12V-70A 12V - 70A, 4 grooves, (L, R) For Yourex product order 90-228-0255 Voltage: 14 Amp: 70 Pulley distance: 38.50 Width/holder arm: 13.00 Mounting bracket distance: 48.00 Bracket hole: 8.30 Belt adjustment bracket hole position: 3 Belt adjustment bracket hole 1: M8 Pulley diameter: 59.00 Grooves/pulley: 4 Radius: 76.00 Radius 2: 79.00 B+: M8 Position/B+ in min.: 60 D+ Size: Plug Rotation: CW Plug no.: PL89 Total length mm: 169.00 Pulley: SP Voltage regulator type: IR Product info: BN Servicing: Hyundai

    Files

  • Suitable for these vehicles

    • OEM
      A0002655517, F000BL0101, F000BL0110, F032113791, ja1798ir, TA000A 55601, TA000A55601, 0986 049 570, 1986A00078, 37300-02550, 37300-02551, 37300-02570, 37300-02700, 37300-02800, 113791, 2655517, 0124220005, 0124220008

    • Normalised article numbler
      a0002655517, a9029, alth159, cal32122, dra0014, dra0014n, dra0682, dra0727, dra4134n, f000bl0101, f000bl0110, f032113791, f042a0h159, j5110522, ja1798ir, lra02910, lra02933, lra02951, lra03037, ta000a55601, 8el012426801, 8el738238001, 1986a00078, 9400, 23910n, 23910r, 24037, 112484, 113791, 210374, 210374a, 285524, 285565, 285649, 401798ri, 444249, 600017, 600028, 600029, 2655517, 9212895, 12060835, 12060861, 063532612, 063532628, 0124220005, 0124220008, 155520070, 155570070, 224193702, 226171702, 226197702, 0986049570, 0986085100, 3730002550, 3730002551, 3730002570, 3730002700, 3730002800, 063532612010, 063532628010, 944390904230
