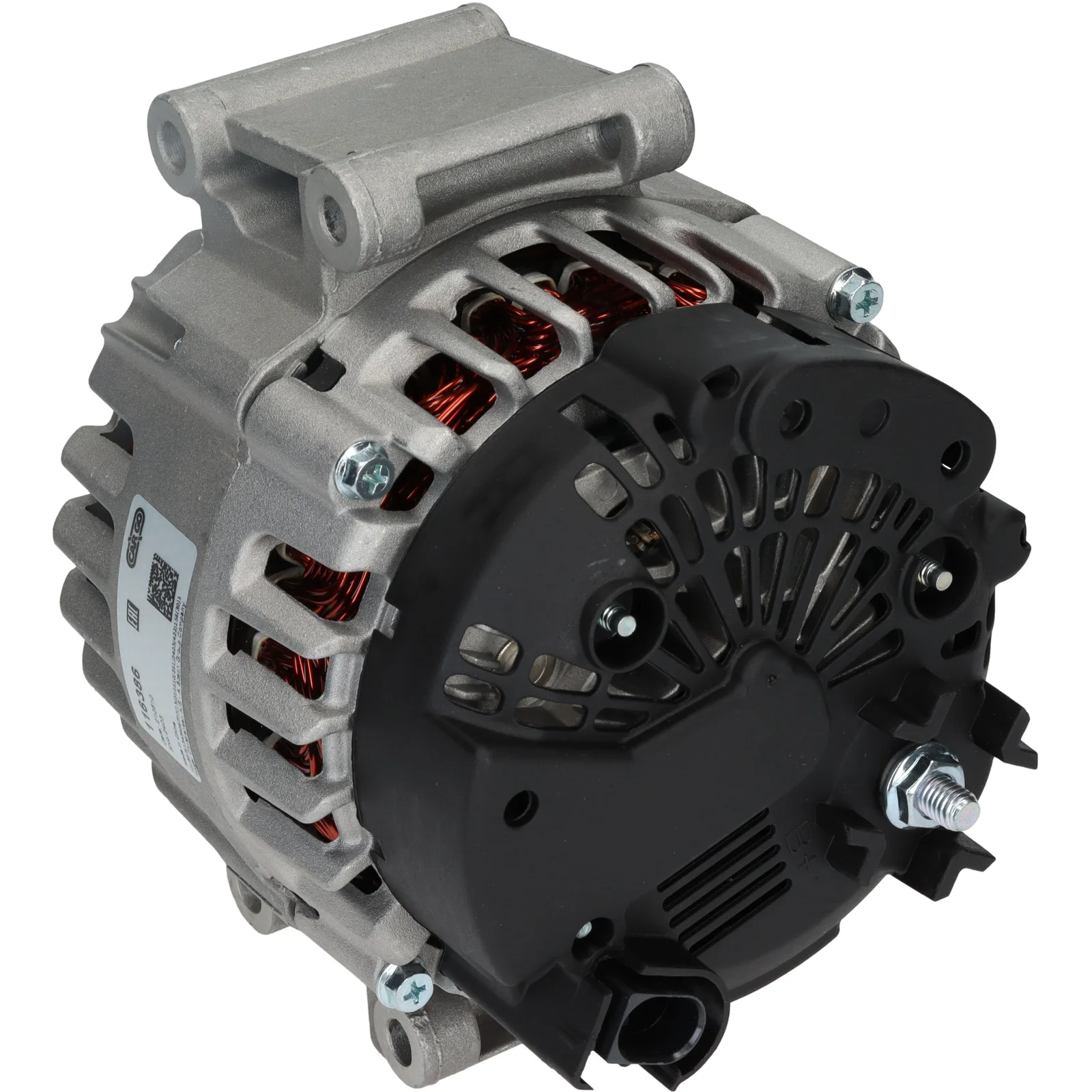

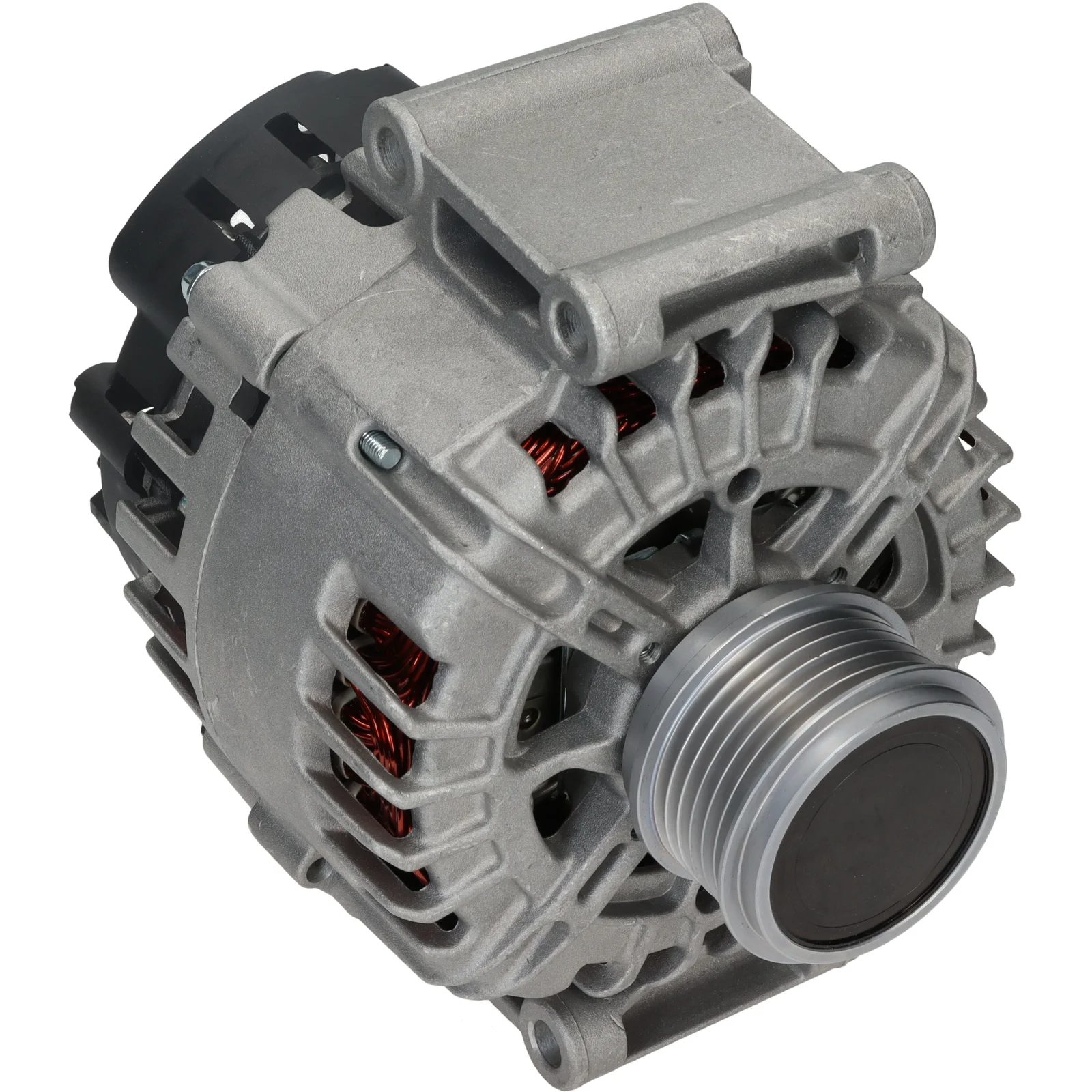

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116386

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 140, Rotation: CW, Mounting bracket distance: 56.00

Description

Alternator 12V-140A for VAG 12V - 140A, 6-pole connector, (LIN) For Yourex product order 90-620-8608

Voltage: 14
Amp: 140
Pulley dist.: 29.50
Width/holder arm: 70.00
Mounting bracket dist.: 56.00
Bracket hole: 9.00
Belt adjustment bracket hole 1: 9.00
Belt adjustment bracket hole 2: 8.00
Pulley dia.: 56.00
Grooves/pulley: 6
Radius: 81.00
Radius 2: 81.00
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL125
Total length mm: 193.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F000 BL0 8K2, F032116386, F032116387, TG14C 096, TG14C 104, TG14C 131, TG14C041, TG14C096, TG14C104, TG14C131, 06J 903 023B, 06J 903 023D, 06J 903 023H, 06J 903 024A, 06J 903 024D, 06J903023B, 06J903023BX, 06J903023D, 06J903023H, 06J903024A, 06J903024D, 06K 903 024A, 0986 086 080, 116386, 116387, 439814, 440468, 2715270A, 2715993A, 2740488A

  • Normalised article numbler
    a0599pr, a0599s, a3312pr, a3312spina, cal15552, f000bl08k2, f032116386, f032116387, lra03658, tg14c041, tg14c096, tg14c104, tg14c131, 06j903023b, 06j903023bx, 06j903023d, 06j903023h, 06j903024a, 06j903024d, 06k903024a, 8el015630041, 20354n, 116386, 116387, 209286, 209286a, 286798, 439814, 440468, 553753ri, 2715270a, 2715993a, 2740488a, 9090805, 32000322, 305905140, 0986085320, 0986086080, 0986086570, 2113981402
  • Description
    Alternator 12V-140A for VAG 12V - 140A, 6-pole connector, (LIN) For Yourex product order 90-620-8608

    Voltage: 14
    Amp: 140
    Pulley dist.: 29.50
    Width/holder arm: 70.00
    Mounting bracket dist.: 56.00
    Bracket hole: 9.00
    Belt adjustment bracket hole 1: 9.00
    Belt adjustment bracket hole 2: 8.00
    Pulley dia.: 56.00
    Grooves/pulley: 6
    Radius: 81.00
    Radius 2: 81.00
    B+: M8
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL125
    Total length mm: 193.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F000 BL0 8K2, F032116386, F032116387, TG14C 096, TG14C 104, TG14C 131, TG14C041, TG14C096, TG14C104, TG14C131, 06J 903 023B, 06J 903 023D, 06J 903 023H, 06J 903 024A, 06J 903 024D, 06J903023B, 06J903023BX, 06J903023D, 06J903023H, 06J903024A, 06J903024D, 06K 903 024A, 0986 086 080, 116386, 116387, 439814, 440468, 2715270A, 2715993A, 2740488A

    • Normalised article numbler
      a0599pr, a0599s, a3312pr, a3312spina, cal15552, f000bl08k2, f032116386, f032116387, lra03658, tg14c041, tg14c096, tg14c104, tg14c131, 06j903023b, 06j903023bx, 06j903023d, 06j903023h, 06j903024a, 06j903024d, 06k903024a, 8el015630041, 20354n, 116386, 116387, 209286, 209286a, 286798, 439814, 440468, 553753ri, 2715270a, 2715993a, 2740488a, 9090805, 32000322, 305905140, 0986085320, 0986086080, 0986086570, 2113981402
