Article no.: F032112058

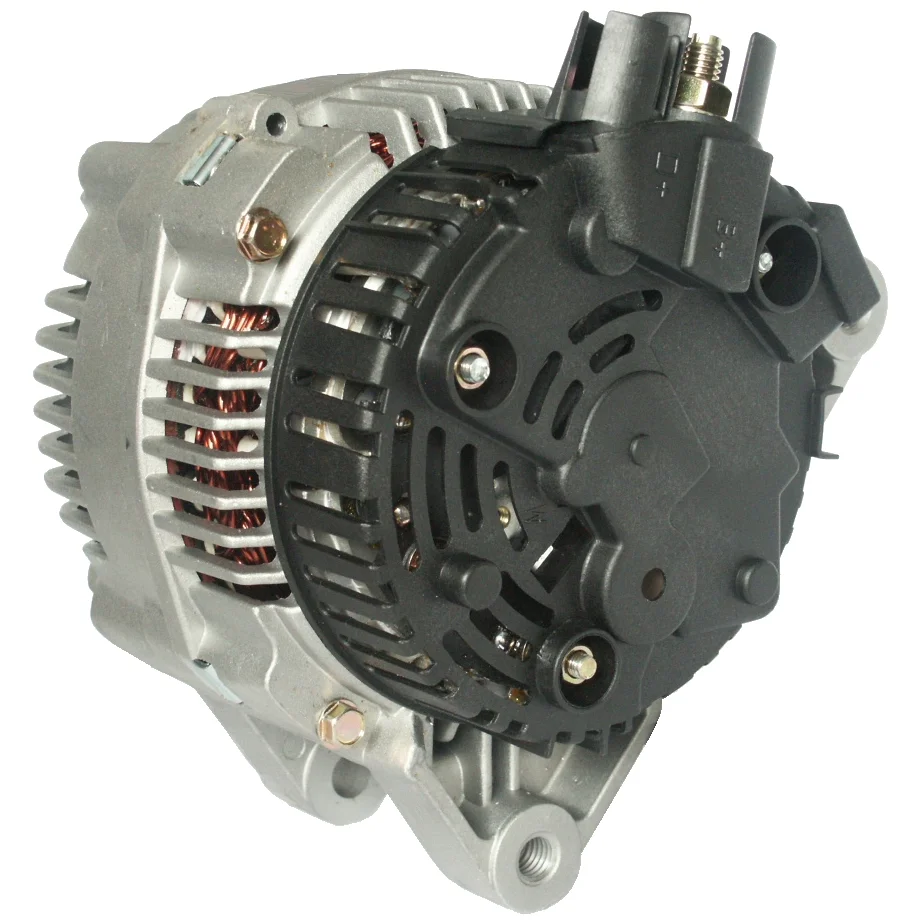

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 70, Rotation: CW, Mounting bracket distributor: 45.00

Description

Voltage: 14
Amp: 70
Pulley diameter: 42.50
Width/holder arm: 22.00
Mounting bracket distance: 45.00
Bracket hole: 10.30
Belt adjustment bracket hole position: 46
Belt adjustment bracket hole 1: 10.60
Pulley diameter: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 3
D+ Size: M5
Rotation: Clockwise
Total length mm: 171.50
Pulley: SP
Regulator type: IR
Product info: BN
Servicing: Citroën

Files

  • OEM
    a11vi91, F032112058, sg7s014, SG7S024, 1442ir, 1516470R, 2541969, 2541969A, 2542483, 2542483A, 2542678, 2542678A, 71716607, 96237271, 9621791680, 9623727180, 9627727180, 9642880280, 9646153680

  • Normalised article numbler
    a11vi91, a3137, alt3049, cal15145, dra3706, dra3706x, f032112058, lea0463, lrb00436, mar5651, qa4219, sg7s014, sg7s024, 8el011360041, 8el011710361, 8el737639001, 1442ir, 4937, 5705fw, 5745, 21435r, 57052a, 57054r, 57054t, 200078, 210239, 210239a, 283761, 301442ri, 437137, 746011, 746811, 1516470r, 2541969, 2541969a, 2542483, 2542483a, 2542678, 2542678a, 9213175, 12042070, 20110438, 32042070, 71716607, 96237271, 229116702, 943355151, 0986042071, 9621791680, 9623727180, 9627727180, 9642880280, 9646153680, 943355151010
  • Description
    Voltage: 14
    Amp: 70
    Pulley diameter: 42.50
    Width/holder arm: 22.00
    Mounting bracket distance: 45.00
    Bracket hole: 10.30
    Belt adjustment bracket hole position: 46
    Belt adjustment bracket hole 1: 10.60
    Pulley diameter: 54.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 3
    D+ Size: M5
    Rotation: Clockwise
    Total length mm: 171.50
    Pulley: SP
    Regulator type: IR
    Product info: BN
    Servicing: Citroën

    Files

  • Suitable for these vehicles

    • OEM
      a11vi91, F032112058, sg7s014, SG7S024, 1442ir, 1516470R, 2541969, 2541969A, 2542483, 2542483A, 2542678, 2542678A, 71716607, 96237271, 9621791680, 9623727180, 9627727180, 9642880280, 9646153680

    • Normalised article numbler
      a11vi91, a3137, alt3049, cal15145, dra3706, dra3706x, f032112058, lea0463, lrb00436, mar5651, qa4219, sg7s014, sg7s024, 8el011360041, 8el011710361, 8el737639001, 1442ir, 4937, 5705fw, 5745, 21435r, 57052a, 57054r, 57054t, 200078, 210239, 210239a, 283761, 301442ri, 437137, 746011, 746811, 1516470r, 2541969, 2541969a, 2542483, 2542483a, 2542678, 2542678a, 9213175, 12042070, 20110438, 32042070, 71716607, 96237271, 229116702, 943355151, 0986042071, 9621791680, 9623727180, 9627727180, 9642880280, 9646153680, 943355151010
