HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114720

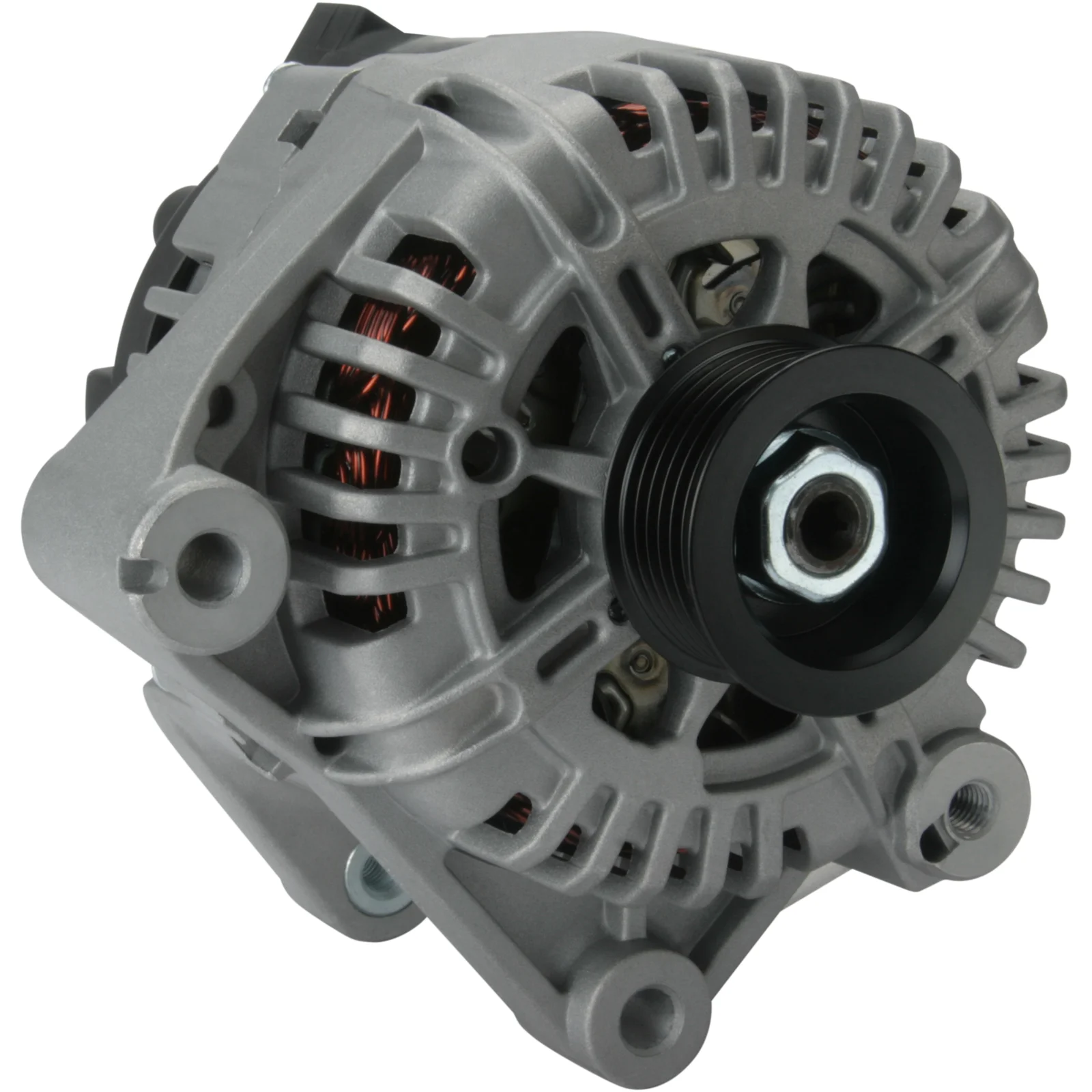

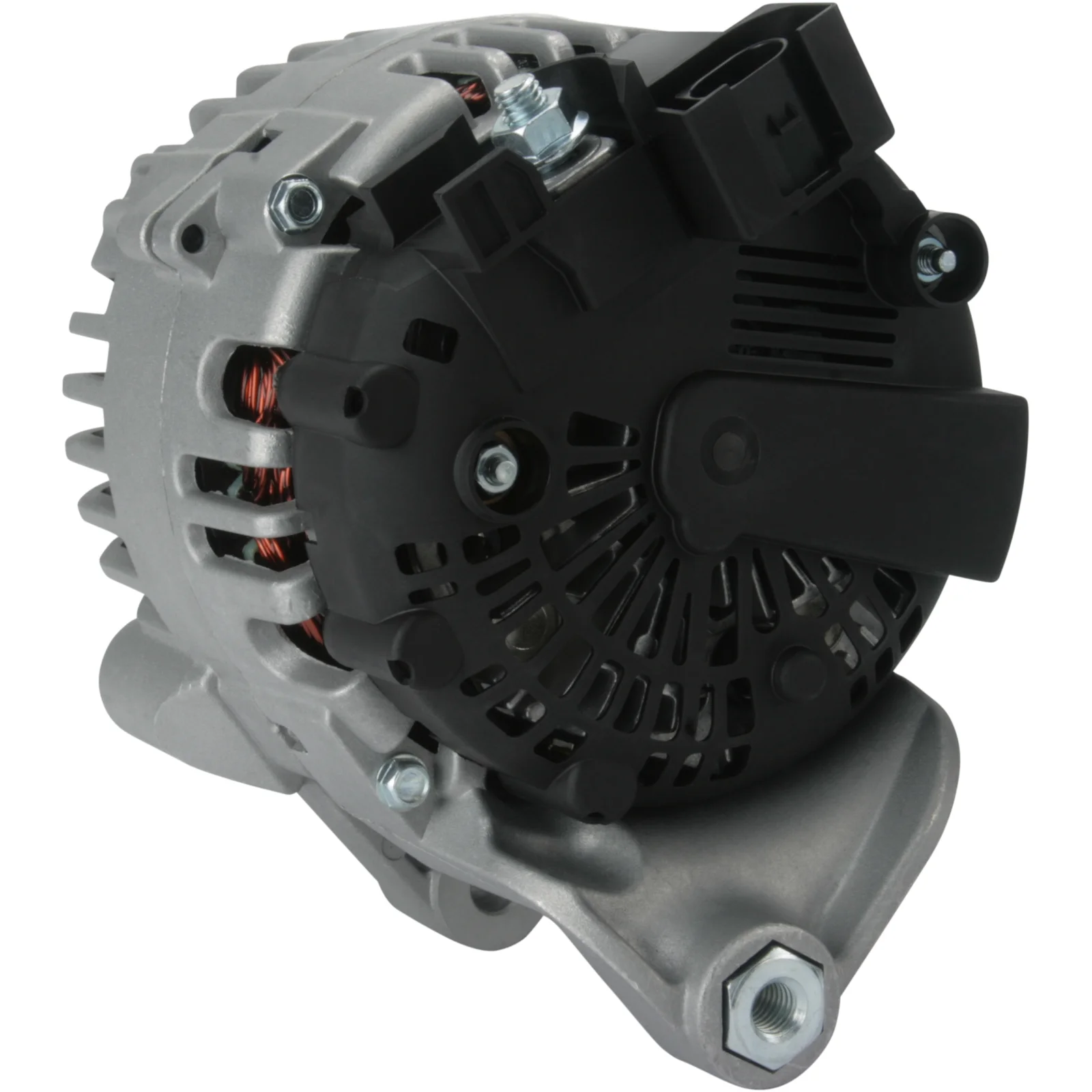

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 75.50

Description

BMW Diesel Alternator 12V-150A 12V - 150A, 6 grooves, (BSS) For Yourex product order 90-040-7538

Voltage: 14
Amp: 150
Pulley diameter: 56.00
Width / holder arm: 28.00
Mounting bracket distance: 75.50
Bracket hole: 10.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 10.30
Pulley diameter: 53.00
Grooves / pulley: 6
Radius: 93.00
Radius 2: 93.00
B+: M8
Position / B+ in min.: 55
Rotation: CW
Plug no.: PL125
Total length mm: 180.00
Terminal type: COM
Pulley: SP
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032114720, TG15C 027, TG15C 093, tg15c027, TG15C073, tg15c093, 1231 7797519, 1231 7799180, 1231 7802471, 1904ir, 1986A01344, 114720, 437538, 2542769, 2543303, 2543306, 2543306B, 2543306C, 2543306D, 2543390, 2543390A, 7799180, 7802471, 12317797519, 12317799180, 12317799181, 12317802471, 12317802927, 12318517262

  • Normalised article numbler
    a3269, a3269pr, cal15330, dra4255, f032114720, lra02956, tg15c027, tg15c073, tg15c093, 8el012429291, 8el738211671, 1904ir, 1986a01344, 4779, 21338n, 112369, 114720, 200154, 210499, 210499a, 285570, 301904ri, 437538, 439545, 439600, 440106, 746146, 746946, 747128, 2542769, 2543303, 2543306, 2543306b, 2543306c, 2543306d, 2543390, 2543390a, 7799180, 7802471, 9090428, 9212434, 12090268, 32080580, 215539150, 0986080580, 12317797519, 12317799180, 12317799181, 12317802471, 12317802927, 12318517262
  • Description
    BMW Diesel Alternator 12V-150A 12V - 150A, 6 grooves, (BSS) For Yourex product order 90-040-7538

    Voltage: 14
    Amp: 150
    Pulley diameter: 56.00
    Width / holder arm: 28.00
    Mounting bracket distance: 75.50
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 10.30
    Pulley diameter: 53.00
    Grooves / pulley: 6
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Position / B+ in min.: 55
    Rotation: CW
    Plug no.: PL125
    Total length mm: 180.00
    Terminal type: COM
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032114720, TG15C 027, TG15C 093, tg15c027, TG15C073, tg15c093, 1231 7797519, 1231 7799180, 1231 7802471, 1904ir, 1986A01344, 114720, 437538, 2542769, 2543303, 2543306, 2543306B, 2543306C, 2543306D, 2543390, 2543390A, 7799180, 7802471, 12317797519, 12317799180, 12317799181, 12317802471, 12317802927, 12318517262

    • Normalised article numbler
      a3269, a3269pr, cal15330, dra4255, f032114720, lra02956, tg15c027, tg15c073, tg15c093, 8el012429291, 8el738211671, 1904ir, 1986a01344, 4779, 21338n, 112369, 114720, 200154, 210499, 210499a, 285570, 301904ri, 437538, 439545, 439600, 440106, 746146, 746946, 747128, 2542769, 2543303, 2543306, 2543306b, 2543306c, 2543306d, 2543390, 2543390a, 7799180, 7802471, 9090428, 9212434, 12090268, 32080580, 215539150, 0986080580, 12317797519, 12317799180, 12317799181, 12317802471, 12317802927, 12318517262
