HC-Cargo Alternator

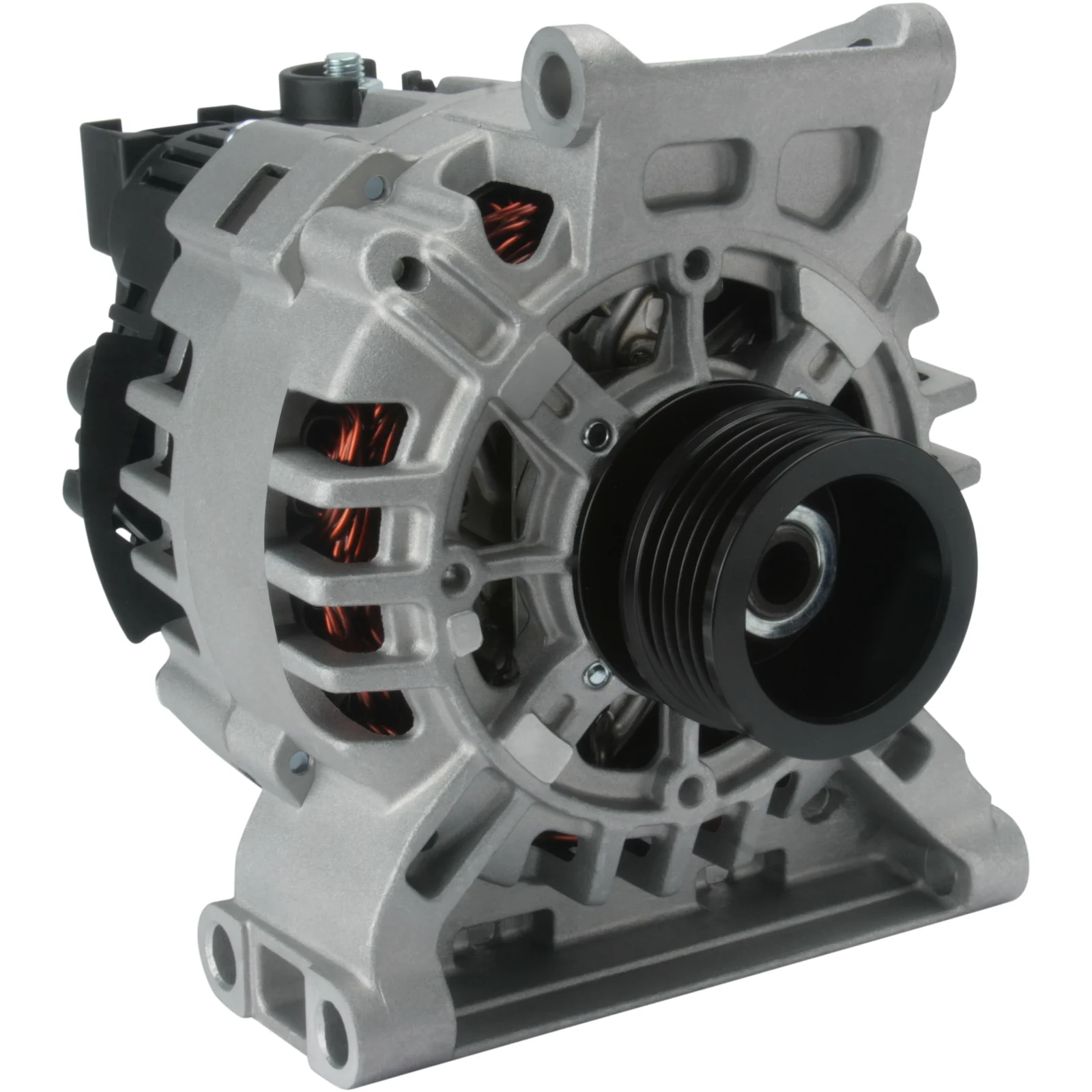

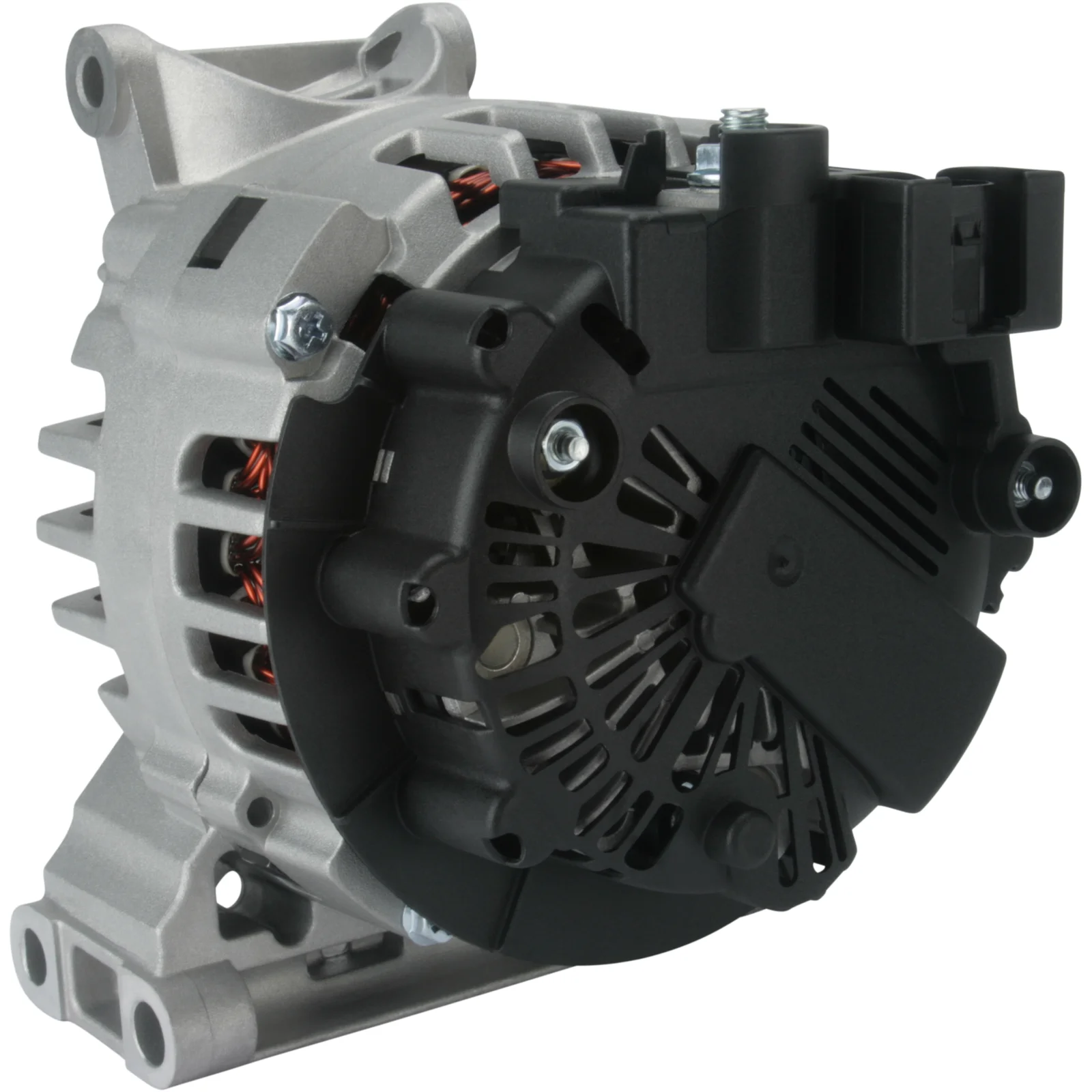

HC-Cargo Alternator
Article no.: F032115418

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mounting bracket distributor: 42.50

Description

Voltage: 14
Amp: 90
Pulley diameter: 30.00
Width/holder arm: 142.00
Mounting bracket distance: 42.50
Bracket hole: 10.50
Bracket hole 2: 9.00/11.00
Belt adjustment bracket hole 1: 8.00/10.00
Belt adjustment bracket hole 2: 8.00/10.00
Pulley diameter: 51.80
Grooves/pulley: 5
B+: M8
Position/B+ in min.: 60
Rotation: CW
Plug no.: PL125
Total length mm: 180.50
Terminal type: COM
Communication: LIN
Pulley: SP
Voltage regulator type: IR
Product info: BN
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A2661540802, a2661541202, F032115418, SG9B068, SG9B079, SG9B121, 1875ir, 2542955, 2542955A, 2542955B, 2542955E, 2606293A, 2661540802, 2661541202

  • Normalised article numbler
    a2661540802, a2661541202, a3319, cal15297, dra0102, f032115418, sg9b068, sg9b079, sg9b121, 8el012430161, 8el738211441, 1875ir, 23892noe, 200177, 210552, 210552a, 285509, 301875ri, 437537, 439544, 747076, 2542955, 2542955a, 2542955b, 2542955e, 2606293a, 9213722, 12090311, 32080500, 0986080500, 2661540802, 2661541202
  • Description
    Voltage: 14
    Amp: 90
    Pulley diameter: 30.00
    Width/holder arm: 142.00
    Mounting bracket distance: 42.50
    Bracket hole: 10.50
    Bracket hole 2: 9.00/11.00
    Belt adjustment bracket hole 1: 8.00/10.00
    Belt adjustment bracket hole 2: 8.00/10.00
    Pulley diameter: 51.80
    Grooves/pulley: 5
    B+: M8
    Position/B+ in min.: 60
    Rotation: CW
    Plug no.: PL125
    Total length mm: 180.50
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Voltage regulator type: IR
    Product info: BN
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A2661540802, a2661541202, F032115418, SG9B068, SG9B079, SG9B121, 1875ir, 2542955, 2542955A, 2542955B, 2542955E, 2606293A, 2661540802, 2661541202

    • Normalised article numbler
      a2661540802, a2661541202, a3319, cal15297, dra0102, f032115418, sg9b068, sg9b079, sg9b121, 8el012430161, 8el738211441, 1875ir, 23892noe, 200177, 210552, 210552a, 285509, 301875ri, 437537, 439544, 747076, 2542955, 2542955a, 2542955b, 2542955e, 2606293a, 9213722, 12090311, 32080500, 0986080500, 2661540802, 2661541202
