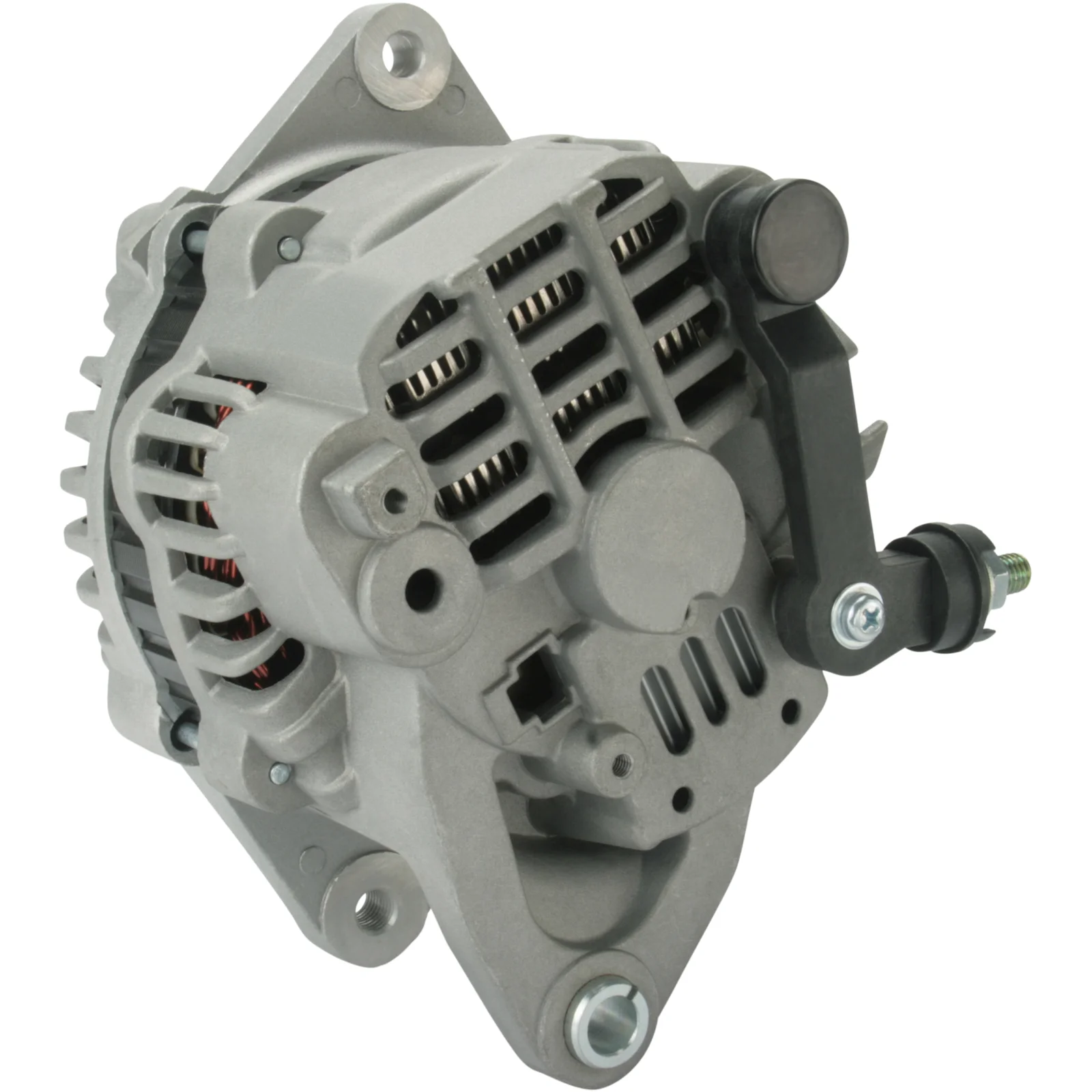

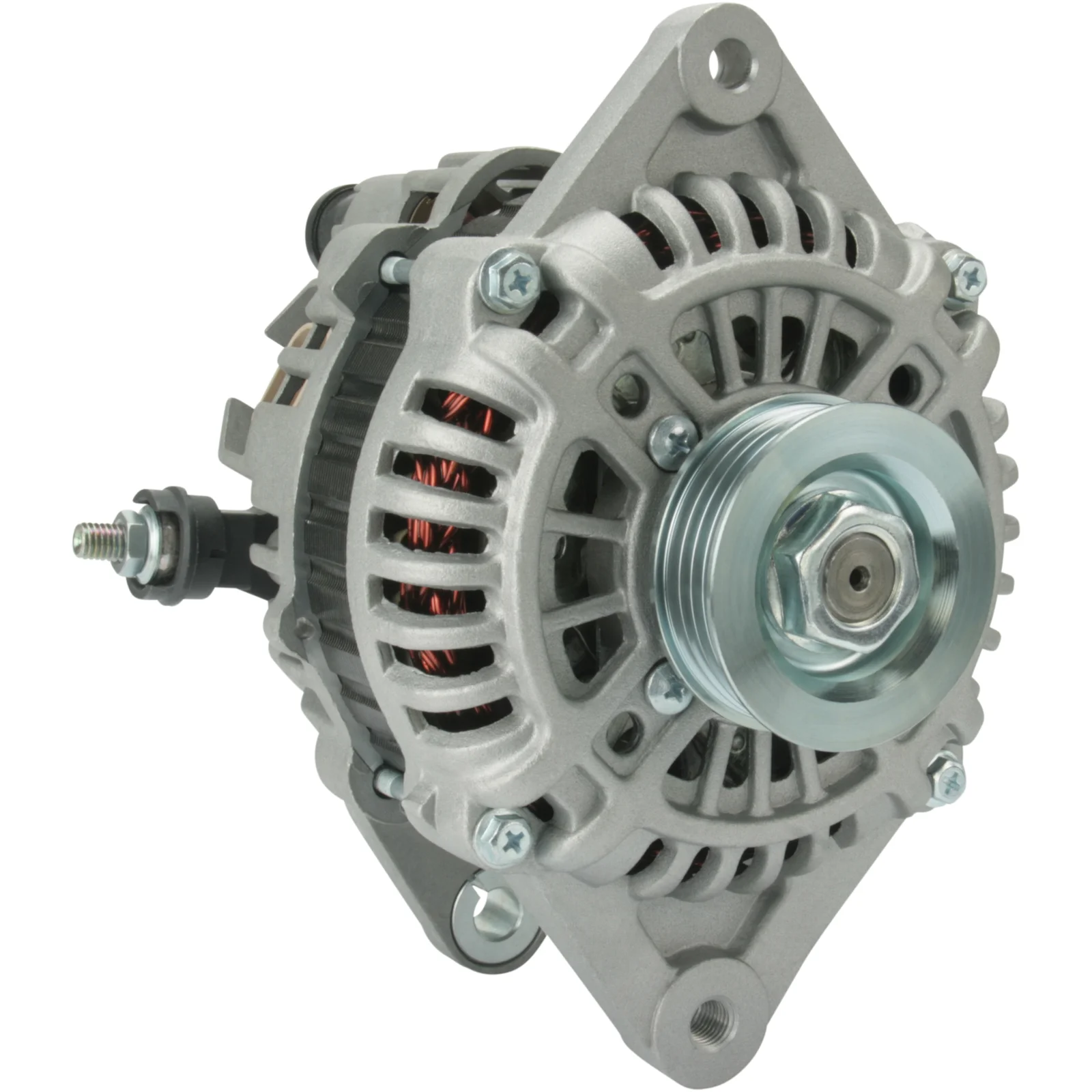

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112067

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 80, Rotation: CW, Mounting bracket distributor: 67.00

Description

Mazda 323/626 Alternator 12V-80A 12V - 80A, (D-P) The Voltage regulator is located in the Central data system. (ECU) Test adapter for Alternator = 89-8218 For Yourrex product order 90-360-4291 Voltage: 14 Amp: 80 Pulley diameter: 39.00 Width/holder arm: 13.50 Mounting bracket diameter: 67.00 Bracket hole: M10 Belt adjustment bracket hole position: 60 Belt adjustment bracket hole 1: 8.50 Pulley diameter: 55.00 Grooves/pulley: 4 Radius: 90.00 Radius 2: 85.00 B+: M8 Position/B+ in minutes: 17 D+ Size: Plug Rotation: CW Plug number: PL54 Total length mm: 163.00 Pulley: SP Regulator: without Production info: BN Servicing: Mazda

Files

  • OEM
    A002TB0191, A002TB0191A, A002TB0191B, A002TB7791, A2T-B0191, A2T-B0191A, A2T-B0191B, a2tb0191, a2tb0191a, a2tb0191b, A2TB0191BD, A2TB7791, BP6D-18-300, BP6D-18-300A, F032112067, FP34-18-300, FP34-18-300A, FP34-18-300B, fp34-18-300c, FP34-18-300CL1, FPG6-18-300, ja1409, LR180-766, lr180-766, 0986 042 911, 1986A01784, 112067

  • Normalised article numbler
    a002tb0191, a002tb0191a, a002tb0191b, a002tb7791, a2tb0191, a2tb0191a, a2tb0191b, a2tb0191bd, a2tb7791, a5257, alt3071b, alt3071c, bp6d18300, bp6d18300a, cal35144, dra3864, f032112067, f042303040, f042a03040, fp3418300, fp3418300a, fp3418300b, fp3418300c, fp3418300cl1, fpg618300, ja1409, lea0268, lr180766, lra01122, lra02925, 8el012426611, 8el737620001, 1986a01784, 5733, 13719, 13719n, 13719r, 13895n, 13895r, 112067, 119622, 209310, 209310a, 272816, 275540, 282816, 401409, 440816, 440818, 443016, 443101, 1244701mi, 1276601hi, 9051341, 9212449, 12060124, 145576080, 224137802, 224164802, 0986042911
  • Description
    Mazda 323/626 Alternator 12V-80A 12V - 80A, (D-P) The Voltage regulator is located in the Central data system. (ECU) Test adapter for Alternator = 89-8218 For Yourrex product order 90-360-4291 Voltage: 14 Amp: 80 Pulley diameter: 39.00 Width/holder arm: 13.50 Mounting bracket diameter: 67.00 Bracket hole: M10 Belt adjustment bracket hole position: 60 Belt adjustment bracket hole 1: 8.50 Pulley diameter: 55.00 Grooves/pulley: 4 Radius: 90.00 Radius 2: 85.00 B+: M8 Position/B+ in minutes: 17 D+ Size: Plug Rotation: CW Plug number: PL54 Total length mm: 163.00 Pulley: SP Regulator: without Production info: BN Servicing: Mazda

    Files

  • Suitable for these vehicles

    • OEM
      A002TB0191, A002TB0191A, A002TB0191B, A002TB7791, A2T-B0191, A2T-B0191A, A2T-B0191B, a2tb0191, a2tb0191a, a2tb0191b, A2TB0191BD, A2TB7791, BP6D-18-300, BP6D-18-300A, F032112067, FP34-18-300, FP34-18-300A, FP34-18-300B, fp34-18-300c, FP34-18-300CL1, FPG6-18-300, ja1409, LR180-766, lr180-766, 0986 042 911, 1986A01784, 112067

    • Normalised article numbler
      a002tb0191, a002tb0191a, a002tb0191b, a002tb7791, a2tb0191, a2tb0191a, a2tb0191b, a2tb0191bd, a2tb7791, a5257, alt3071b, alt3071c, bp6d18300, bp6d18300a, cal35144, dra3864, f032112067, f042303040, f042a03040, fp3418300, fp3418300a, fp3418300b, fp3418300c, fp3418300cl1, fpg618300, ja1409, lea0268, lr180766, lra01122, lra02925, 8el012426611, 8el737620001, 1986a01784, 5733, 13719, 13719n, 13719r, 13895n, 13895r, 112067, 119622, 209310, 209310a, 272816, 275540, 282816, 401409, 440816, 440818, 443016, 443101, 1244701mi, 1276601hi, 9051341, 9212449, 12060124, 145576080, 224137802, 224164802, 0986042911
