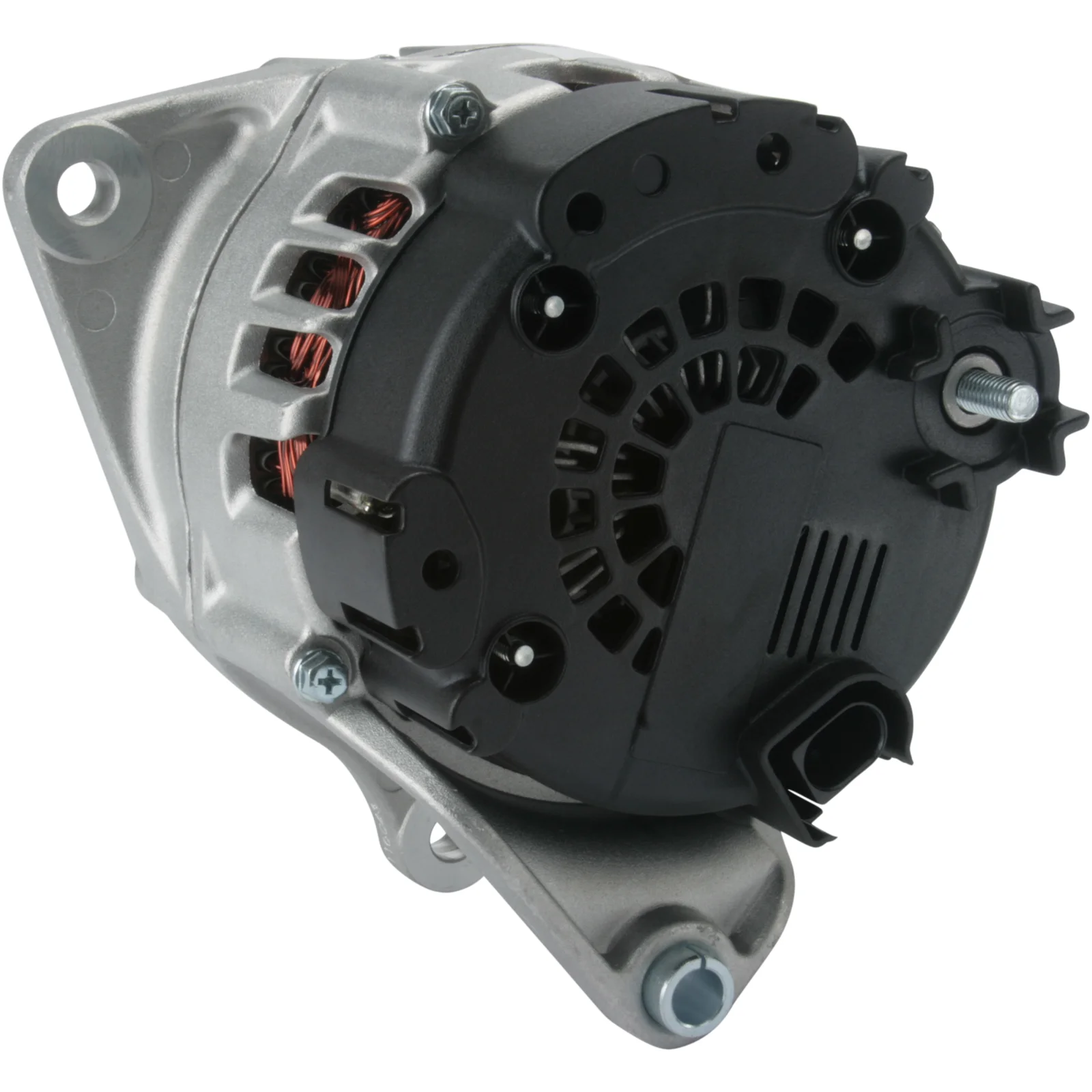

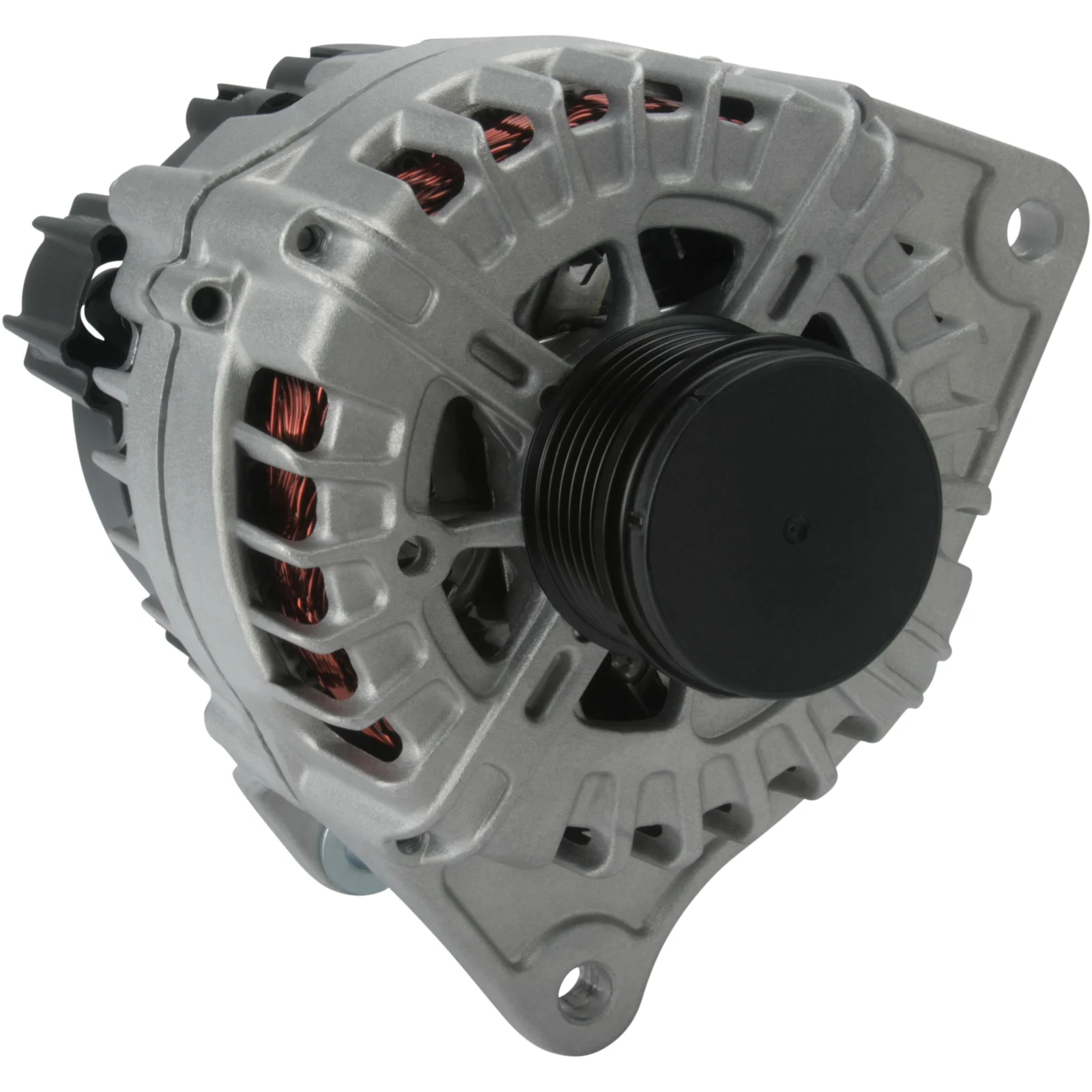

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116043

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 81.00

Description

Fiat/PSA Alternator 12V-180A 12V - 180A, 6-pole. (L, - ) For Yourrex product order 90-165-7165 Voltage: 14 Amps: 180 Pulley distance: 38.00 Width/holder arm: 14.00 Mounting bracket distance: 81.00 Bracket hole: 10.50 Belt adjustment bracket hole position: 10 Belt adjustment bracket hole 1: 11.00 Pulley diameter: 55.00 Grooves/pulley: 6 Radius: 96.50 Radius 2: 95.00 B+: M8 Position/B+ in min.: 12 D+ Size: Plug Rotation: CW Plug no.: PL61 Total length mm: 183.00 Pulley: SP/FW Regulator type: IR Product info: BN

Files

  • OEM
    A3117, A3117(VALEO), CAL15372, DRA0431, F032114082, F032116043, FG18S 022, FG18S 108, fg18s022, FG18S108, K5801526032, LRA03179, 8EL015630-851, 28-5791, 218.304.1802, 2089ir, 4401 A1, 4545H5, 5705KP, 23905, 23905N, 23905RW, 114082, 116043, 200214, 209268, 209268A, 439630, 440197, 553373RI, 2543538, 2543538a, 2543538A, 2617194A, 9090590, 12090273, 32007000, 51787165, 71796495, 504280012, 0986084140, 1608840980, 1613272580, 5801526032

  • Normalised article numbler
    a3117, a3117valeo, cal15372, dra0431, f032114082, f032116043, fg18s022, fg18s108, k5801526032, lra03179, 8el015630851, 2089ir, 4401a1, 4545h5, 5705kp, 23905, 23905n, 23905rw, 114082, 116043, 200214, 209268, 209268a, 285791, 439630, 440197, 553373ri, 2543538, 2543538a, 2617194a, 9090590, 12090273, 32007000, 51787165, 71796495, 504280012, 0986084140, 1608840980, 1613272580, 2183041802, 5801526032
  • Description
    Fiat/PSA Alternator 12V-180A 12V - 180A, 6-pole. (L, - ) For Yourrex product order 90-165-7165 Voltage: 14 Amps: 180 Pulley distance: 38.00 Width/holder arm: 14.00 Mounting bracket distance: 81.00 Bracket hole: 10.50 Belt adjustment bracket hole position: 10 Belt adjustment bracket hole 1: 11.00 Pulley diameter: 55.00 Grooves/pulley: 6 Radius: 96.50 Radius 2: 95.00 B+: M8 Position/B+ in min.: 12 D+ Size: Plug Rotation: CW Plug no.: PL61 Total length mm: 183.00 Pulley: SP/FW Regulator type: IR Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A3117, A3117(VALEO), CAL15372, DRA0431, F032114082, F032116043, FG18S 022, FG18S 108, fg18s022, FG18S108, K5801526032, LRA03179, 8EL015630-851, 28-5791, 218.304.1802, 2089ir, 4401 A1, 4545H5, 5705KP, 23905, 23905N, 23905RW, 114082, 116043, 200214, 209268, 209268A, 439630, 440197, 553373RI, 2543538, 2543538a, 2543538A, 2617194A, 9090590, 12090273, 32007000, 51787165, 71796495, 504280012, 0986084140, 1608840980, 1613272580, 5801526032

    • Normalised article numbler
      a3117, a3117valeo, cal15372, dra0431, f032114082, f032116043, fg18s022, fg18s108, k5801526032, lra03179, 8el015630851, 2089ir, 4401a1, 4545h5, 5705kp, 23905, 23905n, 23905rw, 114082, 116043, 200214, 209268, 209268a, 285791, 439630, 440197, 553373ri, 2543538, 2543538a, 2617194a, 9090590, 12090273, 32007000, 51787165, 71796495, 504280012, 0986084140, 1608840980, 1613272580, 2183041802, 5801526032
