HC-Cargo Alternator
HC-Cargo Alternator

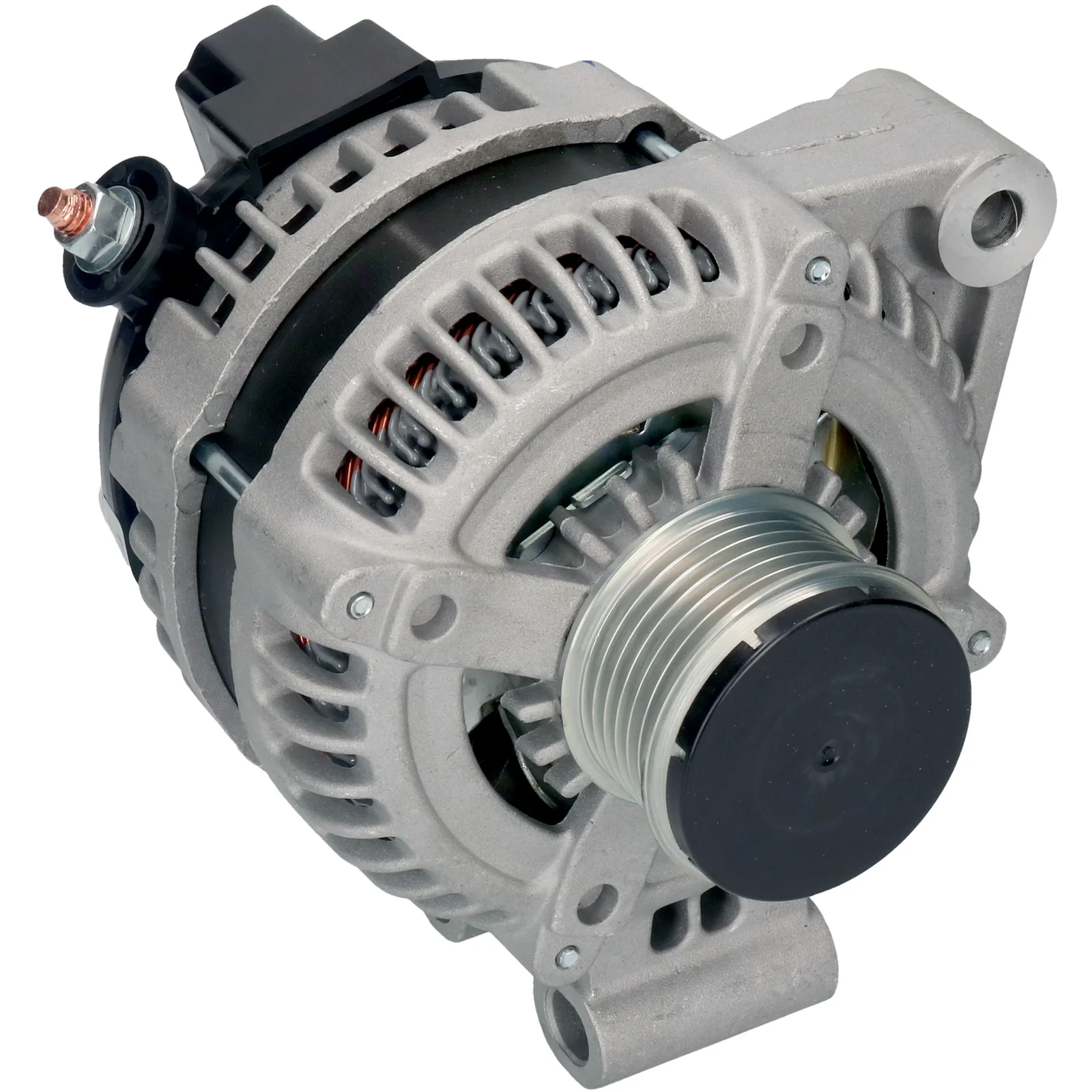

Article no.: F032116007

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mounting bracket distributor: 47.50

Description

Voltage: 14
Amp: 150
Pulley dist.: 22.50
Width/holder arm: 49.30
Mounting bracket dist.: 47.50
Bracket hole: 11.50x14.00
Belt adjustment bracket hole position.: 10
Belt adjustment bracket hole 1: 10.30
Pulley dia.: 54.00
Grooves/pulley: 6
Radius: 84.50
Radius 2: 86.00
B+: M8
Position/B+ in min.: 9
Rotation: CW
Plug no.: PL174
Total length mm: 178.00
Terminal type: COM
Communication: LIN
Alternator: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    AH2210300AB, F032116007, LR013847, LR072756, LR124836, 021080-1360, 104210-2420, 104210-2421, 104210-2422

  • Normalised article numbler
    a6248, a6248denso, ah2210300ab, cal40389, dan1105, dra1437, f032116007, lr013847, lr072756, lr124836, lra03666, 8el015630701, 20491, 20491r, 209331, 209331a, 286806, 444253, 12061105, 32085230, 0210801360, 455525150, 0986085230, 1042102420, 1042102421, 1042102422, 2141821502
  • Description
    Voltage: 14
    Amp: 150
    Pulley dist.: 22.50
    Width/holder arm: 49.30
    Mounting bracket dist.: 47.50
    Bracket hole: 11.50x14.00
    Belt adjustment bracket hole position.: 10
    Belt adjustment bracket hole 1: 10.30
    Pulley dia.: 54.00
    Grooves/pulley: 6
    Radius: 84.50
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 9
    Rotation: CW
    Plug no.: PL174
    Total length mm: 178.00
    Terminal type: COM
    Communication: LIN
    Alternator: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      AH2210300AB, F032116007, LR013847, LR072756, LR124836, 021080-1360, 104210-2420, 104210-2421, 104210-2422

    • Normalised article numbler
      a6248, a6248denso, ah2210300ab, cal40389, dan1105, dra1437, f032116007, lr013847, lr072756, lr124836, lra03666, 8el015630701, 20491, 20491r, 209331, 209331a, 286806, 444253, 12061105, 32085230, 0210801360, 455525150, 0986085230, 1042102420, 1042102421, 1042102422, 2141821502
