HC-Cargo Alternator

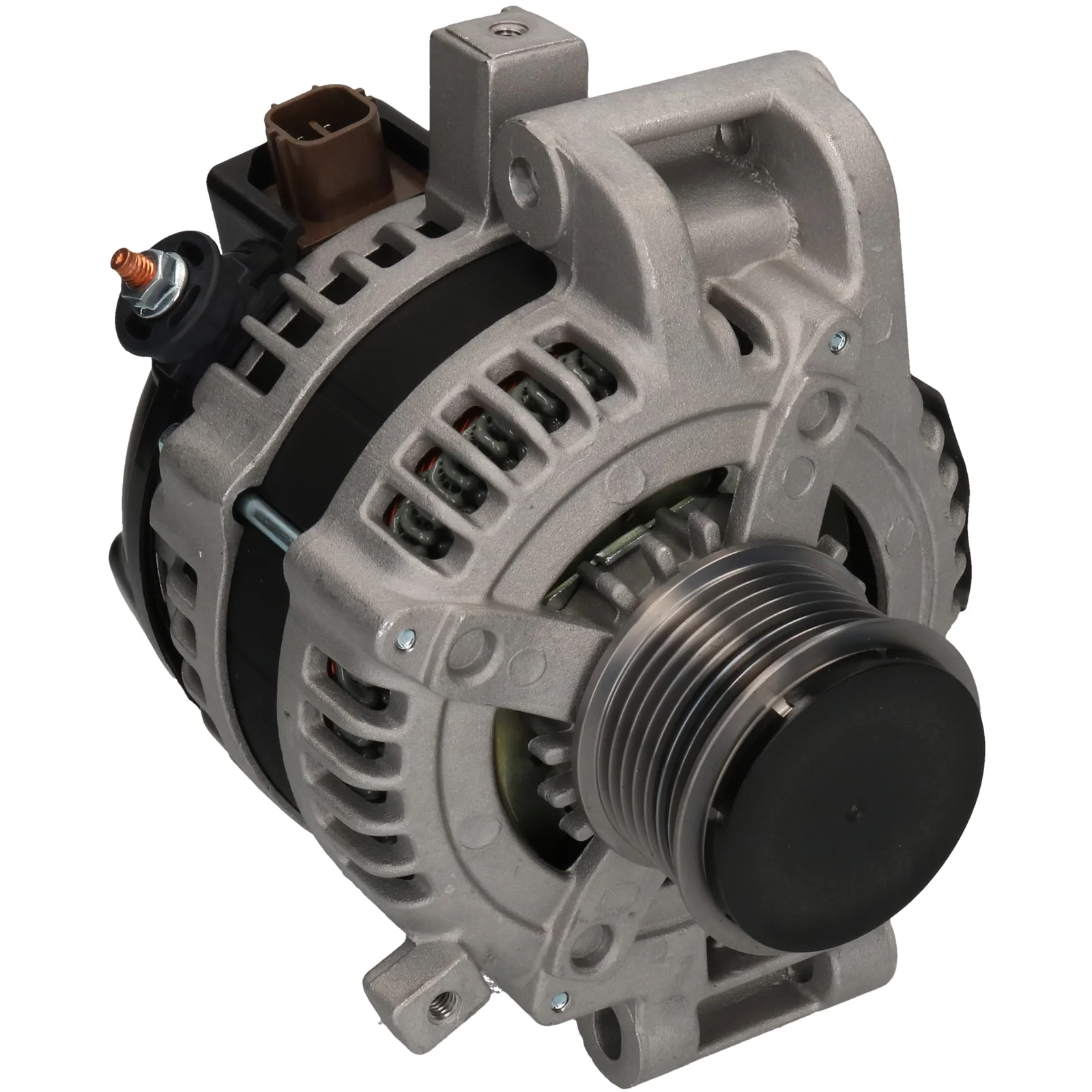

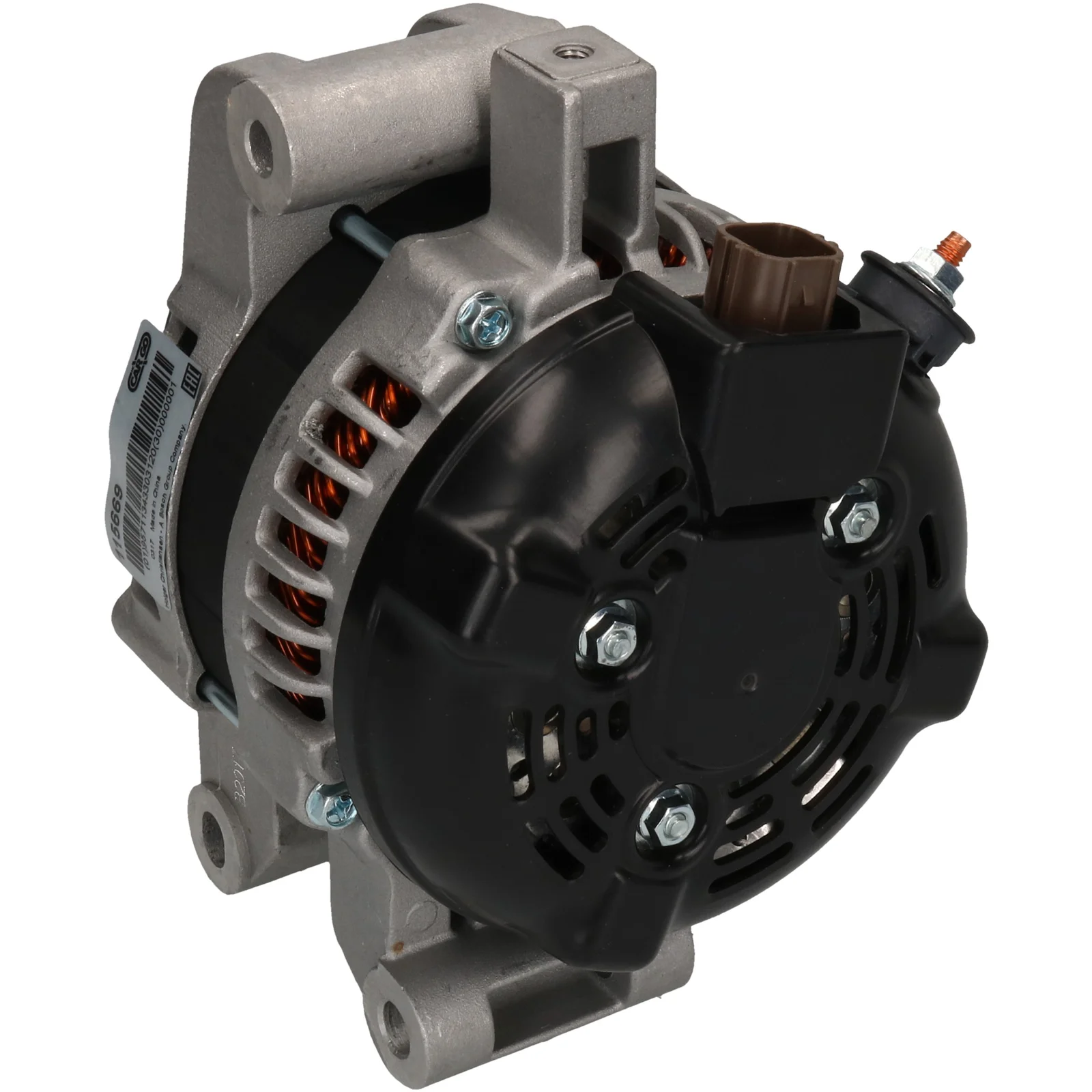

HC-Cargo Alternator
Article no.: F032115669

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 71.00

Description

Toyota RAV4 Alternator 150A 12V - 150A, 7-cylinder, (IG, RLO, L, M) For Yourex product order 90-555-2606 Voltage: 14 Amp: 150 Pulley diameter: 23.50 Width / holder arm: 60.00 Mounting bracket diameter: 71.00 Bracket hole: 9.50x12.00 Bracket hole 2: 10.20 Belt adjustment bracket hole position: 57 Belt adjustment bracket hole 1: 9.00 Pulley diameter: 58.00 Grooves / pulley: 7 Radius: 79.00 Radius 2: 82.00 B+: M6 Position / B+ in min.: 8 D+ Size: Plug Rotation: CW Plug no.: PL146 Total length mm: 165.00 Pulley: SP / FW Regulator type: IR Prod. info: BN

Files

  • OEM
    F032115669, 1986A00639, 021080-2470, 27060-26060, 27060-26081, 104210-2370, 104210-2371, 104211-8120, 104211-8121, 115669

  • Normalised article numbler
    a6371, a6371denso, cal40422, dan1350, dra1145, f032115669, j5112158, lra03378, 1986a00639, 115669, 285990, 554263ri, 12061019, 195568150, 0210802470, 0986085110, 1042102370, 1042102371, 1042118120, 1042118121, 2353181502, 2706026060, 2706026081
  • Description
    Toyota RAV4 Alternator 150A 12V - 150A, 7-cylinder, (IG, RLO, L, M) For Yourex product order 90-555-2606 Voltage: 14 Amp: 150 Pulley diameter: 23.50 Width / holder arm: 60.00 Mounting bracket diameter: 71.00 Bracket hole: 9.50x12.00 Bracket hole 2: 10.20 Belt adjustment bracket hole position: 57 Belt adjustment bracket hole 1: 9.00 Pulley diameter: 58.00 Grooves / pulley: 7 Radius: 79.00 Radius 2: 82.00 B+: M6 Position / B+ in min.: 8 D+ Size: Plug Rotation: CW Plug no.: PL146 Total length mm: 165.00 Pulley: SP / FW Regulator type: IR Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115669, 1986A00639, 021080-2470, 27060-26060, 27060-26081, 104210-2370, 104210-2371, 104211-8120, 104211-8121, 115669

    • Normalised article numbler
      a6371, a6371denso, cal40422, dan1350, dra1145, f032115669, j5112158, lra03378, 1986a00639, 115669, 285990, 554263ri, 12061019, 195568150, 0210802470, 0986085110, 1042102370, 1042102371, 1042118120, 1042118121, 2353181502, 2706026060, 2706026081
